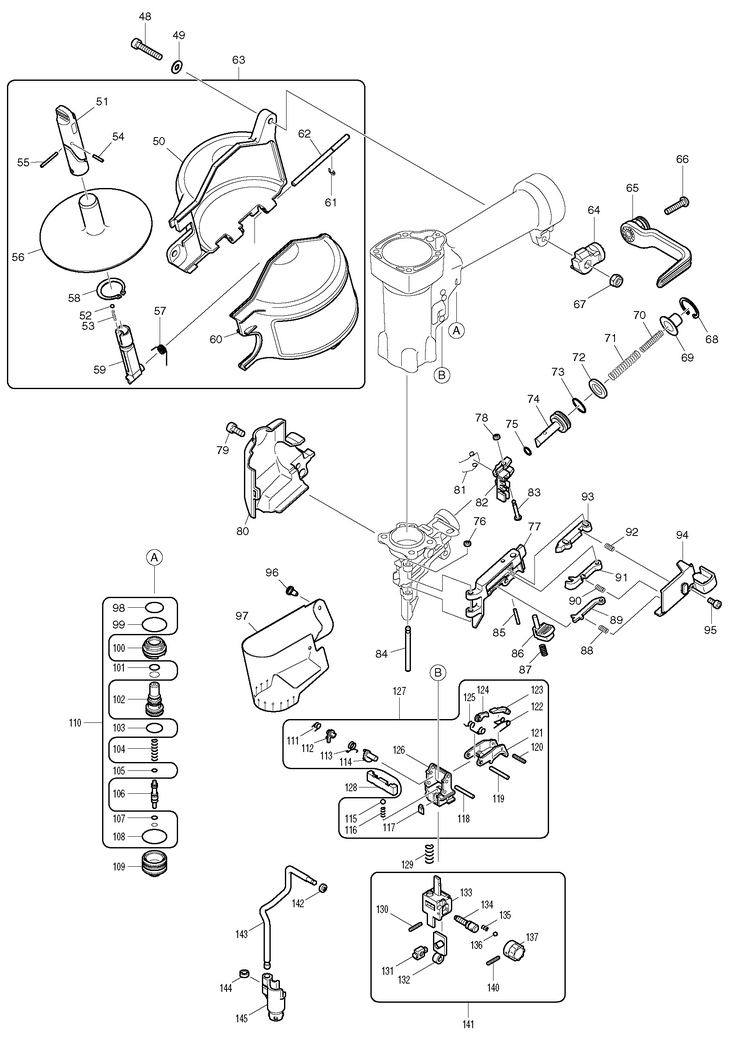

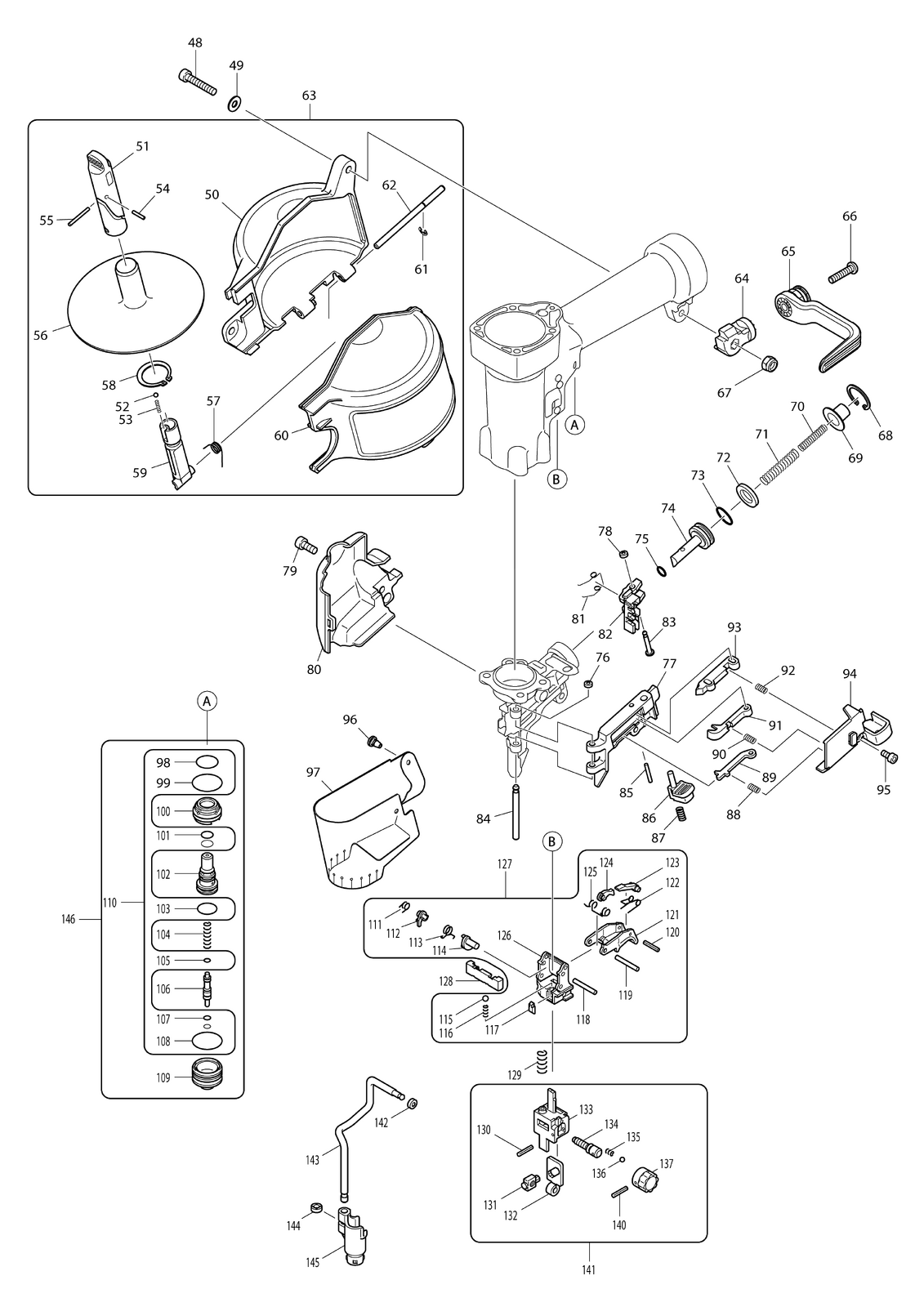

Top » Piese de schimb » PIESE MAKITA » Makita - Insurubare » AN510H AN510H [AN510H] Click pentru a mari Imagini suplimentare Click pentru a mari Click pentru a mari Click pentru a mari LISTA DE COMPONENTE: Numar Versiune Buc. in schema Denumire Pret/buc (Tva inclus) Cumpara C10 0 1 808229-0 - Indisponibil C10 0 1 816919-1 - Indisponibil A01 0 1 192517-8 - Indisponibil A01-1 1 1 195246-2 - Indisponibil A02 0 1 194381-3 - Indisponibil A03 0 1 421996-6 - Indisponibil A04 0 1 421997-4 - Indisponibil A05 0 1 824793-3 - Indisponibil C10 0 2 Latch (163455-1) 2124 RON C20 0 1 Handle new (419360-3) 1341 RON 001-1 1 1 HEX. SOCKET HEAD BOLT M5X12 AN621 (265903-7) 446 RON 001 0 1 HEX. SOCKET HEAD BOLT M5X12 AN621 (266233-9) 670 RON 002 0 1 267343-5 - Indisponibil 003 0 1 EXHAUST COVER (419764-9) 1341 RON 004 0 1 FILTER AN510H (413106-9) 2683 RON 005 0 1 COVER SEAL (419763-1) 894 RON 006 0 4 HEX SOCKET HEAD BOLT M5X20 AN943K (266369-4) 446 RON 007 0 1 TOP CAP AN510H (318252-2) 14987 RON 008 0 1 COMPRESSION SPRING 27 AN510H (234055-5) 1565 RON 009 0 1 O RING 5 (213021-5) 558 RON 010 0 1 O RING 23 AN621 (213393-8) 334 RON 011 0 1 O RING 34 (213458-6) 334 RON 012 0 1 HEAD VALVE AN510H (419770-4) 14651 RON 013 0 1 O RING 36 (213510-0) 558 RON 014 0 1 H.VALVE GUIDE (331744-4) 3578 RON 015 0 1 ORING 42 (213561-3) 558 RON 016 0 1 AIR LEAK REPAIR SET (194736-2) 11072 RON 017 0 1 FLAT WASHER 18 (267344-3) 334 RON 018 0 1 REAR CUSHION AN510H (421993-2) 297 RON 019 0 1 O RING 17 AN510H (213282-7) 1229 RON 020 0 1 DRIVER AN510H (165458-1) 33665 RON 021 0 1 DRIVER ASSY (135135-9) 58496 RON 022 0 1 VALVE SEAT AN510H (421994-0) 5032 RON 023 0 1 CYLINDER STAY (331743-6) 382 RON 024-1 1 1 326756-0 - Indisponibil 024 0 1 CYLINDER (331742-8) 15881 RON 025 0 1 O RING 33 AN901 (213462-5) 446 RON 026-1 1 1 O RING 26 (213643-1) 558 RON 026 0 1 O RING 26 6905H (213405-7) 334 RON 027 0 1 TOP CAP GASKET AN510H (162249-1) 3354 RON 028 0 1 866113-5 - Indisponibil 029 0 1 819333-0 - Indisponibil 031 0 1 819334-8 - Indisponibil 033 0 1 HOUSING SET AN510H (188650-2) 71582 RON 034 0 1 FRONT CUSHION AN510H (421992-4) 2683 RON 035-1 1 1 O RING 31 5 AN510H (213990-0) 334 RON 035 0 1 213491-8 - Indisponibil 036 0 1 O RING 3 DA3011F (213034-6) 111 RON 037 0 1 DRIVER GUIDE AN510H (158171-8) 65766 RON 038 0 4 HEX SOCKET HEAD BOLT M5X20 AN943K (266369-4) 446 RON 039 0 1 SPRING PIN AN250HC (951078-5) 223 RON 040 0 1 SPRING PIN AN250HC (951078-5) 223 RON 041 0 1 SPRING PIN AN250HC (951078-5) 223 RON 042-1 1 1 SPRING PIN 3-20 (258033-1) 223 RON 042 0 1 SPRING PIN 3-20 AN250HC (951069-6) 223 RON 043 0 1 INLET FILTER AN250HC (413105-1) 782 RON 044 0 1 213521-5 - Indisponibil 044-1 1 1 O RING 36 AN621 cod vechi 213521-5 (213506-1) 558 RON 045 0 1 INLET CAP AN250 AN510 AN911 (318108-9) 21138 RON 046 0 1 CAP 9 (286280-4) 670 RON 047 0 1 ONE TOUCH JOINT (243105-5) 6822 RON 048 0 1 265570-8 - Indisponibil 049 0 1 267343-5 - Indisponibil 050 0 1 MAGAZINE AN510H (419768-1) 4697 RON 051 0 1 CHANGE SLEEVE AN510H (419767-3) 1341 RON 052 0 1 BILA OL 3.5 (216001-0) 558 RON 053 0 1 COMPRESSION SPRING 2 AN711H (233492-0) 446 RON 054 0 1 PIN 2.5 (268169-8) 223 RON 055 0 1 PIN 2.5 (268167-2) 446 RON 056 0 1 CHANGE PLATE AN510H (419766-5) 1788 RON 057 0 1 TORSION SPRING 7 AN711H (233505-7) 1229 RON 058 0 1 SAIBA DE SIGURANTA S-25 (961105-0) 446 RON 059-1 1 1 459119-6 - Indisponibil 059 0 1 CHANGE SHAFT AN510H (419765-7) 670 RON 060 0 1 MAGAGINE CAP COMPLETE AN510H (158916-4) 1615 RON 061 0 1 STOP RING E-3 (259042-3) 111 RON 062 0 1 268171-1 - Indisponibil 063-1 1 1 136046-1 - Indisponibil 063 0 1 MAGAZINE ASSY (135257-5) 23375 RON 064 0 1 HOOK BASE (162255-6) 1229 RON 065 0 1 419843-3 - Indisponibil 066 0 1 265176-2 - Indisponibil 067 0 1 PIULITA HEXAGONALA M5 (931202-6) 894 RON 068 0 1 RETAINING RING INT R-21 AN510H (962101-1) 446 RON 069-4 4 1 327061-8 - Indisponibil 069-3 3 1 CUP WASHER AN510H (326664-5) 5815 RON 069-2 2 1 CUP WASHER AN510H (326664-5) 5815 RON 069-1 1 1 346842-1 - Indisponibil 069 0 1 CUP WASHER AN510H (345777-3) 894 RON 070 0 1 COMPRESSION SPRING 6 AN510H (233493-8) 894 RON 071 0 1 COMPRESSION SPRING 8 AN510H (233494-6) 782 RON 072 0 1 RUBBER RING 13 AN510H (262121-8) 105 RON 073 0 1 O RING 14 KP312S (213154-6) 111 RON 074 0 1 PISTON (324750-6) 3019 RON 075 0 1 O RING 8 (213007-9) 334 RON 076 0 1 URETHANE RING 6 (262120-0) 334 RON 077 0 1 DOOR AN510H (310189-9) 21474 RON 078 0 1 URETHANE RING 6 (262120-0) 334 RON 079 0 1 HEX. SOCKET HEAD BOLT M5X12 AN621 (265903-7) 446 RON 080 0 1 CONTACT ARM COVER (419762-3) 1229 RON 081 0 1 TORSION SPRING 6 AN510H (231652-8) 111 RON 082 0 1 FEEDING CLAW AN510H (310116-6) 6933 RON 083 0 1 SHOULDER PIN 3-4 AN510H (256463-0) 446 RON 084 0 1 PIN 4 (268170-3) 446 RON 085 0 1 PIN 3 AN510H (268183-4) 446 RON 086 0 1 LOCK LEVER (162247-5) 1341 RON 087 0 1 COMPRESSION SPRING 5 AN510H (234013-1) 670 RON 088 0 1 COMPRESSION SPRING 4 AN510H (233133-8) 334 RON 089 0 1 CHECK CLAW AN510H (344995-0) 1117 RON 090 0 1 COMPRESSION SPRING 4 AN510H (233133-8) 334 RON 091 0 1 NAIL HOLDER AN510H (311998-9) 382 RON 092 0 1 COMPRESSION SPRING 4 AN510H (233133-8) 334 RON 093 0 1 ARM AN510H (311997-1) 8052 RON 094 0 1 DOOR COVER (419761-5) 1117 RON 095 0 1 HEX. SOCKET HEAD BOLT M5X12 AN621 (265903-7) 446 RON 096 0 1 RUBBER PIN 9.5 (421418-6) 670 RON 097 0 1 COVER AN510H (413107-7) 3019 RON 098 0 1 O RING 15 (213233-0) 334 RON 099 0 1 O RING 18 HR4011C/4010C (213275-4) 334 RON 100 0 1 TRIGGER VALVE GUIDE AN450H (419732-2) 223 RON 101 0 2 O RING 7 (213968-3) 1117 RON 102-1 1 1 PILOT VALVE AN510H (456262-2) 17559 RON 102 0 1 419733-0 - Indisponibil 103 0 1 O RING 12.5 (213185-5) 334 RON 104 0 1 COMPRESSION SPRING 4 AN510H (233485-7) 894 RON 105-1 1 1 O RING 3 (213044-3) 334 RON 105 0 1 O RING 3 DA3011F (213034-6) 111 RON 106-1 1 1 TRIGGER VALVE STEM (326189-9) 3019 RON 106 0 1 324743-3 - Indisponibil 107-1 1 2 213640-7 - Indisponibil 107 0 2 O RING 3 AN620H (213979-8) 894 RON 108 0 1 O RING 18 HR4011C/4010C (213275-4) 334 RON 109 0 1 TRIGGER VALVE CASE (331741-0) 5815 RON 110 0 1 AIR LEAK REPAIR SET (194736-2) 11072 RON 111 0 1 TORSION SPRING 5 (233501-5) 558 RON 112 0 1 STOPPER PLATE (310199-6) 3019 RON 113-1 1 1 TORSION SPRING 6 (233576-4) 1788 RON 113 0 1 233502-3 - Indisponibil 114 0 1 LEVER (310310-0) 3019 RON 115-1 1 1 LOCK PIN AN630H (326144-1) 894 RON 115 0 1 STEEL BALL 4 LS1216 (216024-8) 111 RON 116 0 1 COMPRESSION SPRING 2 (233490-4) 334 RON 117 0 1 SPRING COVER (419743-7) 334 RON 118 0 1 PIN 3 (268168-0) 446 RON 119 0 1 PIN 3 (268168-0) 446 RON 120 0 1 SPRING PIN 2-12 AN250HC (951007-8) 223 RON 121 0 1 TRIGGER (310294-2) 8947 RON 122 0 1 TORSION SPRING 4 (231699-2) 446 RON 123-1 1 1 313724-2 - Indisponibil 123 0 1 TRIP LEVER (310196-2) 3354 RON 124 0 1 LEVER (310198-8) 3131 RON 125 0 1 TORSION SPRING 4 (233503-1) 1229 RON 126 0 1 TRIGGER BASE AN250HC (419844-1) 2571 RON 127-1 1 1 135494-1 - Indisponibil 127 0 1 135231-3 - Indisponibil 128 0 1 CHANGE ROD AN711H (310293-4) 7381 RON 129 0 1 COMPRESSION SPRING 6 AN510H (234012-3) 894 RON 130 0 1 SPRING PIN 2-14 AN901 (951010-9) 781 RON 131 0 1 ADJUSTER PIECE AN250HC (310201-5) 297 RON 132 0 1 SLIDE PLATE AN620H (345775-7) 894 RON 133 0 1 UPPER YORK AN510H (310234-0) 11631 RON 134 0 1 324745-9 - Indisponibil 135 0 1 COMPRESSION SPRING 2 AN250HC (233491-2) 446 RON 136 0 1 STEEL BALL 2.3 (216031-1) 223 RON 137 0 1 ADJUSTER COMPLETE (158747-1) 670 RON 140 0 1 SPRING PIN 2-14 AN901 (951010-9) 781 RON 141 0 1 ADJUSTER (135232-1) 21921 RON 142 0 1 URETHANE RING 6 (262120-0) 334 RON 143 0 1 ARM AN510H (324751-4) 956 RON 144 0 1 262128-4 - Indisponibil 145 0 1 CONTACT TOP AN510H (310240-5) 10624 RON 146-1 1 1 135681-2 - Indisponibil 146 0 1 135598-9 - Indisponibil
