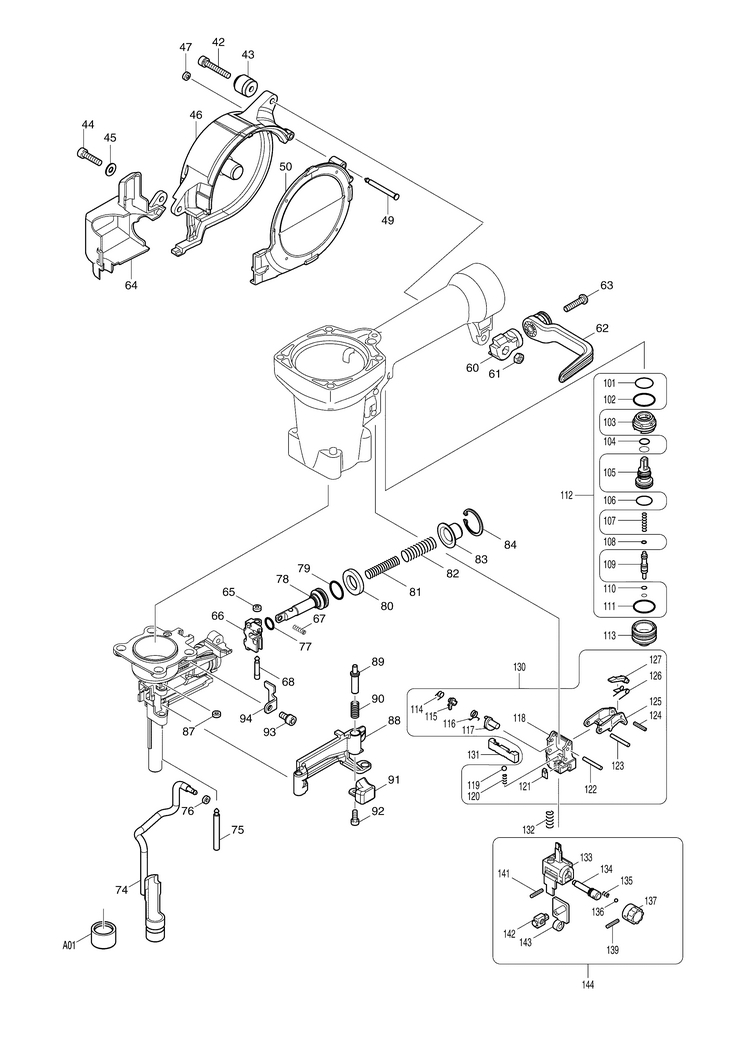

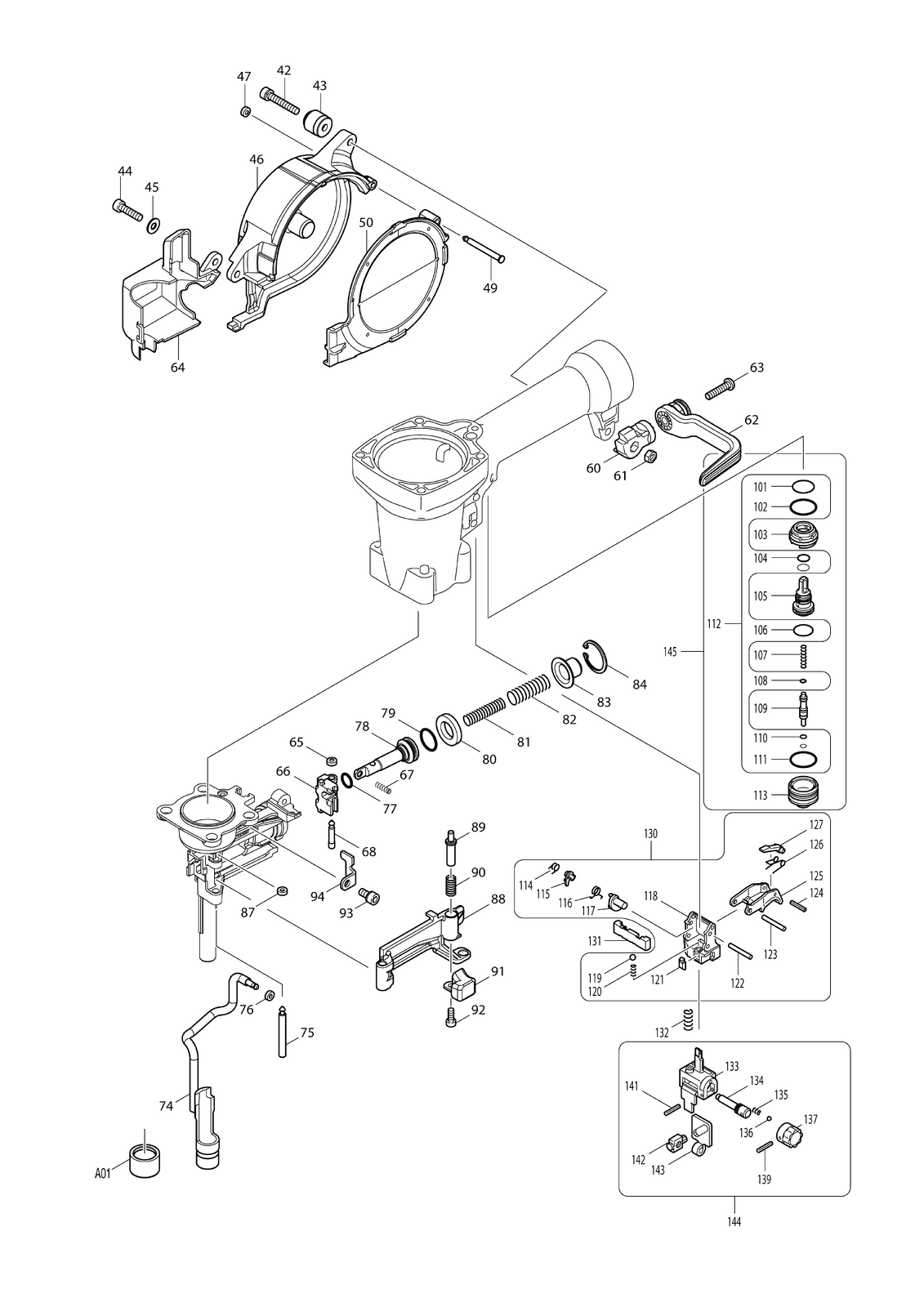

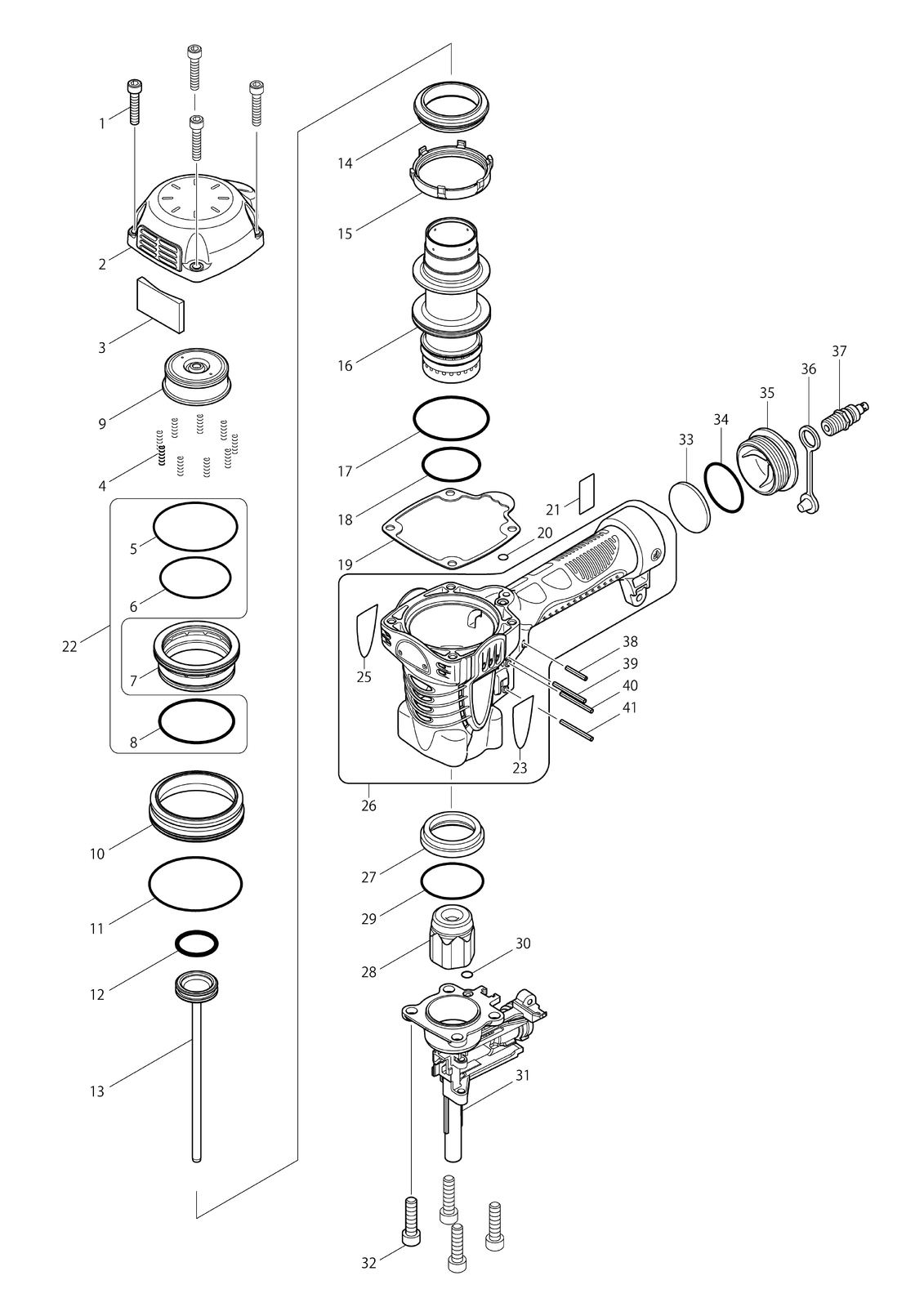

Top » Piese de schimb » PIESE MAKITA » Makita - Insurubare » AN250HC AN250HC [AN250HC] Click pentru a mari Imagini suplimentare Click pentru a mari Click pentru a mari Click pentru a mari LISTA DE COMPONENTE: Numar Versiune Buc. in schema Denumire Pret/buc (Tva inclus) Cumpara C10 0 1 816921-4 - Indisponibil A01 0 2 NOSE ADAPTER A AN250HC (424234-5) 4249 RON A02 0 2 424237-9 - Indisponibil A03 0 1 824792-5 - Indisponibil C10 0 1 188610-4 - Indisponibil A04 0 1 192517-8 - Indisponibil A04-1 1 1 195246-2 - Indisponibil A05 0 1 194381-3 - Indisponibil 001 0 4 HEX.SOCK.HEAD BOLT M6X30 AN711 (265566-9) 558 RON 002 0 1 TOP CAP COMPLETE AN711H (158219-6) 19013 RON 003 0 1 FILTER AN250HC (413112-4) 1147 RON 004 0 9 COMPRESSION SPRING 4 AN711H (233484-9) 782 RON 005 0 1 O RING 60 (213668-5) 670 RON 006 0 1 O RING 50 AN711/911H (213612-2) 558 RON 007 0 1 HEAD VALVE AN250HC (419842-5) 8388 RON 008 0 1 O RING 53 AN901 (213657-0) 781 RON 009-1 1 1 REAR CUSHION AN250HC (424012-3) 1339 RON 009 0 1 REAR CUSHION AN250HC (424012-3) 1339 RON 010 0 1 HEAD VALVE GUIDE (331764-8) 7828 RON 011-1 1 1 213A35-0 - Indisponibil 011 0 1 O RING 67 (213720-9) 334 RON 012 0 1 ORING 26 AN711/911 (213982-9) 2012 RON 013 0 1 DRIVER AN250HC (168538-2) 80642 RON 014 0 1 VALVE SEAT AN250HC (424013-1) 765 RON 015 0 1 CYLINDER STAY (331759-1) 5256 RON 016 0 1 CYLINDER (331763-0) 28968 RON 017 0 1 O RING 53 AN901 (213657-0) 781 RON 018 0 1 O RING 39 AN711/911H (213531-2) 446 RON 019 0 1 TOP CAP GASKET (162254-8) 382 RON 020 0 1 O RING 6 AN711/911H (213045-1) 558 RON 021 0 1 867290-6 - Indisponibil 022-1 1 1 199953-9 - Indisponibil 022 0 1 AIR LEAK REPAIR SET AN711H AN911H AN250HC (194737-0) 13756 RON 023 0 1 819324-1 - Indisponibil 025 0 1 819323-3 - Indisponibil 026 0 1 HOUSING SET AN250HC (188777-8) 87912 RON 027 0 1 CYLINDER GUIDE (331758-3) 4361 RON 028 0 1 FRONT CUSHION AN250HC (424011-5) 1424 RON 029 0 1 O RING 44 (213554-0) 558 RON 030 0 1 O RING 5 (213021-5) 558 RON 031 0 1 DRIVER GUIDE AN250HC (310318-4) 102564 RON 032 0 4 HEX.SOCK.HEAD BOL.M8X30 AN711H (265565-1) 782 RON 033 0 1 INLET FILTER AN250HC (413105-1) 782 RON 034-1 1 1 O RING 36 AN621 cod vechi 213521-5 (213506-1) 558 RON 034 0 1 213521-5 - Indisponibil 035 0 1 INLET CAP AN250 AN510 AN911 (318108-9) 21138 RON 036 0 1 CAP 9 (286280-4) 670 RON 037 0 1 ONE TOUCH JOINT (243105-5) 6822 RON 038 0 1 SPRING PIN 3-20 AN250HC (951069-6) 223 RON 039 0 1 SPRING PIN AN250HC (951078-5) 223 RON 040 0 1 SPRING PIN AN250HC (951078-5) 223 RON 041 0 1 SPRING PIN AN250HC (951078-5) 223 RON 042 0 1 265919-2 - Indisponibil 043 0 1 SLEEVE 5 AN250HC (325725-8) 190 RON 044 0 1 HEX SOCKET HEAD BOLT M5X20 AN943K (266369-4) 446 RON 045 0 1 267343-5 - Indisponibil 046 0 1 MAGAZINE AN250HC (451377-0) 6374 RON 047 0 1 URETHANE RING 6 (262120-0) 334 RON 049 0 1 256678-9 - Indisponibil 050 0 1 MAGAZINE CAP (140304-9) 11631 RON 060 0 1 HOOK BASE (162255-6) 1229 RON 061 0 1 PIULITA HEXAGONALA M5 (931202-6) 894 RON 062 0 1 168499-6 - Indisponibil 063 0 1 265176-2 - Indisponibil 064 0 1 CONTACT ARM COVER AN250HC (451379-6) 4137 RON 065 0 1 URETHANE RING 6 (262120-0) 334 RON 066 0 1 FEEDING CLAW (310320-7) 8947 RON 067 0 1 COMPRESSION SPRING 3 AN250HC (234150-1) 2795 RON 068 0 1 PIN 4 - 4.5 (256432-1) 1229 RON 074 0 1 CONTACT ARM (165584-6) 19013 RON 075 0 1 PIN 4 AN250HC (256782-4) 670 RON 076 0 1 URETHANE RING 6 (262120-0) 334 RON 077 0 1 O RING 9 AN901 (213054-0) 558 RON 078 0 1 PISTON AN250HC (325718-5) 3914 RON 079 0 1 O RING 14 KP312S (213154-6) 111 RON 080 0 1 RUBBER RING 14 (262123-4) 894 RON 081 0 1 COMPRESSION SPRING 9 (234045-8) 2012 RON 082 0 1 COMPRESSION SPRING 10 (234046-6) 2012 RON 083-1 1 1 326913-0 - Indisponibil 083 0 1 CUP WASHER (345781-2) 558 RON 084 0 1 RETAINING RING R-24 EM2651UH (962103-7) 446 RON 087 0 1 URETHANE RING 6 (262120-0) 334 RON 088 0 1 DOOR (310319-2) 30534 RON 089 0 1 LOCK PIN (325721-6) 105 RON 090 0 1 COMPRESSION SPRING 6 AN901 (233201-7) 894 RON 091 0 1 LOCK LEVER AN901 (310050-0) 297 RON 092 0 1 HEX. SOCKET HEAD BOLT M4X10 AN901 (266167-6) 781 RON 093 0 1 HEX. SOCKET HEAD BOLT M5x12 EM2651UH (922211-6) 558 RON 094 0 1 HOLDER AN250HC (346127-5) 670 RON 101 0 1 O RING 15 (213233-0) 334 RON 102 0 1 O RING 18 HR4011C/4010C (213275-4) 334 RON 103 0 1 TRIGGER VALVE GUIDE AN250HC (419841-7) 8164 RON 104 0 2 O RING 7 (213968-3) 1117 RON 105-1 1 1 PILOT VALVE (456261-4) 1615 RON 105 0 1 419958-6 - Indisponibil 106 0 1 O RING 12.5 (213185-5) 334 RON 107-1 1 1 COMPRESSION SPRING 3 AN711H (234187-8) 446 RON 107 0 1 234014-9 - Indisponibil 108-2 2 1 213A17-2 - Indisponibil 108 0 1 O RING 3 DA3011F (213034-6) 111 RON 108-1 1 1 O RING 3 (213044-3) 334 RON 109-1 1 1 TRIGGER VALVE STEM (326189-9) 3019 RON 109 0 1 324743-3 - Indisponibil 110-1 1 2 213640-7 - Indisponibil 110 0 2 O RING 3 AN620H (213979-8) 894 RON 111-1 1 1 O RING 20 (213310-8) 334 RON 111 0 1 O RING 18 HR4011C/4010C (213275-4) 334 RON 112-1 1 1 199953-9 - Indisponibil 112 0 1 AIR LEAK REPAIR SET AN711H AN911H AN250HC (194737-0) 13756 RON 113 0 1 TRIGGER VALVE CASE (331741-0) 5815 RON 114 0 1 TORSION SPRING 5 (233501-5) 558 RON 115 0 1 STOPPER PLATE (310199-6) 3019 RON 116 0 1 233502-3 - Indisponibil 117 0 1 LEVER (310310-0) 3019 RON 118 0 1 TRIGGER BASE AN250HC (419844-1) 2571 RON 119-1 1 1 LOCK PIN AN630H (326144-1) 894 RON 119 0 1 STEEL BALL 4 LS1216 (216024-8) 111 RON 120 0 1 COMPRESSION SPRING 2 (233490-4) 334 RON 121 0 1 SPRING COVER (419743-7) 334 RON 122 0 1 PIN 3 (268168-0) 446 RON 123 0 1 PIN 3 (268168-0) 446 RON 124 0 1 SPRING PIN 2-12 AN250HC (951007-8) 223 RON 125 0 1 310190-4 - Indisponibil 126 0 1 TORSION SPRING 4 (231699-2) 446 RON 127-1 1 1 313724-2 - Indisponibil 127 0 1 TRIP LEVER (310196-2) 3354 RON 130-1 1 1 TRIGGER ASSEMBLY (135188-8) 21921 RON 130 0 1 TRIGGER ASSEMBLY (135188-8) 21921 RON 131 0 1 CHANGE ROD (310187-3) 4025 RON 132 0 1 COMPRESSION SPRING 6 (233489-9) 446 RON 133 0 1 UPPER YOKE AN250HC (310227-7) 10177 RON 134 0 1 ADJUSTER SHAFT AN911H (324767-9) 782 RON 135 0 1 COMPRESSION SPRING 2 AN250HC (233491-2) 446 RON 136 0 1 STEEL BALL 2.3 (216031-1) 223 RON 137 0 1 ADJUSTER COMPLETE (158747-1) 670 RON 139 0 1 SPRING PIN 2-14 AN901 (951010-9) 781 RON 141 0 1 SPRING PIN 2-14 AN901 (951010-9) 781 RON 142 0 1 ADJUSTER PIECE AN250HC (310201-5) 297 RON 143 0 1 SLIDE PLATE AN911H (345801-2) 894 RON 144 0 1 ADJUSTER (135228-2) 1615 RON 145 0 1 135597-1 - Indisponibil 145-1 1 1 135682-0 - Indisponibil 145-2 2 1 136098-2 - Indisponibil
