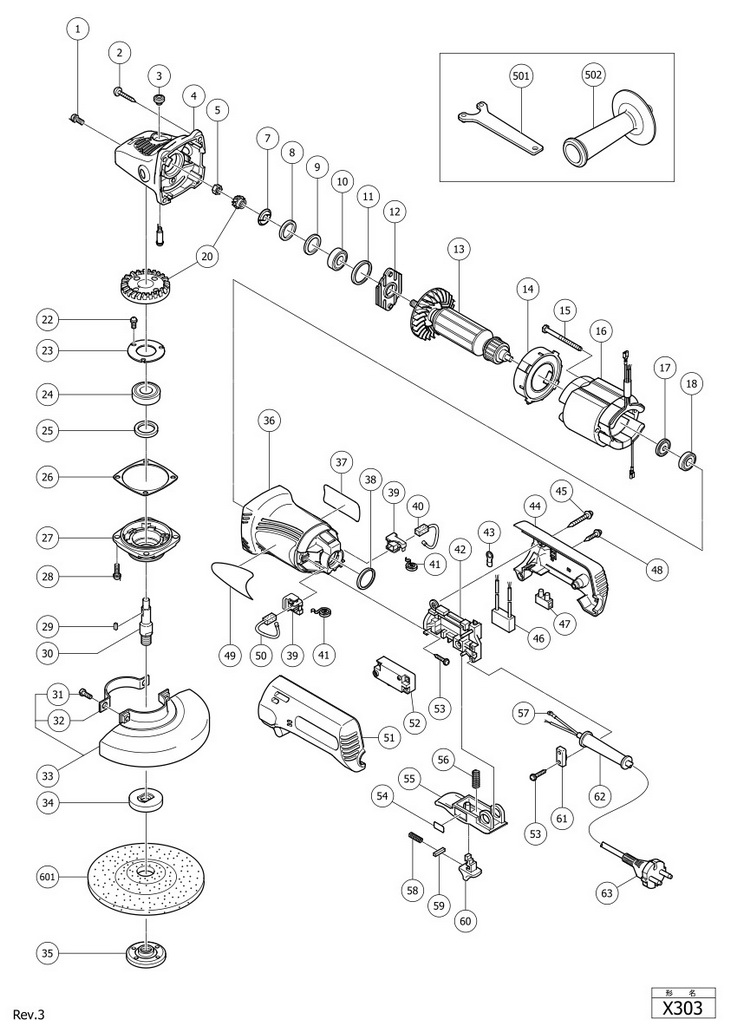

Top » Piese de schimb » PIESE HITACHI » X303 X303 [X303] Click pentru a mari Imagini suplimentare Click pentru a mari LISTA DE COMPONENTE: Numar Versiune Buc. in schema Denumire Pret/buc (Tva inclus) Cumpara 1 1 2 SEAL LOCK SCREW M4X10 (W/SP WASHER) (303255) 894 RON 2 1 4 TAPPING SCREW D5X25 BLACK (320523) 1788 RON 3 1 1 PUSHING BUTTON (301944) 894 RON 4 1 1 321737 (321737) 19461 RON 5 1 1 SPECIAL NUT M6 (309191) 1117 RON 7 1 1 SEAL WASHER (311489) 894 RON 8 1 1 SEAL RING (A) (308543) 894 RON 9 1 1 WASHER (C) (980866) 894 RON 10 1 1 BALL BEARING 629T12DDC3PS2-L (629T12) 4137 RON 11 1 1 RUBBER RING (OLD 994299) (957754) 1453 RON 12 1 1 BEARING COVER (321734) 1453 RON 13 1 1 ARMATURE 230 VOLT (X303) (360782E) 37244 RON 14 1 1 FAN GUIDE (321732) 1453 RON 15 1 2 HEX.HD. TAPPING SCREW D4X70 (982021) 894 RON 16 1 1 STATOR 230 VOLT (340551E) 20579 RON 17 1 1 DUST SEAL (315877) 1453 RON 18 1 1 BALL BEARING 608VVMC2EPS2L (608VVM) 4025 RON 19 1 1 LOCK PIN (301943) 2348 RON 20 1 1 311486 (311486) 21697 RON 22 1 3 SEAL LOCK SCREW M4X8 (W/SP WASHER) (991207) 894 RON 23 1 1 BEARING COVER (B) (936680) 894 RON 24 1 1 BALL BEARING 6201DDUCMAV2S (6201DD) 4361 RON 25 1 1 FELT PACKING (308546) 894 RON 26 1 1 SEAL PACKING (308547) 1117 RON 27 1 1 PACKING GLAND (308545) 6151 RON 28 1 4 SEAL LOCK SCREW M5X16 (W/WASHER) (307046) 894 RON 29 1 1 FEATHER KEY 3X3X8 (944109) 2012 RON 30 1 1 SPINDLE (A) (994301) 956 RON 31 1 2 309563 - Indisponibil 32 1 1 SET PLATE (301949) 894 RON 33 1 1 317249 (317249) 16553 RON 34 1 1 WHEEL WASHER (376067) 488 RON 35 1 1 WHEEL NUT M14X2 (937909Z) 573 RON 36 1 1 HOUSING (321731) 6822 RON 37 1 1 - Indisponibil 38 1 1 RUBBER RING (321733) Indisponibil Indisponibil 39 1 2 BRUSH HOLDER (317810) 4025 RON 40 1 1 CARBON BRUSH (999088) 382 RON 41 1 2 SPRING (308536) 2236 RON 42 1 1 SWITCH BOX (311738) 2124 RON 43 1 1 TERMINAL (311741) 894 RON 44 1 1 TAIL COVER (B) (321739) 3466 RON 45 1 2 TAPPING SCREW D4X35 (W/FLANGE) BLACK (303694) 894 RON 46 1 1 NOISE SUPPRESSOR GASKET (930039) 2683 RON 47 1 1 PILLAR TERMINAL (OLD 938307Z/512-31870-20)) (938307) 2571 RON 48 1 1 TAPPING SCREW D4X20 (W/FLANGE) BLACK (OLD 305095) (301653) 894 RON 49 1 1 - Indisponibil 50 1 1 CARBON BRUSH A.S. TYPE (OLD 999087) (999076) 956 RON 51 1 1 TAIL COVER (A) (321738) 3466 RON 52 1 1 SWITCH (1P SCREW TYPE) W/O LOCK (AC) (311739) 6710 RON 53 1 3 TAPPING SCREW D4X16 (W/FLANGE) (984750) 1117 RON 54 1 1 LEVER ACTION SEAL (308557) 1453 RON 55 1 1 PADDLE LEVER (308554) 2348 RON 56 1 1 SPRING (OLD 961981Z) (983595) 894 RON 57 1 1 TERMINAL (980063) 1117 RON 58 1 1 SPRING (F) (301631) 1117 RON 59 1 1 FEATHER KEY 3X3X15 (982696) 894 RON 60 1 1 LOCK LEVER (308555) 1677 RON 61 1 1 CORD CLIP (960266) 894 RON 62 1 1 CORD ARMOR D8.8 (953327) Indisponibil Indisponibil 63 1 1 500235Z - Indisponibil 501 1 1 WRENCH (325491) Indisponibil Indisponibil 502 1 1 SIDE HANDLE (OLD 954672) (994322) 3690 RON 601 1 1 316823 - Indisponibil
