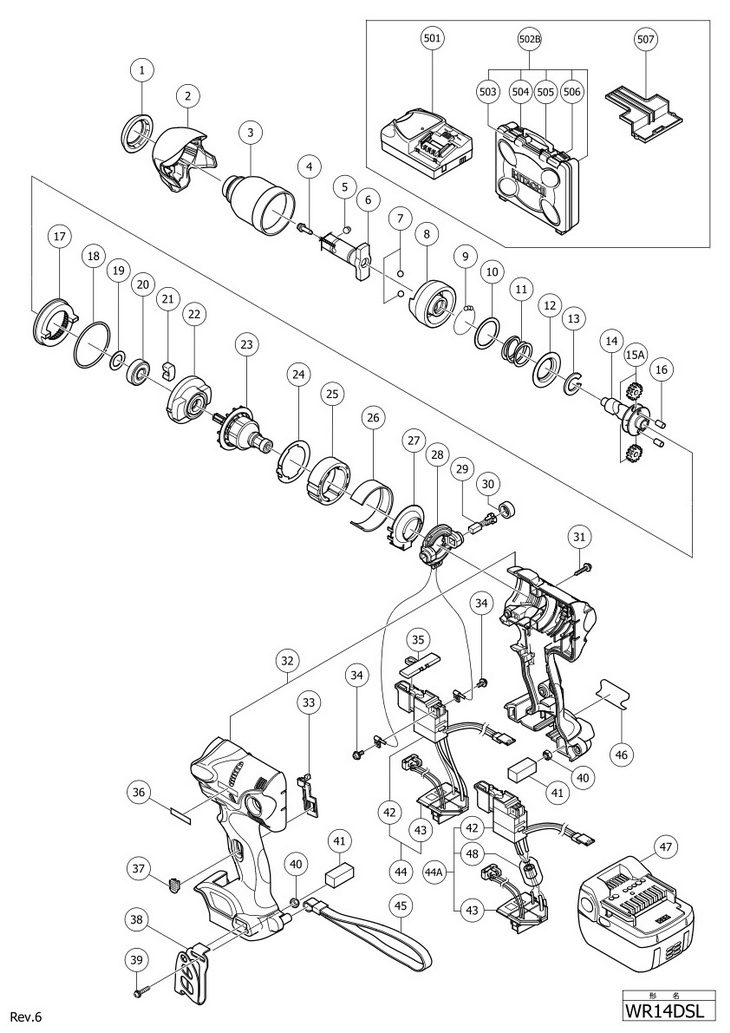

Top » Piese de schimb » PIESE HITACHI » WR14DSL WR14DSL [WR14DSL] Click pentru a mari Imagini suplimentare Click pentru a mari LISTA DE COMPONENTE: Numar Versiune Buc. in schema Denumire Pret/buc (Tva inclus) Cumpara 1 1 1 FRONT CAP (F) (327766) 2236 RON 2 1 1 PROTECTOR (J) (327765) 3242 RON 3 1 1 HAMMER CASE (328041) 14539 RON 4 1 1 PIN RETAINER (OLD 985209) (323542) 1453 RON 5 1 1 PLUNGER (OLD 985208) (323541) 4361 RON 6 1 1 ANVIL (B) (329718) 22144 RON 7 1 2 STEEL BALL D5.556 (10 PCS) (OLD 939277Z) (959154) 1788 RON 8 1 1 HAMMER (F) (OLD 321656) (326789) 13980 RON 9 1 28 STEEL BALL D3.175 (10 PCS) (959148) 1453 RON 10 1 1 WASHER (J) (315978) 2236 RON 11 1 1 HAMMER SPRING (D) (321660) 3242 RON 12 1 1 WASHER (S) (316172) 2236 RON 13 1 1 STOPPER (316171) 4025 RON 14 1 1 SPINDLE (D) (321666) 20691 RON 15A 1 2 IDLE GEAR SET (2 PCS) (326295) 13756 RON 16 1 2 NEEDLE ROLLER (319914) 2236 RON 17 1 1 RING GEAR (E) (326787) 956 RON 18 1 1 O-RING (S-42) (983852) 2683 RON 19 1 1 WASHER (E) (319911) 2236 RON 20 1 1 BALL BEARING 6901VV-N (323118) 5368 RON 21 1 2 DAMPER (319909) 4025 RON 22 1 1 INNER COVER (D) (326786) 2236 RON 23 1 1 360752 (360752) 35790 RON 24 1 1 SIDE YOKE (OLD 321659) (323327) 2236 RON 25A 1 1 334899 - Indisponibil 26 1 1 YOKE (A) (324828) 3242 RON 27 1 1 DUST GUARD FIN (C) (324830) 2236 RON 28 1 1 BRUSH BLOCK (OLD 320376) (321662) 7269 RON 29 1 2 CARBON BRUSH 5X6X11.5 (1 PAIR) (999054) 4025 RON 30 1 2 BRUSH CAP (319918) 3242 RON 31 1 9 TAPPING SCREW D4X20 (W/FLANGE) BLACK (OLD 305095) (301653) 894 RON *32 1 1 HOUSING SET (A+B) (GREEN) (329710) 22592 RON *32 1 1 HOUSING SET (A+B) (WHITE) (329827) 22592 RON *32 1 1 326795 - Indisponibil *32 1 1 329828 - Indisponibil 33 1 1 LEVER (C) (326782) 2236 RON 34 1 2 MACHINE SCREW (W/SP.WASHER) M3X5 (994532) 894 RON 35 1 1 PUSHING BUTTON (A) (321661) 2236 RON 36 1 1 - Indisponibil 37 1 1 LEVER (B) (326783) 2236 RON 38 1 1 HOOK (A) (326790) 5368 RON 39 1 1 TRUSS HD. SCREW M4 (BLACK) (327001) 2236 RON 40 1 2 LOCK NUT M4 (BLACK) (327002) Indisponibil Indisponibil 41 1 2 PACKING (327004) 2236 RON 42 1 1 DC-SPEED CONTROL SWITCH (326784) 40823 RON 43 1 1 CONTROLLER (329708) 22144 RON 44 1 1 329707 (329707) 49323 RON 44A 1 1 334874 - Indisponibil 45 1 1 STRAP (BLACK) (OLD 317320) (306952) 4025 RON 46 1 1 - Indisponibil 47 1 2 BSL1430 BATTERY 14,4V 3.0Ah Li-Ion (OLD 326236) (329083) 76055 RON 48 1 1 334873 - Indisponibil 501 1 1 - Indisponibil 502B 1 1 PLASTIC CARRYING CASE (329440) 35790 RON 503 1 2 324093 - Indisponibil 504 1 1 324096 - Indisponibil 505 1 1 HANDLE (DARK GREY) (324090) 3242 RON 506 1 1 324099 - Indisponibil 507 1 1 BATTERY COVER (329897) 2236 RON 601 1 1 - Indisponibil 602 1 1 HOUSING (955300) 40823 RON 603 1 3 METAL (955301) 7269 RON 604 1 1 SPINDLE (955302) 57824 RON 605 1 1 - Indisponibil 606 1 2 BEARING RACE (955303) 3578 RON 607 1 2 NEEDLE THRUST BEARING NTA-1413 (955304) 5815 RON 608 1 1 COVER (955305) 7269 RON 609 1 1 NEEDLE BEARING NTN BK1012 (955306) 573 RON 610 1 1 RETAINING RING FOR D47 HOLE (948227) 1788 RON 611 1 1 PINION (955307) 56146 RON 612 1 1 SLEEVE (955308) 6374 RON 613 1 1 WASHER (955309) 2348 RON 614 1 1 SOCKET COVER (955310) 10736 RON 615 1 1 @ SOCKET (955311) 35790 RON 616 1 6 SEALLOCK HEX.SOCKET HD.BOLT M5X25 (303247) 1453 RON 617 1 1 873537 - Indisponibil 618 1 1 O-RING (J1S W1516) (NEW 751877) (873187) 782 RON 619 1 1 991481 - Indisponibil 620 1 1 992610 (992610) 40823 RON 621 1 1 955153 - Indisponibil 622 1 1 991476 - Indisponibil 623 1 1 991480 - Indisponibil 624 1 1 944291 - Indisponibil 625 1 1 873632 - Indisponibil 626 1 1 873539 - Indisponibil 627 1 1 873540 - Indisponibil 628 1 1 873536 - Indisponibil 629 1 1 873624 - Indisponibil 630 1 1 873626 - Indisponibil 631 1 1 873627 - Indisponibil 632 1 1 986058 - Indisponibil 633 1 1 873633 - Indisponibil 634 1 1 955151 - Indisponibil 635 1 1 955138 - Indisponibil 636 1 1 955139 - Indisponibil 637 1 1 955140 - Indisponibil 638 1 1 955141 - Indisponibil 639 1 1 955142 - Indisponibil 640 1 1 955149 - Indisponibil 641 1 1 955150 - Indisponibil 642 1 1 955143 - Indisponibil 643 1 1 955144 - Indisponibil 644 1 1 992613 (992613) 5101 RON 645 1 1 992614 - Indisponibil 646 1 1 992615 - Indisponibil 647 1 1 992616 - Indisponibil 648 1 1 993658 - Indisponibil 649 1 1 993659 - Indisponibil 650 1 1 GREASE FOR IMPACT DRIVER (500 G) (309922) 4251 RON
