Top » Piese de schimb » PIESE HITACHI » WR14DL

WR14DL
[WR14DL]
WR14DL
Click pentru a mari
Imagini suplimentare
WR14DL
Click pentru a mari

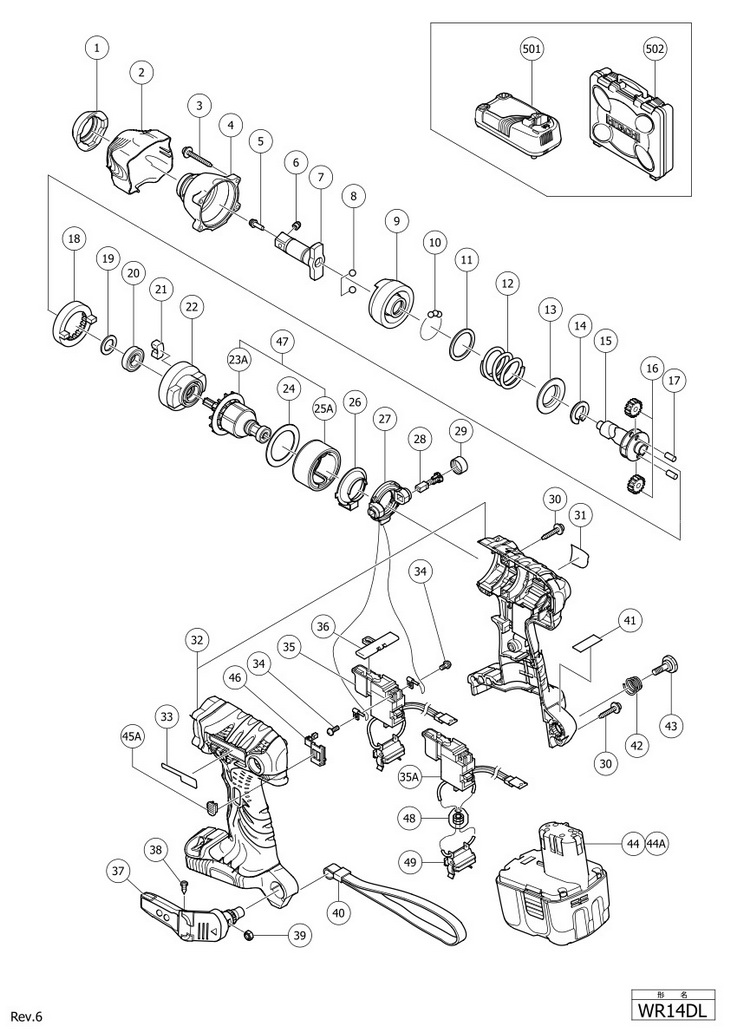

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 FRONT CAP (C) (324238) 1453 RON
2 1 1 PROTECTOR (D) (324239) 1453 RON
3 1 4 TAPPING SCREW D4X30 (W/SP. WASHER) BLACK (307851) 1453 RON
4 1 1 HAMMER CASE (324250) 9170 RON
5 1 1 PIN RETAINER (B) (324257) 1453 RON
6 1 1 PLUNGER (B) (324256) 1453 RON
7 1 1 324255 (324255) 2550 RON
8 1 2 STEEL BALL D5.556 (10 PCS) (OLD 939277Z) (959154) 1788 RON
9 1 1 HAMMER (324218) 5591 RON
10 1 28 STEEL BALL D3.175 (10 PCS) (959148) 1453 RON
11 1 1 WASHER (J) (315978) 2236 RON
12 1 1 HAMMER SPRING (F) (324224) 3242 RON
13 1 1 WASHER (S) (316172) 2236 RON
14 1 1 STOPPER (B) (324222) 1453 RON
15 1 1 SPINDLE (324232) 7940 RON
16 1 2 IDLE GEAR SET (2 PCS) (326295) 13756 RON
17 1 2 NEEDLE ROLLER (A) (324234) 1453 RON
18 1 1 RING GEAR (C) (320877) Indisponibil Indisponibil
19 1 1 WASHER (E) (319911) 2236 RON
20 1 1 BALL BEARING 6901VVCMPS2L (6901VV) 6374 RON
21 1 2 DAMPER (A) (324230) 1453 RON
22 1 1 INNER COVER (B) (324229) 1453 RON
23A 1 1 ARMATURE AND PINION SET NEW NOV (360928) 32882 RON
24 1 1 SIDE YOKE (A) (324607) 1453 RON
25B 1 1 334901 - Indisponibil
26 1 1 DUST GUARD FIN (B) (324228) 1453 RON
27 1 1 BRUSH BLOCK (324226) 12973 RON
28 1 2 CARBON BRUSH 5X6X11.5 (1 PAIR) (999054) 4025 RON
29 1 2 BRUSH CAP (319918) 3242 RON
30 1 8 TAPPING SCREW D4X20 (W/FLANGE) BLACK (302086) 1453 RON
31 1 1 - Indisponibil
32 1 1 HOUSING SET (A+B) (324237) 12973 RON
*32 1 1 HOUSING SET (A+B) (327050) 12973 RON
33 1 1 HITACHI PLATE (326237) 2795 RON
34 1 2 MACHINE SCREW (W/SP.WASHER) M3X5 (994532) 894 RON
35 1 1 DC-SPEED CONTROL SWITCH (OLD 324227) (321533) 22144 RON
35A 1 1 334885 - Indisponibil
36 1 1 PUSHING BUTTON (B) (324225) Indisponibil Indisponibil
37 1 1 321918 (321918) 12638 RON
38 1 2 TAPPING SCREW D2X6 (321672) 2236 RON
39 1 1 V-LOCK NUT M5 (320288) 2236 RON
40 1 1 STRAP (BLACK) (OLD 317320) (306952) 4025 RON
41 1 1 - Indisponibil
42 1 1 HOOK SPRING (319926) 2236 RON
43 1 1 SPECIAL SCREW M5 (A) (320881) 2236 RON
*44 1 2 326823 - Indisponibil
44A 1 2 BCL1430 BATTERY 14,4V 3.0Ah Li-Ion (OLD 326236) (326824) 76055 RON
45A 1 1 LEVER (B) (327053) 1453 RON
46 1 1 LEVER (A) (327052) 1453 RON
47 1 1 334152 (334152) 53014 RON
48 1 1 334870 - Indisponibil
49 1 1 BATTERY TERMINAL (329678) 9394 RON
501 1 1 - Indisponibil
502 1 1 PLASTIC CARRYING CASE (OLD 321916/322609) (323230) 23375 RON
601 1 1 - Indisponibil
602 1 1 HOUSING (955300) 40823 RON
603 1 3 METAL (955301) 7269 RON
604 1 1 SPINDLE (955302) 57824 RON
605 1 1 - Indisponibil
606 1 2 BEARING RACE (955303) 3578 RON
607 1 2 NEEDLE THRUST BEARING NTA-1413 (955304) 5815 RON
608 1 1 COVER (955305) 7269 RON
609 1 1 NEEDLE BEARING NTN BK1012 (955306) 573 RON
610 1 1 RETAINING RING FOR D47 HOLE (948227) 1788 RON
611 1 1 PINION (955307) 56146 RON
612 1 1 SLEEVE (955308) 6374 RON
613 1 1 WASHER (955309) 2348 RON
614 1 1 SOCKET COVER (955310) 10736 RON
615 1 1 @ SOCKET (955311) 35790 RON
616 1 6 SEALLOCK HEX.SOCKET HD.BOLT M5X25 (303247) 1453 RON
617 1 1 873537 - Indisponibil
618 1 1 O-RING (J1S W1516) (NEW 751877) (873187) 782 RON
619 1 1 991481 - Indisponibil
620 1 1 992610 (992610) 40823 RON
621 1 1 955153 - Indisponibil
622 1 1 991476 - Indisponibil
623 1 1 991480 - Indisponibil
624 1 1 944291 - Indisponibil
625 1 1 873632 - Indisponibil
626 1 1 873539 - Indisponibil
627 1 1 873540 - Indisponibil
628 1 1 873536 - Indisponibil
629 1 1 873624 - Indisponibil
630 1 1 873626 - Indisponibil
631 1 1 873627 - Indisponibil
632 1 1 986058 - Indisponibil
633 1 1 873633 - Indisponibil
634 1 1 955151 - Indisponibil
635 1 1 955138 - Indisponibil
636 1 1 955139 - Indisponibil
637 1 1 955140 - Indisponibil
638 1 1 955141 - Indisponibil
639 1 1 955142 - Indisponibil
640 1 1 955149 - Indisponibil
641 1 1 955150 - Indisponibil
642 1 1 955143 - Indisponibil
643 1 1 955144 - Indisponibil
644 1 1 992613 (992613) 5101 RON
645 1 1 992614 - Indisponibil
646 1 1 992615 - Indisponibil
647 1 1 992616 - Indisponibil
648 1 1 993658 - Indisponibil
649 1 1 993659 - Indisponibil
650 1 1 GREASE FOR IMPACT DRIVER (500 G) (309922) 4251 RON
