Top » Piese de schimb » PIESE HITACHI » WR12DM2

WR12DM2
[WR12DM2]
WR12DM2
Click pentru a mari
Imagini suplimentare
WR12DM2
Click pentru a mari

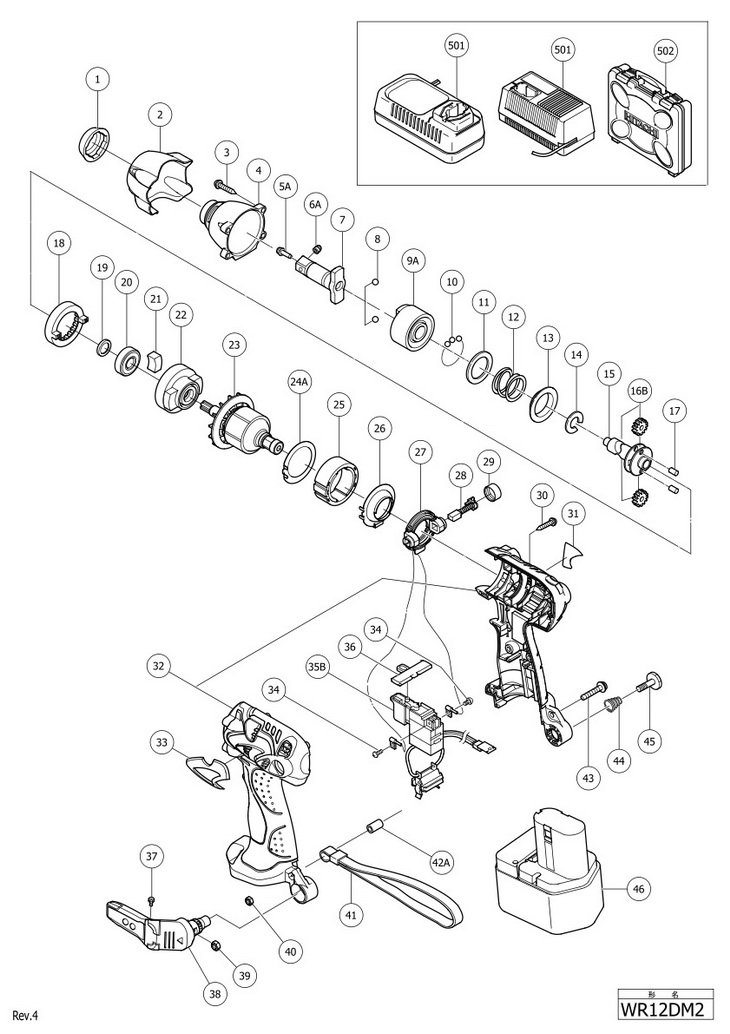

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 FRONT CAP (A) (BLACK) (322243) 5368 RON
*2 1 1 PROTECTOR (A) (321676) 3242 RON
*2 1 1 321937 - Indisponibil
3 1 4 TAPPING SCREW D4X25 (W/SP.WASHER) (319917) 2236 RON
4 1 1 HAMMER CASE (322172) 23934 RON
5A 1 1 PIN RETAINER (OLD 985209) (323542) 1453 RON
6A 1 1 PLUNGER (OLD 985208) (323541) 4361 RON
7 1 1 322173 (322173) 27289 RON
8 1 2 STEEL BALL D5.556 (10 PCS) (OLD 939277Z) (959154) 1788 RON
9A 1 1 HAMMER (F) (OLD 321656) (326789) 13980 RON
10 1 28 STEEL BALL D3.175 (10 PCS) (959148) 1453 RON
11 1 1 WASHER (J) (315978) 2236 RON
12 1 1 HAMMER SPRING (D) (321660) 3242 RON
13 1 1 WASHER (S) (316172) 2236 RON
14 1 1 STOPPER (316171) 4025 RON
15 1 1 SPINDLE (D) (321666) 20691 RON
16B 1 2 IDLE GEAR SET (2 PCS) (326295) 13756 RON
17 1 2 NEEDLE ROLLER (319914) 2236 RON
18 1 1 RING GEAR (C) (320877) Indisponibil Indisponibil
19 1 1 WASHER (E) (319911) 2236 RON
20 1 1 BALL BEARING 6901VVCMPS2L (6901VV) 6374 RON
21 1 2 DAMPER (319909) 4025 RON
22 1 1 INNER COVER (A) (321664) 3242 RON
23 1 1 360599 (360599) 39145 RON
24A 1 1 SIDE YOKE (OLD 321659) (323327) 2236 RON
25 1 1 MAGNET (D) (321668) 23934 RON
26 1 1 DUST GUARD FIN (A) (321663) 2236 RON
27 1 1 BRUSH BLOCK (OLD 320376) (321662) 7269 RON
28 1 2 CARBON BRUSH 5X6X11.5 (1 PAIR) (999054) 4025 RON
29 1 2 BRUSH CAP (319918) 3242 RON
30 1 7 TAPPING SCREW D4X20 (W/FLANGE) BLACK (302086) 1453 RON
31 1 1 - Indisponibil
32 1 1 HOUSING SET (A+B) (GREEN) (322174) 18454 RON
*32 1 1 321673 - Indisponibil
33 1 1 HITACHI PLATE (322242) 4025 RON
34 1 2 MACHINE SCREW (W/SP.WASHER) M3X5 (994532) 894 RON
35B 1 1 DC-SPEED CONTROL SWITCH (OLD 319906) (324829) 20691 RON
36 1 1 PUSHING BUTTON (A) (321661) 2236 RON
37 1 2 TAPPING SCREW D2X6 (321672) 2236 RON
38 1 1 321918 (321918) 12638 RON
39 1 1 V-LOCK NUT M5 (320288) 2236 RON
40 1 1 LOCK NUT M4 (10 PCS) (949565) 1453 RON
41 1 1 STRAP (BLACK) (OLD 317320) (306952) 4025 RON
42A 1 1 SLEEVE (A) (322718) 2236 RON
43 1 1 M4 SCREW (676386) 1453 RON
44 1 1 HOOK SPRING (319926) 2236 RON
45 1 1 SPECIAL SCREW M5 (319927) 2236 RON
*46 1 2 EB1220BL BATTERY 12V 2.0Ah Ni-Cd (320387) 57936 RON
*46 1 2 320386 - Indisponibil
501 1 1 - Indisponibil
501 1 1 - Indisponibil
502 1 1 PLASTIC CARRYING CASE (322070) 35790 RON
*502 1 1 321683 - Indisponibil
601 1 1 EB12B BATTERY 12V 2.0Ah Ni-Cd (310378) 60396 RON
601 1 1 310452 - Indisponibil
601 1 1 330709 - Indisponibil
602 1 1 - Indisponibil
603 1 1 HOUSING (955300) 40823 RON
604 1 3 METAL (955301) 7269 RON
605 1 1 SPINDLE (955302) 57824 RON
606 1 1 - Indisponibil
607 1 2 BEARING RACE (955303) 3578 RON
608 1 2 NEEDLE THRUST BEARING NTA-1413 (955304) 5815 RON
609 1 1 COVER (955305) 7269 RON
610 1 1 NEEDLE BEARING NTN BK1012 (955306) 573 RON
611 1 1 RETAINING RING FOR D47 HOLE (948227) 1788 RON
612 1 1 PINION (955307) 56146 RON
613 1 1 SLEEVE (955308) 6374 RON
614 1 1 WASHER (955309) 2348 RON
615 1 1 SOCKET COVER (955310) 10736 RON
616 1 1 @ SOCKET (955311) 35790 RON
617 1 6 SEALLOCK HEX.SOCKET HD.BOLT M5X25 (303247) 1453 RON
618 1 1 873537 - Indisponibil
619 1 1 O-RING (J1S W1516) (NEW 751877) (873187) 782 RON
620 1 1 991481 - Indisponibil
621 1 1 992610 (992610) 40823 RON
622 1 1 955153 - Indisponibil
623 1 1 991476 - Indisponibil
624 1 1 944291 - Indisponibil
625 1 1 873632 - Indisponibil
626 1 1 873539 - Indisponibil
627 1 1 873540 - Indisponibil
628 1 1 873536 - Indisponibil
629 1 1 873624 - Indisponibil
630 1 1 873626 - Indisponibil
631 1 1 873627 - Indisponibil
632 1 1 955138 - Indisponibil
633 1 1 955139 - Indisponibil
634 1 1 955140 - Indisponibil
635 1 1 955141 - Indisponibil
636 1 1 955149 - Indisponibil
637 1 1 955142 - Indisponibil
638 1 1 955150 - Indisponibil
639 1 1 955143 - Indisponibil
640 1 1 955151 - Indisponibil
641 1 1 991480 - Indisponibil
642 1 1 955144 - Indisponibil
643 1 1 986058 - Indisponibil
644 1 1 873633 - Indisponibil
645 1 1 993658 - Indisponibil
646 1 1 993659 - Indisponibil
647 1 1 992613 (992613) 5101 RON
648 1 1 992614 - Indisponibil
649 1 1 992615 - Indisponibil
650 1 1 992616 - Indisponibil
651 1 1 GREASE FOR IMPACT DRIVER (500 G) (309922) 4251 RON
652 1 1 - Indisponibil
