Top » Piese de schimb » PIESE HITACHI » WH14DBDL

WH14DBDL
[WH14DBDL]
WH14DBDL
Click pentru a mari
Imagini suplimentare
WH14DBDL
Click pentru a mari

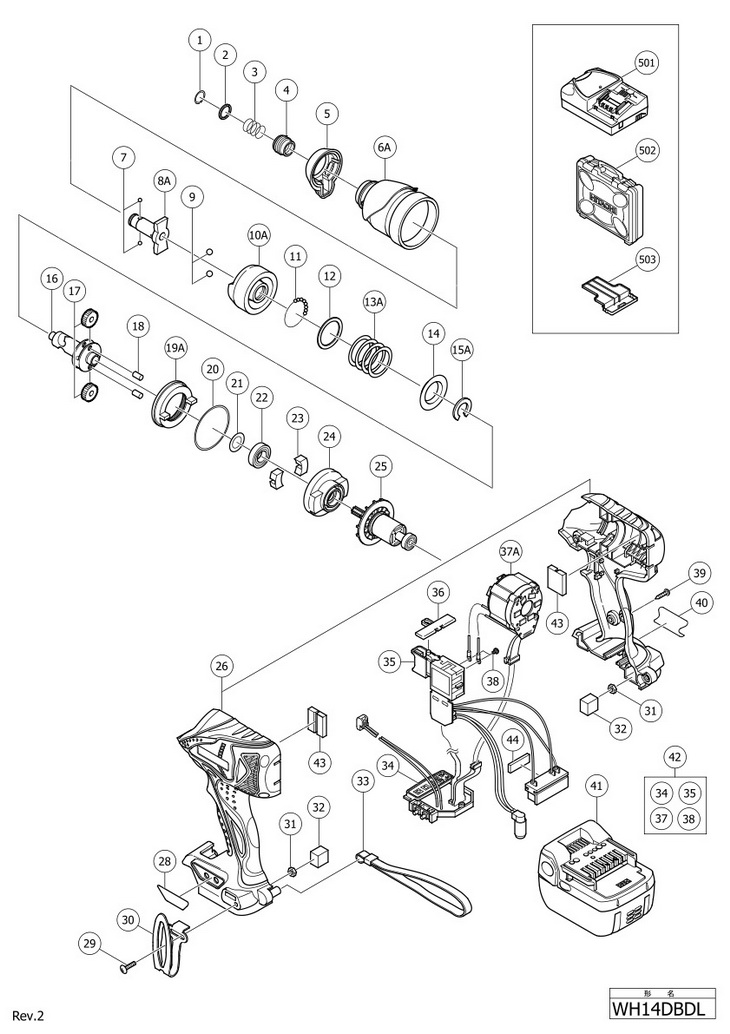

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 RETAINING RING (330619) 1453 RON
2 1 1 WASHER (D) (330856) 2236 RON
3 1 1 GUIDE SPRING (D) (331284) 1453 RON
4 1 1 GUIDE SLEEVE (D) (322717) 3242 RON
5 1 1 FRONT CAP (332198) 3242 RON
6A 1 1 HAMMER CASE (333745) 14092 RON
7 1 2 STEEL BALL D3.5 (10 PCS) (319535) 2236 RON
*8A 1 1 ANVIL (D) (OLD 332194) (333744) 23934 RON
*8A 1 1 333743 - Indisponibil
9 1 2 STEEL BALL D5.556 (10 PCS) (OLD 939277Z) (959154) 1788 RON
10A 1 1 HAMMER (333748) 12973 RON
11 1 28 STEEL BALL D3.175 (10 PCS) (959148) 1453 RON
12 1 1 WASHER (J) (315978) 2236 RON
13A 1 1 HAMMER SPRING (H) NEW OCT (333746) 11184 RON
14 1 1 WASHER (S) (316172) 2236 RON
15A 1 1 STOPPER (B) (324222) 1453 RON
16 1 1 SPINDLE (332186) 12973 RON
17 1 2 IDLE GEAR SET (2 PCS) (326295) 13756 RON
18 1 2 NEEDLE ROLLER (319914) 2236 RON
19A 1 1 RING GEAR (E) NEW OCT (333747) 8388 RON
20 1 1 O-RING (S-42) (983852) 2683 RON
21 1 1 WASHER (E) (319911) 2236 RON
22 1 1 BALL BEARING 6901VVCMPS2L (6901VV) 6374 RON
23 1 2 DAMPER (A) (324230) 1453 RON
24 1 1 INNER COVER (332185) 2795 RON
25 1 1 ROTOR PINION (332188) 28632 RON
26 1 1 HOUSING SET (A+B) (332190) Indisponibil Indisponibil
28 1 1 PANEL SHEET (B) (332207) 1453 RON
29 1 1 TRUSS HD. SCREW M4 (BLACK) (327001) 2236 RON
30 1 1 HOOK (330666) 5815 RON
31 1 2 LOCK NUT M4 (BLACK) (327002) Indisponibil Indisponibil
32 1 2 PACKING (330854) 2236 RON
33 1 1 STRAP (BLACK) (OLD 317320) (306952) 4025 RON
34 1 1 CONTROLLER (332206) 49323 RON
35A 1 1 334903 - Indisponibil
36 1 1 PUSHING BUTTON (B) (324225) Indisponibil Indisponibil
37A 1 1 STATOR FET PCB NEW DEC (340805) 60396 RON
38 1 2 MACHINE SCREW (W/SP.WASHER) M3X5 (994532) 894 RON
39 1 9 TAPPING SCREW D4X20 (W/FLANGE) BLACK (OLD 305095) (301653) 894 RON
40 1 1 - Indisponibil
41 1 2 BSL1430 BATTERY 14,4V 3.0Ah Li-Ion (OLD 326236) (329083) 76055 RON
42 1 1 332202 (332202) 127394 RON
43 1 2 DAMPER (A) NEW DEC (333750) 4473 RON
44 1 1 CUSHION NEW DEC (331101) 2236 RON
501 1 1 - Indisponibil
501 1 1 - Indisponibil
502 1 1 PLASTIC CARRYING CASE (330592) 10177 RON
503 1 1 BATTERY COVER (329897) 2236 RON
601 1 1 321823 - Indisponibil
602 1 1 GREASE FOR IMPACT DRIVER (500 G) (309922) 4251 RON
603 1 1 992671 - Indisponibil
604 1 1 DRIVER BIT (B) NO.3 50L (992672) 382 RON
605 1 1 NON-MAGNETIC HEX.SOCKET 8MM 65L (996177) 6039 RON
606 1 1 NON-MAGNETIC HEX.SOCKET 10MM 65L (NEW 750557) (985329) 6486 RON
607 1 1 996178 - Indisponibil
608 1 1 996179 - Indisponibil
609 1 1 NON-MAGNETIC HEX.SOCKET 14MM 65L (996180) 13197 RON
610 1 1 NON-MAGNETIC HEX.SOCKET 15MM 65L (996185) 14092 RON
611 1 1 NON-MAGNETIC HEX.SOCKET 16MM 110L (996181) 14092 RON
612 1 1 996182 - Indisponibil
613 1 1 996186 - Indisponibil
614 1 1 @ HEX.SOCKET (996197) 34112 RON
615 1 1 BIT PIECE (996184) 5815 RON
616 1 1 987575 - Indisponibil
617 1 1 CHUCK WRENCH 6.5G (930119) 488 RON
618 1 1 307543 - Indisponibil
619 1 1 983006 - Indisponibil
620 1 1 983011 - Indisponibil
621 1 1 HEX.SOCKET (A) 8MMX55L (955677) 6598 RON
622 1 1 955678 - Indisponibil
623 1 1 955679 - Indisponibil
