Top » Piese de schimb » PIESE HITACHI » WH12DM2

WH12DM2
[WH12DM2]
WH12DM2
Click pentru a mari
Imagini suplimentare
WH12DM2
Click pentru a mari

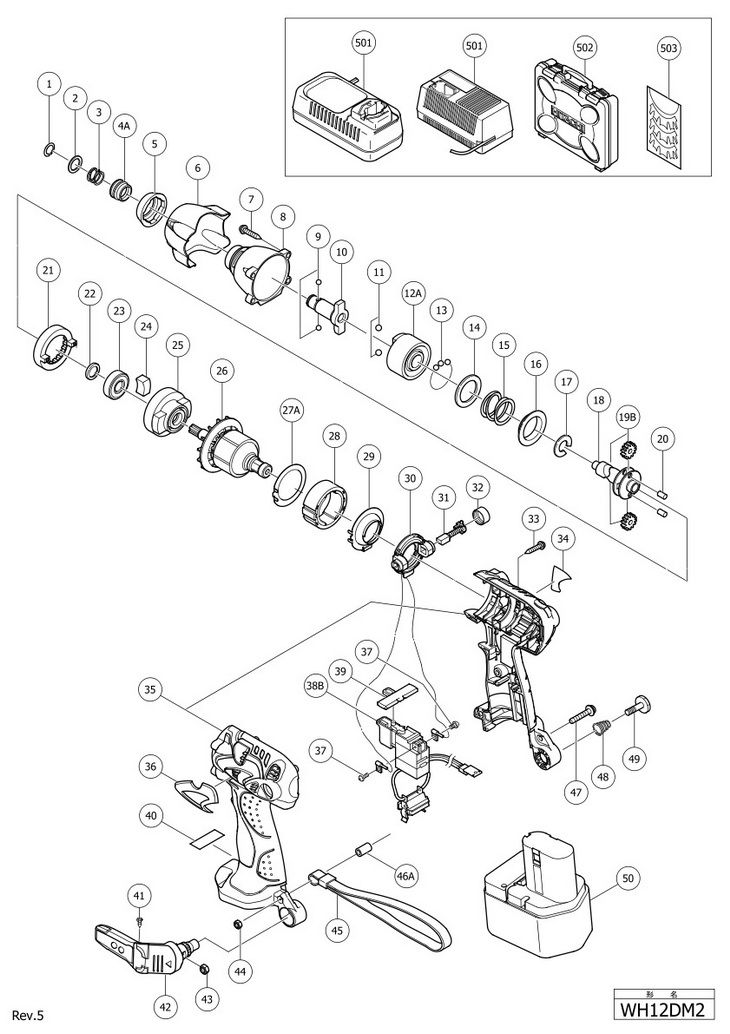

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 RETAINING RING (315984) 2236 RON
2 1 1 WASHER (D) (315983) 2236 RON
3 1 1 GUIDE SPRING (A) (OLD 322716) (321657) 2236 RON
4A 1 1 GUIDE SLEEVE (D) (322717) 3242 RON
5 1 1 FRONT CAP (A) (GREEN) (322249) 3242 RON
*6 1 1 PROTECTOR (A) (321676) 3242 RON
*6 1 1 321937 - Indisponibil
7 1 4 TAPPING SCREW D4X25 (W/SP.WASHER) (319917) 2236 RON
8 1 1 HAMMER CASE (321674) 22144 RON
9 1 2 STEEL BALL D3.5 (10 PCS) (319535) 2236 RON
10 1 1 ANVIL (F) (322248) 22592 RON
*10 1 1 321669 - Indisponibil
11 1 2 STEEL BALL D5.556 (10 PCS) (OLD 939277Z) (959154) 1788 RON
12A 1 1 HAMMER (F) (OLD 321656) (326789) 13980 RON
13 1 28 STEEL BALL D3.175 (10 PCS) (959148) 1453 RON
14 1 1 WASHER (J) (315978) 2236 RON
15 1 1 HAMMER SPRING (D) (321660) 3242 RON
16 1 1 WASHER (S) (316172) 2236 RON
17 1 1 STOPPER (316171) 4025 RON
18 1 1 SPINDLE (D) (321666) 20691 RON
19B 1 2 IDLE GEAR SET (2 PCS) (326295) 13756 RON
20 1 2 NEEDLE ROLLER (319914) 2236 RON
21 1 1 RING GEAR (C) (320877) Indisponibil Indisponibil
22 1 1 WASHER (E) (319911) 2236 RON
23 1 1 BALL BEARING 6901VVCMPS2L (6901VV) 6374 RON
24 1 2 DAMPER (319909) 4025 RON
25 1 1 INNER COVER (A) (321664) 3242 RON
26 1 1 360599 (360599) 39145 RON
27A 1 1 SIDE YOKE (OLD 321659) (323327) 2236 RON
28 1 1 MAGNET (D) (321668) 23934 RON
29 1 1 DUST GUARD FIN (A) (321663) 2236 RON
30 1 1 BRUSH BLOCK (OLD 320376) (321662) 7269 RON
31 1 2 CARBON BRUSH 5X6X11.5 (1 PAIR) (999054) 4025 RON
32 1 2 BRUSH CAP (319918) 3242 RON
33 1 7 TAPPING SCREW D4X20 (W/FLANGE) BLACK (302086) 1453 RON
34 1 1 - Indisponibil
35 1 1 HOUSING SET (A+B) (GREEN) (322174) 18454 RON
*35 1 1 321673 - Indisponibil
36 1 1 HITACHI PLATE (322247) 3242 RON
37 1 2 MACHINE SCREW (W/SP.WASHER) M3X5 (994532) 894 RON
38B 1 1 DC-SPEED CONTROL SWITCH (OLD 319906) (324829) 20691 RON
39 1 1 PUSHING BUTTON (A) (321661) 2236 RON
40 1 1 - Indisponibil
41 1 2 TAPPING SCREW D2X6 (321672) 2236 RON
42 1 1 321918 (321918) 12638 RON
43 1 1 V-LOCK NUT M5 (320288) 2236 RON
44 1 1 LOCK NUT M4 (10 PCS) (949565) 1453 RON
45 1 1 STRAP (BLACK) (OLD 317320) (306952) 4025 RON
46A 1 1 SLEEVE (A) (322718) 2236 RON
47 1 1 M4 SCREW (676386) 1453 RON
48 1 1 HOOK SPRING (319926) 2236 RON
49 1 1 SPECIAL SCREW M5 (319927) 2236 RON
*50 1 2 EB1220BL BATTERY 12V 2.0Ah Ni-Cd (320387) 57936 RON
*50 1 2 320386 - Indisponibil
501 1 1 - Indisponibil
501 1 1 - Indisponibil
502 1 1 PLASTIC CARRYING CASE (322070) 35790 RON
*502 1 1 321683 - Indisponibil
503 1 1 322271 - Indisponibil
601 1 1 992671 - Indisponibil
602 1 1 DRIVER BIT (B) NO.3 50L (992672) 382 RON
603 1 1 NON-MAGNETIC HEX.SOCKET 8MM 65L (996177) 6039 RON
604 1 1 NON-MAGNETIC HEX.SOCKET 10MM 65L (NEW 750557) (985329) 6486 RON
605 1 1 996178 - Indisponibil
606 1 1 996179 - Indisponibil
607 1 1 NON-MAGNETIC HEX.SOCKET 14MM 65L (996180) 13197 RON
608 1 1 NON-MAGNETIC HEX.SOCKET 16MM 110L (996181) 14092 RON
609 1 1 996182 - Indisponibil
610 1 1 @ HEX.SOCKET (996197) 34112 RON
611 1 1 321823 - Indisponibil
612 1 1 307543 - Indisponibil
613 1 1 GREASE FOR IMPACT DRIVER (500 G) (309922) 4251 RON
614 1 1 STOPPER (322463) 23487 RON
615 1 1 - Indisponibil
616 1 1 330709 - Indisponibil
617 1 1 983006 - Indisponibil
618 1 1 983011 - Indisponibil
619 1 1 HEX.SOCKET (A) 8MMX55L (955677) 6598 RON
620 1 1 955678 - Indisponibil
621 1 1 955679 - Indisponibil
