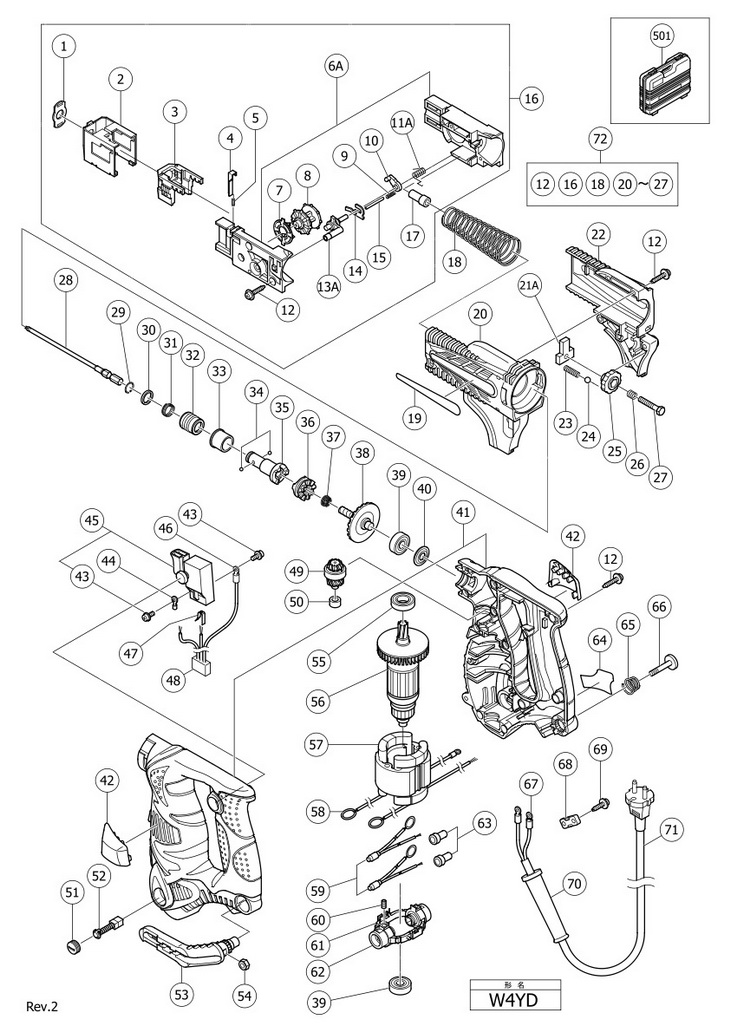

Top » Piese de schimb » PIESE HITACHI » W4YD W4YD [W4YD] Click pentru a mari Imagini suplimentare Click pentru a mari LISTA DE COMPONENTE: Numar Versiune Buc. in schema Denumire Pret/buc (Tva inclus) Cumpara 1 1 1 SHEET (2 PCS) (324183) 4025 RON 2 1 1 STOPPER (324863) 15098 RON 3 1 1 GUIDE BLOCK (324177) 23934 RON 4 1 1 PLATE (A) (324184) 3242 RON 5 1 1 SPRING (C) (324185) 2236 RON 6A 1 1 SLIDER (A+B) SET (324165) 5815 RON 7 1 1 CLUTCH PLATE (324175) 4025 RON 8 1 1 SPROCKET (324167) 20691 RON 9 1 1 SPRING (324489) 2236 RON 10 1 1 ARM (B) (324173) 6822 RON 11A 1 1 ARM SPRING (324174) 2236 RON 12 1 17 TAPPING SCREW D4X20 (W/FLANGE) BLACK (OLD 305095) (301653) 894 RON 13A 1 1 ARM (324169) 22144 RON 14 1 1 STOPPER PLATE (324176) 3242 RON 15 1 1 PIN D2.5 (885349) 2236 RON 16 1 1 324164 (324164) 108715 RON 17 1 1 METAL (F) (324186) 6822 RON 18 1 1 SPRING (324190) 3242 RON 19 1 1 - Indisponibil 20 1 1 SLIDER CASE (A) (324162) 6822 RON 21A 1 1 STOPPER PIN (OLD 324726) (324189) 4025 RON 22 1 1 SLIDER CASE (B) (324163) 6151 RON 23 1 1 SPRING (A) (324191) 2236 RON 24 1 1 STEEL BALL D3.175 (10 PCS) (959148) 1453 RON 25 1 1 KNOB (324187) 3242 RON 26 1 1 SPRING (312430) 2348 RON 27 1 1 BOLT M5 (324188) 2236 RON 28 1 1 324134 - Indisponibil 29 1 1 RETAINING RING (995933) 1453 RON 30 1 1 RETAINER (307899) 6151 RON 31 1 1 GUIDE SPRING (995931) 1453 RON 32 1 1 GUIDE SLEEVE (A) (307782) 10736 RON 33 1 1 METAL (324156) 5368 RON 34 1 2 STEEL BALL D3.175 (10 PCS) (959148) 1453 RON 35 1 1 SOCKET (324155) 27289 RON 36 1 1 CLUTCH DISC (323476) 3690 RON 37 1 1 SPRING (306024) 1788 RON 38 1 1 FINAL GEAR SET (324153) 44290 RON 39 1 2 BALL BEARING 608VVMC2EPS2L (608VVM) 4025 RON 40 1 1 WASHER (950513) 1453 RON 41 1 1 HOUSING SET (A+B) (324193) 28967 RON 42 1 1 RUBBER COVER SET (324157) 5368 RON 43 1 4 MACHINE SCREW (W/WASHER) M3,5X6 (305499) 1229 RON 44 1 1 TERMINAL (A) M3.5 (10 PCS) (960356) 297 RON 45 1 1 324864 (324864) 10736 RON 46 1 1 TERMINAL M4.0 (10 PCS) (930804) 297 RON 47 1 1 EARTH TERMINAL (302488) 894 RON 48 1 1 NOISE SUPPRESSOR (994273) Indisponibil Indisponibil 49 1 1 SECOND PINION SET (324151) 37468 RON 50 1 1 NEEDLE BEARING (324150) 8835 RON 51 1 2 BRUSH CAP (931266) 894 RON 52 1 2 CARBON BRUSH (1 PAIR) (999021) 382 RON 53 1 1 320287 (320287) 4025 RON 54 1 1 V-LOCK NUT M5 (320288) 2236 RON 55 1 1 BALL BEARING 6901VVCMPS2L (6901VV) 6374 RON *56 1 1 ARMATURE 230 VOLT (360707E) 52679 RON *56 1 1 360707F - Indisponibil *57 1 1 STATOR 230 VOLT (340623E) 27289 RON *57 1 1 340623F - Indisponibil 58 1 2 BRUSH TERMINAL (930630) 1788 RON 59 1 2 CHOKE COIL (324192) 6151 RON 60 1 2 HEX.SOCKET SET SCREW M4X4 (981478) 1453 RON 61 1 1 320514 (320514) 13085 RON 62 1 2 BRUSH HOLDER (957571) 2124 RON 63 1 2 CONNECTOR 50091 (10 PCS) (OLD 939557) (959140) 2236 RON 64 1 1 - Indisponibil 65 1 1 HOOK SPRING (319926) 2236 RON 66 1 1 SPECIAL SCREW M5 (319927) 2236 RON 67 1 2 TERMINAL (980063) 1117 RON 68 1 1 CORD CLIP (OLD 994566) (937631) 894 RON 69 1 2 TAPPING SCREW D4X16 (W/FLANGE) (984750) 1117 RON 70 1 1 CORD ARMOR D8.2 (OLD 958049Z) (958049) 894 RON *71 1 1 500234Z - Indisponibil *71 1 1 500439Z - Indisponibil 72 1 1 328497 (328497) 59725 RON 501 1 1 CASE (OLD 998780) (310904) 30645 RON
