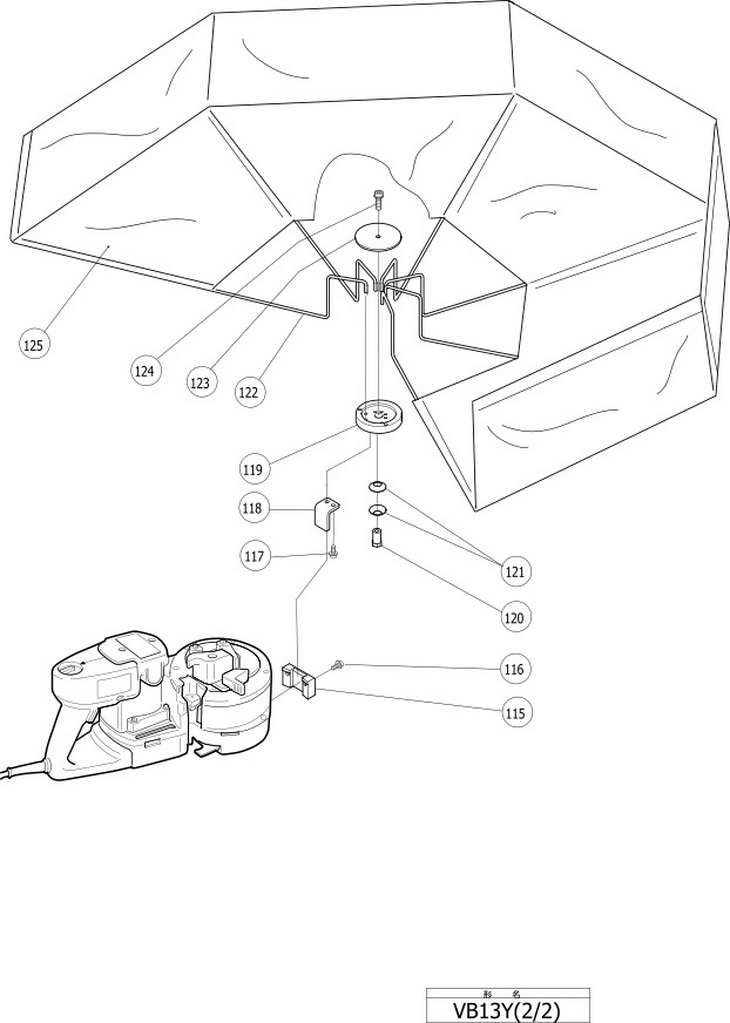

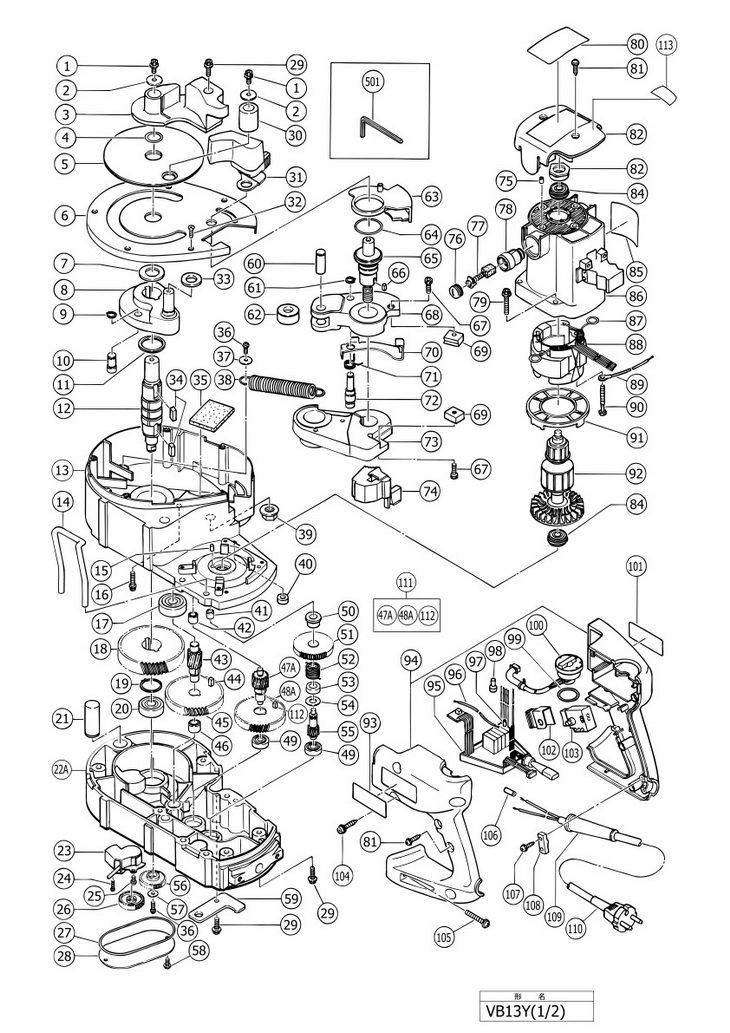

Top » Piese de schimb » PIESE HITACHI » VB13Y VB13Y [VB13Y] Click pentru a mari Imagini suplimentare Click pentru a mari Click pentru a mari LISTA DE COMPONENTE: Numar Versiune Buc. in schema Denumire Pret/buc (Tva inclus) Cumpara 1 1 2 HEX.SOCKET HD.BOLT M5X12 (998471) 1453 RON 2 1 2 WASHER (316224) 2236 RON 3 1 1 CENTER PLATE (A) (318288) 110393 RON *3 1 1 CENTER PLATE SET D.38 (317677) 90036 RON 4 1 1 O-RING (P-18) (873570) 1788 RON 5 1 1 TURN TABLE (316220) 15881 RON 6 1 1 CAM COVER (316219) 20691 RON 7 1 1 FELT PACKING (316216) 2236 RON 8 1 1 CAM (316199) 14265 RON 9 1 1 RETAINING RING FOR D10 (10 PCS) (939540) 2683 RON 10 1 1 LOCK PIN (B) (316201) 7269 RON 11 1 1 @ V-RING (316198) 4025 RON 12 1 1 CAM SHAFT (316200) 47646 RON 13 1 1 316184 (316184) 134216 RON *13 1 1 321154 - Indisponibil 14 1 1 @STAND (316225) 5927 RON 15 1 1 BEARING LOCK (931701) 1453 RON 16 1 2 HEX.SOCKET HD BOLT(W/FLANGE)M5X20 (316195) 2236 RON 17 1 1 BALL BEARING 6301VVCMPS2S (6301VV) 573 RON 18 1 1 FINAL GEAR (316202) 34112 RON 19 1 1 RETAINING RING FOR D25 SHAFT (965469) 1453 RON 20 1 1 BALL BEARING 6201VVCMPS2S (6201VV) 4249 RON 21 1 1 @ PIN D18 (316451) 5368 RON 22 1 1 319355 (319355) 105360 RON 23 1 1 318284 (318284) 28967 RON *23 1 1 316213 (316213) 27289 RON 24 1 1 TAPPING SCREW D3X12 (316214) 2236 RON 25 1 2 MACHINE SCREW M4X8 (10 PCS) (949215) 1453 RON 26 1 1 SENSOR GEAR (316212) 3242 RON 27 1 1 O-RING (S-85) (985227) 2348 RON 28 1 1 SENSOR COVER (316215) 3242 RON 29 1 9 HEX.SOCKET HD.BOLT (994192) 894 RON 30 1 1 ROLLER (B) (316223) 7828 RON 31 1 1 LEVER (A) (318287) 30645 RON *31 1 1 316221 - Indisponibil 32 1 5 FLAT HD.SCREW M4X10 (10 PCS) (949322) 1453 RON 33 1 1 FELT PACKING (316217) 2236 RON 34 1 4 FEATHER KEY 7X7X15 (306506) 2683 RON 35 1 1 SUPPORT (B) (316186) 2236 RON 36 1 2 SEAL LOCK SCREW M4X12 (W/SP WASHER) (987203) 1453 RON 37 1 1 THRUST WASHER (875249) 1788 RON 38 1 1 @ RETURN SPRING (316197) 6151 RON 39 1 1 @ FLANGE NUT M12 (316196) 2236 RON 40 1 1 WRENCH HOLDER (307607) 1788 RON 41 1 1 METAL (316185) 2236 RON 42 1 1 METAL D8X10 (954940) 1788 RON 43 1 1 THIRD PINION (316203) 17895 RON 44 1 1 FEATHER KEY 5X5X10 (OLD 971957) (948015) 1453 RON 45 1 1 THIRD GEAR (316204) 22144 RON 46 1 1 METAL (B) (954789) 1453 RON 47A 1 1 SECOND PINION (OLD 316205) (319538) 16441 RON 48A 1 1 SECOND GEAR (OLD 316206) (319539) 18454 RON 49 1 2 BALL BEARING 608VVMC2EPS2L (608VVM) 4025 RON 50 1 1 SLEEVE (B) (318360) 10736 RON 51 1 1 FIRST GEAR (B) (318358) 17559 RON 52 1 1 CLUTCH SPRING (316209) 6598 RON 53 1 1 COLLAR (A) (316208) 7269 RON 54 1 1 WASHER (981077) 894 RON 55 1 1 FIRST PINION (B) (318359) 14315 RON 56 1 1 SENSOR GEAR (316212) 3242 RON 57 1 1 WASHER (B) (OLD 976448) (962569) 1453 RON 58 1 2 HEX.SOCKET HD BOLT(W/FLANGE)M4X10 (316228) 2236 RON 59 1 1 STEEL BAR GUIDE (316226) 5368 RON 60 1 1 @ NEEDLE (316190) 7828 RON 61 1 1 RETAINING RING FOR DP SHAFT (992805) 894 RON 62 1 1 @ ROLLER (C) (316189) 15881 RON 63 1 1 COVER (318285) 5368 RON 64 1 1 O-RING (S-34) (980879) 1453 RON 65 1 1 BOLT (A) (316194) 37468 RON 66 1 1 FEATHER KEY 4X4X8 (980809) 894 RON 67 1 2 HEX.SOCKET HD.BOLT M5X16 (10 PCS) (949821) 2683 RON 68 1 1 BRACKET (A) (316188) 134216 RON 69 1 2 CUTTER (1PAIR) (316235) 35790 RON 70 1 1 CUTTER GUARD (316191) 5927 RON 71 1 1 @ SPRING (C) (316192) 5368 RON 72 1 1 @ PIN FOR SPRING (316193) 7269 RON 73 1 1 BRACKET (B) (316187) 161284 RON 74 1 1 @ DUST GUARD (316222) 7269 RON *74 1 1 321156 - Indisponibil 75 1 2 HEX.SOCKET SET SCREW M5X8 (938477) 1453 RON 76 1 2 BRUSH CAP (935829) 1453 RON 77 1 2 CARBON BRUSH (1 PAIR) (999043) 382 RON 78 1 2 BRUSH HOLDER (971001) Indisponibil Indisponibil 79 1 4 HEX.SOCKET HD BOLT (W/FLANGE)M5X3 (313585) 2348 RON 80 1 1 CAUTION PLATE (E) VB13Y (318286) 4025 RON 80 1 1 - Indisponibil 81 1 6 TAPPING SCREW D4X20 (W/FLANGE) BLACK (OLD 305095) (301653) 894 RON 82 1 1 TAIL COVER (316227) 5927 RON 83 1 1 BEARING BUSH (B) (310111) 5591 RON 84 1 2 BALL BEARING (A) (318362) 7269 RON *84 1 2 BALL BEARING 608VVMC2EPS2L (608VVM) 4025 RON 85 1 1 - Indisponibil 85 1 1 - Indisponibil 86 1 1 310146 (310146) Indisponibil Indisponibil 87 1 2 BRUSH TERMINAL (930703) 2348 RON 88 1 1 340487C - Indisponibil *88 1 1 340419E (340419E) 37468 RON 89 1 1 INTERNAL WIRE (990861) 1453 RON 90 1 2 HEX.HD. TAPPING SCREW D5X40 (980864) 1453 RON 91 1 1 FAN GUIDE (980931) 3578 RON 92 1 1 360470U - Indisponibil *92 1 1 ARMATURE 230 VOLT (360470E) 7653 RON 93 1 1 - Indisponibil 94 1 1 HANDLE (A+B) SET (316234) 22592 RON 95 1 1 CONTROLLER CIRCUIT (318282) 229176 RON *95 1 1 319352 - Indisponibil 96 1 1 @ INTERNAL WIRE (318283) 3242 RON 97 1 1 TUBE (D) (981373) 1341 RON 98 1 7 CONNECTOR 50091 (10 PCS) (OLD 939557) (959140) 2236 RON *98 1 4 CONNECTOR 50091 (10 PCS) (OLD 939557) (959140) 2236 RON 99 1 1 O-RING (S-24) (878609) 1453 RON 100 1 1 318281 (318281) 22144 RON 101 1 1 CAUTION PLATE (D) VB13Y (318289) 5368 RON 102 1 1 SWITCH RUBBER COVER (995362) 297 RON *102 1 1 319354 - Indisponibil 103 1 1 SWITCH (2P PLUG IN TYPE) W/O LOCK (318280) 28967 RON *103 1 1 319353 - Indisponibil 104 1 2 TAPPING SCREW D5X20 (W/FLANGE) BLACK (302089) 1453 RON 105 1 2 MACHINE SCREW M5X20 (W/WASHER) (BLACK) (316229) 2236 RON 106 1 1 TUBE (D) (981373) 1341 RON 107 1 2 TAPPING SCREW D4X16 (W/FLANGE) (984750) 1117 RON 108 1 1 CORD CLIP (OLD 994566) (937631) 894 RON 109 1 1 CORD ARMOR D8.8 (953327) Indisponibil Indisponibil *110 1 1 500247Z - Indisponibil *110 1 1 CORD 230 VOLT GBR (500450Z) 22592 RON *110 1 1 CORD FOR SUI (500248Z) 22033 RON *110 1 1 CORD FOR USA/CAN (500240Z) 6486 RON 111 1 1 319537 (319537) 34112 RON 112 1 1 FEATHER KEY 4X4X8 (980809) 894 RON 113 1 1 - Indisponibil 115 1 1 321155 - Indisponibil 116 1 2 320908 - Indisponibil 117 1 2 NYLOCK BOLT M5X16 W/FLANGE (313082) 1453 RON 118 1 1 320909 - Indisponibil 119 1 1 320910 - Indisponibil 120 1 1 320911 - Indisponibil 121 1 2 BELLEVILLE SPRING (980877) 1453 RON 122 1 6 320912 - Indisponibil 123 1 1 320913 - Indisponibil 124 1 1 NYLOCK FLANGE BOLT M6X16 (880474) 1453 RON 125 1 1 320914 - Indisponibil 501 1 1 HEX.BAR WRENCH 4MM (944458) 1229 RON 601 1 1 GREASE FOR IMPACT WRENCH (100G) (971042) 12638 RON 602 1 1 PLASTIC CASE F-30A, VB13Y & VB16Y (OLD 958892Z) (314837) 32323 RON 603 1 1 316233 - Indisponibil
