Top » Piese de schimb » PIESE HITACHI » TED-270PFL

TED-270PFL
[TED-270PFL]
TED-270PFL
Click pentru a mari
Imagini suplimentare
TED-270PFL
Click pentru a mari
TED-270PFL
Click pentru a mari
TED-270PFL
Click pentru a mari
TED-270PFL
Click pentru a mari
TED-270PFL
Click pentru a mari
TED-270PFL
Click pentru a mari
TED-270PFL
Click pentru a mari
TED-270PFL
Click pentru a mari
TED-270PFL
Click pentru a mari
LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 6684894 (6684894) 3242 RON
2 1 1 SPARK PLUG CJ8 (OLD 018-01805-20) (6685771) 2460 RON
3 1 1 CYLINDER SET (OLD 001-0740A-90) (6685495) 21586 RON
4 1 4 HEX. HOLE BOLT M5X18/S (OLD 994-61050-184) (6684586) 1229 RON
5 1 1 CYLINDER GASKET (OLD 017-07350-20) (6684896) 1229 RON
6 1 2 PISTON RING (OLD 041-01700-20) (6686121) 3242 RON
7 1 1 PISTON SET (OLD 030-07350-90) (6685902) 10513 RON
8 1 2 PISTON PIN CIRCLIP (OLD 039-00601-20) (6684590) 1229 RON
9 1 1 PISTON PIN (OLD 037-07045-20/6686010) (6684591) Indisponibil Indisponibil
10 1 1 CRANK SHAFT COMP. (OLD 046-07350-82) (6686219) 30645 RON
11 1 1 STOP CORD B 190M (OLD 178-01680-80) NEW (6687836) 2236 RON
13 1 2 HEX. HOLE BOLT M4X18/WS (OLD 994-64040-184) (6684599) 1229 RON
14 1 1 6687689 (6687689) 19684 RON
15 1 2 WASHER (OLD 182-0186A-20) (6684600) 1229 RON
*31 1 1 GEAR SHAFT SHIM 0.20 (OLD 330-00200-23) (6684604) 1229 RON
*31 1 1 GEAR SHAFT SHIM 0.30 (OLD 330-00200-24) (6684605) 1229 RON
32 1 1 MAGUET RITIR COMB. FW- (OLD 155-21014-80) (6687385) 11519 RON
33 1 1 HEX.NUT M8 (OLD 991-01080-011) (6684612) 1229 RON
34 1 1 WASHER M8 (OLD 992-01080-011) (6684611) 1229 RON
35 1 1 6684905 (6684905) 13197 RON
36 1 2 OIL SEAL TB 12227 (OLD 999-66122-200/6695624) (6684607) Indisponibil Indisponibil
37 1 2 BALL BEARING 6001 C3 NSK (OLD 999-61600-115/6684608/6695530) (6695535) 3131 RON
38 1 1 CRANK CASE GASKET (OLD 090-07350-22) (6684904) 1229 RON
39 1 4 HEX. HOLE BOLT M5X16/S (OLD 994-61050-164/6695490) (6684903) 1229 RON
51 1 1 INLET MANIFOLD GASKET (OLD 403-07020-21) (6689895) 1229 RON
52 1 1 INSULATOR SET (OLD 404-07020-91) (6689972) 382 RON
53 1 2 HEX. HOLE BOLT 5X25/WS (OLD 994-64050-255) (6684617) 1229 RON
54 1 1 CARBURETOR GASKET (OLD 402-0656A-20) (6684616) 1229 RON
55 1 1 CHOKE PLATE 2.0 (OLD 528-0652N-22/6691275) (6691276) 1229 RON
56 1 1 CLEANER BODY COMP. (OLD 423-0652N-80) (6690120) 3242 RON
57 1 1 CLEANER SPONGE (OLD 446-0652N-20) (6690365) 1229 RON
58 1 1 6690402 (6690402) 6039 RON
59 1 1 COVER FIXING BOLT (OLD 450-07024-80) (6690384) 1564 RON
60 1 2 SCREW 5X55 (OLD 990-11050-552) (6694914) 1229 RON
61 1 2 S.WASHER 5 (OLD 992-10050-012/6695214) (6684662) 1229 RON
62 1 2 SMALL WASHER 5 (OLD 992-00050-011) (6684864) 1229 RON
63 1 1 CABURETOR SET WYJ-463 (OLD 455-0740A-90) (6690522) 3400 RON
64 1 1 CHOKE CONTROL LEVER (OLD 523-0652N-20) (6691239) 1229 RON
*65 1 1 TANK WHITE (OLD 591-07350-22/6691519/6691601/04) (6691602) 5480 RON
*65 1 1 TANK (EVAPO) (OLD 591-0735F-20) NEW (6691605) 16888 RON
66 1 1 BRAKE SHAFT WASHER (OLD 368-32350-20) (6689681) 1229 RON
67 1 3 COLLAR 5.8 (OLD 659-00801-20) (6692244) 1229 RON
68 1 1 RETURN GROMMET (OLD 534-32710-20) (6684627) 105 RON
69 1 1 FUEL PIPE 3X5X65 (OLD 700-03005-06/700-03005-065) (6684626) 1229 RON
70 1 1 PUMP FILTER BODY COMP. (OLD 675-04042-80) (6684620) 3242 RON
71 1 1 CLIP.6.3 DIA. (OLD 680-00731-20) (6684619) 1229 RON
72 1 1 6684618 (6684618) 2236 RON
73 1 1 HEX HOLE BOLT 5X20PS (OLD 994-63050-205) (6695506) 1229 RON
74 1 3 HEX.HOLE BOLT 5X16/PS (OLD 994-63050-164) (6695504) 1229 RON
75 1 1 6691748 (6691748) 4585 RON
76 1 1 TAP SCREW 4X14 P (OLD 993-49040-142/6695112) (6695280) 1229 RON
77 1 1 BOLT WASHER M4 (OLD 992-01040-011) (6685070) 1229 RON
91 1 1 CYLINDER COVER (BLK) (OLD 016-07500-20) (6685693) 3466 RON
92 1 2 HEX.HOLE BOLT 5X16/PS (OLD 994-63050-164) (6695504) 1229 RON
93 1 2 HEX.HOLE BOLT 6X65 (OLD 990-51060-653) NEW (6695067) 1229 RON
94 1 2 WASHER 6 (OLD 992-01060-011) (6684639) 1229 RON
95 1 1 MUFFLER COMP. (OLD 706-0740A-80) NEW (6692575) 22927 RON
96 1 2 MUFFLER SPECIAL GASKET (OLD 751-06500-20) (6692886) 1229 RON
97 1 1 TAIL PIPE SET (OLD 734-0740A-90) NEW MAR (6692716) 3466 RON
98 1 2 SCREW M4X8/WS (OLD 994-36040-081) (6684651) 1229 RON
99 1 1 SPARK ARRESTER (OLD 732-0740A-20) NEW (6692702) 2236 RON
100 1 1 MUFFLER PROTECTOR (OLD 738-0740A-80) (6692817) 10513 RON
101 1 2 CLUTCH WASHER B (OLD 359-02103-20) (6684642) 1229 RON
101A 1 2 6697619 - Indisponibil
102 1 2 CLUTCH SHOE COMP. (OLD 290-01620-80) (6684643) 3578 RON
102A 1 2 6697656 - Indisponibil
103 1 1 CLUTCH SPRING (OLD 342-0630B-20) (6684644) 1229 RON
103A 1 1 6697657 - Indisponibil
104 1 2 CLUTCH PLATE A 0.5 (OLD 348-0630A-20/6689529) (6684645) 1229 RON
104A 1 2 CLUTCH PLATE A (OLD 348-0602R-20) (6689528) 1229 RON
105 1 2 STEP BOLT (OLD 357-0075T-20) (6684646) 1229 RON
105A 1 2 STEP BOLT (OLD 357-00601-20) (6689627) 1229 RON
106 1 3 HEX. HOLE BOLT M5X18/WS (OLD 994-64050-184) NEW (6684647) 1229 RON
107 1 2 BENT WASHER 8 (OLD 992-05080-030/6695204) (6684648) 1229 RON
108 1 1 HEX. HOLE BOLT 4X15/PS (OLD 994-63040-154) (6684682) 1229 RON
109 1 1 AIR DEFLECTOR BLK (OLD 132-0740A-20) NEW (6687216) 2460 RON
110 1 1 TAPPING SCREW 4X14 (OLD 993-48040-142) (6684751) 1229 RON
111 1 1 FAN CASE COMP (OLD 112-07365-80) NEW (6687037) 10289 RON
112 1 1 PRIMARY CORD GROMMET (OLD 203-11660-20) (6688057) 1229 RON
113 1 1 HEAT SHIELD (OLD 133-07500-20) (6687265) 3242 RON

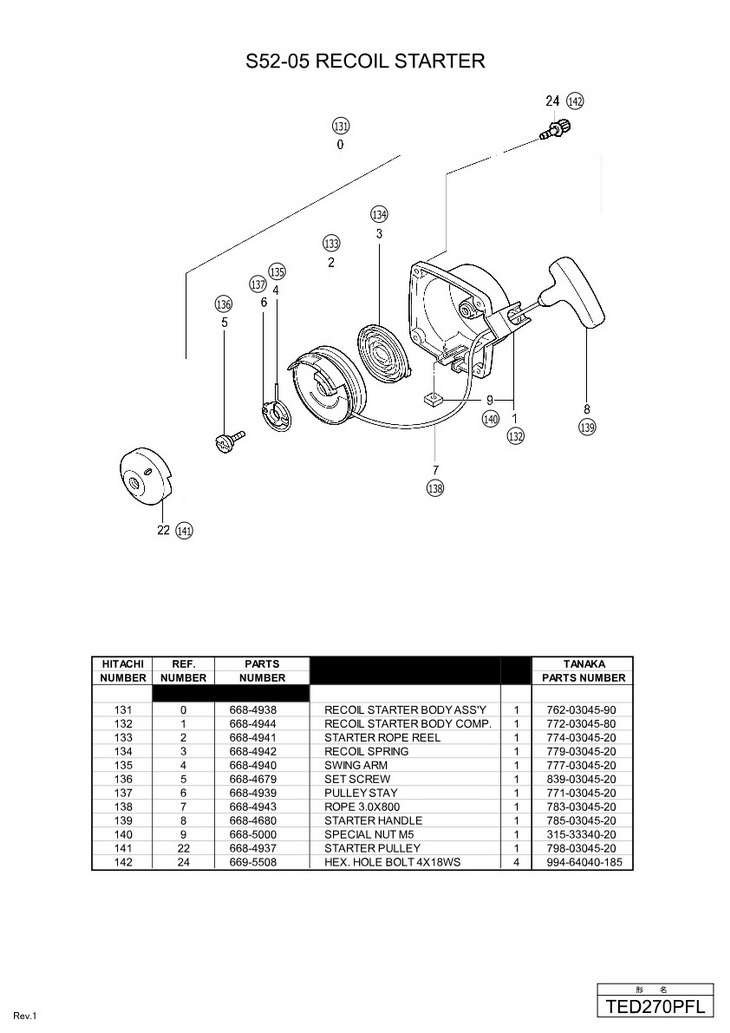

131 1 1 6684938 (6684938) Indisponibil Indisponibil
132 1 1 RECOIL STARTER BODY COMP. (OLD 772-03045-80) (6684944) 5815 RON
133 1 1 STARTER ROPE REEL (OLD 774-03045-20) (6684941) 2460 RON
134 1 1 RECOIL SPRING (OLD 779-03045-20) (6684942) 3578 RON
135 1 1 SWING ARM (OLD 777-03045-20) (6684940) 1229 RON
136 1 1 SET SCREW (OLD 839-03045-20) (6684679) 1229 RON
137 1 1 PULLEY STAY (OLD 771-03045-20) (6684939) 1229 RON
138 1 1 ROPE 3.0X800 (OLD 783-03045-20) (6684943) 2236 RON
139 1 1 STARTER HANDLE (OLD 785-03045-20) (6684680) 1229 RON
140 1 1 SPECIAL NUT M5 (OLD 315-33340-20) NEW (6685000) 1229 RON
141 1 1 STARTER PULLEY (OLD 798-03045-20) (6684937) 2460 RON
142 1 4 HEX. HOLE BOLT 4X18WS (OLD 994-64040-185) NEW (6695508) 1229 RON
161 1 1 PUMP BODY COMP. (OLD 575-25153-80) (6684879) 15098 RON
162 1 1 PRIMING PUMP COMP. (OLD 442-25151-80) (6684687) 5591 RON
163 1 1 DIAPHRAGM COVER (OLD 476-25151-20) (6684688) 3242 RON
164 1 1 PRIMING BODY (OLD 447-25108-20) (6684689) 2460 RON
165 1 1 METERING DIAPHRAGM (OLD 474-25601-20) (6684690) 6039 RON
166 1 1 DIAPHRAGM GASKET (OLD 475-25153-20) (6684691) 3242 RON
167 1 1 PUMP DIAPHRAGM (OLD 576-25100-20/6696325) (6684693) 3242 RON
168 1 1 PUMP GASKET (OLD 577-25292-20/6696321) (6684692) 7940 RON
169 1 1 MAIN JET #38.5 (OLD 599-200BW-38/6691874) (6696130) 3578 RON
170 1 1 O-RING (OLD 550-25100-20) (6684695) 2236 RON
171 1 1 STOP RING (OLD 489-25100-20) (6684696) 1229 RON
172 1 1 SWIVEL (OLD 539-25120-20) (6684697) 2460 RON
173 1 2 THROTTLE SET SCREW (OLD 514-25100-20) (6684870) 1229 RON
174 1 1 CABLE ADJUSTER STAY (OLD 544-25164-20) (6684873) 2460 RON
175 1 1 CLEANER PACKING (OLD 431-0634C-20) (6684875) 2236 RON
176 1 4 SET SCREW (OLD 548-25151-20/6696324) (6684699) 1229 RON
177 1 1 THRUST WASHER (OLD 549-25165-20) (6684874) 1229 RON
178 1 1 INLET SCREEN (OLD 578-25007-20/6691460) (6684700) 2236 RON
191 1 1 GEAR CASE A COMP. (OLD 002-32182-80) (6685578) 13197 RON
192 1 1 GEAR CASE B COMP. (OLD 006-3210A-80) (6685593) 9618 RON
193 1 1 CLUTCH HOUSING COMP. (OLD 226-71010-80) NEW (6688210) 10177 RON
194 1 1 GEAR 2 (OLD 012-32191-20) NEW (6685656) 15993 RON
195 1 1 GEAR 3 (OLD 016-32120-21) (6685702) 1232 RON
196 1 1 WOOD-RUFF KEY 3X10X3.7 (OLD 068-00300-20) (6686454) 1229 RON
197 1 1 BALL BEARING 6001Z, 28MM/OD (OLD 999-61600-102) (6695532) 4025 RON
198 1 1 BALL BEARING 16001 (OLD 999-61600-110) NEW (6695534) 2795 RON
199 1 1 STOP RING C 11,OUTER (OLD 993-50011-002) NEW (6695282) 1229 RON
200 1 1 GEAR 4 (OLD 018-32192-20) (6685788) 11519 RON
201 1 1 BALL BEARING #7202B, 35MM/OD (OLD 999-61720-221) (6695587) 7381 RON
202 1 1 WASHAER C 5.0 (OLD 040-32120-20) NEW (6686065) 2460 RON
203 1 1 BALL BEARING 6202Z 35MM/OD (OLD 999-61620-202) (6695559) Indisponibil Indisponibil
204 1 1 STOP RING C-35, INNER (OLD 993-51035-002) (6695296) 1229 RON
205 1 1 WOOD-RUFF KEY 3X13X5 (OLD 068-01006-20) (6686455) 1229 RON
206 1 1 DRIVE SHAFT (OLD 022-32183-20) NEW JAN (6685824) 11519 RON
207 1 4 SCREW 5X18/S (OLD 994-14050-181) (6695339) 1229 RON
208 1 1 WAVE WASHER B.B 35 (OLD 992-09350-030) (6695206) 1229 RON
209 1 1 GREASE NIPPLE COMP. (OLD 300-32250-80) (6688643) 1229 RON
210 1 1 STOP RING C-13, OUTER (OLD 993-50013-002) (6695283) 1229 RON
211 1 1 LOCK LEVER COMP. (OLD 405-32182-81) NEW (6689992) 5032 RON
212 1 1 LOCK LEVER SPRING (OLD 406-32182-20) (6689998) 3242 RON
213 1 2 SPECIAL WASHER (OLD 182-01700-20) (6687942) 1229 RON
214 1 2 BOLT WASHER M7 (OLD 992-01070-011) (6685103) 1229 RON
215 1 2 STEP BOLT (OLD 793-10200-20) (6693366) 1229 RON
231 1 2 PLUS BOLT 6X30 (OLD 990-23060-301) NEW (6695022) 1229 RON
232 1 2 S.WASHER 6 (OLD 992-10060-012/6695217) (6695219) 1229 RON
233 1 1 HANDLE A COMP (OLD 258-71020-80) NEW (6688370) 14092 RON
234 1 1 HANDLE GRIP A (OLD 165-33130-20) (6687624) 3578 RON
235 1 1 THROTTLE LEVER (OLD 060-71020-20) (6686401) 1229 RON
236 1 2 TAP SCREW 4X14 P (OLD 993-49040-142/6695112) (6695280) 1229 RON
237 1 1 SCREW 4X6 (OLD 990-11040-061) (6694860) 1229 RON
238 1 2 CORD CLAMP (OLD 198-33130-20) NEW (6688015) 1229 RON
239 1 1 PLUS BOLT 6X16 (OLD 990-23060-161) (6695019) 1229 RON
240 1 1 S.WASHER 6 (OLD 992-10060-012/6695217) (6695219) 1229 RON
*241 1 1 6697191 - Indisponibil
*241 1 1 HANDLE COMP. B (OLD 259-3210A-80) (6688372) 6374 RON
242 1 1 HANDLE GRIP (OLD 055-32130-20) (6686350) 382 RON
243 1 1 S.WASHER 10 (OLD 992-10100-012) (6695225) 1229 RON
244 1 1 THROTTLE BODY B (OLD 884-71020-20) (6693818) 2460 RON
245 1 1 THROTTLE BODY A (OLD 875-71020-20) (6693795) 2460 RON
246 1 1 STOP SWITCH COMP. (OLD 170-71020-80) (6687776) 5256 RON
247 1 1 STOP BUTTON MARK (OLD 925-33160-20) (6694588) 1229 RON
248 1 1 BUTTON STOP (OLD 258-11650-20) (6688366) 1229 RON
249 1 1 SCREW 3X10 (OLD 994-31030-101) (6684913) 1229 RON
250 1 1 THROTTLE LEVER SPRING (OLD 061-71020-20) (6686421) 1229 RON
251 1 1 THROTTLE WIRE 400+30 (OLD 885-71021-80) NEW FEB (6693988) 382 RON
252 1 1 PROTECTION TUBE 345L (OLD 164-07034-50) NEW (6687535) 1229 RON
253 1 1 CHUCK HANDLE HOLDER (OLD 155-3210A-20) NEW (6687420) 3242 RON
254 1 1 HANDLE SUPPORT COMP. (OLD 265-71000-80) (6688404) 8276 RON
255 1 2 S.WASHER 6 (OLD 992-10060-012/6695217) (6695219) 1229 RON
256 1 2 6684792 - Indisponibil
501 1 1 CHUCK HANDLE SET (OLD 059-32120-91) (6686372) 20691 RON
502 1 1 6686377 (6686377) 3400 RON
503 1 1 CHUCK HANDLE COMP. (OLD 061-32120-81) (6686410) 3242 RON
504 1 1 COBI BOX SPANNER 10X19 (OLD 036-29710-11) NEW (6685999) 3690 RON
505 1 1 SPECIAL WRENCH 31 (OLD 845-20000-20) (6693647) 7492 RON
506 1 1 HANDLE ADAPTOR (OLD 076-71020-20) NEW (6686620) 6486 RON
