Top » Piese de schimb » PIESE HITACHI » TCS33EDTP

TCS33EDTP
[TCS33EDTP]
TCS33EDTP
Click pentru a mari
Imagini suplimentare
TCS33EDTP
Click pentru a mari
TCS33EDTP
Click pentru a mari

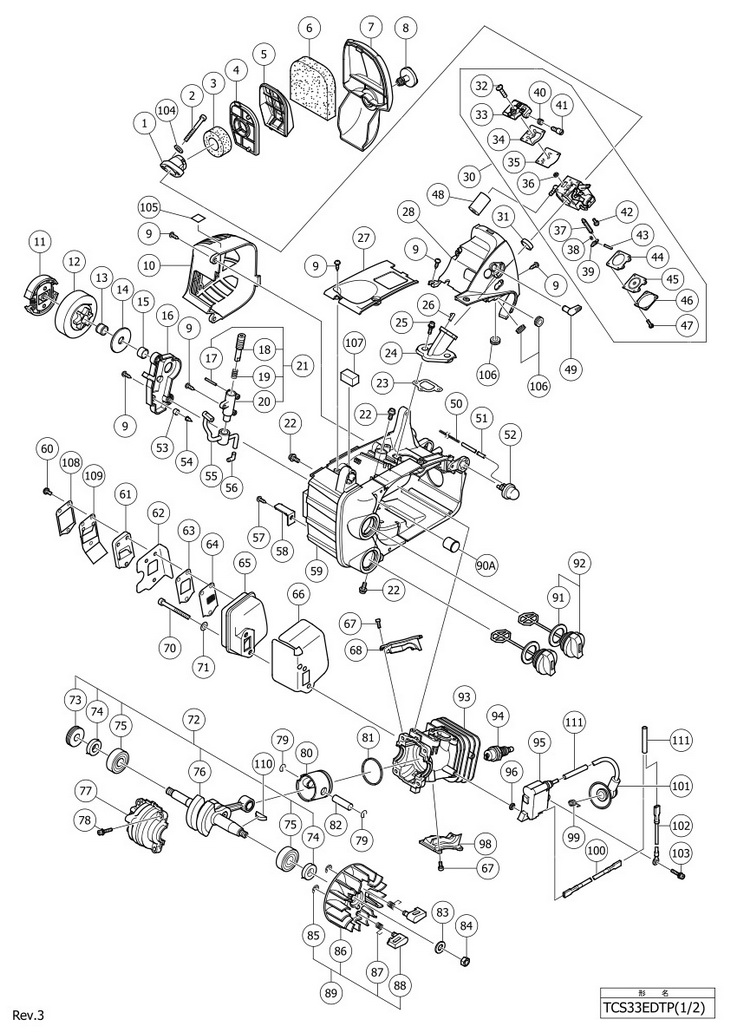

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 AIR CLEANER BASE (OLD 436-56300-20) (6685225) 1229 RON
2 1 2 HEX SOCKET HD. BOLT M5X45 (10 PCS) (949824) 382 RON
3 1 1 CLEANER SPONGE NEW FEB (6696826) 1453 RON
4 1 1 CLEANER ELEMENT A COMP. (OLD 444-56300-80) (6685230) 2460 RON
5 1 1 CLEANER ELEMENT B COMP. (OLD 445-56300-80) (6685231) 2460 RON
6 1 1 CLEANER SPONGE (A) NEW FEB (6696825) 1453 RON
7 1 1 CLEANER COVER NEW MAR (6696785) 4025 RON
8 1 1 CLEANER KNOB NEW MAR (6696786) 1453 RON
9 1 13 TAPPING SCREW D4X16 (W/FLANGE) BLACK (305812) 894 RON
10 1 1 MUFFLER COVER NEW FEB (6696821) 6262 RON
11 1 1 CLUTCH NEW JAN (6696809) 573 RON
12 1 1 CLUTCH HOUSING NEW JAN (6698856) 8947 RON
13 1 1 NEEDLE BEARING (D) (6685361) 4025 RON
14 1 1 CLUTCH WASHER (6685414) 1453 RON
15 1 1 CRANK SHAFT COLLAR (6685360) 2795 RON
16 1 1 OIL PUMP COVER NEW MAR (6696789) 781 RON
17 1 2 NEEDLE ROLLER (6685356) 1453 RON
18 1 1 PUMP GEAR (6685354) Indisponibil Indisponibil
19 1 1 PUMP GEAR SPRING (6685355) 1453 RON
20A 1 1 6699119 - Indisponibil
21A 1 1 6699120 - Indisponibil
22 1 5 SEAL LOCK BOLT M5X15 (OLD 990-54050-155) (6685136) 1229 RON
23 1 1 INTAKE PACKING NEW FEB (6698849) 1229 RON
24 1 1 INTAKE NEW MAR (6696794) 4025 RON
25A 1 2 HEX. HOLE BOLT M4 NEW (6698792) Indisponibil Indisponibil
26 1 1 PULSE GUIDE (OLD 431-32970-20) (6685203) 1229 RON
27 1 1 ENGINE CASE COVER NEW MAR (6696812) 3019 RON
28 1 1 CLEANER BODY NEW MAR (6696792) 3690 RON
30 1 1 6696795 (6696795) 46639 RON
31 1 1 INLET SPACER NEW MAR (6698857) 1453 RON
32 1 1 SCREW (OLD 514-25001-20) (6685210) 1229 RON
33 1 1 PUMP BODY (OLD 575-25028-20) (6685211) 5032 RON
34 1 1 PUMP GASKET (OLD 577-25007-20) (6685212) 2236 RON
35 1 1 PUMP DIAPHRAGM (OLD 576-25006-20) (6685213) 3242 RON
36 1 1 INLET SCREEN (OLD 578-25007-20/6691460) (6684700) 2236 RON
37 1 1 NEEDLE VALVE (OLD 603-25012-20) (6685215) 382 RON
38 1 1 VALVE SPRING (OLD 477-25343-20) (6685216) 2236 RON
39 1 1 CONTROL LEVER (OLD 473-25001-20) (6685217) 2460 RON
40 1 1 IDLE ADJUST SPRING (OLD 463-25006-20) (6685297) 2236 RON
41 1 1 IDLE ADJUST SCREW (OLD 462-25016-20) (6685298) 2236 RON
42 1 1 HINGE PIN SET SCREW (OLD 546-25001-20) (6685218) 2236 RON
43 1 1 HINGE PIN (OLD 605-25001-20) (6685219) 1229 RON
44 1 1 DIAPHRAGM PACKING (OLD 475-25038-20) (6685220) 2236 RON
45 1 1 METERING DIAPHRAGM (OLD 474-25601-20) (6684690) 6039 RON
46 1 1 DIAPHRAGM COVER (OLD 476-25004-20) (6685222) 3242 RON
47 1 4 SET SCREW (OLD 548-25012-20) (6685223) 1229 RON
48 1 1 IDOL SPONGE NEW FEB (6696793) 1453 RON
49 1 1 CHOKE LEVER (OLD 495-56300-20) (6685206) 1229 RON
50 1 1 PROTECTIVE COIL NEW (6698699) 1453 RON
51 1 1 6698850 - Indisponibil
52 1 1 PRIMING PUMP COMP. (OLD 442-25143-80) (6685139) 3578 RON
53 1 1 AIR VENT SPONGE (6685371) 1453 RON
54 1 1 AIR VENT VALVE(B) (6685370) 2795 RON
55 1 1 OIL PIPE NEW DEC (6696811) 2795 RON
56 1 1 PIPE JOINT (6685358) Indisponibil Indisponibil
57 1 1 FLANGED TAPPING SCREW D5X15 NEW (6698456) 1453 RON
58 1 1 CHAIN CATCHER (6685363) 1453 RON
59A 1 1 6696807 (6696807) 21138 RON
60 1 3 MACHINE SCREW M4X12 (W/WASHERS) BLACK (935196) 1453 RON
61 1 1 EXHAUST PIPE NEW MAR (6696816) 1453 RON
62 1 1 MUFFLER SPECIAL PACKING NEW MAR (6696818) 1453 RON
63 1 1 GAUZE FIXING PLATE NEW MAR (6696817) 1453 RON
64 1 1 MUFFLER GAUZE NEW MAR (6696815) 1453 RON
65 1 1 6696813 - Indisponibil
66 1 1 MUFFLER PACKING NEW MAR (6696820) 2795 RON
67 1 6 HEX.SOCKET HD.BOLT M4X10 (10 PCS) (949812) 2348 RON
68 1 1 SCAVENGING COVER (B) NEW (6696766) 2795 RON
70 1 2 HEX. SOCKET HD. BOLT M6X55 NEW (6696819) 1453 RON
71 1 6 BOLT WASHER M6 (10 PCS) (OLD 949432Z) (949432) 1453 RON
72 1 1 6698853 (6698853) 37132 RON
73 1 1 WORM (6685330) 3690 RON
74 1 2 OIL SEAL (6685329) 2795 RON
75 1 2 BALL BEARING (6685328) 3019 RON
76 1 1 CRANK SHAFT (6696762) 28632 RON
77 1 1 CRANK CASE NEW MAR (6696767) 4473 RON
78 1 4 HEX. SOCKET HD BOLT M5X18 (W/SP.WASHER) (6698386) 1453 RON
79 1 2 CIR CLIP (6685326) 1453 RON
80 1 1 PISTON (M) NEW JAN (6698806) 7716 RON
81 1 1 PISTON RING (XR1-1856) (6685331) 4025 RON
82 1 1 PISTON PIN (OLD 6685079) (6696764) 1453 RON
83 1 1 BOLT WASHER M7 (OLD 992-01070-011) (6685103) 1229 RON
84 1 1 FLYWHEEL NUT (OLD 066-00000-20) (6685104) 1229 RON
85 1 2 D4E RETAINING RING (6685336) 1453 RON
86 1 1 MAGNETO ROTOR COMP. (OLD 155-20544-80) NEW (6697026) 956 RON
87 1 2 STARTER PAWL SPRING (6685335) 1453 RON
88 1 2 STARTER PAWL (6685334) 1453 RON
89 1 1 6685102 (6685102) 9059 RON
90A 1 1 6685351 (6685351) 3690 RON
91 1 2 TANK CAP PACKING (OLD 630-3252K-20) (6685179) 2236 RON
92 1 1 6698854 (6698854) 4025 RON
93 1 1 CYLINDER (6696761) 30757 RON
94 1 1 SPARK PLUG BPMR7A (OLD 018-12710-20) (6685782) Indisponibil Indisponibil
95 1 1 IGNITION COIL (OLD 6696770) NEW MAR (6698867) 22368 RON
96 1 2 GLASS WASHER NEW (6698700) 1453 RON
98 1 1 SCAVENGING COVER (A) NEW MAR (6696765) 2795 RON
99 1 1 METAL FITTING OF PLUG CAP (A) NEW (6696772) 1453 RON
100 1 1 CORD (A) NEW (6696787) 1453 RON
101 1 1 SPARK PLUG CAP NEW DEC (6696771) 2795 RON
102 1 1 CORD (B) NEW (6696791) 1453 RON
103 1 2 HEX. SOCKET HD BOLT M4X18 (W/WASHERS) (6698388) 1453 RON
104 1 2 WASHER M5 (BLACK) (OLD 992-00050-061) (6685226) 1229 RON
105 1 2 CAUTION LABEL (HOT) NEW (6698864) 1453 RON
106 1 3 GROMMET NEW (6698787) 2236 RON
107 1 2 PROTECTION SHEET NEW (6698860) 1453 RON
108 1 1 PACKING PLATE NEW (6698861) 1453 RON
109 1 1 MUFFLER SPECIAL PACKING (S) NEW (6698862) 1453 RON
110 1 1 WOODRUFF KEY 3X13X4.5 (OLD 068-10100-20) (6684899) 1229 RON
111 1 2 CORD INSULATION TUBE NEW (6698863) 1453 RON
112 1 1 6698358 - Indisponibil
121 1 1 TAPPING SCREW D5X40 (BLACK) (316458) 2236 RON
122 1 1 WASHER 1.0 NEW (6698858) 1453 RON
123 1 1 COLLAR 28.2 (OLD 6685235) (6696800) 2795 RON
124 1 1 DAMPER NEW MAR (6696775) 1453 RON
125 1 1 REAR HANDLE (B) NEW MAR (6696774) 3690 RON
126 1 1 TRIGGER LOCKOUT (OLD 257-72930-20) (6685244) 1229 RON
127 1 1 THROTTLE WIRE COMP. NEW DEC (6696797) 2795 RON
128 1 1 STOP SWITCH (6696940) 2795 RON
129 1 2 NUT M6 NEW (6698449) 1453 RON
130 1 1 THROTTLE LEVER SPRING NEW MAR (6698691) 1453 RON
131 1 1 THROTTLE LEVER (OLD 060-72930-20) (6685242) 1229 RON
132 1 2 SPRING HOLDER NEW FEB (6698409) 2795 RON
133 1 2 DAMPER SET BOLT NEW (6698859) 1453 RON
134 1 2 ANTIVIBRATION SPRING NEW MAR (6698428) 2795 RON
135 1 1 - Indisponibil
136 1 1 FLANGE NUT M8 NEW MAR (6698581) 1453 RON
137 1 1 SIDE CASE (VERMILION) NEW MAR (6696776) 6710 RON
138 1 1 BRAKE SUPPORT PLATE NEW MAR (6696782) 4025 RON
139 1 1 BRAKE LEVER SPRING NEW MAR (6696783) 1453 RON
140 1 1 6685388 (6685388) 4025 RON
141 1 1 BRAKE BAND (OLD 378-32900-20) (6685140) 6933 RON
142 1 1 D3 NEEDLE ROLLER (6685391) 1453 RON
143 1 1 BRAKE SPRING (6685389) 1453 RON
144 1 1 6695906 cod vechi 6685393 CHAIN PULLER (6698986) 2235 RON
145 1 1 GUIDE PLATE (B) (OLD 6685157) (6696784) 2795 RON
146 1 1 TAPPING SCREW D3 (696352) 1453 RON
147 1 1 TAPPING SCREW D4X10 (958715) 894 RON
*148A 1 1 6697852 - Indisponibil
*148A 1 1 6697854 - Indisponibil
*149 1 1 CHAIN BAR 12" 3/8 SPROCKET PRC TANAKA NEW (6696993) 14092 RON
*149 1 1 CHAIN BAR 14" 3/8 SPROCKET PRC TANAKA NEW (6696994) 14092 RON
150 1 1 FUEL PIPE (A) (OLD 6685309) (6698715) 6151 RON
151 1 1 FUEL PIPE (FKM) L240 NEW (6698851) 6710 RON
153 1 1 FUEL PIPE (FKM) L260 NEW (6698852) 6933 RON
154 1 1 FUEL GROMMET (OLD 701-72930-20) NEW (6696167) 1229 RON
155 1 1 REAR HANDLE (A) NEW MAR (6696773) 4025 RON
156 1 2 TAPPING SCREW D5X16 (W/FLANGE) (303273) 1453 RON
157A 1 1 FRONT HANDLE NEW MAR (6696798) 3019 RON
158 1 1 BRAKE HANDLE (OLD 6696778) NEW JAN (6698866) 5144 RON
158A 1 1 FRONT HANDLE NEW MAR (6696798) 3019 RON
159 1 1 - Indisponibil
160 1 1 BRAKE LINK COVER NEW MAR (6696779) 1453 RON
161 1 1 6685199 (6685199) 3242 RON
162 1 2 D6 CLIP (6685311) 1453 RON
163 1 1 OIL FILTER BODY (6685310) 1453 RON
164 1 1 OIL FILTER (NEW 6690919) (6696804) 781 RON
165 1 1 D5 BOLT WASHER (6685407) 1453 RON
166 1 1 AIR DEFLECTOR NEW MAR (6696790) 2795 RON
167A 1 1 RECOIL STARTER (VERMILION) NEW MAR (6696823) 10736 RON
168 1 8 TAPPING SCREW D4X20 (W/FLANGE) BLACK (302086) 1453 RON
169 1 1 TANAKA LABEL NEW (6696340) 1453 RON
171 1 1 CORD INSULATION TUBE NEW (6698457) 1453 RON
172 1 1 SPRING COVER NEW MAR (6698865) 1453 RON
173 1 1 FUEL GROMMET(A) (6685308) Indisponibil Indisponibil
174 1 1 6698923 - Indisponibil
175 1 1 SPIKE SET NEW (6696827) 2795 RON
*501 1 1 CHAIN COVER (6685401) 4025 RON
*501 1 1 CHAIN COVER 14" (6685439) 3690 RON
502 1 1 COMBI BOX SPANNER 13X19 NEW (6698582) 3690 RON
601 1 1 SPIKE SET NEW (6696827) 2795 RON
