Top » Piese de schimb » PIESE HITACHI » TCS33EB

TCS33EB
[TCS33EB]
TCS33EB
Click pentru a mari
Imagini suplimentare
TCS33EB
Click pentru a mari
TCS33EB
Click pentru a mari

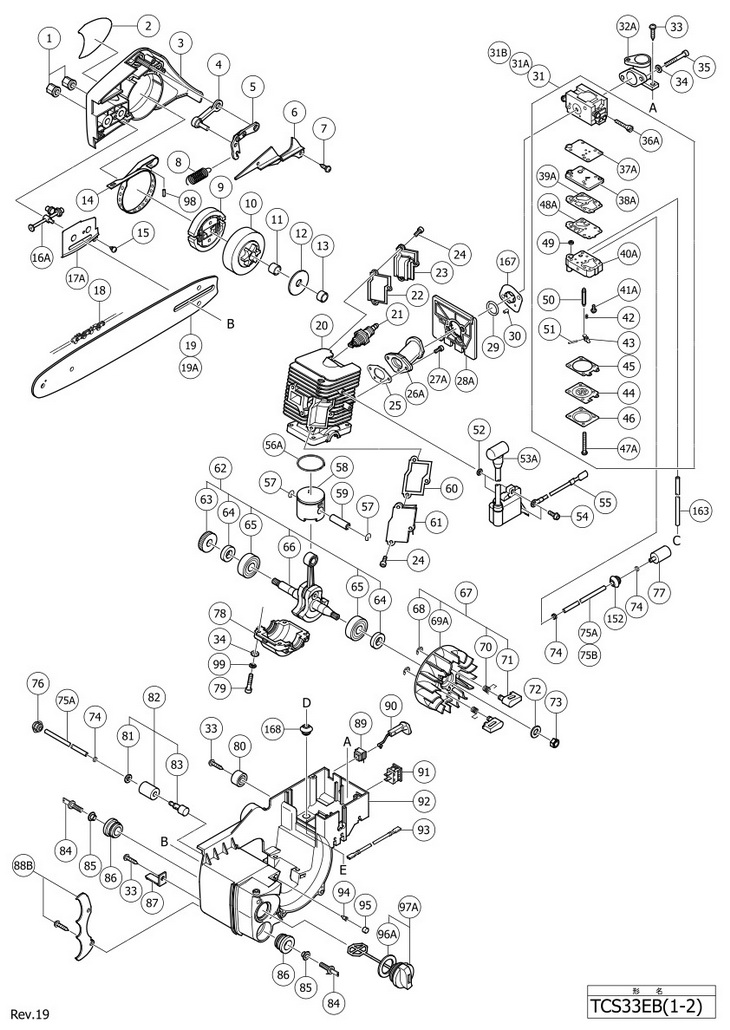

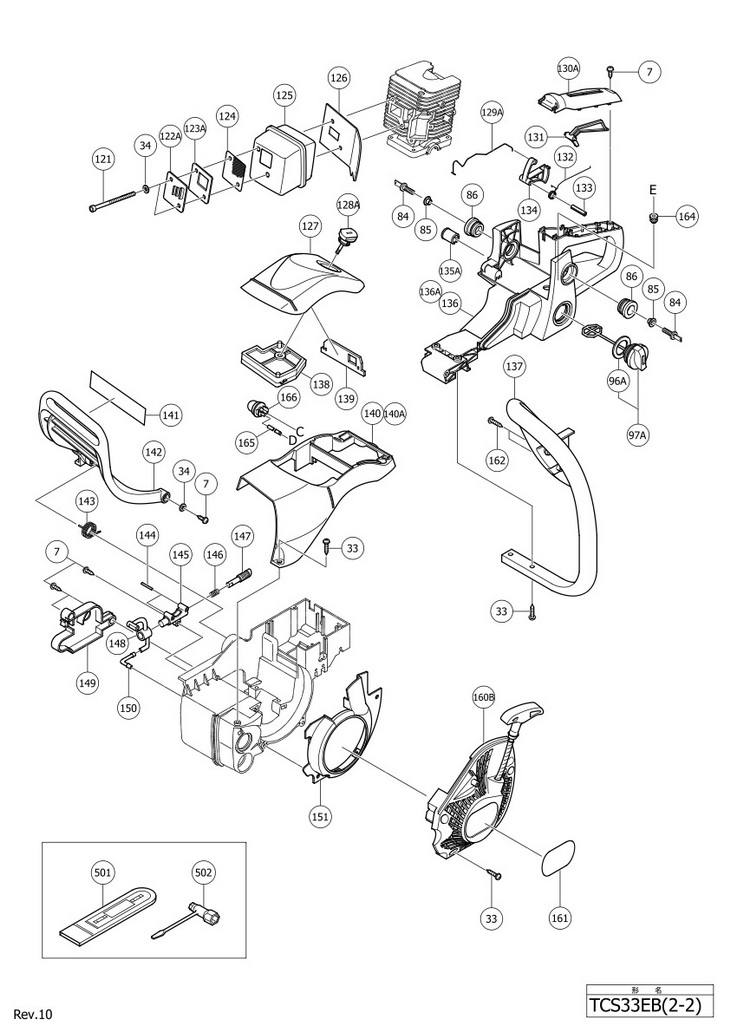

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 2 CHAIN BAR CLAMP NUT (6685416) 1453 RON
*2 1 1 NAME PLATE (6696331) 1453 RON
*2 1 1 NAME PLATE NEW (6696332) 1453 RON
3 1 1 6685406 (6685406) 5815 RON
4 1 1 6685387 (6685387) 4025 RON
5 1 1 6685388 (6685388) 4025 RON
6 1 1 BRAKE LINK COVER (6685392) 1453 RON
7 1 7 TAPPING SCREW D4X16 (W/FLANGE) BLACK (305812) 894 RON
8 1 1 BRAKE SPRING (6685389) 1453 RON
9 1 1 6685362 (6685362) Indisponibil Indisponibil
10 1 1 CLUTCH HOUSING (6685403) 6710 RON
11 1 1 NEEDLE BEARING (D) (6685361) 4025 RON
12 1 1 CLUTCH WASHER (6685414) 1453 RON
13 1 1 CRANK SHAFT COLLAR (6685360) 2795 RON
14 1 1 BRAKE BAND (6685390) 4025 RON
15 1 2 TAPPING SCREW D3 (6685415) 1453 RON
16A 1 1 6695906 cod vechi 6685393 CHAIN PULLER (6698986) 2235 RON
17A 1 1 GUIDE PLATE (6685394) Indisponibil Indisponibil
*18A 1 1 6697852 - Indisponibil
*18A 1 1 6697854 - Indisponibil
*18A 1 1 6697889 - Indisponibil
*19 1 1 CHAIN BAR 12" TANAKA 3/8 SP NEW (6685259) 11519 RON
*19 1 1 CHAIN BAR 14" TANAKA 3/8 SP (6685261) 12973 RON
*19 1 1 CHAIN BAR 16" TANAKA 3/8 SP (6685395) 15322 RON
*19A 1 1 CHAIN BAR 12" 3/8 SPROCKET PRC TANAKA NEW (6696993) 14092 RON
*19A 1 1 CHAIN BAR 14" 3/8 SPROCKET PRC TANAKA NEW (6696994) 14092 RON
*20 1 1 CYLINDER (B) (6685405) 32882 RON
*20 1 1 CYLINDER (A) (6685404) 32882 RON
*21 1 1 SPARK PLUG BPMR6A (OLD 018-06540-21) (6685086) 3130 RON
*21 1 1 SPARK PLUG BPM6A FOR USA (OLD 018-11660-21) (6685085) 2459 RON
22 1 1 COVER PACKING (B) (6685317) 1453 RON
23 1 1 SCAVENGING COVER (B) (6685315) 2795 RON
24 1 6 SEAL LOCK HEX. SOCKET HD. BOLT M4X8 (6696315) 1453 RON
25 1 1 INTAKE PACKING (6685318) 1453 RON
26A 1 1 INTAKE (A) NEW FEB (6698897) Indisponibil Indisponibil
27A 1 2 SEAL LOCK HEX. SOCKET HD. BOLT M4X10 NEW (6696860) 1453 RON
28A 1 1 CARBURETOR INSULATOR(OLD 6685322) NEW FEB (6698898) 2795 RON
29 1 1 O-RING (6696316) 1453 RON
30 1 1 PULSE GUIDE (6685321) 1453 RON
*31 1 1 6685435 (6685435) 59390 RON
31A 1 1 CARBURETOR (C) WLB-3 (OLD 6685436) (6685437) 54021 RON
31B 1 1 6698683 (6698683) 54021 RON
32A 1 1 CLEANER SUPPORT (OLD 6685323) NEW MAR (6696843) 4025 RON
33 1 12 TAPPING SCREW D5X20 (W/FLANGE) BLACK (302089) 1453 RON
34 1 9 5 WASHER (6685408) 1453 RON
35 1 2 HEX. SOCKET HD. BOLT M5X45 (6696317) 1453 RON
36A 1 1 IDLE ADJUSTING SCREW (6696318) 8611 RON
37A 1 1 PASSAGE GASKET (6696319) 6486 RON
38A 1 1 PASSAGE PLATE (6696320) 9730 RON
39A 1 1 PUMP GASKET (OLD 577-25292-20/6696321) (6684692) 7940 RON
40A 1 1 PUMP BODY (6696322) 15098 RON
41A 1 1 HINGE PIN SET SCREW (OLD 546-25147-20) (6691305) 2236 RON
42 1 1 METEALING LEVER SPRING (6696323) 3242 RON
43 1 1 CONTROL LEVER (OLD 473-25001-20) (6685217) 2460 RON
44 1 1 METERING DIAPHRAGM (OLD 474-25601-20) (6684690) 6039 RON
45 1 1 DIAPHRAGM PACKING (OLD 475-25038-20) (6685220) 2236 RON
46 1 1 DIAPHRAGM COVER (OLD 476-25004-20) (6685222) 3242 RON
47A 1 4 SET SCREW (OLD 548-25151-20/6696324) (6684699) 1229 RON
48A 1 1 PUMP DIAPHRAGM (OLD 576-25100-20/6696325) (6684693) 3242 RON
49 1 1 INLET SCREEN (OLD 578-25007-20/6691460) (6684700) 2236 RON
50 1 1 NEEDLE VALVE (OLD 603-25012-20) (6685215) 382 RON
51 1 1 HINGE PIN (OLD 605-25001-20) (6685219) 1229 RON
52 1 2 WASHER (OLD 182-0186A-20) (6684600) 1229 RON
53A 1 1 6685333 (6685333) Indisponibil Indisponibil
54 1 2 HEX. SOCKET HD. BOLT (W/FLANGE) M4X18 (6696326) 1453 RON
55 1 1 CORD (B) (6685338) 1453 RON
56A 1 1 PISTON RING (XR1-1856) (6685331) 4025 RON
57 1 2 CIR CLIP (6685326) 1453 RON
*58 1 1 6685325 (6685325) 6262 RON
*58 1 1 PISTON (FOR EUROPE,USA,CAN(SINCE 8.2009 FOR FRG) ) (6696313) 14092 RON
59 1 1 PISTON PIN (6685327) 1453 RON
60 1 1 COVER PACKING (A) (6685316) 1453 RON
61 1 1 SCAVENGING COVER (A) (6685314) 2795 RON
62 1 1 6685396 (6685396) 46639 RON
63 1 1 WORM (6685330) 3690 RON
64 1 2 OIL SEAL (6685329) 2795 RON
65 1 2 BALL BEARING (6685328) 3019 RON
66 1 1 6685324 (6685324) 2550 RON
67 1 1 6685418 (6685418) Indisponibil Indisponibil
68 1 2 D4E RETAINING RING (6685336) 1453 RON
69A 1 1 MAGNETO ROTOR (FLZ33C) (6685332) 8164 RON
70 1 2 STARTER PAWL SPRING (6685335) 1453 RON
71 1 2 STARTER PAWL (6685334) 1453 RON
72 1 1 BOLT WASHER D8 (6685410) Indisponibil Indisponibil
73 1 1 FLYWHEEL NUT (6685337) Indisponibil Indisponibil
74 1 3 D6 CLIP (6685311) 1453 RON
75A 1 2 FUEL PIPE (A) (OLD 6685309) (6698715) 6151 RON
75B 1 1 6698998 - Indisponibil
76 1 1 FUEL GROMMET(A) (6685308) Indisponibil Indisponibil
77 1 1 6685199 (6685199) 3242 RON
78 1 1 CRANK CASE (6685339) 3690 RON
79 1 4 HEX. SOCKET BOLT M5 (6685412) 1453 RON
80 1 1 DAMPER (B) (6685313) 2795 RON
81 1 1 D5 BOLT WASHER (6685407) 1453 RON
82 1 1 6685249 (6685249) 2236 RON
83 1 1 OIL FILTER BODY (6685310) 1453 RON
84 1 4 DAMPER SET BOLT (6685413) 1453 RON
85 1 4 DISTANCE PIECE (B) (696314) 2795 RON
86 1 4 DAMPER (A) (6696327) 4025 RON
87 1 1 CHAIN CATCHER (6685363) 1453 RON
88B 1 1 6696329 (6696329) 6486 RON
89 1 1 CHOKE ROD RUBBER (6685369) 1453 RON
90 1 1 CHOKE BUTTON (6685368) 1453 RON
91 1 1 STOP SWITCH (6685364) 2795 RON
92 1 1 ENGINE CASE (6685307) 17671 RON
93 1 1 CORD (A) (6685365) 1453 RON
94 1 1 AIR VENT VALVE(B) (6685370) 2795 RON
95 1 1 AIR VENT SPONGE (6685371) 1453 RON
96A 1 2 TANK CAP PACKING (OLD 630-3252K-20) (6685179) 2236 RON
97A 1 1 6698854 (6698854) 4025 RON
97A 1 1 6698855 (6698855) 4025 RON
97B 1 1 6698358 - Indisponibil
98 1 1 D3 NEEDLE ROLLER (6685391) 1453 RON
99 1 4 SPRING WASHER M5 (10 PCS) (949454) 1117 RON
121 1 2 SEAL LOCK HEX. SOCKET HD. BOLT M5X75 (6696328) Indisponibil Indisponibil
122A 1 1 EXHAUST PIPE (OLD 6685343) (6696861) 1453 RON
123A 1 1 GAUZE FIXING PLATE (6696862) 1453 RON
124 1 1 6685344 - Indisponibil
*125 1 1 6685341 (6685341) Indisponibil Indisponibil
*125 1 1 6685340 (6685340) 21138 RON
*125 1 1 6685342 (6685342) 5815 RON
126 1 1 MUFFLER PACKING (6685346) 2795 RON
127 1 1 CLEANER COVER (6685382) 2795 RON
128A 1 1 CLEANER KNOB NEW FEB (6696849) 1453 RON
129A 1 1 THLOTTLE ROD (OLD 6685366) (6696846) 1453 RON
130A 1 1 REAR HANDLE GRIP NEW FEB (6698805) 1453 RON
131 1 1 TRIGGER LOCKOUT (6685350) 1453 RON
132 1 1 THROTTLE LEVER SPRING (6685349) 1453 RON
133 1 1 SPRING PIN 5X25 (OLD 993-26005-254) (6685282) 1229 RON
134 1 1 THROTTLE LEVER (6685348) 1453 RON
135A 1 1 6685351 (6685351) 3690 RON
136 1 1 6685347 (6685347) Indisponibil Indisponibil
136A 1 1 REAR HANDLE NEW FEB (6698685) 12973 RON
137A 1 1 6698997 - Indisponibil
138 1 1 6685378 (6685378) 6598 RON
139 1 1 SHUTTER PLATE (6685381) 1453 RON
*140 1 1 CYLINDER COVER (6685376) 3019 RON
*140 1 1 CYLINDER COVER (6685377) 5815 RON
140A 1 1 CYLINDER COVER NEW FEB (6698687) 6486 RON
140A 1 1 6699001 - Indisponibil
*141 1 1 CAUTION LABEL (D) NEW (6696335) 2795 RON
*141 1 1 CAUTION LABEL (E) NEW (6696336) 2795 RON
142 1 1 BRAKE HANDLE (6685373) Indisponibil Indisponibil
143 1 1 BRAKE LEVER SPRING (6685374) 1453 RON
144 1 2 NEEDLE ROLLER (6685356) 1453 RON
145A 1 1 6699118 - Indisponibil
146 1 1 PUMP GEAR SPRING (6685355) 1453 RON
147 1 1 PUMP GEAR (6685354) Indisponibil Indisponibil
148 1 1 OIL PIPE (6685357) Indisponibil Indisponibil
149 1 1 PUMP COVER (6685359) 1453 RON
150 1 1 PIPE JOINT (6685358) Indisponibil Indisponibil
151 1 1 AIR DEFLECTOR (6685372) 2795 RON
152 1 1 6698931 - Indisponibil
160B 1 1 RECOIL STARTER (OLD 6685424) (6696847) 12973 RON
160C 1 1 6698684 - Indisponibil
*161 1 1 TANAKA LABEL NEW (6696339) 1453 RON
*161 1 1 TANAKA LABEL NEW (6696340) 1453 RON
162 1 2 TAPPING SCREW D5X25 (W/FLANGE) BLACK (305558) 894 RON
163 1 1 FUEL PIPE (PINK) NEW MAR (6698845) 3242 RON
164 1 1 RETURN GROMMET (6696970) 781 RON
165 1 1 FUEL PIPE (PINK) NEW MAR (6698846) 3019 RON
166 1 1 PRIMING PUMP COMP. (OLD 442-25143-80) (6685139) 3578 RON
167 1 1 INTAKE SPACER NEW JAN (6698847) 6710 RON
168 1 1 FUEL GROMMET(A) (6685308) Indisponibil Indisponibil
*169 1 1 6699000 - Indisponibil
170 1 1 6698923 - Indisponibil
*171 1 1 6698921 - Indisponibil
*171 1 1 6698922 - Indisponibil
172 1 1 6698999 - Indisponibil
*501 1 1 CHAIN COVER (6685401) 4025 RON
*501 1 1 CHAIN COVER 14" (6685439) 3690 RON
*501 1 1 CHAIN COVER 16" (6685440) 3690 RON
502 1 1 COMBI BOX SPANNER (6685402) 3019 RON
*601 1 1 6696995 - Indisponibil
*601A 1 1 CHAIN BAR 12" 3/8 SPROCKET PRC TANAKA NEW (6696993) 14092 RON
*601A 1 1 CHAIN BAR 14" 3/8 SPROCKET PRC TANAKA NEW (6696994) 14092 RON
602 1 1 6696329 (6696329) 6486 RON
