Top » Piese de schimb » PIESE HITACHI » TCH27EPAP

TCH27EPAP
[TCH27EPAP]
TCH27EPAP
Click pentru a mari
Imagini suplimentare
TCH27EPAP
Click pentru a mari
TCH27EPAP
Click pentru a mari
TCH27EPAP
Click pentru a mari

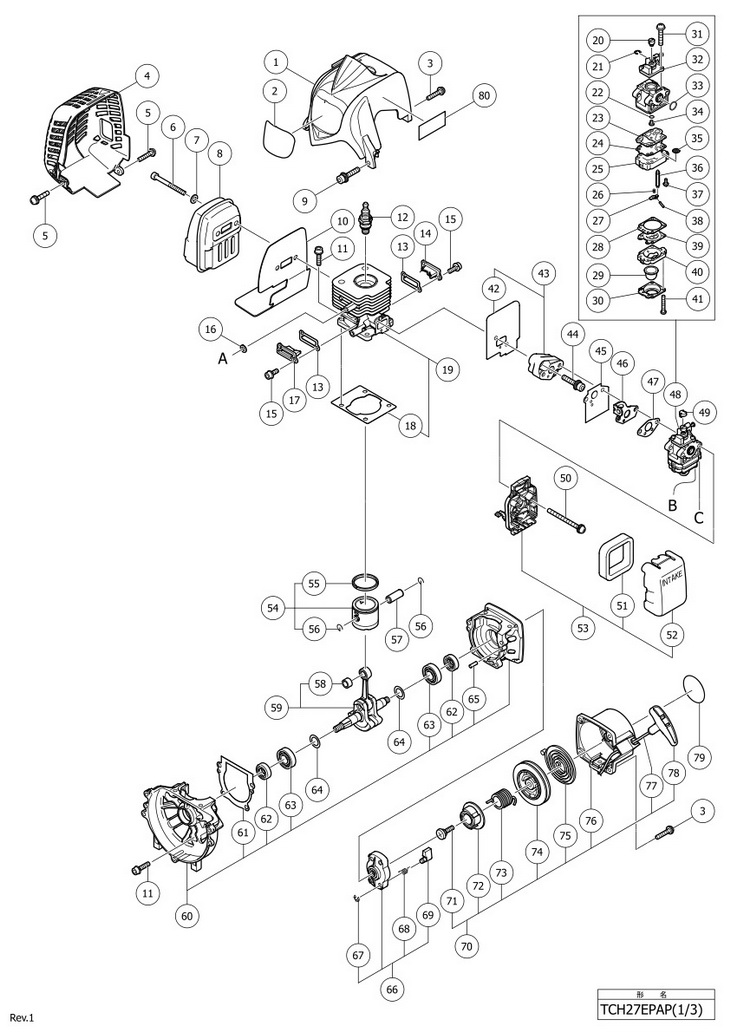

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 CYLINDER COVER (6698481) 5144 RON
2 1 1 - Indisponibil
3 1 4 SCREW 4X22/PS (OLD 994-15040-222) (6695376) 1229 RON
4 1 1 MUFFLER COVER NEW FEB (6698494) 381 RON
5 1 2 SCREW 5X16/PS (OLD 994-15050-162) (6695386) 1229 RON
6 1 2 HEX.HOLE BOLT 6X65 (OLD 990-51060-653) NEW (6695067) 1229 RON
7 1 2 WASHER 6 (OLD 992-01060-011) (6684639) 1229 RON
8 1 1 6698476 (6698476) 21138 RON
9 1 3 6698950 - Indisponibil
10 1 1 HEAT PROTECTION PANEL (6698491) 2235 RON
11 1 8 HEX. HOLE BOLT 5X20S (OLD 994-61050-205) (6695491) 1229 RON
*12 1 1 SPARK PLUG BMR7A (OLD 018-01700-21) (6684584) 4696 RON
*12 1 1 SPARK PLUG CJ6 (OLD 018-02233-20) (6685052) 1564 RON
13 1 2 6697684 - Indisponibil
14 1 1 SCAVENGING COVER (A) (6698484) 2795 RON
15 1 4 HEX. HOLE BOLT 4X12WS (OLD 994-64040-125) (6695507) 1229 RON
16 1 2 WASHER (OLD 182-0186A-20) (6684600) 1229 RON
17 1 1 SCAVENGING COVER (B) (6698485) 2795 RON
18 1 1 6697681 - Indisponibil
19 1 1 6697679 - Indisponibil
20 1 1 SWIVEL (OLD 539-25120-20) (6684697) 2460 RON
21 1 1 STOP RING (OLD 489-25100-20) (6684696) 1229 RON
22 1 1 O-RING (OLD 550-25100-20) (6684695) 2236 RON
23 1 1 PUMP GASKET (OLD 577-25292-20/6696321) (6684692) 7940 RON
24 1 1 PUMP DIAPHRAGM (OLD 576-25100-20/6696325) (6684693) 3242 RON
25 1 1 - Indisponibil
26 1 1 METEALING LEVER SPRING (6696323) 3242 RON
27 1 1 CONTROL LEVER (OLD 473-25001-20) (6685217) 2460 RON
28 1 1 DIAPHRAGM GASKET (OLD 475-25153-20) (6684691) 3242 RON
29 1 1 PRIMING BODY (OLD 447-25108-20) (6684689) 2460 RON
30 1 1 DIAPHRAGM COVER (OLD 476-25151-20) (6684688) 3242 RON
31 1 2 THROTTLE SET SCREW (OLD 548-25140-20) (6684698) 2236 RON
32 1 1 THROTTLE VALVE COMP. (OLD 488-25145-80) (6684883) 9730 RON
33 1 1 O-RING P-15 (OLD 999-67015-000) (6695670) 105 RON
34 1 1 - Indisponibil
35 1 1 INLET SCREEN (OLD 578-25007-20/6691460) (6684700) 2236 RON
36 1 1 NEEDLE VALVE (OLD 603-25012-20) (6685215) 382 RON
37 1 1 HINGE PIN SET SCREW (OLD 546-25147-20) (6691305) 2236 RON
38 1 1 HINGE PIN (OLD 605-25001-20) (6685219) 1229 RON
39 1 1 METERING DIAPHRAGM (OLD 474-25601-20) (6684690) 6039 RON
40 1 1 PRIMING PUMP COMP. (OLD 442-25151-80) (6684687) 5591 RON
41 1 4 SET SCREW (OLD 548-25151-20/6696324) (6684699) 1229 RON
42 1 1 6697691 - Indisponibil
43 1 1 6698954 - Indisponibil
44 1 5 6698844 - Indisponibil
45 1 1 CARBURETOR GASKET (OLD 402-0656A-20) (6684616) 1229 RON
46 1 1 THROTTLE WIRE FIXING PLATE (OLD 878-06620-20) (6684629) 2236 RON
47 1 1 CARBURETOR GASKET (OLD 402-0602K-21/6689836) (6684615) 1229 RON
48 1 1 6698960 - Indisponibil
49 1 1 SWIVEL CAP (OLD 560-07120-20) (6684628) 105 RON
50 1 2 PLUS SCREW 5X60WS (OLD 994-16050-601) (6695431) 1229 RON
51 1 1 CLEANER ELEMENT (OLD 446-00025-20) (6690347) 3242 RON
52 1 1 AIR CLEANER CAP (OLD 424-00025-20) (6690139) 3242 RON
53 1 1 6698961 - Indisponibil
54 1 1 6697683 - Indisponibil
55 1 1 PISTON RING (OLD 041-01700-20) (6686121) 3242 RON
56 1 2 PISTON PIN CIRCLIP (OLD 039-00601-20) (6684590) 1229 RON
57 1 1 PISTON PIN (OLD 037-07045-20/6686010) (6684591) Indisponibil Indisponibil
58 1 1 NEEDLE BEARING HK0810B (OLD 999-62081-277) (6695590) 2460 RON
59 1 1 6698962 - Indisponibil
60 1 1 6697687 - Indisponibil
61 1 1 6697688 - Indisponibil
62 1 2 OIL SEAL TB 12227 (OLD 999-66122-200/6695624) (6684607) Indisponibil Indisponibil
63 1 2 6684608 - Indisponibil
64 1 2 6697685 - Indisponibil
65 1 2 KNOCK PIN 4X12 (OLD 999-05041-203) (6695521) 1229 RON
66 1 1 6684681 (6684681) 4137 RON
67 1 2 STOP RING E-5 (OLD 993-55050-000) (6684683) 1229 RON
68 1 2 STARTER PAWL SPRING (OLD 790-06097-20) (6684684) 2236 RON
69 1 2 STARTER PAWL (OLD 788-0651H-20) (6684685) 2236 RON
70 1 1 6601570 cod vechi 6684672 (6601570) 8163 RON
71 1 1 SET SCREW (OLD 839-03045-20) (6684679) 1229 RON
72 1 1 CAM PLATE (OLD 759-0651H-20) (6684678) 2348 RON
73 1 1 DUMPER SPRING (OLD 758-0651H-20) (6684677) 3242 RON
74 1 1 STARTER ROPE REEL (OLD 774-0720F-20) (6684676) 3578 RON
75 1 1 6697591 - Indisponibil
76 1 1 RECOIL STARTER BODY COMP. (OLD 772-07350-80) (6684673) 6486 RON
77 1 1 STARTER ROPE 3.5X860 (OLD 783-0720F-20) (6684674) 2236 RON
78 1 1 STARTER HANDLE (OLD 785-03045-20) (6684680) 1229 RON
79 1 1 - Indisponibil
80 1 1 - Indisponibil

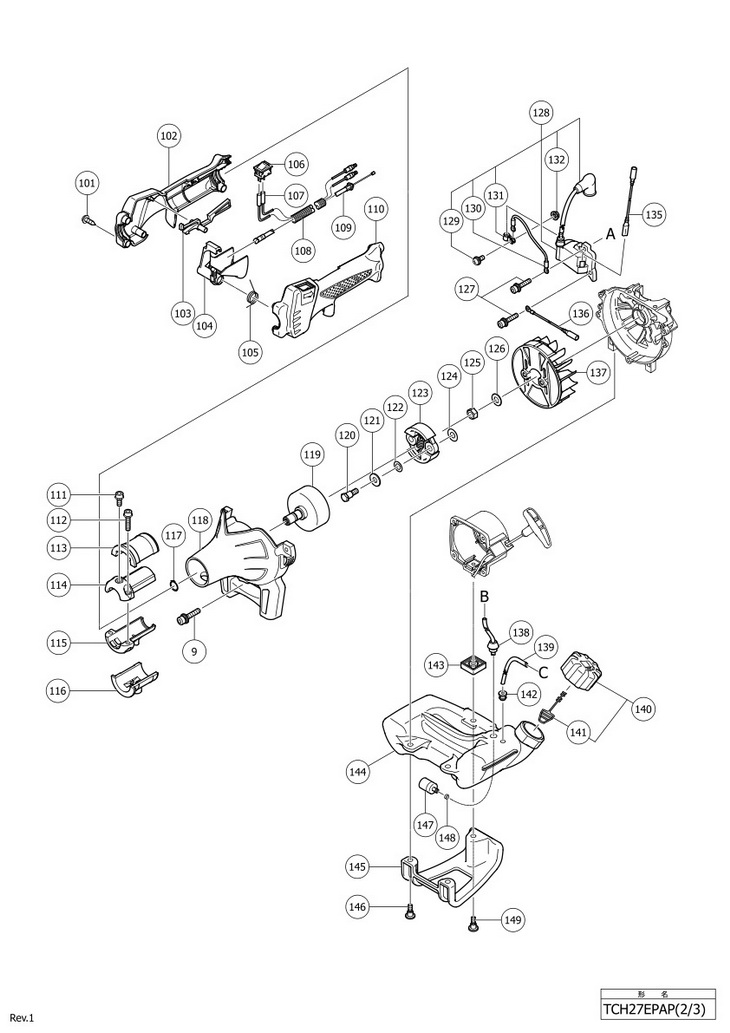

101 1 4 6697190 - Indisponibil
102 1 1 HANDLE (B) (6696487) 4025 RON
103 1 1 LOCK LEVER (6696490) 1453 RON
104 1 1 LEVER (6696488) 1453 RON
105 1 1 6698819 - Indisponibil
106 1 1 STOP SWITCH (OLD 170-04063-80) (6685239) 2460 RON
107 1 2 6698820 - Indisponibil
108 1 1 6698822 - Indisponibil
109 1 1 6698821 - Indisponibil
110 1 1 HANDLE (A) (6696486) 4025 RON
111 1 1 HEX. HOLE BOLT M5X12/S (OLD 994-61050-124) (6684667) 1229 RON
112 1 2 HEX. HOLE BOLT M5X25/S (OLD 994-16050-252) (6684709) 1229 RON
113 1 1 ANTI-VIBE RUBBER A (OLD 599-52200-20) (6684666) 2236 RON
114 1 1 PIPE HOLDER (A) NEW (6698643) 2795 RON
115 1 1 PIPE HOLDER (B) NEW (6698644) 2795 RON
116 1 1 ANTI-VIBE RUBBER B (OLD 600-52200-20) (6684665) 2236 RON
117 1 1 STOP RING C-12 OUTER (OLD 993-50012-002) (6684664) 1229 RON
118 1 1 FAN CASE (6698486) 6933 RON
119 1 1 CLUTCH DRUM COMP. (OLD 289-52200-80) (6684663) 6486 RON
120 1 2 STEP BOLT (OLD 357-00601-20) (6689627) 1229 RON
121 1 2 BENT WASHER 8 (OLD 992-05080-030/6695204) (6684648) 1229 RON
122 1 2 CLUTCH PLATE A (OLD 348-0602R-20) (6689528) 1229 RON
123 1 1 6697655 - Indisponibil
124 1 2 6697619 - Indisponibil
125 1 1 HEX.NUT M8 (OLD 991-01080-011) (6684612) 1229 RON
126 1 1 WASHER M8 (OLD 992-01080-011) (6684611) 1229 RON
127 1 2 HEX. HOLE BOLT 4X18WS (OLD 994-64040-185) NEW (6695508) 1229 RON
128 1 1 - Indisponibil
128 1 1 - Indisponibil
129 1 1 - Indisponibil
130 1 1 - Indisponibil
131 1 1 - Indisponibil
132 1 1 - Indisponibil
135 1 1 6698992 - Indisponibil
136 1 1 6697690 - Indisponibil
137 1 1 MAGNETO ROTOR (6698396) 5591 RON
*138 1 1 6684618 (6684618) 2236 RON
*138 1 1 6698970 - Indisponibil
139 1 1 FUEL PIPE 3X5X80 (OLD 700-03005-08) (6684880) 1229 RON
140 1 1 6684622 (6684622) 5032 RON
141 1 1 6684625 - Indisponibil
142 1 1 RETURN GROMMET (OLD 534-32710-20) (6684627) 105 RON
143 1 1 SPACER (6698496) 1453 RON
*144 1 1 TANK (6698475) 2459 RON
*144 1 1 TANK (6698377) 9617 RON
145 1 1 STAND (OLD 940-07350-20) (6694787) 2460 RON
146 1 2 FLANGE BOLT (6696557) 1453 RON
147 1 1 PUMP FILTER BODY COMP. (OLD 675-04042-80) (6684620) 3242 RON
148 1 1 CLIP.6.3 DIA. (OLD 680-00731-20) (6684619) 1229 RON
149 1 1 - Indisponibil

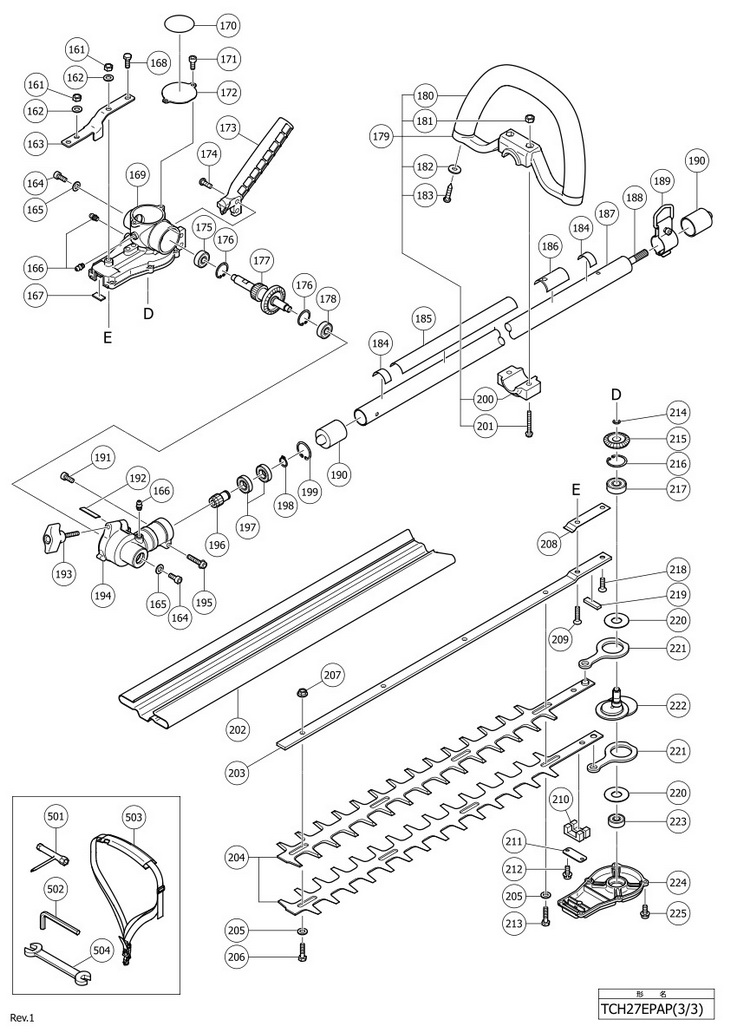

161 1 2 NUT 6 UPS-P (OLD 991-87060-001) (6695175) 1229 RON
162 1 2 WASHER 6 (OLD 992-01060-011) (6684639) 1229 RON
163 1 1 SUPPORT PLATE (OLD 462-32286-20) (6690744) 6710 RON
164 1 2 HEX. HOLE BOLT 6X12 (OLD 990-53060-125) (6695078) 1229 RON
165 1 2 SPECIAL WASHER B (OLD 871-32600-20) (6684822) 1229 RON
166 1 3 GREASE NIPPLE COMP. (OLD 300-32250-80) (6688643) 1229 RON
167 1 1 GREASE SEAL B (OLD 086-32286-20) (6686659) 1229 RON
168 1 1 PLUS BOLT 6X14 (OLD 990-23060-141) (6695016) 1229 RON
169 1 1 GEAR CASE B (OLD 301-32286-20/6688832&6695981) (6688834) 11183 RON
170 1 1 CAUTION MARK A (OLD 919-32290-20) NEW (6694538) 2236 RON
171 1 2 HEX HOLE BOLT 4X8 (OLD 990-51040-085) NEW (6695035) 1229 RON
172 1 1 GEAR CASE COVER A (OLD 327-32280-20) (6689167) 1229 RON
173 1 1 HANDLE (OLD 210-32286-20) (6688089) 3242 RON
174 1 2 HEX HOLE BUTTON SCREW 6X15 (OLD 990-53060-153) (6695079) 1229 RON
175 1 1 BALL BEARING 608DDMC2EPS2S (608DDM) 3914 RON
176 1 2 STOP RING C-22, INNER (OLD 993-51022-002) (6695293) 1229 RON
177 1 1 6698957 - Indisponibil
178 1 1 333945 - Indisponibil
179 1 1 6696088 (6696088) 6822 RON
180 1 1 HANDLE GRIP (OLD 503-3738E-20) (6691098) 3914 RON
181 1 2 HEX.NUT 6 (OLD 6684792/991-01060-041) (6684835) 1229 RON
182 1 1 BRAKE SHAFT WASHER (OLD 368-32350-20) (6689681) 1229 RON
183 1 1 TAPPING SCREW 5X20 (OLD 993-11052-012) (6695255) 1229 RON
184 1 2 LEVEL MARK (OLD 923-33700-20) (6684851) 1229 RON
185 1 1 - Indisponibil
186 1 1 LEVEL MARK (OLD 923-3738F-20) (6684852) 1229 RON
187 1 1 6698963 - Indisponibil
188 1 1 DRIVE SHAFT, 1483L (OLD 343-37618-20) (6689470) 6374 RON
189 1 1 6689277 (6689277) 2460 RON
190 1 2 CAP (A) (6698515) 2795 RON
191 1 1 HEX. HOLE BOLT 5X10 (OLD 990-51050-103) (6695042) 1229 RON
192 1 1 GREASE SEALED (OLD 088-32287-20) (6686669) 1229 RON
193 1 1 HANDLE KNOB A COMP. (OLD 512-32286-80) (6691200) 2460 RON
194 1 1 GEAR CASE A,24 DIA (OLD 300-32287-21) (6688653) 14092 RON
195 1 1 HEX. HOLE BOLT M5X25/S (OLD 994-16050-252) (6684709) 1229 RON
196 1 1 6698958 - Indisponibil
197 1 2 6698971 - Indisponibil
198 1 1 STOP RING S-12,OUTER (OLD 993-52012-002) (6695302) 1229 RON
199 1 1 STOP RING C-24.INNER (OLD 993-51024-002) (6684732) 1229 RON
200 1 1 HANDLE BRACKET A (OLD 506-37300-20) (6691134) 2236 RON
201 1 2 BOLT 6X43/P (BLACK) (OLD 994-23060-432) (6684838) 1229 RON
202 1 1 CUTTER COVER (OLD 138-33168-20) (6687301) 5032 RON
203 1 1 CUTTER GUIDE 625.5MM (OLD 122-32286-21) (6687125) 12526 RON
204 1 2 CUTTER (OLD 120-32287-21) (6687079) 21586 RON
205 1 4 WASHER 7 BLACK (OLD 129-33202-20) (6687187) 1229 RON
206 1 3 CUTTER FIXING BOLT B (OLD 125-32287-20) (6687162) 1229 RON
207 1 3 FLANGE NUT 6 (OLD 991-82060-001) (6695170) 1229 RON
208 1 1 SPACER (OLD 296-32286-20) (6688633) 1229 RON
209 1 1 HEX. HOLE FLUSH BOLT 6X25 (OLD 990-52060-255) (6695075) 1229 RON
210 1 2 GREASE SEAL A (OLD 085-32286-20) (6686647) 1229 RON
211 1 1 CAM-ROD HOLDING PLATE (OLD 105-32280-20) (6686826) 1229 RON
212 1 2 HEX. HOLE BOLT 4X10S (OLD 994-61040-104) (6695484) 1229 RON
213 1 1 FIXING BOLT A M6 (OLD 124-32287-20) (6687158) 1229 RON
214 1 1 STOP RING E-6 (OLD 993-55060-000) (6695310) 1229 RON
215 1 1 6698959 - Indisponibil
216 1 1 STOP RING C-26, INNER (OLD 993-51026-002) NEW (6695294) 1229 RON
217 1 1 6695529 - Indisponibil
218 1 1 HEX HOLE FLUSH SCREW 6X16 (OLD 990-52060-165) (6695073) 1229 RON
219 1 1 GREASE SEAL B (OLD 087-32286-20) (6686666) 1229 RON
220 1 2 CAM-ROD GUIDE PLATE (OLD 075-32280-20) (6686611) 1229 RON
221 1 2 CAM ROD (OLD 101-33160-22/6686808) (6686809) 3578 RON
222 1 1 CAM SHAFT COMP. (OLD 100-32282-81/6686788/6686789) (6686790) 16888 RON
223 1 1 6698772 - Indisponibil
224 1 1 GEAR CASE COVER B (OLD 328-32280-22) (6689172) 8499 RON
225 1 6 HEX. HOLE BOLT M4X12/S (OLD 994-61040-124) (6684595) 1229 RON
501 1 1 COMBI BOX SPANNER 10X19 ,PLUS (OLD 036-29331-50) (6685997) 3242 RON
502 1 1 HEX. BAR WRENCH 4MM (OLD 813-20000-20) (6684813) 105 RON
503 1 1 6692867 (6692867) 5927 RON
504 1 1 WRENCH 8X10 (OLD 801-20000-20) NEW (6684766) 1229 RON
601 1 1 - Indisponibil
602 1 1 - Indisponibil
