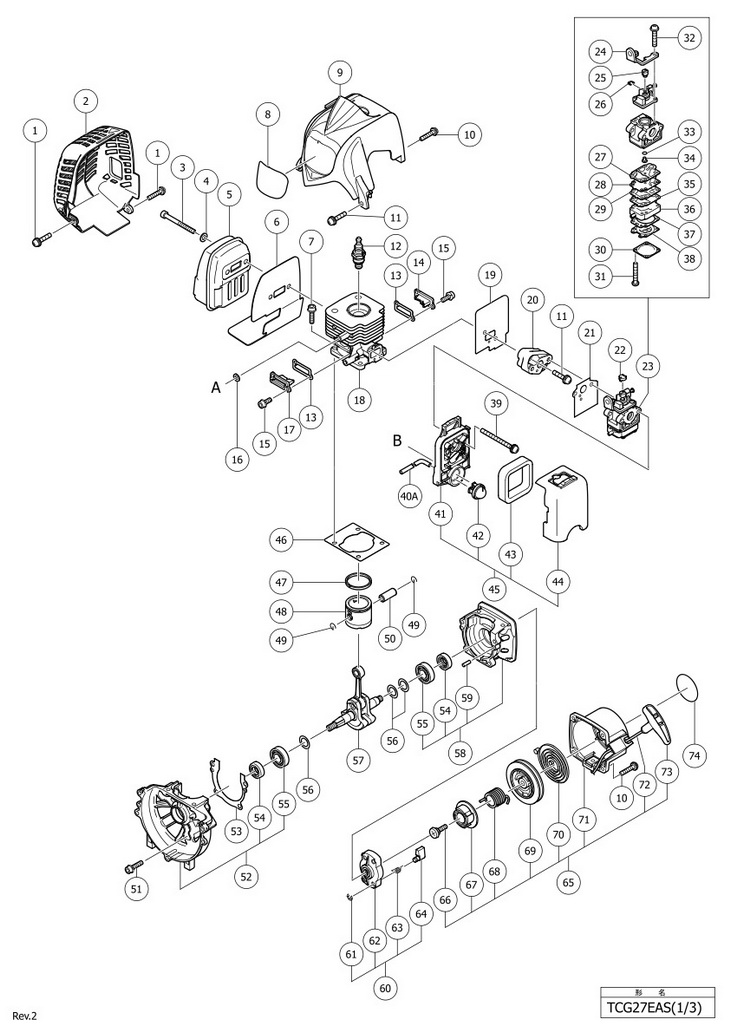

Top » Piese de schimb » PIESE HITACHI » TCG27EAS TCG27EAS [TCG27EAS] Click pentru a mari Imagini suplimentare Click pentru a mari Click pentru a mari Click pentru a mari LISTA DE COMPONENTE: Numar Versiune Buc. in schema Denumire Pret/buc (Tva inclus) Cumpara 1 1 2 SCREW M5X16 (W/WASHERS) BLACK (887021) 2236 RON 2 1 1 MUFFLER COVER (6698493) 4025 RON 3 1 2 HEX. SOCKET HD. BOLT M6X55 NEW (6696819) 1453 RON 4 1 2 BOLT WASHER M6 (10 PCS) (OLD 949432Z) (949432) 1453 RON 5 1 1 MUFFLER (6698477) 7493 RON 6 1 1 HEAT PROTECTION PANEL (6698491) 2235 RON 7 1 4 HEX. SOCKET BOLT M5 (6696958) 2795 RON 8 1 1 TANAKA LABEL NEW (6696339) 1453 RON 9 1 1 CYLINDER COVER (6698481) 5144 RON 10 1 4 MACHINE SCREW (W/WASHERS) M4X20 (307606) 1453 RON 11 1 5 MACHINE SCREW M5X25 BLACK (880734) 894 RON *12 1 1 SPARK PLUG CJ6 (OLD 018-02233-20) (6685052) 1564 RON *12 1 1 SPARK PLUG BMR7A (OLD 018-01700-21) (6684584) 4696 RON 13 1 2 COVER PACKING (6698365) 1453 RON 14 1 1 SCAVENGING COVER (A) (6698484) 2795 RON 15 1 4 HEX. SOCKET HD BOLT M4X12 (6698385) 1453 RON 16 1 2 WASHER (OLD 182-0186A-20) (6684600) 1229 RON 17 1 1 SCAVENGING COVER (B) (6698485) 2795 RON 18 1 1 CYLINDER (6698480) 2550 RON 19 1 1 INTAKE PACKING (6698473) 1453 RON 20 1 1 CARBURETOR INSULATOR (6698387) 3019 RON 21 1 1 CARBURETOR PACKING (6698405) 2795 RON 22 1 1 SWIVEL CAP (OLD 560-07120-20) (6684628) 105 RON 23 1 1 6698489 (6698489) 32882 RON 24 1 1 - Indisponibil 25 1 1 - Indisponibil 26 1 1 - Indisponibil 27 1 1 - Indisponibil 28 1 1 - Indisponibil 29 1 1 - Indisponibil 30 1 1 - Indisponibil 31 1 4 - Indisponibil 32 1 2 - Indisponibil 33 1 1 - Indisponibil 34 1 1 - Indisponibil 35 1 1 - Indisponibil 36 1 1 - Indisponibil 37 1 1 - Indisponibil 38 1 1 - Indisponibil 39 1 2 MACHINE SCREW M5X60 (OLD 943430) (307224) 1453 RON 40A 1 1 FUEL PIPE (OLD 6696962) (6698720) 3242 RON 41 1 1 - Indisponibil 42 1 1 PRIMING PUMP COMP. (OLD 442-25143-80) (6685139) 3578 RON 43 1 1 CLEANER ELEMENT (OLD 446-00025-20) (6690347) 3242 RON 44 1 1 - Indisponibil 45 1 1 6696549 (6696549) 5815 RON 46 1 1 CYLINDER PACKING (6698366) Indisponibil Indisponibil 47 1 1 PISTON RING (OLD 041-01700-20) (6686121) 3242 RON 48 1 1 PISTON (6698483) 5591 RON 49 1 2 PISTON PIN CIRCLIP (OLD 039-00601-20) (6684590) 1229 RON 50 1 1 PISTON PIN (OLD 037-07045-20/6686010) (6684591) Indisponibil Indisponibil 51 1 4 HEX. SOCKET HD BOLT M5X18 (W/SP.WASHER) (6698386) 1453 RON 52 1 1 6698370 (6698370) 10736 RON 53 1 1 CRANK CASE PACKING (6698371) 1453 RON 54 1 2 OIL SEAL TB 12227 (OLD 999-66122-200/6695624) (6684607) Indisponibil Indisponibil 55 1 2 6684608 - Indisponibil 56 1 3 SHIM (6698490) 1453 RON 57 1 1 CRANK SHAFT (6698488) 30757 RON 58 1 1 6698369 (6698369) 8388 RON 59 1 2 KNOCK PIN 4X12 (6696947) 1453 RON 60 1 1 6684681 (6684681) 4137 RON 61 1 2 STOP RING E-5 (OLD 993-55050-000) (6684683) 1229 RON 62 1 1 - Indisponibil 63 1 2 STARTER PAWL SPRING (OLD 790-06097-20) (6684684) 2236 RON 64 1 2 STARTER PAWL (OLD 788-0651H-20) (6684685) 2236 RON 65 1 1 6601570 cod vechi 6684672 (6601570) 8163 RON 66 1 1 SET SCREW (OLD 839-03045-20) (6684679) 1229 RON 67 1 1 CAM PLATE (OLD 759-0651H-20) (6684678) 2348 RON 68 1 1 DUMPER SPRING (OLD 758-0651H-20) (6684677) 3242 RON 69 1 1 STARTER ROPE REEL (OLD 774-0720F-20) (6684676) 3578 RON 70 1 1 RECOIL SPRING (OLD 780-06097-20) (6684675) 3578 RON 71 1 1 RECOIL STARTER BODY COMP. (OLD 772-07350-80) (6684673) 6486 RON 72 1 1 STARTER ROPE 3.5X860 (OLD 783-0720F-20) (6684674) 2236 RON 73 1 1 STARTER HANDLE (OLD 785-03045-20) (6684680) 1229 RON 74 1 1 - Indisponibil *91 1 1 TAPPING SCREW D4X16 (W/FLANGE) BLACK (305812) 894 RON *91 1 4 TAPPING SCREW D4X16 (W/FLANGE) BLACK (305812) 894 RON *92 1 1 HANDLE (B) (6696942) 3019 RON *92 1 1 HANDLE (B) (6696487) 4025 RON 93 1 1 LOCK LEVER (6696490) 1453 RON 94 1 1 LEVER (6696488) 1453 RON 95 1 1 SPRING (A) (6696489) 1453 RON 96 1 1 STOP SWITCH (6696940) 2795 RON *97 1 2 STOP SWITCH CORD (6696491) 2795 RON *97 1 2 STOP SWITCH CORD (6696592) 2795 RON *98 1 1 PROTECTION TUBE (6696967) 1453 RON *98 1 1 PROTECTION TUBE (6696594) 2795 RON *99 1 1 THROTTLE WIRE COMP (6696560) 4025 RON *99 1 1 THROTTLE WIRE COMP. (6696593) 4025 RON *100 1 1 HANDLE (A) (6696941) 3019 RON *100 1 1 HANDLE (A) (6696486) 4025 RON 101 1 1 HEX. HOLE BOLT M5X12/S (OLD 994-61050-124) (6684667) 1229 RON 102 1 2 HEX. HOLE BOLT 5X22/S (OLD 994-61050-224) (6695492) 1229 RON 103 1 1 ANTI VIBE RUBBER (A) (6696963) 2795 RON 104 1 1 PIPE HOLDER (A) NEW (6698643) 2795 RON 106 1 1 PIPE HOLDER (B) NEW (6698644) 2795 RON 107 1 1 ANTI VIBE RUBBER (B) (6696964) 2795 RON 108 1 1 RETAINING RING FOR D12 (10 PCS) (939542) 1788 RON 109 1 1 FAN CASE (6698486) 6933 RON 110A 1 1 CLUTCH SHAFT (OLD 6696481) (6698793) 6486 RON 111 1 2 STEP BOLT (6696469) 1453 RON 112 1 2 BENT WASHER 8 (OLD 992-05080-030/6695204) (6684648) 1229 RON 113 1 2 CLUTCH PLATE (A) (6696546) 1453 RON 114 1 1 CLUTCH (6696948) Indisponibil Indisponibil 115 1 2 CLUTCH WASHER (B) (6696547) 1453 RON 116 1 1 FLYWHEEL NUT (6685337) Indisponibil Indisponibil 117 1 1 BOLT WASHER M8 (BLACK) (323212) 1453 RON 118 1 2 HEX. SOCKET HD BOLT M4X18 (W/WASHERS) (6698388) 1453 RON 119 1 1 6698492 (6698492) 14092 RON 120 1 1 CORD (6698495) 2795 RON 121 1 1 - Indisponibil 122 1 1 - Indisponibil *123 1 1 EARTH CORD (6696545) 1453 RON *123 1 1 6698636 - Indisponibil 124 1 1 MAGNETO ROTOR (6698396) 5591 RON 125 1 1 SPACER (6698496) 1453 RON 126A 1 1 FUEL PIPE (6698716) 3242 RON 127 1 1 FUEL PIPE (PINK) (6698401) 1453 RON 128 1 1 RETURN GROMMET (6696970) 781 RON 129 1 1 6698402 (6698402) 4025 RON 130 1 1 - Indisponibil 131 1 1 TANK (6698475) 2459 RON 132 1 1 PUMP FILTER BODY COMP. (OLD 675-04042-80) (6684620) 3242 RON 133 1 1 CLIP (6696949) 1453 RON 134 1 1 STAND (OLD 940-07350-20) (6694787) 2460 RON 135 1 2 FLANGE BOLT (6696557) 1453 RON 136 1 1 BOLT L23.8 (W/FLANGE) (6698512) 1453 RON *151 1 1 TAPPING SCREW (W/FLANGE) D4X30 (323837) 2236 RON *152 1 1 MACHINE SCREW M5X30 (BLACK) (323041) 1453 RON *153 1 1 HANDLE RIGHT (6696585) 5144 RON 153A 1 1 HANDLE RIGHT (6698637) 13085 RON *154 1 1 HANDLE (B) (6696591) 3019 RON *154 1 1 HANDLE (B) (6696590) 3019 RON *155 1 1 HANDLE (A) NEW (6696589) 2795 RON *155 1 1 HANDLE (A) (6696588) 2795 RON *156 1 1 NUT M5 (BLACK) (302012) 1453 RON *157 1 1 6696972 - Indisponibil *158 1 2 BOLT (BLACK) M6 (6696974) 1453 RON 159 1 1 BARRIER (6696973) 2795 RON *160 1 1 LOOP HANDLE (6696975) 4473 RON *161 1 2 NUT M6 (10 PCS) (949556) 1453 RON *162 1 1 HANDLE HOLDER (B) (6696577) 4473 RON *163 1 1 HANDLE HOLDER (C) (6696578) 2795 RON *164 1 4 HEX. HOLE BUTTON SCREW 6X25S (OLD 994-81060-254) (6684714) 1229 RON *164 1 2 HEX. HOLE BUTTON SCREW 6X25S (OLD 994-81060-254) (6684714) 1229 RON *165 1 4 HEX. HOLE BOLT M5X25/S (OLD 994-16050-252) (6684709) 1229 RON *166 1 1 HANDLE HOLDER (A) (6696576) 4025 RON *167 1 1 HANDLE LEFT (6696595) 8388 RON 167A 1 1 HANDLE LEFT (6698638) 14092 RON 168 1 1 6696485 (6696485) 3507 RON 169 1 1 BOLT (BLACK) M6 (6696974) 1453 RON 170 1 1 - Indisponibil 171 1 1 - Indisponibil 172 1 1 - Indisponibil 173 1 1 - Indisponibil 174 1 1 - Indisponibil 175 1 1 - Indisponibil 176 1 1 CUTTER HOLDER (A) (6696977) 6598 RON 177 1 1 CUTTER HOLDER (B) NEW (6698659) 7493 RON 178 1 1 - Indisponibil 179 1 1 LEFT HAND NYLON NUT M10 (6698658) 296 RON 180 1 1 SCREW 5X12/W.S (OLD 994-16050-121) (6695414) 1229 RON 181 1 1 @HEX.SOCKET HD.BOLT M5X30 (10 PCS) (949664) 3578 RON 182 1 1 - Indisponibil 183 1 1 - Indisponibil 184 1 1 - Indisponibil 185 1 1 - Indisponibil 186 1 1 COVER BLACKET (6696494) 2795 RON 187 1 1 NYLON HEAD 109 MM M10X1.25 LH (6696454) 10736 RON 188 1 1 COVER COMP. W/ SHAFT M10X.125 LEFT NEW (6698794) 9730 RON 189 1 1 - Indisponibil 190 1 1 SET SCREW NEW (6698795) 3242 RON 191 1 1 REEL (6698796) 4025 RON 192 1 1 RETURN SPRING NEW (6698797) 2236 RON 193 1 1 BUTTON (6698798) 4025 RON 194 1 2 CORD GUIDE NEW (6698799) 4025 RON 195 1 1 CASE NEW (6698800) 6822 RON 196 1 1 COVER (6696980) 7493 RON 197 1 1 SAFETY COVER HOLDER (6696951) 2795 RON 198 1 1 COVER GUARD (6696950) 5480 RON 199 1 1 TAPPING SCREW 4X14 (OLD 993-48040-142) (6684751) 1229 RON 200 1 1 KNIFE (OLD 797-37714-20) (6684750) 2236 RON 201 1 2 HEX. SOCKET HD. BOLT (W/BUTTON) M6X20 (OLD 990-53060-203) NE (6685064) 1229 RON 202 1 2 SPRING WASHER M6 (10 PCS) (949455) 1453 RON 203 1 2 COVER BRACKET NOT FOR EUROPE (6696978) 2795 RON 204 1 1 LEVEL MARK (OLD 923-37286-20) NEW (6685061) 2795 RON 205 1 1 CAUTION STICKER (OLD 919-38100-20) NEW (6684959) 2236 RON 206 1 1 LEVEL MARK (OLD 923-3738F-20) (6684852) 1229 RON 207 1 1 LEVEL MARK (OLD 923-33700-20) (6684851) 1229 RON 208 1 1 MAIN PIPE COMP (OLD 6696483) (6696558) 12190 RON 209 1 1 DRIVE SHAFT (6698514) 10736 RON 210 1 1 6696493 (6696493) 2795 RON 211 1 1 CAP (A) (6698515) 2795 RON 212 1 1 GUARD NEW (6696981) 5815 RON 213 1 2 BOLT WASHER M4 (BLACK) (323210) 1453 RON 214 1 2 MACHINE SCREW (W/SP. WASHER) M4X12 (OLD 994-14040-121) (6685068) 1229 RON 215 1 2 NUT M4 (10 PCS) (949554) 894 RON 216 1 1 KNIFE (6696584) 2795 RON 217 1 1 FUEL GROMMET(A) (6685308) Indisponibil Indisponibil 218 1 2 HEX. HOLE BUTTON SCREW 6X25S (OLD 994-81060-254) (6684714) 1229 RON 219 1 1 6699011 - Indisponibil 220 1 1 6697880 - Indisponibil 221 1 1 6698813 - Indisponibil 222 1 1 SAFETY COVER, 24 DIA. (OLD 441-38150-20) NEW (6690272) 6374 RON 223 1 1 KNIFE (OLD 797-38150-20) NEW (6693388) 382 RON 224 1 1 TAPPING SCREW 5X20 (OLD 993-17052-002) (6684753) 1229 RON 501 1 1 BOX WRENCH (HEX. SOCKET 17/19) (OLD 826-20000-80) (6684764) 2460 RON 502 1 1 WRENCH 8X10 (6696596) 781 RON 503 1 1 HEX.BAR WRENCH 4MM (944458) 1229 RON 504 1 2 CUTTER COVER (OLD 615-37224-20/790290) (6684768) 1229 RON 505 1 1 875769 - Indisponibil *506 1 1 SHOULDER BELT SINGLE (6696448) 4473 RON *506 1 1 6684718 - Indisponibil 507 1 1 BLADE 3TX255XT1.8 NEW (6698711) 7380 RON
