Top » Piese de schimb » PIESE HITACHI » TCG24EASP

TCG24EASP
[TCG24EASP]
TCG24EASP
Click pentru a mari
Imagini suplimentare
TCG24EASP
Click pentru a mari
TCG24EASP
Click pentru a mari
TCG24EASP
Click pentru a mari

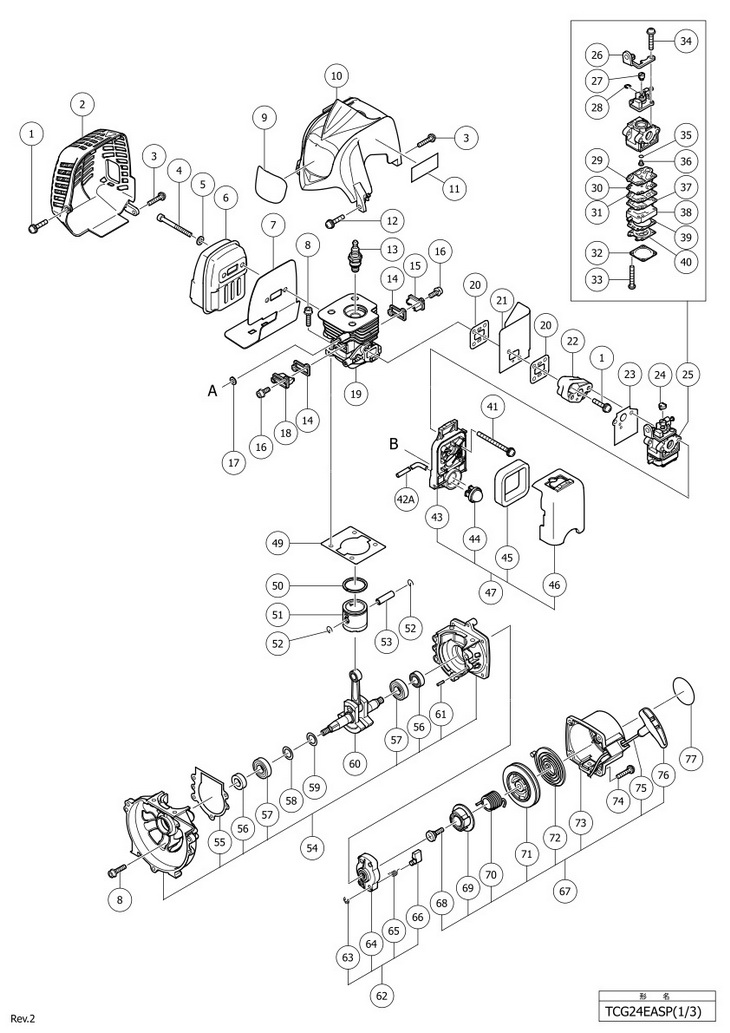

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 3 MACHINE SCREW M5X25 BLACK (880734) 894 RON
1A 1 5 6698844 - Indisponibil
2 1 1 MUFFLER COVER (6698479) 3577 RON
3 1 3 MACHINE SCREW (W/WASHERS) M4X20 (307606) 1453 RON
4 1 2 HEX. SOCKET HD BOLT M6X65 (6698384) 1453 RON
5 1 2 BOLT WASHER M6 (10 PCS) (OLD 949432Z) (949432) 1453 RON
6 1 1 6698476 (6698476) 21138 RON
7 1 1 HEAT PROTECTION PANEL (6696553) 1340 RON
8 1 8 HEX. SOCKET HD BOLT M5X18 (W/SP.WASHER) (6698386) 1453 RON
*9 1 1 TANAKA LABEL NEW (6696339) 1453 RON
*9 1 1 TANAKA LABEL NEW (6696340) 1453 RON
10 1 1 CYLINDER COVER (6698466) 488 RON
10A 1 1 6699128 - Indisponibil
11 1 1 - Indisponibil
12 1 2 MACHINE SCREW M5X25 BLACK (880734) 894 RON
*13 1 1 SPARK PLUG BMR7A (OLD 018-01700-21) (6684584) 4696 RON
*13 1 1 SPARK PLUG CJ6 (OLD 018-02233-20) (6685052) 1564 RON
14 1 2 COVER PACKING (6698468) 1453 RON
15 1 1 SCAVENGING COVER (A) (6698469) 1453 RON
16 1 4 HEX. SOCKET HD BOLT M4X12 (6698385) 1453 RON
17 1 2 WASHER (OLD 182-0186A-20) (6684600) 1229 RON
18 1 1 SCAVENGING COVER (B) (6698470) 1453 RON
19 1 1 CYLINDER (6698465) 1998 RON
20 1 2 INSULATOR GASKET (OLD 403-07550-20) (6684865) 105 RON
21 1 1 FLASH PAN (6698516) 1453 RON
22 1 1 CARBURETOR INSULATOR (6698387) 3019 RON
23 1 1 CARBURETOR PACKING (6698405) 2795 RON
24 1 1 SWIVEL CAP (OLD 560-07120-20) (6684628) 105 RON
25 1 1 6698474 (6698474) 30757 RON
26 1 1 - Indisponibil
27 1 1 - Indisponibil
28 1 1 - Indisponibil
29 1 1 - Indisponibil
30 1 1 - Indisponibil
31 1 1 - Indisponibil
32 1 1 - Indisponibil
33 1 1 - Indisponibil
34 1 1 - Indisponibil
35 1 1 - Indisponibil
36 1 1 - Indisponibil
37 1 1 - Indisponibil
38 1 1 - Indisponibil
39 1 1 - Indisponibil
40 1 1 - Indisponibil
41 1 2 MACHINE SCREW M5X60 (OLD 943430) (307224) 1453 RON
42A 1 1 FUEL PIPE (OLD 6696962) (6698720) 3242 RON
43 1 1 - Indisponibil
44 1 1 PRIMING PUMP COMP. (OLD 442-25143-80) (6685139) 3578 RON
45 1 1 CLEANER ELEMENT (OLD 446-00025-20) (6690347) 3242 RON
46 1 1 - Indisponibil
47 1 1 6696549 (6696549) 5815 RON
49 1 1 CYLINDER GASKET (OLD 017-52200-20) (6684587) 1229 RON
50 1 1 PISTON RING (6698404) 4025 RON
51 1 1 PISTON (6698368) 5815 RON
52 1 2 PISTON PIN CIRCLIP (OLD 039-00601-20) (6684590) 1229 RON
53 1 1 PISTON PIN (OLD 037-07045-20/6686010) (6684591) Indisponibil Indisponibil
54 1 1 6684606 (6684606) 13197 RON
55 1 1 CRANK CASE GASKET (OLD 090-52200-20) (6684609) 1229 RON
56 1 2 OIL SEAL TB 12227 (OLD 999-66122-200/6695624) (6684607) Indisponibil Indisponibil
57 1 2 BALL BEARING 6001 C3 NSK (OLD 999-61600-115/6684608/6695530) (6695535) 3131 RON
58 1 1 SHIM (6696946) 1453 RON
59 1 1 SHIM (6696945) 1453 RON
60 1 1 CRANK SHAFT COMP. (6696533) 1998 RON
61 1 2 KNOCK PIN 4X12 (6696947) 1453 RON
62 1 1 6684681 (6684681) 4137 RON
63 1 2 STOP RING E-5 (OLD 993-55050-000) (6684683) 1229 RON
64 1 1 - Indisponibil
65 1 2 STARTER PAWL SPRING (OLD 790-06097-20) (6684684) 2236 RON
66 1 2 STARTER PAWL (OLD 788-0651H-20) (6684685) 2236 RON
67 1 1 6601570 cod vechi 6684672 (6601570) 8163 RON
68 1 1 SET SCREW (OLD 839-03045-20) (6684679) 1229 RON
69 1 1 CAM PLATE (OLD 759-0651H-20) (6684678) 2348 RON
70 1 1 DUMPER SPRING (OLD 758-0651H-20) (6684677) 3242 RON
71 1 1 STARTER ROPE REEL (OLD 774-0720F-20) (6684676) 3578 RON
72 1 1 RECOIL SPRING (OLD 780-06097-20) (6684675) 3578 RON
73 1 1 RECOIL STARTER BODY COMP. (OLD 772-07350-80) (6684673) 6486 RON
74 1 1 SCREW M4X16 (W/WASHER) (6698398) 1453 RON
75 1 1 STARTER ROPE 3.5X860 (OLD 783-0720F-20) (6684674) 2236 RON
76 1 1 STARTER HANDLE (OLD 785-03045-20) (6684680) 1229 RON
77 1 1 - Indisponibil
*91 1 4 TAPPING SCREW D4X16 (W/FLANGE) BLACK (305812) 894 RON
*91 1 1 TAPPING SCREW D4X16 (W/FLANGE) BLACK (305812) 894 RON
*92 1 1 HANDLE (B) (6696487) 4025 RON
*92 1 1 HANDLE (B) (6696942) 3019 RON
93 1 1 LOCK LEVER (6696490) 1453 RON
94 1 1 LEVER (6696488) 1453 RON
95 1 1 SPRING (A) (6696489) 1453 RON
96 1 1 STOP SWITCH (6696940) 2795 RON
*97 1 2 STOP SWITCH CORD (6696491) 2795 RON
*97 1 2 STOP SWITCH CORD (6696592) 2795 RON
*98 1 1 PROTECTION TUBE (6696967) 1453 RON
*98 1 1 PROTECTION TUBE (6696594) 2795 RON
*99 1 1 THROTTLE WIRE COMP (6696560) 4025 RON
*99 1 1 THROTTLE WIRE COMP. (6696593) 4025 RON
*100 1 1 HANDLE (A) (6696486) 4025 RON
*100 1 1 HANDLE (A) (6696941) 3019 RON
101 1 1 HEX. HOLE BOLT M5X12/S (OLD 994-61050-124) (6684667) 1229 RON
102 1 2 HEX. HOLE BOLT 5X22/S (OLD 994-61050-224) (6695492) 1229 RON
103 1 1 ANTI VIBE RUBBER (A) (6696963) 2795 RON
104 1 1 PIPE HOLDER (A) NEW (6698643) 2795 RON
106 1 1 PIPE HOLDER (B) NEW (6698644) 2795 RON
107 1 1 ANTI VIBE RUBBER (B) (6696964) 2795 RON
108 1 1 RETAINING RING FOR D12 (10 PCS) (939542) 1788 RON
109 1 1 6698471 (6698471) 7269 RON
109A 1 1 6699129 - Indisponibil
110A 1 1 CLUTCH SHAFT (OLD 6696481) (6698793) 6486 RON
111 1 2 STEP BOLT (6696469) 1453 RON
112 1 2 BENT WASHER 8 (OLD 992-05080-030/6695204) (6684648) 1229 RON
113 1 2 CLUTCH PLATE (A) (6696546) 1453 RON
114 1 1 CLUTCH (6696948) Indisponibil Indisponibil
114A 1 1 6699130 - Indisponibil
115 1 2 CLUTCH WASHER (B) (6696547) 1453 RON
115A 1 2 6699131 - Indisponibil
116 1 1 FLYWHEEL NUT (6685337) Indisponibil Indisponibil
117 1 1 BOLT WASHER M8 (BLACK) (323212) 1453 RON
118 1 2 HEX. SOCKET HD BOLT M4X18 (W/WASHERS) (6698388) 1453 RON
119 1 1 6696929 (6696929) 37132 RON
120 1 1 PLUG CAP (6698435) 2683 RON
121 1 1 METAL FITTING OF PLUG CAP (6698436) 1453 RON
122 1 1 CORD (6696544) 1453 RON
123 1 1 EARTH CORD (6696545) 1453 RON
124 1 1 MAGNETO ROTOR COMP. (6696928) 2550 RON
125 1 1 SPACER (6698496) 1453 RON
126A 1 1 FUEL PIPE (6698716) 3242 RON
127 1 1 FUEL PIPE (PINK) (6698401) 1453 RON
128 1 1 RETURN GROMMET (6696970) 781 RON
129 1 1 6698402 (6698402) 4025 RON
130 1 1 - Indisponibil
*131 1 1 TANK (6698475) 2459 RON
*131 1 1 TANK (6698377) 9617 RON
132 1 1 PUMP FILTER BODY COMP. (OLD 675-04042-80) (6684620) 3242 RON
133 1 1 CLIP (6696949) 1453 RON
134 1 1 STAND (OLD 940-07350-20) (6694787) 2460 RON
135 1 3 BOLT L23.8 (W/FLANGE) (6698512) 1453 RON
135A 1 3 6698991 - Indisponibil
151 1 1 TAPPING SCREW (W/FLANGE) D4X30 (323837) 2236 RON
152 1 1 MACHINE SCREW M5X30 (BLACK) (323041) 1453 RON
153 1 1 HANDLE RIGHT (6698637) 13085 RON
154 1 1 HANDLE (B) (6696590) 3019 RON
155 1 1 HANDLE (A) (6696588) 2795 RON
156 1 1 NUT M5 (BLACK) (302012) 1453 RON
157 1 1 6696972 - Indisponibil
158 1 2 BOLT (BLACK) M6 (6696974) 1453 RON
159 1 1 BARRIER (6696973) 2795 RON
160 1 1 LOOP HANDLE (6696975) 4473 RON
161 1 2 NUT M6 (10 PCS) (949556) 1453 RON
162 1 1 HANDLE HOLDER (B) (6696577) 4473 RON
163 1 1 HANDLE HOLDER (C) (6696578) 2795 RON
*164 1 4 HEX. HOLE BUTTON SCREW 6X25S (OLD 994-81060-254) (6684714) 1229 RON
*164 1 2 HEX. HOLE BUTTON SCREW 6X25S (OLD 994-81060-254) (6684714) 1229 RON
165 1 4 HEX. HOLE BOLT M5X25/S (OLD 994-16050-252) (6684709) 1229 RON
166 1 1 HANDLE HOLDER (A) (6696576) 4025 RON
167 1 1 HANDLE LEFT (6698638) 14092 RON
*168 1 1 6696485 (6696485) 3507 RON
*168 1 1 6696976 (6696976) 30757 RON
169 1 1 BOLT (BLACK) M6 (6696974) 1453 RON
170 1 1 - Indisponibil
171 1 1 - Indisponibil
172 1 1 - Indisponibil
173 1 1 - Indisponibil
174 1 1 - Indisponibil
175 1 1 - Indisponibil
176 1 1 CUTTER HOLDER (A) (6696977) 6598 RON
177 1 1 CUTTER HOLDER (B) NEW (6698659) 7493 RON
178 1 1 - Indisponibil
179 1 1 LEFT HAND NYLON NUT M10 (6698658) 296 RON
180 1 1 SCREW 5X12/W.S (OLD 994-16050-121) (6695414) 1229 RON
181 1 1 @HEX.SOCKET HD.BOLT M5X30 (10 PCS) (949664) 3578 RON
182 1 1 - Indisponibil
183 1 1 - Indisponibil
184 1 1 - Indisponibil
185 1 1 - Indisponibil
186 1 1 COVER BLACKET (6696494) 2795 RON
*187 1 1 NYLON HEAD 109 MM M10X1.25 LH (6696454) 10736 RON
*187 1 1 6698639 (6698639) 16441 RON
188 1 1 COVER COMP. W/ SHAFT M10X.125 LEFT NEW (6698794) 9730 RON
*188 1 1 6698937 - Indisponibil
189 1 1 - Indisponibil
190 1 1 SET SCREW NEW (6698795) 3242 RON
191 1 1 REEL (6698796) 4025 RON
*191 1 1 6698939 - Indisponibil
192 1 1 RETURN SPRING NEW (6698797) 2236 RON
*192 1 1 6698941 - Indisponibil
193 1 1 BUTTON (6698798) 4025 RON
*193 1 1 6698940 - Indisponibil
194 1 2 CORD GUIDE NEW (6698799) 4025 RON
*194 1 2 6698942 - Indisponibil
195 1 1 CASE NEW (6698800) 6822 RON
*195 1 1 6698938 - Indisponibil
196 1 1 COVER (6696980) 7493 RON
197 1 1 SAFETY COVER HOLDER (6696951) 2795 RON
198 1 1 COVER GUARD (6696950) 5480 RON
199 1 1 TAPPING SCREW 4X14 (OLD 993-48040-142) (6684751) 1229 RON
200 1 1 KNIFE (OLD 797-37714-20) (6684750) 2236 RON
201 1 2 HEX. SOCKET HD. BOLT (W/BUTTON) M6X20 (OLD 990-53060-203) NE (6685064) 1229 RON
202 1 2 SPRING WASHER M6 (10 PCS) (949455) 1453 RON
203 1 2 COVER BRACKET NOT FOR EUROPE (6696978) 2795 RON
204 1 1 LEVEL MARK (OLD 923-37286-20) NEW (6685061) 2795 RON
*205 1 1 CAUTION STICKER (OLD 919-38100-20) NEW (6684959) 2236 RON
*205 1 1 CAUTION MARK (OLD 919-37820-20) NEW (6685056) 2236 RON
206 1 1 LEVEL MARK (OLD 923-3738F-20) (6684852) 1229 RON
207 1 1 LEVEL MARK (OLD 923-33700-20) (6684851) 1229 RON
208 1 1 MAIN PIPE COMP (OLD 6696483) (6696558) 12190 RON
209 1 1 DRIVE SHAFT (6698514) 10736 RON
210 1 1 6696493 (6696493) 2795 RON
211 1 1 CAP (A) (6698515) 2795 RON
212 1 1 GUARD NEW (6696981) 5815 RON
213 1 2 BOLT WASHER M4 (BLACK) (323210) 1453 RON
214 1 2 MACHINE SCREW (W/SP. WASHER) M4X12 (OLD 994-14040-121) (6685068) 1229 RON
215 1 2 NUT M4 (10 PCS) (949554) 894 RON
216 1 1 KNIFE (6696584) 2795 RON
217 1 1 FUEL GROMMET(A) (6685308) Indisponibil Indisponibil
218 1 2 MACHINE SCREW M5X20 BLACK (302196) 1453 RON
219 1 4 TAPPING SCREW D4X20 (W/FLANGE) BLACK (302086) 1453 RON
220 1 1 - Indisponibil
221 1 1 - Indisponibil
222 1 1 - Indisponibil
223 1 1 - Indisponibil
224 1 1 - Indisponibil
225 1 1 - Indisponibil
226 1 1 - Indisponibil
227 1 1 - Indisponibil
228 1 1 - Indisponibil
229 1 1 - Indisponibil
230 1 1 HANDLE GRIP (OLD 503-3738E-20) (6691098) 3914 RON
231 1 1 LOOP HANDLE, 24 DIA.,BLACK (OLD 500-37286-20) (6691046) 3578 RON
232 1 1 BRAKE SHAFT WASHER (OLD 368-32350-20) (6689681) 1229 RON
233 1 1 TAPPING SCREW 5X20 (OLD 993-11052-012) (6695255) 1229 RON
234 1 1 6699132 - Indisponibil
235 1 1 6699133 - Indisponibil
501 1 1 BOX WRENCH (HEX. SOCKET 17/19) (OLD 826-20000-80) (6684764) 2460 RON
502 1 1 WRENCH 8X10 (6696596) 781 RON
503 1 1 HEX.BAR WRENCH 4MM (944458) 1229 RON
504 1 2 CUTTER COVER (OLD 615-37224-20/790290) (6684768) 1229 RON
505 1 1 BLADE 3TX255XT1.8 NEW (6698711) 7380 RON
506 1 1 875769 - Indisponibil
*507 1 1 SHOULDER BELT SINGLE (6696448) 4473 RON
*507 1 1 6696184 (6696184) 9394 RON
508 1 1 6698640 - Indisponibil
