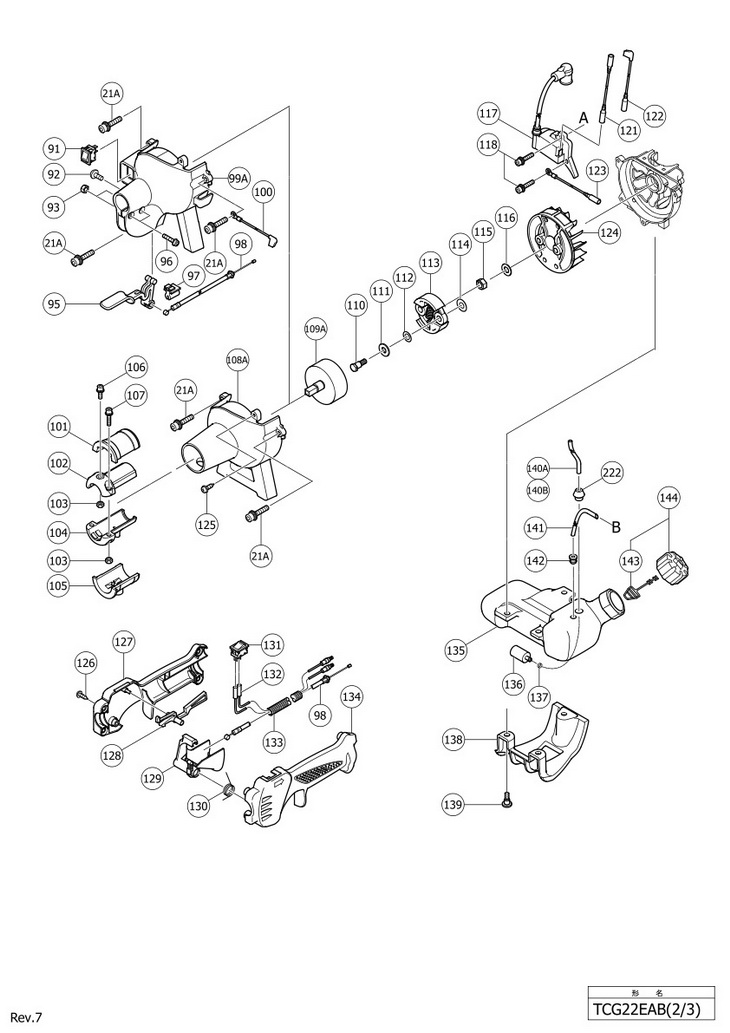

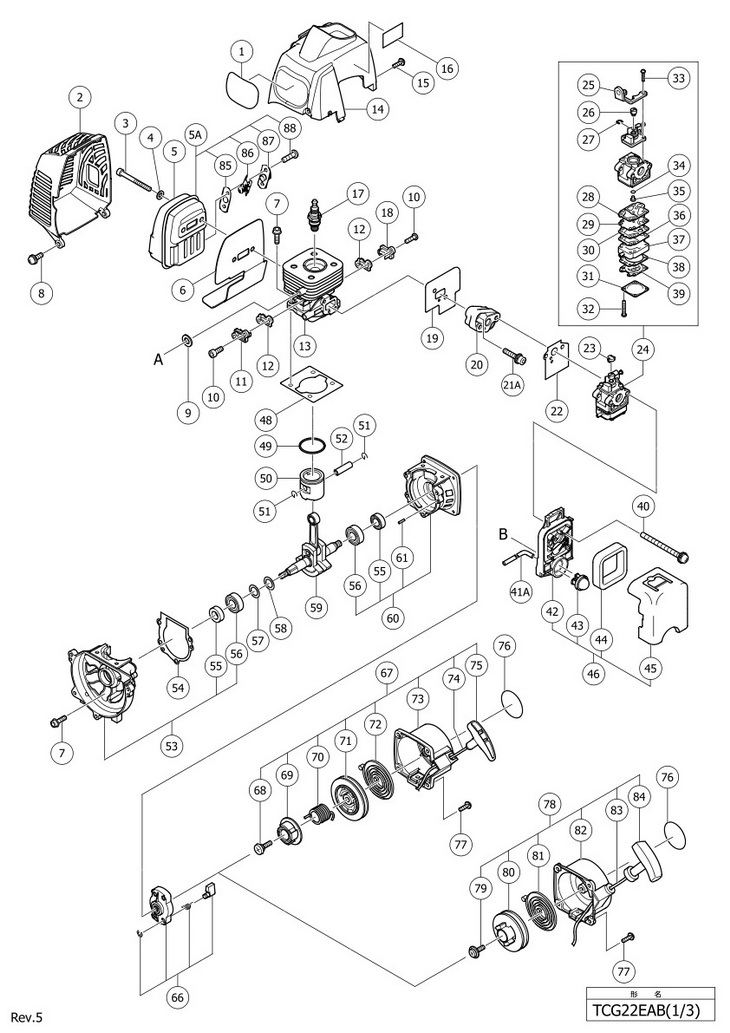

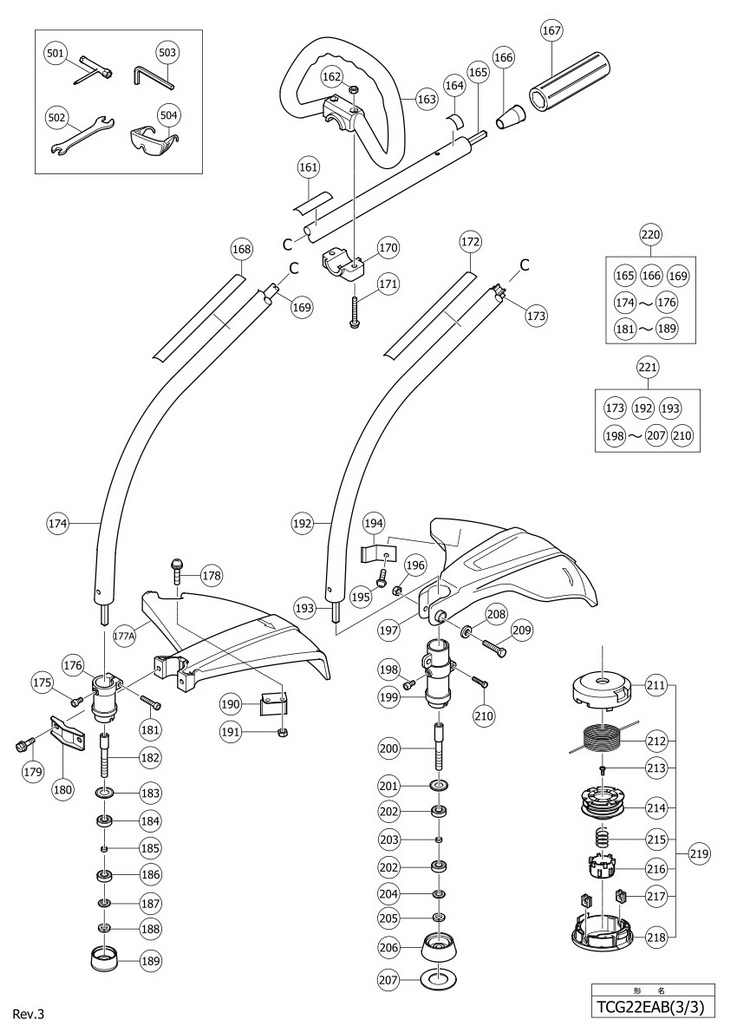

Top » Piese de schimb » PIESE HITACHI » TCG22EAB TCG22EAB [TCG22EAB] Click pentru a mari Imagini suplimentare Click pentru a mari Click pentru a mari Click pentru a mari LISTA DE COMPONENTE: Numar Versiune Buc. in schema Denumire Pret/buc (Tva inclus) Cumpara 1 1 1 - Indisponibil *2 1 1 MUFFLER PROTECTOR (6696571) 2235 RON *2 1 1 MUFFLER PROTECTOR (6696555) 381 RON 3 1 2 HEX. HOLE BOLT M6X55 (OLD 990-51060-553) (6684638) 1229 RON 4 1 2 BOLT WASHER M6 (10 PCS) (OLD 949432Z) (949432) 1453 RON *5 1 1 6696570 (6696570) 5815 RON *5 1 1 6696554 (6696554) 16441 RON 5A 1 1 MUFFLER (6698477) 7493 RON 6 1 1 HEAT PROTECTION PANEL (6696553) 1340 RON 7 1 8 HEX. HOLE BOLT M5X18/S (OLD 994-61050-184) (6684586) 1229 RON 8 1 2 SCREW M5X16 (W/WASHERS) BLACK (887021) 2236 RON 9 1 1 WASHER (OLD 182-0186A-20) (6684600) 1229 RON 10 1 4 HEX. HOLE BOLT M4X12/S (OLD 994-61040-124) (6684595) 1229 RON 11 1 1 INTAKE COVER (B) (6696536) 1453 RON 12 1 2 COVER PACKING (6696534) 1453 RON 13 1 1 CYLINDER (6696527) 15322 RON 14 1 1 CYLINDER COVER (6696528) 2235 RON 15 1 2 MACHINE SCREW (W/WASHERS) M4X20 (307606) 1453 RON 16 1 1 - Indisponibil *17 1 1 SPARK PLUG BMR7A (OLD 018-01700-21) (6684584) 4696 RON *17 1 1 SPARK PLUG CJ6 (OLD 018-02233-20) (6685052) 1564 RON 18 1 1 INTAKE COVER (A) (6696535) 1453 RON 19 1 1 INTAKE PACKING (6696548) 1453 RON 20 1 1 CARBURETOR INSULATOR (OLD 6696934) (6696943) 4473 RON 21A 1 5 6698844 - Indisponibil 22 1 1 CARBURETOR GASKET (OLD 402-0656A-20) (6684616) 1229 RON 23 1 1 SWIVEL CAP (OLD 560-07120-20) (6684628) 105 RON 24 1 1 6696550 (6696550) 2550 RON 25 1 1 - Indisponibil 26 1 1 - Indisponibil 27 1 1 STOP RING (OLD 489-25100-20) (6684696) 1229 RON 28 1 1 PUMP GASKET (OLD 577-25292-20/6696321) (6684692) 7940 RON 29 1 1 PUMP DIAPHRAGM (OLD 576-25100-20/6696325) (6684693) 3242 RON 30 1 1 PUMP PLATE (OLD 523-25100-20) (6691242) 2236 RON 31 1 1 DIAPHRAGM COVER (OLD 476-25004-20) (6685222) 3242 RON 32 1 4 SET SCREW (OLD 548-25101-20) (6691312) 1229 RON 33 1 2 - Indisponibil 34 1 1 O-RING (OLD 550-25100-20) (6684695) 2236 RON 35 1 1 - Indisponibil 36 1 1 CIRCUIT PLATE (OLD 522-25100-20) (6691234) 2460 RON 37 1 1 - Indisponibil 38 1 1 DIAPHRAGM PACKING (OLD 475-25038-20) (6685220) 2236 RON 39 1 1 METERING DIAPHRAGM (OLD 474-25601-20) (6684690) 6039 RON 40 1 2 MACHINE SCREW M5X60 (OLD 943430) (307224) 1453 RON 41A 1 1 FUEL PIPE (OLD 6696962) (6698720) 3242 RON 42 1 1 AIR CLEANER HOUSING (6696832) 7493 RON 43 1 1 PRIMING PUMP COMP. (OLD 442-25143-80) (6685139) 3578 RON 44 1 1 CLEANER ELEMENT (OLD 446-00025-20) (6690347) 3242 RON 45 1 1 AIR CLEANER COVER (6696831) 5815 RON 46 1 1 6696549 (6696549) 5815 RON 48 1 1 CYLINDER PACKING (6696530) Indisponibil Indisponibil 49 1 1 PISTON RING (6696532) 2795 RON 50 1 1 PISTON (6696531) 5480 RON 51 1 2 PISTON PIN CIRCLIP (OLD 039-00601-20) (6684590) 1229 RON 52 1 1 PISTON PIN (6696944) 2795 RON 53 1 1 CRANK CASE (B) COMP (6696538) 8388 RON 54 1 1 CRANK CASE PACKING (6696539) 1453 RON 55 1 2 OIL SEAL TB 12227 (OLD 999-66122-200/6695624) (6684607) Indisponibil Indisponibil 56 1 2 6684608 - Indisponibil 57 1 1 SHIM (6696946) 1453 RON 58 1 1 SHIM (6696945) 1453 RON 59 1 1 CRANK SHAFT COMP. (6696533) 1998 RON 60 1 1 CRANK CASE (A) COMP (6696537) 8723 RON 61 1 2 KNOCK PIN 4X12 (OLD 999-05041-203) (6695521) 1229 RON *66 1 1 6696471 (6696471) Indisponibil Indisponibil *66 1 1 6684681 (6684681) 4137 RON 67 1 1 6601570 cod vechi 6684672 (6601570) 8163 RON 68 1 1 SET SCREW (OLD 839-03045-20) (6684679) 1229 RON 69 1 1 CAM PLATE (OLD 759-0651H-20) (6684678) 2348 RON 70 1 1 DUMPER SPRING (OLD 758-0651H-20) (6684677) 3242 RON 71 1 1 STARTER ROPE REEL (OLD 774-0720F-20) (6684676) 3578 RON 72 1 1 RECOIL SPRING (OLD 780-06097-20) (6684675) 3578 RON 73 1 1 RECOIL STARTER BODY COMP. (OLD 772-07350-80) (6684673) 6486 RON 74 1 1 STARTER ROPE 3.5X860 (OLD 783-0720F-20) (6684674) 2236 RON 75 1 1 STARTER HANDLE (OLD 785-03045-20) (6684680) 1229 RON 77 1 2 MACHINE SCREW (W/WASHER) M4X16 (993539) 894 RON *78 1 1 6696572 (6696572) 6486 RON 79 1 1 SET SCREW (OLD 839-02010-20) (6693633) 1229 RON 80 1 1 - Indisponibil 81 1 1 RECOIL SPRING (OLD 780-06097-20) (6684675) 3578 RON 82 1 1 - Indisponibil 83 1 1 STARTER ROPE (OLD 783-06097-20/6693174) (6693168) 2236 RON 84 1 1 STARTER HANDLE (OLD 785-01620-20) (6693227) 2460 RON 85 1 1 MUFFLER SPECIAL GASKET (OLD751-52200-20) (OLD6684649) (6684650) 1229 RON 86 1 1 SPARK ARRESTOR (OLD 732-52200-20) (6684652) 2236 RON 87 1 1 EXHAUST PIPE (OLD 734-52200-20) (OLD 6684649) (6685047) 3578 RON 88 1 2 MACHINE SCREW (W/SP. WASHER) M4X12 (OLD 994-14040-121) (6685068) 1229 RON 91 1 1 6696565 - Indisponibil 92 1 1 331683 - Indisponibil 93 1 2 NUT M5 (BLACK) (302012) 1453 RON 95 1 1 6696563 - Indisponibil 96 1 2 HEX.SOCKET HD.BOLT M5X20 (305583) 1453 RON 97 1 1 WIRE HOLDER (6696568) 1453 RON *98 1 1 THROTTLE WIRE COMP (6696560) 4025 RON *98 1 1 6696564 - Indisponibil 99A 1 1 6698727 - Indisponibil 100 1 1 6696567 - Indisponibil 101 1 1 ANTI VIBE RUBBER (A) (6696963) 2795 RON 102 1 1 PIPE HOLDER (A) (6696542) 1453 RON 103 1 3 NUT M5 (BLACK) (302012) 1453 RON 104 1 1 PIPE HOLDER (B) (6696543) 1453 RON 105 1 1 ANTI VIBE RUBBER (B) (6696964) 2795 RON 106 1 1 HEX. HOLE BOLT M5X12/S (OLD 994-61050-124) (6684667) 1229 RON 107 1 2 HEX.SOCKET HD.BOLT M5X20 (305583) 1453 RON 108A 1 1 FAN CASE (VERMILION) (OLD 6696540) (6698725) 381 RON 109A 1 1 6698790 - Indisponibil 110 1 2 STEP BOLT (6696469) 1453 RON 111 1 2 BENT WASHER 8 (OLD 992-05080-030/6695204) (6684648) 1229 RON 112 1 2 CLUTCH PLATE (A) (6696546) 1453 RON 113 1 1 CLUTCH (6696948) Indisponibil Indisponibil 114 1 2 CLUTCH WASHER (B) (6696547) 1453 RON 115 1 1 FLYWHEEL NUT (6685337) Indisponibil Indisponibil 116 1 1 BOLT WASHER M8 (BLACK) (323212) 1453 RON 117 1 1 6696929 (6696929) 37132 RON 118 1 2 HEX. HOLE BOLT M4X18/WS (OLD 994-64040-184) (6684599) 1229 RON 121 1 1 CORD (6696544) 1453 RON 122 1 1 CORD (L325) (6696566) 2795 RON 123 1 1 EARTH CORD (6696545) 1453 RON 124 1 1 MAGNETO ROTOR COMP. (6696928) 2550 RON 125 1 1 TAPPING SCREW D4.5X16 (OLD 990-72045-164) (6684636) 1229 RON 126 1 4 TAPPING SCREW D4X16 (W/FLANGE) BLACK (305812) 894 RON *127 1 1 HANDLE (B) (6696487) 4025 RON *127 1 1 HANDLE (B) (6696942) 3019 RON 128 1 1 LOCK LEVER (6696490) 1453 RON 129 1 1 LEVER (6696488) 1453 RON 130 1 1 SPRING (A) (6696489) 1453 RON 131 1 1 STOP SWITCH (6696940) 2795 RON 132 1 2 STOP SWITCH CORD (6696491) 2795 RON 133 1 1 PROTECTION TUBE (6696967) 1453 RON *134 1 1 HANDLE (A) (6696486) 4025 RON *134 1 1 HANDLE (A) (6696941) 3019 RON *135 1 1 TANK (6696569) 3690 RON *135 1 1 TANK FOR USA NEW (6696552) 14092 RON 136 1 1 PUMP FILTER BODY COMP. (OLD 675-04042-80) (6684620) 3242 RON 137 1 1 CLIP (6696949) 1453 RON *138 1 1 STAND (6696556) 2795 RON *139 1 3 FLANGE BOLT (6696557) 1453 RON *139 1 3 BOLT (W/FLANGE) (6696574) 1453 RON 140A 1 1 FUEL PIPE (6698716) 3242 RON 140B 1 1 6698932 - Indisponibil 141 1 1 FUEL PIPE (6696476) 1453 RON 142 1 1 RETURN GROMMET (6696970) 781 RON 143 1 1 6684625 - Indisponibil *144 1 1 6684622 (6684622) 5032 RON *144 1 1 6685071 (6685071) 382 RON 161 1 1 LEVEL MARK (OLD 923-3738F-20) (6684852) 1229 RON 162 1 2 NUT M6 (10 PCS) (949556) 1453 RON 163 1 1 LOOP HANDLE (6696975) 4473 RON 164 1 1 LEVEL MARK (OLD 923-33700-20) (6684851) 1229 RON 165 1 1 FLEXIBLE SHAFT (6698325) 8723 RON 166 1 1 SPACER (E) (6698324) 3019 RON 167 1 1 6696581 - Indisponibil 168 1 1 - Indisponibil 169 1 1 FLEXIBLE LINER (6698323) 8164 RON 170 1 1 6696972 - Indisponibil 171 1 2 BOLT (BLACK) M6 (6696974) 1453 RON 172 1 1 - Indisponibil 173 1 1 FLEXIBLE LINER (A) (6698337) 2550 RON 174 1 1 MAIN PIPE (6698322) 22368 RON *174 1 1 6698321 - Indisponibil 175 1 1 HEX.SOCKET HD.BOLT M5X10 (10 PCS) (949819) 2683 RON 176 1 1 CUTTER CASE (6698326) 6262 RON 177A 1 1 GUARD (OLD 6698332) NEW JAN (6698809) 12750 RON 178 1 2 MACHINE SCREW M5X16 (OLD 949238) (990541) 1453 RON 179 1 2 BOLT M6 (6698334) 3019 RON 180 1 1 SAFETY COVER BRACKET (6698335) 3019 RON 181 1 1 HEX.SOCKET HD BOLT M5X25 (10 PCS) (949662) 297 RON 182 1 1 CUTTER SHAFT (6698327) 6039 RON 183 1 1 BEARING WASHER (6698331) 3019 RON 184 1 1 BALL BEARING 608VVMC2EPS2L (608VVM) 4025 RON 185 1 1 COLLAR (6698328) 3019 RON 186 1 1 BALL BEARING 608DDMC2EPS2S (608DDM) 3914 RON 187 1 1 WASHER T1.6 (6698329) 3019 RON 188 1 1 CUTTER SHAFT (6698327) 6039 RON 188 1 1 SPRING WASHER M8 (10 PCS) (949457) 1453 RON 189 1 1 CUTTER HOLDER (6698330) 4025 RON 190 1 1 KNIFE (6698333) 5144 RON 191 1 2 NUT M5 (10 PCS) (949555) 1453 RON 192 1 1 MAIN PIPE (A) (6698336) 30757 RON 193 1 1 FLEXIBLE SHAFT (OLD 344-38474-20) (6685038) 6262 RON 194 1 1 KNIFE (OLD 797-38452-20) (6685015) 2236 RON 195 1 1 TAPPING SCREW D5X16 (OLD 990-73050-164) (6685074) 1229 RON 196 1 1 6684792 - Indisponibil 197A 1 1 6699076 - Indisponibil 198 1 1 BOLT M5X10 (10PCS) (949707) 1788 RON 199 1 1 CUTTER CASE (A) (6698338) 16441 RON 200 1 1 CUTTER SHAFT (A) (6698339) 12414 RON 201 1 1 BEARING WASHER (A) (6698340) 2795 RON 202 1 2 BALL BEARING 608DDMC2EPS2S (608DDM) 3914 RON 203 1 1 COLLAR 5 (OLD 348-38474-20) NEW (6685014) 2236 RON 204 1 1 SPECIAL WASHER (OLD 760-38474-20) NEW (6685016) 2236 RON 205 1 1 SPRING WASHER M8 (10 PCS) (949457) 1453 RON 206 1 1 CUTTER HOLDER (OLD 310-38474-20) NEW (6685073) 3242 RON 207 1 1 WASHER (OLD 320-38474-20) NEW (6685001) 1229 RON 208 1 1 WASHER 6 (OLD 992-01060-011) (6684639) 1229 RON 209 1 1 PLUS BOLT M6X45 (OLD 990-23060-451) NEW (6684995) 1229 RON 210 1 1 - Indisponibil 211 1 1 COVER COMP. W/ SHAFT M18X.125 RIGHT NEW (6698801) 9730 RON 212 1 1 - Indisponibil 213 1 1 SET SCREW NEW (6698795) 3242 RON 214 1 1 REEL NEW (6698802) 5368 RON 215 1 1 RETURN SPRING SET SCREW NEW (6698803) 2236 RON 216 1 1 BUTTON (6698798) 4025 RON 217 1 2 CORD GUIDE NEW (6698799) 4025 RON 218 1 1 CASE NEW (6698800) 6822 RON 219 1 1 NYLON HEAD (R) 4" M8X1.25 RH (6696597) 9842 RON 220 1 1 6696580 (6696580) 28632 RON *221 1 1 6696582 - Indisponibil 222 1 1 FUEL GROMMET(A) (6685308) Indisponibil Indisponibil 501 1 1 BOX WRENCH (HEX. SOCKET 17/19) (OLD 826-20000-80) (6684764) 2460 RON 502 1 1 WRENCH 8X10 (6696596) 781 RON 503 1 1 HEX.BAR WRENCH 4MM (944458) 1229 RON 504 1 1 875769 - Indisponibil
