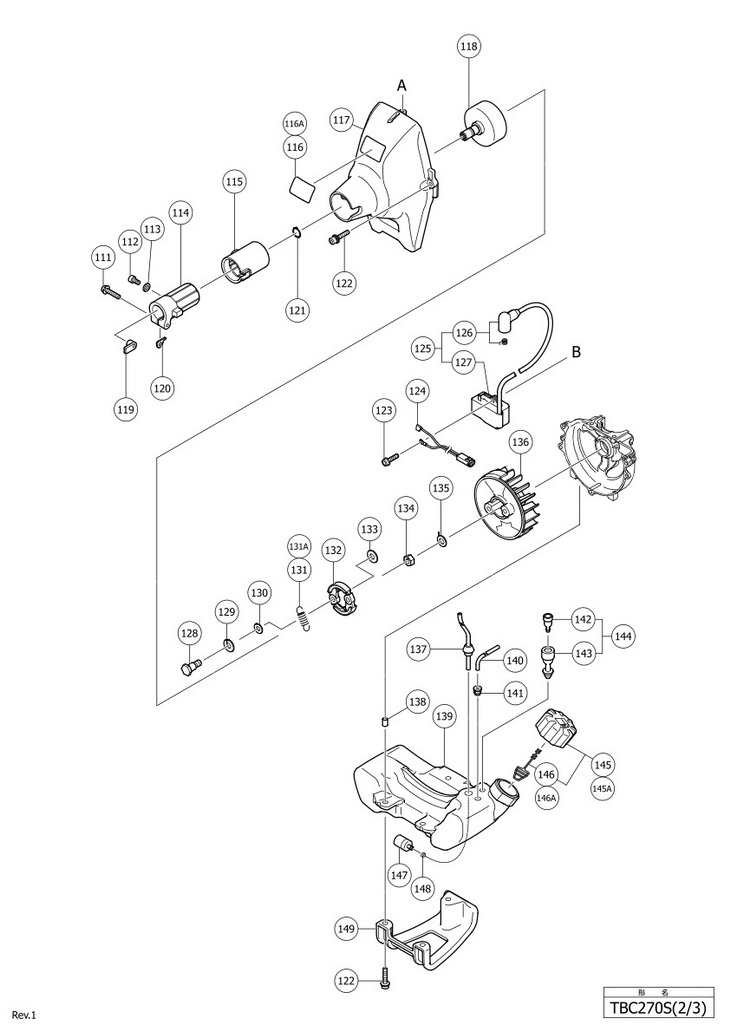

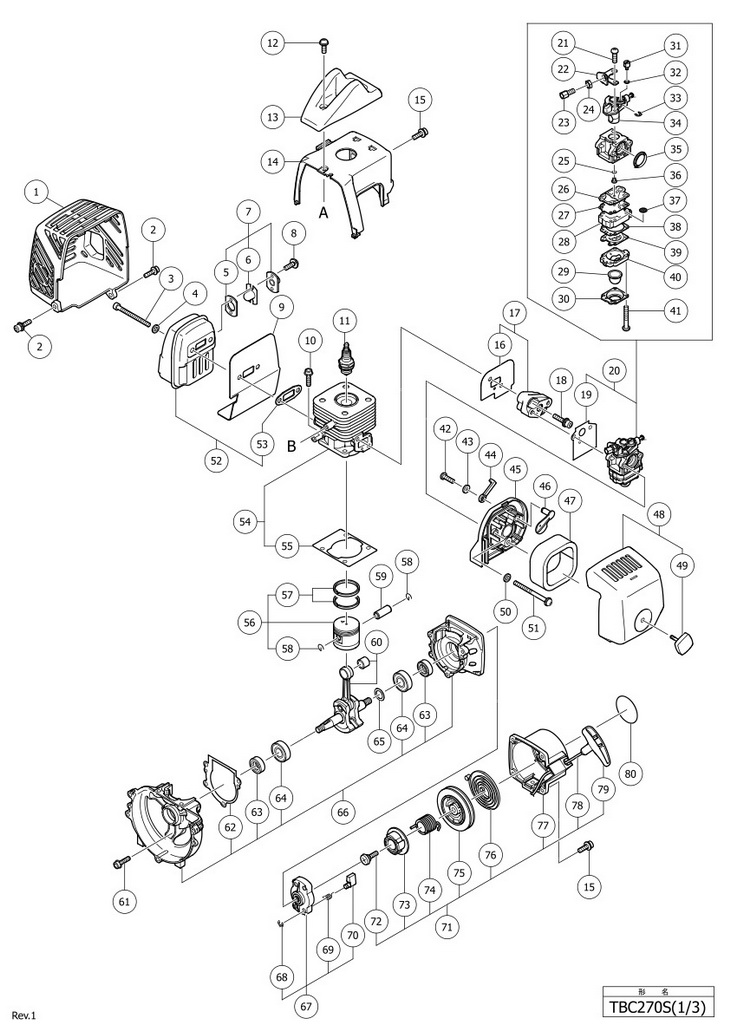

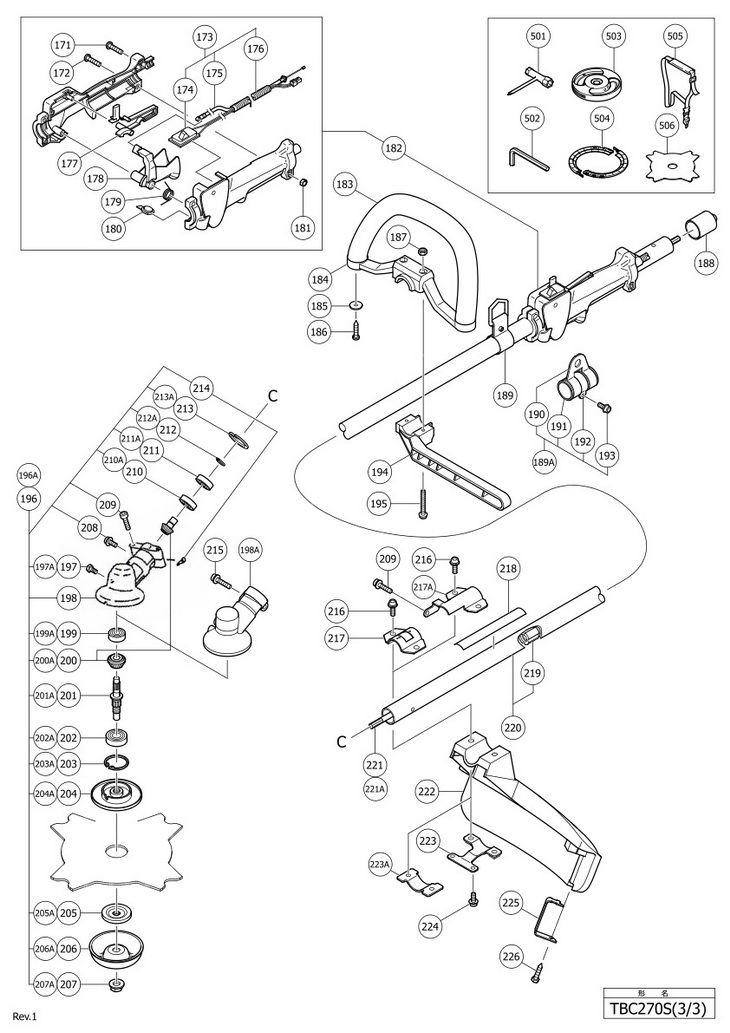

Top » Piese de schimb » PIESE HITACHI » TBC-270S TBC-270S [TBC-270S] Click pentru a mari Imagini suplimentare Click pentru a mari Click pentru a mari Click pentru a mari LISTA DE COMPONENTE: Numar Versiune Buc. in schema Denumire Pret/buc (Tva inclus) Cumpara 1 1 1 MUFFLER PROTECTOR (OLD 738-07350-20) (6692813) 3690 RON 2 1 2 HEX.HOLE BOLT 5X16/PS (OLD 994-63050-164) (6695504) 1229 RON 3 1 2 HEX. SOCKET HD. BOLT M6X55 NEW (6696819) 1453 RON 4 1 2 WASHER 6 (OLD 992-01060-011) (6684639) 1229 RON 5 1 1 MUFFLER SPECIAL GASKET (OLD 751-07020-20) NEW (6692887) 1229 RON 6 1 1 SPARK ARRESTOR, USA ONLY (OLD 732-0631A-21) NEW (6692699) 1229 RON 7 1 1 TAIL PIPE SET (OLD 721-07361-90) NEW (6692670) 2460 RON 8 1 2 MACHINE SCREW (W/SP.WASHER) M4X8 (958523) 894 RON 9 1 1 HEAT SHIELD (OLD 133-07350-20) (6687264) 2460 RON 10 1 4 HEX. SOCKET HD BOLT M5X18 (W/SP.WASHER) (6698386) 1453 RON 11 1 1 SPARK PLUG BPMR6A (OLD 018-06540-21) (6685086) 3130 RON 12 1 1 TAPPING SCREW D4.5X16 (OLD 990-72045-164) (6684636) 1229 RON 13 1 1 PLUG CAP (OLD 257-03046-20) (6688345) 2460 RON 14 1 1 CYLINDER COVER (OLD 016-07350-20) (6685690) 382 RON 15 1 4 HEX. HOLE BOLT 4X18WS (OLD 994-64040-185) NEW (6695508) 1229 RON 16 1 1 INLET MANIFOLD GASKET (OLD 403-07020-21) (6689895) 1229 RON 17 1 1 INSULATOR SET (OLD 404-07020-91) (6689972) 382 RON 18 1 2 HEX. HOLE BOLT 5X25WS (OLD 994-64050-254) (6695515) 1229 RON 19 1 1 CARBURETOR PACKING (6698405) 2795 RON 20 1 1 CARBURETOR SET WYJ-437 (OLD 455-07360-90) (6690520) 32211 RON 21 1 2 THROTTLE SET SCREW (OLD 514-25100-20) (6684870) 1229 RON 22 1 1 CABLE ADJUSTER STAY (OLD 544-25164-20) (6684873) 2460 RON 23 1 1 CABLE ADJUSTER (OLD 614-25137-20) (6684871) 2236 RON 24 1 1 6692005 - Indisponibil 25 1 1 O-RING (OLD 550-25100-20) (6684695) 2236 RON 26 1 1 PUMP GASKET (OLD 577-25292-20/6696321) (6684692) 7940 RON 27 1 1 PUMP DIAPHRAGM (OLD 576-25100-20/6696325) (6684693) 3242 RON 28 1 1 PUMP BODY COMP. (OLD 575-25153-80) (6684879) 15098 RON 29 1 1 PRIMING BODY (OLD 447-25108-20) (6684689) 2460 RON 30 1 1 DIAPHRAGM COVER (OLD 476-25151-20) (6684688) 3242 RON 31 1 1 SWIVEL (OLD 539-25120-20) (6684697) 2460 RON 32 1 1 THRUST WASHER (OLD 549-25165-20) (6684874) 1229 RON 33 1 1 STOP RING (OLD 489-25100-20) (6684696) 1229 RON 34 1 1 THROTTLE VALVE COMP. (OLD 488-25170-80) (6690940) 12526 RON 35 1 1 CLEANER PACKING (OLD 431-0634C-20) (6684875) 2236 RON 36 1 1 6691849 - Indisponibil 37 1 1 INLET SCREEN (OLD 578-25007-20/6691460) (6684700) 2236 RON 38 1 1 DIAPHRAGM GASKET (OLD 475-25153-20) (6684691) 3242 RON 39 1 1 METERING DIAPHRAGM COMP. (OLD 474-25241-80) (6690830) 573 RON 40 1 1 PRIMING PUMP COMP. (OLD 442-25151-80) (6684687) 5591 RON 41 1 4 SET SCREW (OLD 548-25151-20/6696324) (6684699) 1229 RON 42 1 1 TAP SCREW 4X14 P (OLD 993-49040-142/6695112) (6695280) 1229 RON 43 1 1 BOLT WASHER M4 (OLD 992-01040-011) (6685070) 1229 RON 44 1 1 CHOKE CONTROL LEVER (OLD 523-0652N-20) (6691239) 1229 RON 45 1 1 CLEANER BODY COMP. (OLD 423-0652N-80) (6690120) 3242 RON 46 1 1 CHOKE LEVER 1.5 (OLD 528-07355-22) (6691281) 1229 RON 47 1 1 CLEANER SPONGE (OLD 446-0652N-20) (6690365) 1229 RON 48 1 1 6690421 (6690421) 6710 RON 49 1 1 6698730 - Indisponibil 50 1 2 SMALL WASHER 5 (OLD 992-00050-011) (6684864) 1229 RON 51 1 2 SCREW 5X57/S (OLD 994-14050-571) (6695353) 1229 RON *52 1 1 MUFFLER SET (OLD 704-07350-90) (6692498) 6710 RON *52 1 1 MUFFLER SET (OLD 704-07361-90) NEW (6692500) 6710 RON 53 1 1 MUFFLER GASKET (OLD 737-0165A-20) (6692732) 1229 RON 54 1 1 CYLNDER SET (OLD 001-07355-90) (6685493) 22927 RON 55 1 1 CYLINDER GASKET (OLD 017-07350-20) (6684896) 1229 RON 56 1 1 PISTON SET (OLD 030-07350-90) (6685902) 10513 RON 57 1 2 PISTON RING (OLD 041-01700-20) (6686121) 3242 RON 58 1 2 PISTON PIN CIRCLIP (OLD 039-00601-20) (6684590) 1229 RON 59 1 1 PISTON PIN (OLD 037-07045-20/6686010) (6684591) Indisponibil Indisponibil 60 1 1 CRANK SHAFT COMP. (OLD 046-07350-82) (6686219) 30645 RON *61 1 3 HEX. HOLE BOLT M5X16/S (OLD 994-61050-164/6695490) (6684903) 1229 RON *61 1 4 HEX. HOLE BOLT M5X16/S (OLD 994-61050-164/6695490) (6684903) 1229 RON *62 1 1 CRANK CASE GASKET (OLD 090-07350-21) (6686725) 1229 RON *62 1 1 CRANK CASE GASKET (OLD 090-07350-22) (6684904) 1229 RON 63 1 2 OIL SEAL TB 12227 (OLD 999-66122-200/6695624) (6684607) Indisponibil Indisponibil 64 1 2 6684608 - Indisponibil *65 1 1 GEAR SHAFT SHIM 0.10 (OLD 330-00200-21) (6689177) 1229 RON *65 1 1 GEAR SHAFT SHIM 0.15 (OLD 330-00200-22) (6689178) 1229 RON *65 1 1 GEAR SHAFT SHIM 0.20 (OLD 330-00200-23) (6684604) 1229 RON *65 1 1 GEAR SHAFT SHIM 0.30 (OLD 330-00200-24) (6684605) 1229 RON *66 1 1 6686532 - Indisponibil *66 1 1 6695700 - Indisponibil 67 1 1 6684681 (6684681) 4137 RON 68 1 2 STOP RING E-5 (OLD 993-55050-000) (6684683) 1229 RON 69 1 2 STARTER PAWL SPRING (OLD 790-06097-20) (6684684) 2236 RON 70 1 2 STARTER PAWL (OLD 788-0651H-20) (6684685) 2236 RON 71 1 1 6601570 cod vechi 6684672 (6601570) 8163 RON 72 1 1 SET SCREW (OLD 839-03045-20) (6684679) 1229 RON 73 1 1 CAM PLATE (OLD 759-0651H-20) (6684678) 2348 RON 74 1 1 DUMPER SPRING (OLD 758-0651H-20) (6684677) 3242 RON 75 1 1 STARTER ROPE REEL (OLD 774-0720F-20) (6684676) 3578 RON 76 1 1 RECOIL SPRING (OLD 780-06097-20) (6684675) 3578 RON 77 1 1 RECOIL STARTER BODY COMP. (OLD 772-07350-80) (6684673) 6486 RON 78 1 1 STARTER ROPE 3.5X860 (OLD 783-0720F-20) (6684674) 2236 RON 79 1 1 STARTER HANDLE (OLD 785-03045-20) (6684680) 1229 RON 80 1 1 S?START MARK (OLD 915-07355-20) NEW (6694472) 1229 RON 111 1 1 HEX. HOLE BOLT M5X25/S (OLD 994-16050-252) (6684709) 1229 RON 112 1 1 HEX. HOLE BOLT 5X16 (OLD 990-51050-163) (6695046) 1229 RON 113 1 1 WASHER M5 (OLD 992-01050-061) (6684918) 1229 RON 114 1 1 PIPE HOLDER, TPE (OLD 360-00996-20/6689650) (6689651) 3578 RON 115 1 1 CUSHION RUBBER (OLD 599-00980-21) (6691823) 2460 RON 116 1 1 SYMBOL MARK TBC-270S (OLD 929-07355-20) NEW (6694661) 1229 RON 116A 1 1 - Indisponibil 117 1 1 FAN CASE COMP. (OLD 112-03045-80) (6686959) 7940 RON 118 1 1 CLUTCH DRUM COMP. (OLD 289-03070-80) (6688580) 6486 RON 119 1 1 METAL FITTING (OLD 361-00990-20) (6689664) 2460 RON 120 1 1 GEAR CASE WASHER (OLD 324-37350-20/6689160) (6689159) 1229 RON 121 1 1 RETAINING RING FOR D12 (10 PCS) (939542) 1788 RON 122 1 6 HEX. HOLE BOLT 5X20/PS (OLD 994-63050-204) (6684634) 1229 RON 123 1 2 HEX. SOCKET HD BOLT M4X18 (W/WASHERS) (6698388) 1453 RON 124 1 1 6687965 (6687965) 2460 RON 125 1 1 IGNITION COIL ASSY (OLD 167-21012-90/6687683) (6687684) 13197 RON 126 1 1 6684894 (6684894) 3242 RON 127 1 1 6687683 - Indisponibil 128 1 2 STEP BOLT (OLD 357-0075T-20) (6684646) 1229 RON 129 1 2 BENT WASHER 8 (OLD 992-05080-030/6695204) (6684648) 1229 RON 130 1 2 CLUTCH PLATE A 0.5 (OLD 348-0630A-20/6689529) (6684645) 1229 RON 131 1 1 CLUTCH SPRING (OLD 342-0630B-20) (6684644) 1229 RON 131A 1 1 6697704 - Indisponibil 132 1 2 CLUTCH SHOE COMP. (OLD 290-01620-80) (6684643) 3578 RON 133 1 2 CLUTCH WASHER B (OLD 359-02103-20) (6684642) 1229 RON 134 1 1 HEX.NUT M8 (OLD 991-01080-011) (6684612) 1229 RON 135 1 1 WASHER M8 (OLD 992-01080-011) (6684611) 1229 RON 136 1 1 MAGNETO ROTOR COMP. (OLD 155-21012-81) (6687384) 8388 RON 137 1 1 6684618 (6684618) 2236 RON 138 1 3 COLLAR C (OLD 659-04300-20) (6684623) 1229 RON *139 1 1 TANK WHITE (OLD 591-07350-22/6691519/6691601/04) (6691602) 5480 RON *139 1 1 TANK (OLD 591-07365-22) NEW (6696502) 6262 RON 140 1 1 FUEL PIPE 3X5X65 (OLD 700-03005-06/700-03005-065) (6684626) 1229 RON 141 1 1 RETURN GROMMET (OLD 534-32710-20) (6684627) 105 RON 142 1 1 6692171 (6692171) 3578 RON 143 1 1 AIR VENT PIPE (OLD 565-04410-20) (6691395) 3578 RON 144 1 1 6691389 (6691389) 6039 RON *145 1 1 6685049 (6685049) 4697 RON *145 1 1 6691747 (6691747) 3242 RON 145A 1 1 6698402 (6698402) 4025 RON 146 1 1 6684625 - Indisponibil 146A 1 1 6698732 - Indisponibil 147 1 1 PUMP FILTER BODY COMP. (OLD 675-04042-80) (6684620) 3242 RON 148 1 1 CLIP (6696949) 1453 RON 149 1 1 STAND (OLD 940-07350-20) (6694787) 2460 RON 171 1 4 SCREW M4X20 (BLACK) (OLD 993-46040-202) NEW (6684725) 1229 RON 172 1 2 SCREW M5X20 (OLD 994-31050-203) (6684803) 1229 RON 173 1 1 THROTTLE WIRE COMP. (OLD 885-38400-80) (6693978) 10177 RON 174 1 1 STOP SWITCH COMP. (OLD 156-38400-80) (6687459) 7269 RON 175 1 1 THROTTLE WIRE (OLD 887-38400-80) (6694022) 4920 RON 176 1 1 PROTECTION TUBE 7X175 (OLD 164-07017-50) NEW (6687526) 1229 RON 177 1 1 SAFETY LEVER (OLD 253-38400-20) (6684721) 2460 RON 178 1 1 THROTTLE LEVER (OLD 880-38400-20) (6684804) 3242 RON 179 1 1 RETURN SPRING (OLD 832-38400-20) (6684722) 1229 RON 180 1 1 BLIND PLUG (OLD 322-38400-20) (6684724) 1229 RON 181 1 2 CONTAL NUT 5 (OLD 991-01050-043) (6684727) 1229 RON 182 1 1 6693767 (6693767) 16888 RON 183 1 1 HANDLE GRIP (OLD 503-3738E-20) (6691098) 3914 RON 184 1 1 LOOP HANDLE, 24 DIA.,BLACK (OLD 500-37286-20) (6691046) 3578 RON 185 1 1 BRAKE SHAFT WASHER (OLD 368-32350-20) (6689681) 1229 RON 186 1 1 TAPPING SCREW 5X20 (OLD 993-11052-012) (6695255) 1229 RON 187 1 2 HEX.NUT 6 (OLD 6684792/991-01060-041) (6684835) 1229 RON 188 1 1 CAP (A) (6698515) 2795 RON 189 1 1 6689277 (6689277) 2460 RON 189A 1 1 HANGER 24 (OLD 335-38360-90) NEW (6689282) 2460 RON 190 1 1 HANGER (OLD 335-77350-80) (6684705) 3242 RON 191 1 1 HANGER COLLAR (OLD 334-77350-20) (6684704) 2236 RON 192 1 1 HANGER FIXING BRACKET (OLD 337-77350-80) (6684706) 2236 RON 193 1 1 HEX. HOLE BOLT M5X25/S (OLD 994-16050-252) (6684709) 1229 RON 194 1 1 BARRIER (6696973) 2795 RON 195 1 2 BOLT 6X43/P (BLACK) (OLD 994-23060-432) (6684838) 1229 RON 196 1 1 GEAR CASE ASSY 24 (OLD 300-37821-91) (6688797) 38250 RON 196A 1 1 6684731 (6684731) 28072 RON 197 1 1 OILING BOLT (OLD 316-38150-20) (6689109) 1229 RON 197A 1 1 BOLT (W/PLUS) M6X8 (OLD 990-23060-080) (6684737) 1229 RON 198 1 1 GEAR CASE 24 (OLD 300-38150-21) (6688808) 8276 RON 198A 1 1 GEAR CASE 24 (OLD 300-77350-20) (6684736) 11519 RON 199 1 1 BALL BEARING 609 (OLD 999-61609-000) (6684734) 3242 RON 199A 1 1 BALL BEARING #608.22MM/OD (OLD 999-61608-000) (6684738) 3242 RON 200 1 1 GEAR PINION SET SPARE (OLD 301-38150-00) (6688882) 956 RON 200A 1 1 GEAR PINION SET (OLD 301-77350-00) (6684752) 9059 RON 201 1 1 GEAR SHAFT (OLD 304-3338R-20) (6688924) 956 RON 201A 1 1 GEAR SHAFT (OLD 304-77350-20) (6684739) 6598 RON 202 1 1 BALL BEARING 6201D, 32MM/OD (OLD 999-61620-103) (6695554) 3578 RON 202A 1 1 6684740 - Indisponibil 203 1 1 STOP RING C-32, INNER (OLD 993-51032-002) (6695295) 1229 RON 203A 1 1 STOP RING C-28.INNER (OLD 993-51028-002) (6684741) 1229 RON 204 1 1 CUTTER HOLDER (OLD 310-38150-20) (6689032) 5591 RON 204A 1 1 CUTTER HOLDER (OLD 310-77350-20) (6684742) 6933 RON 205 1 1 CUTTER HOLDER CAP (OLD 311-38150-20) (6689055) 3690 RON 205A 1 1 CUTTER HOLDER CAP (OLD 311-77350-20) (6684744) 3242 RON 206 1 1 PROTECTION COVER B (OLD 308-38150-20/6688993) (6688995) 2460 RON 206A 1 1 PROTECTION COVER (OLD 308-77350-20) (6684743) 2460 RON 207 1 1 FIXING NUT L M10X1.25 (OLD 313-38150-20/6684745/6689067) (6689073) 1229 RON 207A 1 1 6684745 - Indisponibil 208 1 1 HEX. HOLE BOLT M5X12/S (OLD 994-61050-124) (6684667) 1229 RON *209 1 2 HEX. HOLE BOLT M5X25/S (OLD 994-16050-252) (6684709) 1229 RON *209 1 1 HEX. HOLE BOLT M5X25/S (OLD 994-16050-252) (6684709) 1229 RON 210 1 1 BALL BEARING 6900, 22MM/OD (OLD 999-61690-000) (6695577) 4025 RON 210A 1 1 BALL BEARING 609 (OLD 999-61609-000) (6684734) 3242 RON 211 1 1 BALL BEARING (OLD 999-61690-002) (6695579) 3578 RON 211A 1 1 BALL BEARING 609Z ST (OLD 999-61609-002) (6684735) 3242 RON 212 1 1 STOP RING OUTER 10 (OLD 993-57010-002) (6695315) 1229 RON 212A 1 1 STOP RING 9 (OLD 993-54009-002) NEW (6684733) 1229 RON 213 1 1 STOP RING C-22, INNER (OLD 993-51022-002) (6695293) 1229 RON 213A 1 1 STOP RING C-24.INNER (OLD 993-51024-002) (6684732) 1229 RON 214 1 1 6689160 - Indisponibil 215 1 1 HEX. HOLE BOLT M5X30/WS (OLD 994-64050-304) (6684973) 1229 RON 216 1 2 HEX. HOLE BUTTON SCREW 6X25S (OLD 994-81060-254) (6684714) 1229 RON 217 1 1 SAFETY GUARD BRACKET (OLD 442-37417-20) (6685065) 2236 RON 217A 1 1 6698812 - Indisponibil 218 1 1 CAUTION STICKER (OLD 919-38100-20) NEW (6684959) 2236 RON 219 1 5 6684831 (6684831) 1229 RON 220 1 1 DRIVE SHAFT PIPE COMP. (OLD 341-37623-82/6689385) (6689386) 15098 RON 221 1 1 DRIVE SHAFT 1487L (OLD 343-38170-20) (6689477) 7381 RON 221A 1 1 DRIVE SHAFT 1434L (OLD 343-77450-20) NEW (6696010) 7940 RON 222 1 1 SAFETY COVER, 24 DIA. (OLD 441-38150-20) NEW (6690272) 6374 RON 223 1 1 SAFETY GUARD HOLDER (OLD 445-38150-20) (6690343) 2460 RON 223A 1 1 6698813 - Indisponibil 224 1 2 HEX. HOLE BOLT M5X12/S (OLD 994-61050-124) (6684667) 1229 RON 225 1 2 KNIFE (OLD 797-38150-20) NEW (6693388) 382 RON 226 1 1 TAPPING SCREW 5X20 (OLD 993-17052-002) (6684753) 1229 RON 501 1 1 BOX WRENCH (HEX. SOCKET 17/19) (OLD 826-20000-80) (6684764) 2460 RON 502 1 1 HEX. BAR WRENCH 4MM (OLD 813-20000-20) (6684813) 105 RON 503 1 1 NYLON CORD BODY. SILVER (OLD 786-37714-20) (6684855) 6821 RON 504 1 2 CUTTER COVER (OLD 615-37224-20/790290) (6684768) 1229 RON 505 1 1 6684839 - Indisponibil 506 1 1 CUTTING BLADE 4X230. TYPE M (OLD 802-37372-20/6695789/6693439) (6684767) 6933 RON
