SB10V
[SB10V]
SB10V
Click pentru a mari
Imagini suplimentare
SB10V
Click pentru a mari

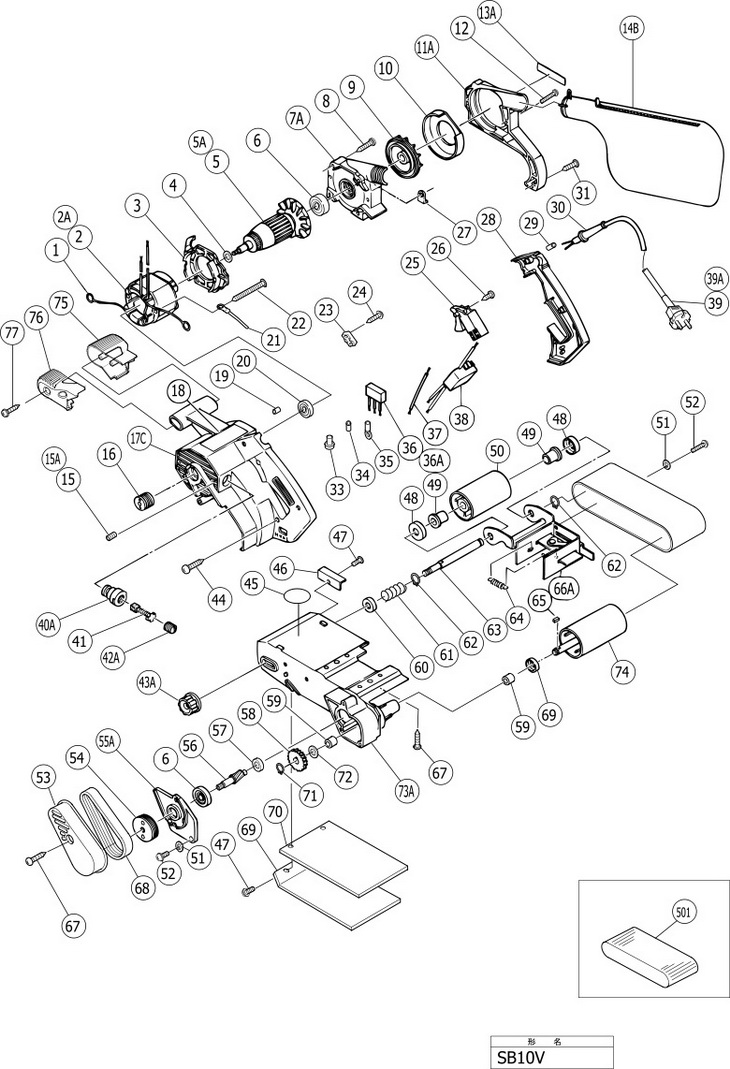

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 2 BRUSH TERMINAL (930703) 2348 RON
*2 1 1 340104K - Indisponibil
*2 1 1 340104G - Indisponibil
2A 1 1 340104L (340104L) 21697 RON
3 1 1 FAN GUIDE (OLD 953143/953147/953148) (953185) 2683 RON
4 1 1 BEARING WASHER (B) (954234) 1453 RON
5 1 1 953145E - Indisponibil
5A 1 1 ARMATURE 230-240 VOLT (OLD 953145E) (953145F) 2550 RON
6 1 2 BALL BEARING 6200VVCMPS2S (6200VV) 3466 RON
7A 1 1 INNER COVER (OLD 953146) (322590) 6598 RON
8 1 4 TAPPING SCREW D5X30 (W/SP.WASHER) (986011) 1453 RON
9 1 1 DUST FAN (953053) 488 RON
10 1 1 DUST GUIDE (953156) 2348 RON
11A 1 1 DUST COVER (DISCON) (322589) 8052 RON
12 1 2 MACHINE SCREW M4X25 (10 PCS) (949223) 1453 RON
13A 1 1 - Indisponibil
14B 1 1 DUST BAG (GRAY) (322592) 16888 RON
15 1 2 @ HEX.SOCKET SCREW M4X10 (932668) 1453 RON
15A 1 2 HEX.SOCKET SET SCREW M5X8 (938477) 1453 RON
16 1 1 PULLEY (A) (987532) 6374 RON
17C 1 1 323591 (323591) 15769 RON
18 1 1 - Indisponibil
19 1 1 BEARING LOCK (931701) 1453 RON
20 1 1 BALL BEARING 629VVMC2EPS2L (629VVM) 3914 RON
21 1 1 @ INTERNAL WIRE (953033) 1453 RON
22 1 2 HD.TAPPINGSCREW D5X55 (OLD 956669) (953174) 894 RON
23 1 1 CORD CLIP (OLD 994566) (937631) 894 RON
24 1 2 TAPPING SCREW D4X16 (W/FLANGE) (984750) 1117 RON
25 1 1 SWITCH (2P PILLAR TYPE) W/LOCK (931573) 19572 RON
*25 1 1 SWITCH W/SAFETY (953178) 22144 RON
26 1 1 TAPPING SCREW D4X12 (954017) 894 RON
27 1 1 PLATE (953169) 1453 RON
28 1 1 HANDLE COVER (995611) 7828 RON
29 1 2 TUBE (D) (981373) 1341 RON
30 1 1 CORD ARMOR D8.2 (OLD 958049Z) (958049) 894 RON
*30 1 1 CORD ARMOR D10.7 (940778) 2124 RON
31 1 1 TAPPING SCREW D4X25 (958705) 1453 RON
33 1 3 CONNECTOR 50091 (10 PCS) (OLD 939557) (959140) 2236 RON
34 1 2 TUBE (D) (981373) 1341 RON
35 1 1 TERMINAL (OLD 938108Z) (938108) 1453 RON
36 1 1 NOISE SUPPRESSOR (960283Z) 1041 RON
36A 1 1 NOISE SUPPRESSOR (994273) Indisponibil Indisponibil
37 1 1 - Indisponibil
38 1 1 CONTROLLER CIRCUIT (995612) 39145 RON
39 1 1 500234Z - Indisponibil
*39 1 1 500247Z - Indisponibil
*39 1 1 CORD FOR SUI (500248Z) 22033 RON
*39 1 1 500439Z - Indisponibil
39A 1 1 CORD 2,5M 2 X 1.0 H05VV-F W/PLUG 13A/250V GBR (500435Z) 12638 RON
40A 1 2 BRUSH HOLDER (958900) 5368 RON
41 1 2 CARBON BRUSH (1 PAIR) (999043) 382 RON
42A 1 2 BRUSH CAP (945161) 1453 RON
43A 1 1 KNOB NUT (995578) 1788 RON
44 1 3 956636 - Indisponibil
45 1 1 MARK PLATE (962994) 1453 RON
46 1 1 STRIKING GUIDE (953158) 1453 RON
47 1 3 MACHINE SCREW M4X10 (10 PCS) (OLD 949216Z) (949216) 894 RON
48 1 2 WASHER (953043) 1453 RON
49 1 2 METAL (953042) 2236 RON
50 1 1 995586 (995586) 11072 RON
51 1 5 SPRING WASHER M4 (10 PCS) (949453) 894 RON
52 1 5 SCREW M4X14 (10 PCS) (949218) 1453 RON
53 1 1 BELT COVER (953155) 3130 RON
54 1 1 PULLEY (B) (953154) 11519 RON
55A 1 1 GEAR COVER (322591) 5368 RON
56 1 1 PINION (953152) 10512 RON
57 1 1 METAL (935522) 2460 RON
58 1 1 GEAR (995576) 6374 RON
59 1 2 METAL D10X14X12 (953175) 2236 RON
60 1 2 WASHER (953161) 1453 RON
61 1 1 SPRING (995577) 1453 RON
62 1 2 RETAINING RING FOR D12 (10 PCS) (939542) 1788 RON
63 1 1 SHAFT (995587) 5591 RON
64 1 1 SPRING (953063) 3242 RON
65 1 1 FEATHER KEY 3X3X8 (944109) 2012 RON
66A 1 1 995585 (995585) 1339 RON
67 1 5 TAPPING SCREW D4X16 (954004) 894 RON
68 1 1 BELT (958874) 6151 RON
69 1 1 SHOE PLATE (995580) 5591 RON
70 1 1 SHOE CUSHION (995579) 6039 RON
71 1 1 RETAINING RING FOR D10 (10 PCS) (939540) 2683 RON
72 1 1 WASHER (B) (948213) 1453 RON
73A 1 1 323592 (323592) 33329 RON
74 1 1 DRIVE PULLEY (995575) 17335 RON
75 1 1 SUB GRIP (A) (322596) 4584 RON
76 1 1 SUB GRIP (B) (322597) 5815 RON
77 1 2 TAPPING SCREW D4X20 (W/FLANGE) BLACK (OLD 305095) (301653) 894 RON
501 1 1 995552 - Indisponibil
601 1 1 995574 (995574) 203786 RON
602 1 1 @ ADJUSTING BOLT (995583) 25612 RON
603 1 1 @ KNOB BOLT M6X14 (993843) 1229 RON
604 1 2 MACHINE SCREW (W/SP.WASHER) M4X12 (951039) 1453 RON
605 1 2 BOTTOM PLATE (A) (995588) 6151 RON
606 1 4 BOTTOM PLATE (B) (995589) 6598 RON
607 1 1 995550 - Indisponibil
608 1 1 995551 - Indisponibil
609 1 1 995553 - Indisponibil
610 1 1 995554 - Indisponibil
611 1 1 995555 - Indisponibil
612 1 1 995556 - Indisponibil
613 1 1 995557 - Indisponibil
614 1 1 995558 - Indisponibil
615 1 1 995559 - Indisponibil
616 1 1 995560 - Indisponibil
617 1 1 995561 - Indisponibil
618 1 1 995562 - Indisponibil
619 1 1 995563 - Indisponibil
620 1 1 995564 - Indisponibil
621 1 1 995565 - Indisponibil
622 1 1 995566 - Indisponibil
623 1 1 995567 - Indisponibil
624 1 1 995568 - Indisponibil
625 1 1 995569 - Indisponibil
626 1 1 995570 - Indisponibil
627 1 1 995571 - Indisponibil
628 1 1 995572 - Indisponibil
629 1 1 995573 - Indisponibil
