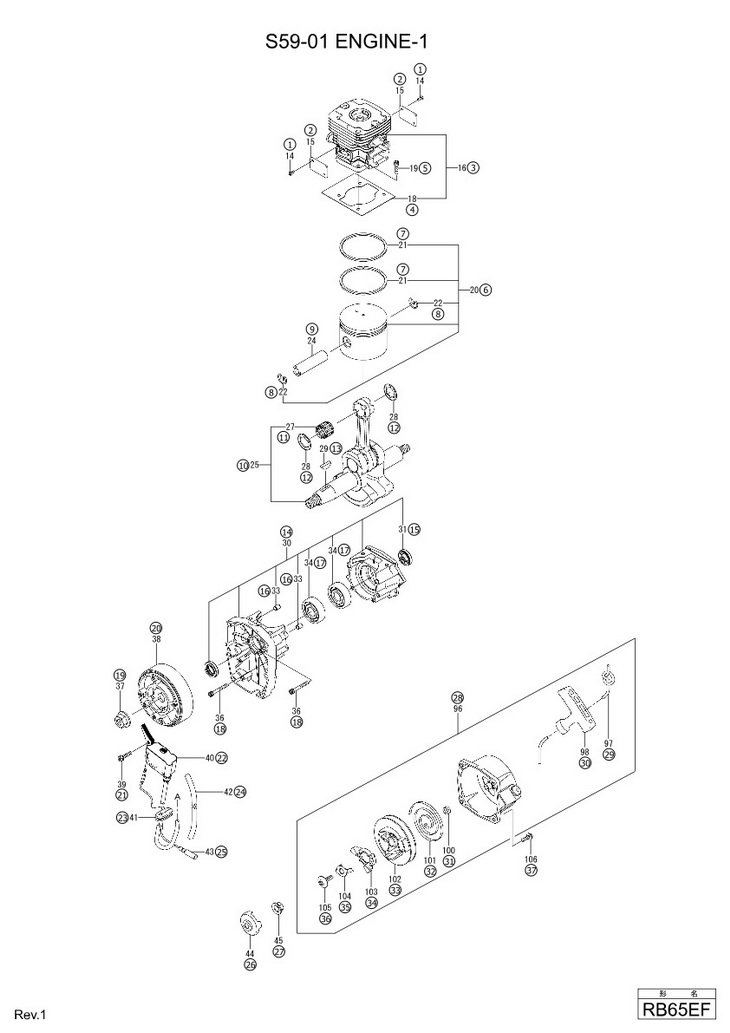

Top » Piese de schimb » PIESE HITACHI » RB65EF RB65EF [RB65EF] Click pentru a mari Imagini suplimentare Click pentru a mari Click pentru a mari Click pentru a mari Click pentru a mari Click pentru a mari Click pentru a mari LISTA DE COMPONENTE: Numar Versiune Buc. in schema Denumire Pret/buc (Tva inclus) Cumpara 1 1 4 SCREW 4X8 (6697581) 1229 RON 2 1 2 PLATE (6697475) 3242 RON 3 1 1 CYLINDER SET (6697457) 150770 RON 4 1 1 CYLINDER GASKET NEW (6697461) 5927 RON 5 1 4 HEX. HOLE BOLT 5X20 (OLD 990-51050-203) NEW (6695048) 1229 RON 6 1 1 PISTON SET (6697466) 66995 RON 7 1 2 PISTON RING NEW (6697472) 15993 RON 8 1 2 SNAP RING NEW (6697471) 2236 RON 9 1 1 PISTON PIN (6697470) 23487 RON 10 1 1 6697474 (6697474) 276040 RON 11 1 1 NEEDLE BEARING (6697559) 10513 RON 12 1 2 SPACER NEW (6697468) 3242 RON 13 1 1 WOODRUFF KEY NEW (6697479) 3242 RON 14 1 1 6697480 (6697480) 153231 RON 15 1 2 OIL SEAL (TC17306) NEW (6697587) 8947 RON 16 1 2 PIN D8X10 NEW (6697586) 1117 RON 17 1 2 BALL BEARING 6303-9 (OLD 999-61630-312) NEW (6695573) 5368 RON 18 1 4 HEX. HOLE BOLT 5X40 (OLD 990-51050-403) (6695054) 1229 RON 19 1 1 FLANGE NUT M10 NEW (6697569) 4473 RON 20 1 1 FLYWHEEL ROTOR NEW (6697488) 96635 RON 21 1 2 BOLT (W/W) M4X20 NEW (6697580) 2124 RON 22 1 1 IGNITION COIL NEW (6697491) 89813 RON 23 1 1 GROMMET NEW (6697494) 3242 RON 24 1 1 TUBE 6X7.4X300 NEW (6697549) 2124 RON 25 1 1 LEAD WIRE NEW (6697492) 4473 RON 26 1 1 STARTING PULLEY NEW (6697558) 4920 RON 27 1 1 NUT M8 (W/W) NEW (6697584) 2124 RON 28 1 1 6697553 (6697553) 81312 RON 29 1 1 ROPE 3.5X1000 NEW (6697556) 7045 RON 30 1 1 STARTER GRIP NEW (6697557) 8276 RON 31 1 1 FRICTING SPRING NEW (6697561) 3466 RON 32 1 1 RECOIL SPRING NEW (6697555) 16888 RON 33 1 1 REEL NEW (6697554) 18789 RON 34 1 1 PAWL NEW (6697562) 4025 RON 35 1 1 RETAINER NEW (6697560) 8499 RON 36 1 1 SET SCREW NEW (6697563) 3466 RON 37 1 4 MACHINE SCREW M4X16 NEW (6697578) 2124 RON 51 1 1 PLUG CAP NEW (6697489) 573 RON 52 1 1 SPARK PLUG BPMR7A (OLD 018-12710-20) (6685782) Indisponibil Indisponibil 53 1 1 ENGINE COVER (A) NEW (6697552) 47534 RON 54 1 1 MUFFLER SET NEW (6697550) 72924 RON 55 1 1 MUFFLER GASKET NEW (6697551) 7493 RON 56 1 2 HEX. HOLE BOLT 6X20 (OLD 990-51060-203) NEW (6695060) 1229 RON 57 1 1 PAN HEAD SCREW M5X14 (W/W) NEW (6697582) 1117 RON 58 1 1 SCREW 5X10/W (OLD 994-17050-101) NEW (6695433) 1229 RON 59 1 1 ENGINE COVER (B) NEW (6697458) 573 RON 60 1 1 6697513 - Indisponibil 61 1 2 6697512 - Indisponibil 62 1 1 TAPPING SCREW D3X12 NEW (6697572) 1117 RON 63 1 1 6697510 - Indisponibil 64 1 1 6697509 - Indisponibil 65 1 4 SCREW 5X25 PS (OLD 994-15050-251) (6695394) 1229 RON 66 1 1 CARBURETOR SET NEW (6697523) 132986 RON 67 1 1 6697511 - Indisponibil 68 1 2 THROTTLE SET SCREW (OLD 514-25100-20) (6684870) 1229 RON 69 1 1 6697532 - Indisponibil 70 1 1 SWIVEL (OLD 539-25120-20) (6684697) 2460 RON 71 1 1 THRUST WASHER (OLD 549-25165-20) (6684874) 1229 RON 72 1 1 STOP RING (OLD 489-25100-20) (6684696) 1229 RON 73 1 1 O-RING (OLD 550-25100-20) (6684695) 2236 RON 74 1 1 6697543 - Indisponibil 75 1 1 PUMP GASKET (OLD 577-25292-20/6696321) (6684692) 7940 RON 76 1 1 PUMP DIAPHRAGM (OLD 576-25100-20/6696325) (6684693) 3242 RON 77 1 1 PUMP BODY NEW (6697536) 36461 RON 78 1 1 DIAPHRAGM PACKING (OLD 475-25038-20) (6685220) 2236 RON 79 1 1 METERING DIAPHRAGM (OLD 474-25601-20) (6684690) 6039 RON 80 1 1 DIAPHRAGM COVER (OLD 476-25004-20) (6685222) 3242 RON 81 1 4 SET SCREW (OLD 548-25101-20) (6691312) 1229 RON 82 1 1 6697514 (6697514) 6611 RON 83 1 1 O-RING (ID31.2) NEW (6697588) 2236 RON 84 1 1 AIR FILTER NEW (6697518) 2550 RON 85 1 1 AIR FILTER ELEMENT NEW FEB (6697520) 17895 RON 86 1 1 CLEANER CAP SET NEW (6697517) 23822 RON 87 1 2 SPECIAL BOLT M5X18 NEW (6697522) 4249 RON 88 1 1 PAN HEAD SCREW M5X55 (W/W) NEW (6697579) 1117 RON 89 1 1 PRIMING PUMP (6697521) 15993 RON 90 1 2 6697545 - Indisponibil 91 1 1 6697546 - Indisponibil 92 1 1 6697548 - Indisponibil 93 1 2 6697519 - Indisponibil 94 1 1 6697547 - Indisponibil 95 1 1 6697530 - Indisponibil 96 1 1 6697544 - Indisponibil 97 1 1 6697541 - Indisponibil 111 1 1 6697505 - Indisponibil 112 1 1 O-RING G-95 (OLD 999-67095-010) NEW (6695687) 2460 RON 113 1 1 6697504 - Indisponibil 114 1 1 6697503 - Indisponibil 115 1 1 6697485 - Indisponibil 116 1 1 6697482 - Indisponibil 117 1 1 6697481 - Indisponibil 118 1 1 SWIVEL PIPE NEW (6697483) 48317 RON 119 1 1 THROTTLE LEVER NEW (6697566) 160053 RON 120 1 1 MIDDLE PIPE (NEW) (6697484) 34783 RON 121 1 1 STRAIGHT PIPE NEW (6697507) 34783 RON 122 1 1 FERRITE CORE NEW MAR (6697495) 1232 RON 123 1 15 TAPPING SCREW 5X20 (OLD 993-11052-012) (6695255) 1229 RON 124 1 1 6697476 - Indisponibil 125 1 1 6697477 - Indisponibil 126 1 3 6697467 - Indisponibil 127 1 2 HEX.HOLE BOLT 6X65 (OLD 990-51060-653) NEW (6695067) 1229 RON 128 1 1 6697459 - Indisponibil 129 1 4 6697585 - Indisponibil 130 1 1 6697487 - Indisponibil 131 1 1 6697460 - Indisponibil 132 1 2 NYLON LOCK NUT 6 (OLD 991-78060-010) NEW (6695164) 1229 RON 133 1 6 HEX. HOLE BOLT 6X30 (OLD 990-51060-303) NEW (6695063) 1229 RON 134 1 1 6697575 - Indisponibil 135 1 1 6697493 - Indisponibil 136 1 1 6697486 - Indisponibil 137 1 1 6697463 - Indisponibil 138 1 5 6697469 - Indisponibil 139 1 1 NYLON LOCK NUT 6 (OLD 991-78060-010) NEW (6695164) 1229 RON 140 1 5 6697465 - Indisponibil 141 1 3 6697583 - Indisponibil 142 1 1 TRUSS SCREW 6X16 (OLD 990-14060-161) NEW (6694961) 1229 RON 143 1 1 6697462 - Indisponibil 144 1 1 SHOULDER BAND NEW FEB (6697464) 50889 RON 145 1 4 6697577 - Indisponibil 146 1 1 6697542 - Indisponibil 147 1 1 6697539 - Indisponibil 148 1 1 6697565 - Indisponibil 161 1 1 6697576 - Indisponibil 162 1 6 6697574 - Indisponibil 163 1 1 BAND (R) (6697516) 13197 RON 164 1 2 6697570 - Indisponibil 165 1 1 6697515 - Indisponibil 166 1 2 6697568 - Indisponibil 167 1 2 6697499 - Indisponibil 168 1 1 6697497 - Indisponibil 169 1 1 6697567 - Indisponibil 170 1 1 TAPPING SCREW D3X12 NEW (6697572) 1117 RON 171 1 1 SPRING NEW (6697478) 3242 RON 172 1 1 LEVER NEW (6697502) 5144 RON 173 1 1 TAPPING SCREW D3X14 NEW (6697573) 1117 RON 174 1 1 SWITCH STAY NEW (6697490) 3466 RON 175 1 1 TAPPING SCREW D3X8 NEW (6697571) 3466 RON 176 1 1 LEAF SPRING NEW (6697500) 3466 RON 177 1 1 STOPPER NEW (6697506) 16888 RON 178 1 1 SNAP RING NEW (6697473) 2124 RON 179 1 1 LEVER HOLDER (L) NEW (6697501) 1232 RON 180 1 1 PLAIN WASHER (2) NEW (6697528) 2124 RON 181 1 2 ADJUST WASHER NEW (6697564) 3690 RON 182 1 2 PLAIN WASHER (1) NEW (6697496) 2124 RON 183 1 1 LOCK LEVER NEW DEC (6697498) 488 RON 184 1 1 SHAFT NEW (6697508) 382 RON
