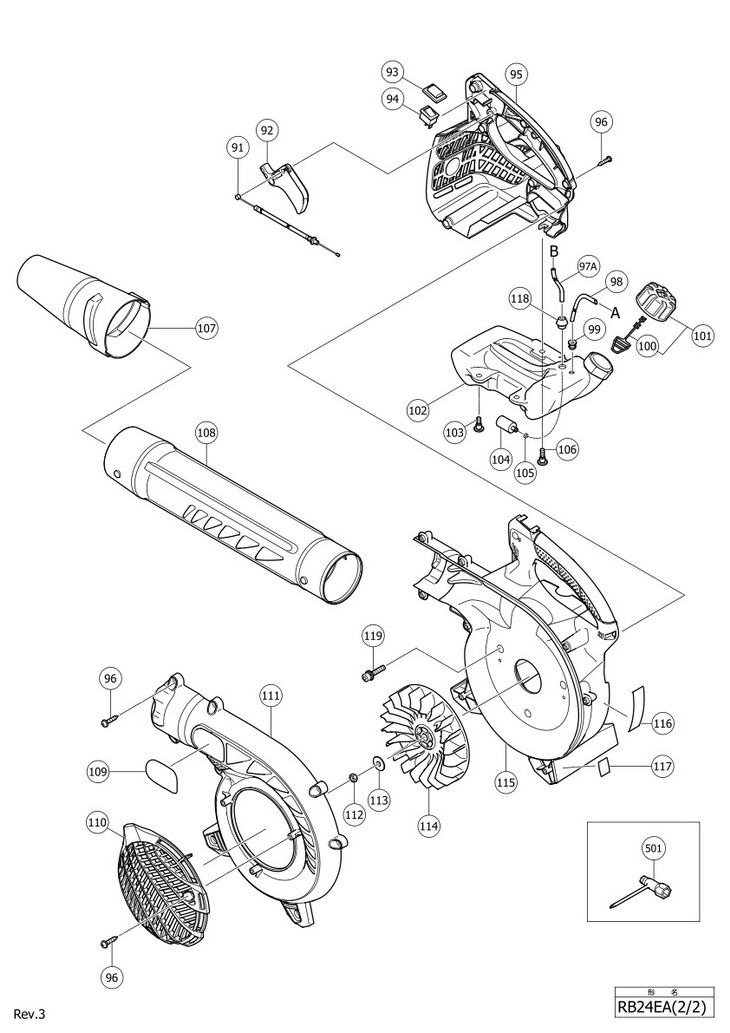

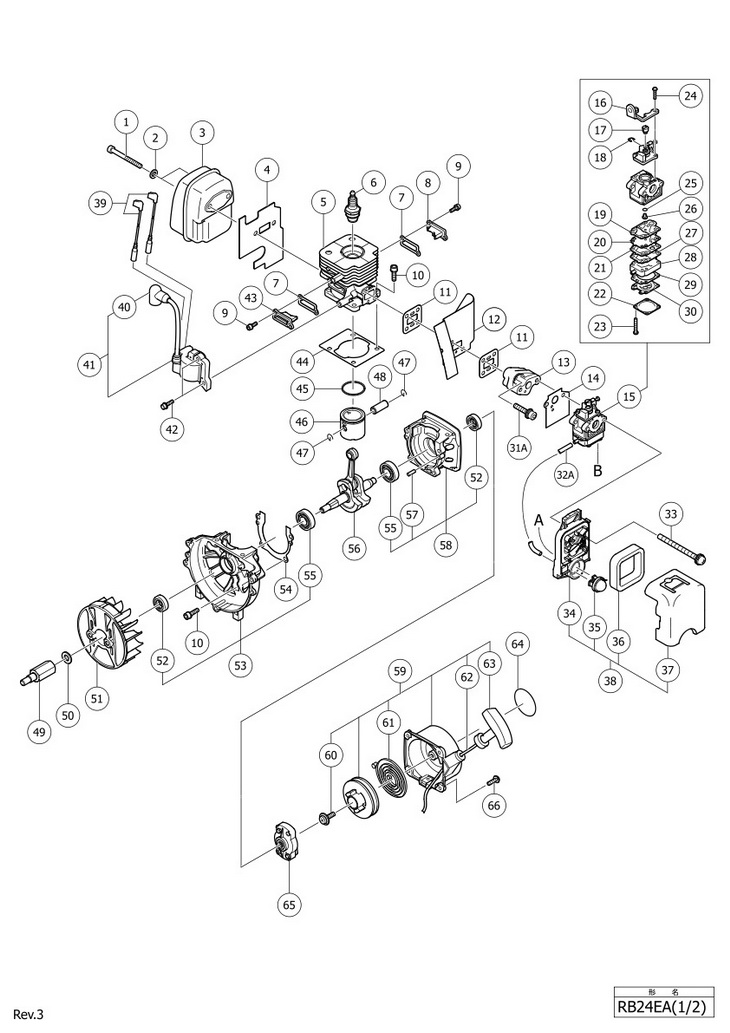

Top » Piese de schimb » PIESE HITACHI » RB24EA RB24EA [RB24EA] Click pentru a mari Imagini suplimentare Click pentru a mari Click pentru a mari LISTA DE COMPONENTE: Numar Versiune Buc. in schema Denumire Pret/buc (Tva inclus) Cumpara 1 1 2 HEX. SOCKET HD BOLT M6X65 (6698384) 1453 RON 2 1 2 BOLT WASHER M6 (10 PCS) (OLD 949432Z) (949432) 1453 RON 3 1 1 6698376 - Indisponibil 4 1 1 HEAT PROTECTION PLATE (6698374) 488 RON 5 1 1 CYLINDER (6698362) 18789 RON 6 1 1 SPARK PLUG BMR7A (OLD 018-01700-21) (6684584) 4696 RON 7 1 2 COVER PACKING (6698365) 1453 RON 8 1 1 SCAVENGING COVER (A) (6698363) 1453 RON 9 1 4 HEX. SOCKET HD BOLT M4X12 (6698385) 1453 RON 10 1 8 HEX. SOCKET HD BOLT M5X18 (W/SP.WASHER) (6698386) 1453 RON 11 1 2 INSULATOR GASKET (OLD 403-07550-20) (6684865) 105 RON 12 1 1 FLASH PAN (6698372) 2795 RON 13 1 1 CARBURETOR INSULATOR (6698387) 3019 RON 14 1 1 CARBURETOR PACKING (6698405) 2795 RON 15 1 1 6698373 (6698373) 2550 RON 16 1 1 - Indisponibil 17 1 1 SWIVEL NEW (6696830) 382 RON 18 1 1 STOP RING (OLD 489-25100-20) (6684696) 1229 RON 19 1 1 PUMP GASKET (OLD 577-25292-20/6696321) (6684692) 7940 RON 20 1 1 PUMP DIAPHRAGM (OLD 576-25100-20/6696325) (6684693) 3242 RON 21 1 1 PUMP PLATE (OLD 523-25100-20) (6691242) 2236 RON 22 1 1 DIAPHRAGM COVER (OLD 476-25004-20) (6685222) 3242 RON 23 1 4 SET SCREW (OLD 548-25101-20) (6691312) 1229 RON 24 1 2 SET SCREW M3X12 NEW (6696829) 1229 RON 25 1 1 O-RING (OLD 550-25100-20) (6684695) 2236 RON 26 1 1 MAIN JET #36 (OLD 599-2001W-36) (6697090) 3914 RON 27 1 1 CIRCUIT PLATE (OLD 522-25100-20) (6691234) 2460 RON 28 1 1 PUMP BODY (6696828) 7716 RON 29 1 1 DIAPHRAGM PACKING (OLD 475-25038-20) (6685220) 2236 RON 30 1 1 METERING DIAPHRAGM (OLD 474-25601-20) (6684690) 6039 RON 31A 1 2 6698844 - Indisponibil 32B 1 1 6699014 - Indisponibil 33 1 2 MACHINE SCREW M5X60 (OLD 943430) (307224) 1453 RON 34 1 1 AIR CLEANER HOUSING (6696832) 7493 RON 35 1 1 PRIMING PUMP COMP. (OLD 442-25143-80) (6685139) 3578 RON 36 1 1 CLEANER ELEMENT (OLD 446-00025-20) (6690347) 3242 RON 37 1 1 AIR CLEANER COVER (6696831) 5815 RON 38 1 1 6696549 (6696549) 5815 RON 39 1 2 CORD (L325) (6696566) 2795 RON 40 1 1 CORD NEW FEB (6696833) 5591 RON 41 1 1 6698397 (6698397) 12750 RON 42 1 2 HEX. SOCKET HD BOLT M4X18 (W/WASHERS) (6698388) 1453 RON 43 1 1 SCAVENGING COVER (B) (6698364) 1453 RON 44 1 1 CYLINDER PACKING (6698366) Indisponibil Indisponibil 45 1 1 PISTON RING (6698404) 4025 RON 46 1 1 PISTON (6698368) 5815 RON 47 1 2 PISTON PIN CIRCLIP (OLD 039-00601-20) (6684590) 1229 RON 48 1 1 PISTON PIN (OLD 037-07045-20/6686010) (6684591) Indisponibil Indisponibil 49 1 1 SPECIAL BOLT (6698367) 3019 RON 50 1 1 BOLT WASHER M8 (BLACK) (323212) 1453 RON 51 1 1 MAGNETO ROTOR (6698396) 5591 RON 52 1 2 OIL SEAL TB 12227 (OLD 999-66122-200/6695624) (6684607) Indisponibil Indisponibil 53 1 1 6698370 (6698370) 10736 RON 54 1 1 CRANK CASE PACKING (6698371) 1453 RON 55 1 2 6684608 - Indisponibil 56 1 1 CRANK SHAFT COMP. (6696533) 1998 RON 57 1 2 KNOCK PIN 4X12 (6696947) 1453 RON 58 1 1 6698369 (6698369) 8388 RON 59 1 1 6696572 (6696572) 6486 RON 60 1 1 SET SCREW (OLD 839-02010-20) (6693633) 1229 RON 61 1 1 RECOIL SPRING (OLD 780-06097-20) (6684675) 3578 RON 62 1 1 STARTER ROPE (OLD 783-06097-20/6693174) (6693168) 2236 RON 63 1 1 STARTER HANDLE (OLD 785-01620-20) (6693227) 2460 RON 64 1 1 - Indisponibil 65 1 1 6696471 (6696471) Indisponibil Indisponibil 66 1 4 SCREW M4X16 (W/WASHER) (6698398) 1453 RON 67 1 1 6601570 cod vechi 6684672 (6601570) 8163 RON 68 1 1 SET SCREW (OLD 839-03045-20) (6684679) 1229 RON 69 1 1 CAM PLATE (OLD 759-0651H-20) (6684678) 2348 RON 70 1 1 DUMPER SPRING (OLD 758-0651H-20) (6684677) 3242 RON 71 1 1 STARTER ROPE REEL (OLD 774-0720F-20) (6684676) 3578 RON 72 1 1 RECOIL STARTER BODY COMP. (OLD 772-07350-80) (6684673) 6486 RON 73 1 1 STARTER ROPE 3.5X860 (OLD 783-0720F-20) (6684674) 2236 RON 74 1 1 STARTER HANDLE (OLD 785-03045-20) (6684680) 1229 RON 75 1 1 - Indisponibil 76 1 1 6684681 (6684681) 4137 RON 91 1 1 THROTTLE WIRE COMP. (6698399) 2795 RON 92 1 1 THROTTLE LEVER (6698391) 1453 RON 93 1 1 SWITCH COVER (6698400) 1453 RON 94 1 1 STOP SWITCH (6685364) 2795 RON *95 1 1 MUFFLER PROTECTOR (6698390) 8388 RON *95 1 1 6698389 - Indisponibil 96 1 17 TAPPING SCREW D5X20 (W/FLANGE) BLACK (302089) 1453 RON 97A 1 1 FUEL PIPE (6698716) 3242 RON 98 1 1 FUEL PIPE (PINK) (6698401) 1453 RON 99 1 1 RETURN GROMMET (6696970) 781 RON 100 1 1 6684625 - Indisponibil 101 1 1 6698402 (6698402) 4025 RON 102 1 1 TANK (6698377) 9617 RON 103 1 2 BOLT L17.8 (W/FLANGE) NEW (6698511) 1453 RON 104 1 1 PUMP FILTER BODY COMP. (OLD 675-04042-80) (6684620) 3242 RON 105 1 1 CLIP (6696949) 1453 RON 106 1 1 BOLT L23.8 (W/FLANGE) (6698512) 1453 RON 107 1 1 NOZZLE (B) (6698394) 4249 RON 108 1 1 NOZZLE (A) (6698393) 6598 RON 109 1 1 - Indisponibil 110 1 1 GUARD NET (6698381) 2795 RON *111 1 1 VOLUTE CASE (6698383) 6933 RON *111 1 1 6698382 - Indisponibil 112 1 1 FLANGE U NUT M8 (6698395) 1453 RON 113 1 1 WASHER 8.1X30 (OLD 027-31870-20) (6684924) 1229 RON 114 1 1 FAN (6698378) 5480 RON *115 1 1 FAN CASE (6698380) 14092 RON *115 1 1 6698379 - Indisponibil 116 1 1 - Indisponibil 117 1 1 - Indisponibil 118 1 1 FUEL GROMMET(A) (6685308) Indisponibil Indisponibil 119 1 3 6698844 - Indisponibil 501 1 1 6698403 - Indisponibil
