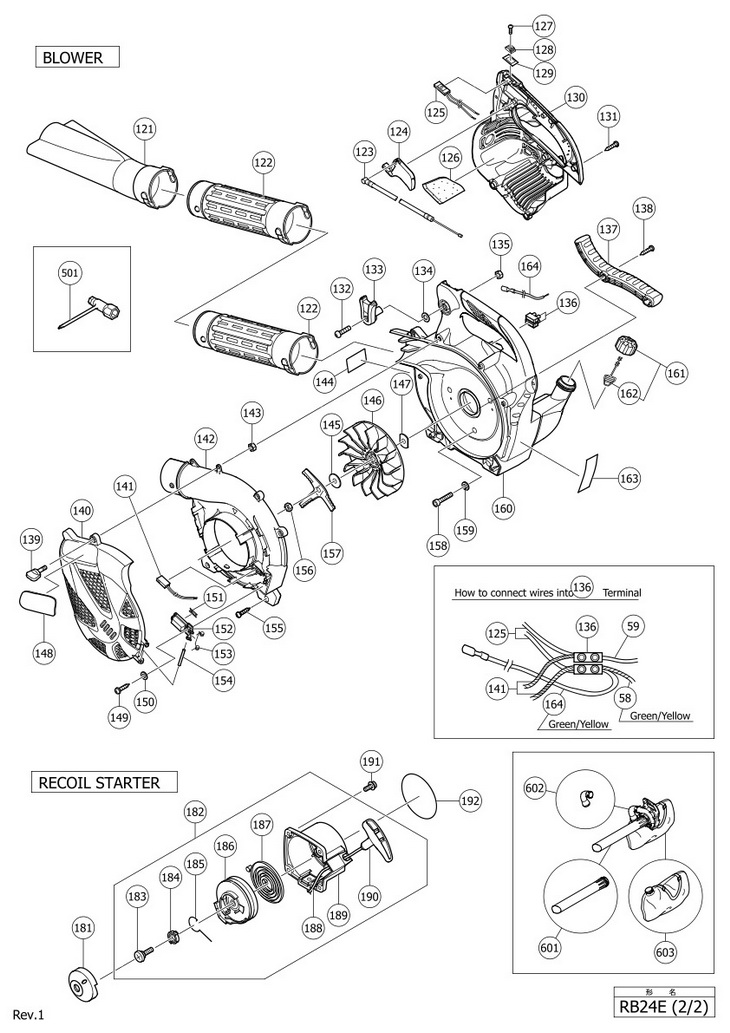

Top » Piese de schimb » PIESE HITACHI » RB24E RB24E [RB24E] Click pentru a mari Imagini suplimentare Click pentru a mari Click pentru a mari LISTA DE COMPONENTE: Numar Versiune Buc. in schema Denumire Pret/buc (Tva inclus) Cumpara 1 1 1 AIR CLEANER BODY (OLD 423-06591-20) (6684856) 4697 RON 2 1 1 CHOKE VALVE (OLD 493-06590-20) (6684857) 382 RON 3 1 2 COLLAR (OLD 470-0602K-20) (6684858) 2236 RON 4 1 1 SPACER (OLD 453-0602K-20) (6684859) 1229 RON 5 1 1 BLOW OVER CHECK BOARD (OLD 476-0634C-20) (6684860) 2236 RON 6 1 2 CLEANER SPONGE (OLD 446-0634C-20) (6684861) 3578 RON 7 1 1 CLEANER CAP (OLD 424-06590-20) (6684862) 2236 RON 8 1 1 6684863 (6684863) 6710 RON 9 1 2 S.WASHER 5 (OLD 992-10050-012/6695214) (6684662) 1229 RON 10 1 2 SMALL WASHER 5 (OLD 992-00050-011) (6684864) 1229 RON 11 1 2 6684660 - Indisponibil 12 1 2 INSULATOR GASKET (OLD 403-07550-20) (6684865) 105 RON 13 1 1 PARTITION PLATE (OLD 132-07550-20) (6684866) 2236 RON 14 1 1 INSULATOR SET (OLD 404-07550-90) (6684867) 3578 RON 15 1 2 HEX. HOLE BOLT 5X25/WS (OLD 994-64050-255) (6684617) 1229 RON 16 1 1 CARBURETOR GASKET (OLD 402-07550-20) (6684868) 2236 RON 17 1 1 CARBURETOR SET WYJ-470 (OLD 455-07550-90) (6684869) 37356 RON 18 1 2 THROTTLE SET SCREW (OLD 514-25100-20) (6684870) 1229 RON 19 1 1 CABLE ADJUSTER (OLD 614-25137-20) (6684871) 2236 RON 20 1 1 LOCK NUT M6 (OLD 991-01060-013/6692005) (6684872) 1229 RON 21 1 1 CABLE ADJUSTER STAY (OLD 544-25164-20) (6684873) 2460 RON 22 1 1 SWIVEL (OLD 539-25120-20) (6684697) 2460 RON 23 1 1 THRUST WASHER (OLD 549-25165-20) (6684874) 1229 RON 24 1 1 STOP RING (OLD 489-25100-20) (6684696) 1229 RON 25 1 1 CLEANER PACKING (OLD 431-0634C-20) (6684875) 2236 RON 26 1 1 O-RING (OLD 550-25100-20) (6684695) 2236 RON 27 1 1 MAIN JET #37 (OLD 599-2001W-37) (6684876) 3578 RON 28 1 1 PUMP GASKET (OLD 577-25292-20/6696321) (6684692) 7940 RON 29 1 1 DIAPHRAGM GASKET (OLD 475-25153-20) (6684691) 3242 RON 30 1 1 PRIMING PUMP COMP. (OLD 442-25151-80) (6684687) 5591 RON 31 1 1 PRIMING BODY (OLD 447-25108-20) (6684689) 2460 RON 32 1 1 DIAPHRAGM COVER (OLD 476-25151-20) (6684688) 3242 RON 33 1 1 PUMP DIAPHRAGM (OLD 576-25100-20/6696325) (6684693) 3242 RON 34 1 1 INLET SCREEN (OLD 578-25007-20/6691460) (6684700) 2236 RON 35 1 1 PUMP BODY COMP. (OLD 575-25153-80) (6684879) 15098 RON 36 1 1 METERING DIAPHRAGM (OLD 474-25601-20) (6684690) 6039 RON 37 1 4 SET SCREW (OLD 548-25151-20/6696324) (6684699) 1229 RON 38 1 1 6684618 (6684618) 2236 RON 39 1 1 FUEL PIPE 3X5X80 (OLD 700-03005-08) (6684880) 1229 RON 40 1 1 RETURN GROMMET (OLD 534-32710-20) (6684627) 105 RON 41 1 1 CLIP.6.3 DIA. (OLD 680-00731-20) (6684619) 1229 RON 42 1 1 PUMP FILTER BODY COMP. (OLD 675-04042-80) (6684620) 3242 RON *43 1 1 CARBURETOR SET WYL260 (OLD 455-07553-90) NEW (6684881) 28072 RON *43 1 1 CARBURETOR SET WYL266 (OLD 455-07555-90) NEW (6684882) 29750 RON 44 1 1 SWIVEL CAP (OLD 560-07120-20) (6684628) 105 RON 45 1 1 THROTTLE VALVE COMP. (OLD 488-25145-80) (6684883) 9730 RON 46 1 2 THROTTLE SET SCREW (OLD 548-25140-20) (6684698) 2236 RON 47 1 1 WIRE SET PLATE (OLD 878-07550-20) NEW (6684884) 1229 RON 48 1 1 CLEANER GASKET (OLD 431-07550-20) NEW (6684885) 1229 RON 49 1 2 HEX. HOLE BOLT M6X55 (OLD 990-51060-553) (6684638) 1229 RON 50 1 2 WASHER 6 (OLD 992-01060-011) (6684639) 1229 RON *51 1 1 MUFFLER COMP. (OLD 706-07550-80) (6684886) 20691 RON *51 1 1 MUFFLER COMP. (OLD 706-07552-80) NEW (6684887) 8835 RON 52 1 1 INSULATOR (OLD 133-07550-20) (6684888) 6710 RON 53 1 2 SCREW M4X8/WS (OLD 994-36040-081) (6684651) 1229 RON 54 1 1 SPARK ARRESTER (OLD 732-07550-20) (6684889) 2236 RON 55 1 1 MUFFLER SPECIAL GASKET(OLD 751-07550-20) (6684890) 1229 RON 56 1 1 TAIL PIPE SET (OLD 734-07550-90) (6684891) 3242 RON 57 1 2 HEX. HOLE BOLT M4X18/WS (OLD 994-64040-184) (6684599) 1229 RON 58 1 1 EARTH CORD 120L (OLD 274-07550-81) (6684892) 1229 RON 59 1 1 STOP CORD 145L (OLD 178-07550-80) (6684893) 1229 RON 60 1 1 6684894 (6684894) 3242 RON 61 1 1 6684895 (6684895) Indisponibil Indisponibil 62 1 2 WASHER (OLD 182-0186A-20) (6684600) 1229 RON 63 1 4 HEX. HOLE BOLT M5X18/S (OLD 994-61050-184) (6684586) 1229 RON 64 1 1 SPARK PLUG BMR7A (OLD 018-01700-21) (6684584) 4696 RON 65 1 1 CYLINDER GASKET (OLD 017-07350-20) (6684896) 1229 RON 66 1 1 CYLINDER SET (OLD 001-07600-90) (6684897) 18789 RON 67 1 2 PISTON RING (OLD 041-01601-20) (6684588) 3242 RON 68 1 2 PISTON PIN CIRCLIP (OLD 039-00601-20) (6684590) 1229 RON 69 1 1 PISTON SET (OLD 030-07500-90) (6684898) 9282 RON 70 1 1 PISTON PIN (OLD 037-07045-20/6686010) (6684591) Indisponibil Indisponibil 71 1 1 WOODRUFF KEY 3X13X4.5 (OLD 068-10100-20) (6684899) 1229 RON 72 1 1 CRANK SHAFT COMP. (OLD 046-07550-80) (6684900) 14092 RON 73 1 1 6684901 - Indisponibil 74 1 1 WASHER M8 (OLD 992-01080-011) (6684611) 1229 RON 75 1 1 MAGNETO ROTOR COMP. (OLD 155-21016-80) (6684902) 9730 RON 76 1 4 HEX. HOLE BOLT M5X16/S (OLD 994-61050-164/6695490) (6684903) 1229 RON 77 1 1 CRANK CASE GASKET (OLD 090-07350-22) (6684904) 1229 RON 78 1 2 OIL SEAL TB 12227 (OLD 999-66122-200/6695624) (6684607) Indisponibil Indisponibil 79 1 2 6684608 - Indisponibil 80 1 1 GEAR SHAFT SHIM 0.20 (OLD 330-00200-23) (6684604) 1229 RON 80 1 1 GEAR SHAFT SHIM 0.30 (OLD 330-00200-24) (6684605) 1229 RON 81 1 1 6684905 (6684905) 13197 RON *82 1 1 MAIN JET #37 (OLD 599-2000W-37) NEW (6684877) 2460 RON *82 1 1 MAIN JET #39 (OLD 599-2000W-39) NEW (6684878) 3242 RON 121 1 1 FAN HEADED PIPE (OLD 273-31870-20) (6684906) 6374 RON 122 1 2 STRAIGHT PIPE (OLD 269-31870-20) (6684907) 5368 RON *123 1 1 THROTTLE WIRE 235+92 (OLD 885-31870-80) (6684908) 2460 RON *123 1 1 THROTTLE WIRE 245+93 (OLD 885-31873-80) NEW (6684909) 2460 RON 124 1 1 THROTTLE LEVER (OLD 013-31870-20) (6684910) 1229 RON 125 1 1 STOP SWITCH COMP. (OLD 170-31870-80) (6684911) 3578 RON 126 1 1 PROTECTION SHEET (OLD 459-31870-20) (6684912) 1229 RON 127 1 1 SCREW 3X10 (OLD 994-31030-101) (6684913) 1229 RON 128 1 1 BUTTON STOP (OLD 258-11600-20) (6684914) 1229 RON 129 1 1 STOP SWITCH MARK (OLD 925-31870-20) (6684915) 2236 RON 130 1 1 MUFFLER PROTECTOR (OLD 738-31870-20) (6684916) 7716 RON 131 1 7 TAPPING SCREW D5X20 (W/FLANGE) BLACK (302089) 1453 RON 132 1 1 MACHINE SCREW (W/WASHERS) M5X25 (OLD 6695424) (317751) 2236 RON 133 1 1 CRUISE LEVER (OLD 249-31870-20) (6684917) 1229 RON 134 1 1 WASHER M5 (OLD 992-01050-061) (6684918) 1229 RON 135 1 1 NYLON NUT M5 (OLD 991-78050-010) (305491) 1453 RON 136 1 2 PILLAR TERMINAL (OLD 938307Z/512-31870-20)) (938307) 2571 RON 137 1 1 SUPPORT HANDLE (OLD 424-31870-20) (6684919) 382 RON 138 1 2 TAPPING SCREW D5X20 (W/FLANGE) BLACK (302089) 1453 RON 139 1 1 COVER SETTING BOLT (OLD 450-31870-80) (6684920) 3242 RON 140 1 1 GUARD NET (OLD 050-31870-20) (6684921) 5368 RON 141 1 1 MICRO SWITCH (OLD 509-31874-90) (6684922) 4249 RON 142 1 1 VOLUTE CASE (OLD 052-31870-20) (6684923) 4920 RON 143 1 1 LOCK NUT M5 (10 PCS) (OLD 991-01050-013) (949566) 1453 RON 144 1 1 - Indisponibil 145 1 1 WASHER 8.1X30 (OLD 027-31870-20) (6684924) 1229 RON 146 1 1 FAN (6684925) 4361 RON 147 1 1 WASHER 10.1X30 (6684926) 1229 RON 148 1 1 SYMBOL MARK (HITACHI) (OLD 929-31874-20) (6684927) 2236 RON 149 1 1 TAPPING SCREW D5X20 (W/FLANGE) BLACK (302089) 1453 RON 150 1 1 WASHER M5 (OLD 992-01050-061) (6684918) 1229 RON 151 1 1 6684928 (6684928) 5591 RON 152 1 1 SWITCH COVER (OLD 511-31870-20) (6684929) 1229 RON 153 1 1 SPRING (OLD 790-31870-20) (6684930) 1229 RON 154 1 1 PIN (OLD 0a53-31870-20) (6684931) 3242 RON 155 1 5 TAPPING SCREW D5X20 (W/FLANGE) BLACK (302089) 1453 RON 156 1 1 U-NUT M8 (OLD 991-74080-010) (6684932) 1229 RON 157 1 1 SHREDDER (OLD 128-31870-20) (6684933) 382 RON 158 1 3 HEX. HOLE BOLT M5X35 (OLD 990-51050-353) (6684934) 1229 RON 159 1 3 SPRING WASHER 5 (OLD 992-10050-062) (6684834) 1229 RON 160 1 1 6684935 (6684935) 24717 RON 161 1 1 6684622 (6684622) 5032 RON 162 1 1 6684625 - Indisponibil 163 1 1 - Indisponibil 164 1 1 6684936 (6684936) 1229 RON 181 1 1 STARTER PULLEY (OLD 798-03045-20) (6684937) 2460 RON 182 1 1 6684938 (6684938) Indisponibil Indisponibil 183 1 1 SET SCREW (OLD 839-03045-20) (6684679) 1229 RON 184 1 1 PULLEY STAY (OLD 771-03045-20) (6684939) 1229 RON 185 1 1 SWING ARM (OLD 777-03045-20) (6684940) 1229 RON 186 1 1 STARTER ROPE REEL (OLD 774-03045-20) (6684941) 2460 RON 187 1 1 RECOIL SPRING (OLD 779-03045-20) (6684942) 3578 RON 188 1 1 ROPE 3.0X800 (OLD 783-03045-20) (6684943) 2236 RON 189 1 1 RECOIL STARTER BODY COMP. (OLD 772-03045-80) (6684944) 5815 RON 190 1 1 STARTER HANDLE (OLD 785-03045-20) (6684680) 1229 RON 191 1 4 HEX. HOLE BOLT 4X15/PS (OLD 994-63040-154) (6684682) 1229 RON 192 1 1 STARTER MARK (HITACHI) (OLD 915-07554-20) (6684945) 2236 RON 193 1 1 6696471 (6696471) Indisponibil Indisponibil 194 1 1 6696572 (6696572) 6486 RON 195 1 1 SET SCREW (OLD 839-02010-20) (6693633) 1229 RON 196 1 1 - Indisponibil 197 1 1 RECOIL SPRING (OLD 780-06097-20) (6684675) 3578 RON 198 1 1 STARTER ROPE (OLD 783-06097-20/6693174) (6693168) 2236 RON 199 1 1 - Indisponibil 200 1 1 STARTER HANDLE (OLD 785-01620-20) (6693227) 2460 RON 201 1 1 6684681 (6684681) 4137 RON 202 1 1 6692993 (6692993) 12526 RON 203 1 1 CAM PLATE (OLD 759-0651H-20) (6684678) 2348 RON 204 1 1 DUMPER SPRING (OLD 758-0651H-20) (6684677) 3242 RON 205 1 1 STARTER ROPE REEL (OLD 774-0720F-20) (6684676) 3578 RON 206 1 1 STARTER ROPE 3.5X860 (OLD 783-0720F-20) (6684674) 2236 RON 207 1 1 RECOIL STARTER BODY COMP (OLD 772-0735A-80) NEW (6693041) 5815 RON 208 1 1 - Indisponibil 501 1 1 COMBI BOX SPANNER 13X19 PLUS (OLD 829-20000-80) (6684979) 2236 RON 502 1 1 VACUUM PIPE (OLD 279-31870-21) (6684946) 8388 RON 503 1 1 BENT PIPE (OLD 270-31870-20) (6684947) 4025 RON 504 1 1 DUST BAG (OLD 315-31820-20) (6684948) 23822 RON 601 1 1 VACUUM PIPE (OLD 279-31870-21) (6684946) 8388 RON 602 1 1 BENT PIPE (OLD 270-31870-20) (6684947) 4025 RON 603 1 1 DUST BAG (OLD 315-31820-20) (6684948) 23822 RON
