Top » Piese de schimb » PIESE HITACHI » PDA-100M

PDA-100M
[PDA-100M]
PDA-100M
Click pentru a mari
Imagini suplimentare
PDA-100M
Click pentru a mari

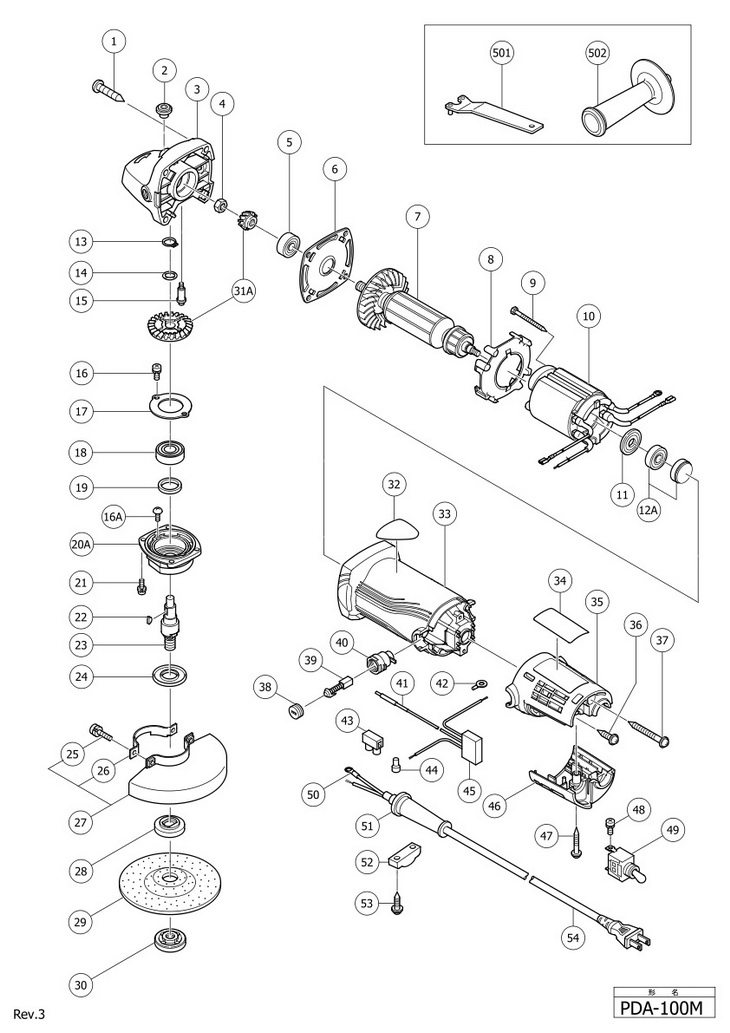

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 4 TAPPING SCREW D5X25 BLACK (320523) 1788 RON
2 1 1 PUSHING BUTTON (301944) 894 RON
3 1 1 316484 (316484) 1232 RON
4 1 1 SPECIAL NUT M7 (301941) 894 RON
5 1 1 BALL BEARING 628VVC2PS-L (628VVC) 4697 RON
6 1 1 BEARING HOLDER (316480) 2460 RON
*7 1 1 360744C - Indisponibil
*7 1 1 360744G - Indisponibil
*7 1 1 360744E - Indisponibil
*7 1 1 360744F - Indisponibil
8 1 1 FAN GUIDE (319898) 1341 RON
9 1 2 319358 - Indisponibil
*10 1 1 340649C - Indisponibil
*10 1 1 340649E - Indisponibil
11 1 1 DUST SEAL (315877) 1453 RON
12A 1 1 328813 - Indisponibil
13 1 1 RETAINING RING FOR D11 SHAFT (316487) 2236 RON
14 1 1 WAVE WASHER (316486) 2236 RON
15 1 1 LOCK PIN (301943) 2348 RON
16 1 2 SEAL LOCK SCREW M4X10 (W/SP WASHER) (997263) 1453 RON
16A 1 2 SLOTTED HD.SCREW SEAL LOCK M4X8 (323556) 1341 RON
17 1 1 BEARING COVER (316490) 2236 RON
18 1 1 BALL BEARING 6201VVCMPS2S (6201VV) 4249 RON
19 1 1 FELT PACKING (301946) 894 RON
20A 1 1 333838 - Indisponibil
21 1 4 SEAL LOCK SCREW M4X12 (W/SP WASHER) (307127) 1453 RON
22 1 1 WOODRUFF KEY (302047) 1453 RON
23A 1 1 @ SPINDLE (317822) 6710 RON
24 1 1 FRINGER (301945) 1453 RON
25 1 2 MACHINE SCREW M5X16 (308386) 1453 RON
26 1 1 SET PLATE (301949) 894 RON
27 1 1 301948 (301948) 3914 RON
28 1 1 WHEEL WASHER (320497) 3914 RON
29 1 1 316820 - Indisponibil
30 1 1 WHEEL NUT (C) (321795) 2795 RON
31A 1 1 331840 - Indisponibil
32 1 1 - Indisponibil
33 1 1 325140 - Indisponibil
34 1 1 - Indisponibil
35 1 1 325143 - Indisponibil
36 1 1 TAPPING SCREW D4X20 (W/FLANGE) BLACK (302086) 1453 RON
37 1 1 TAPPING SCREW D4X40 W/FLANGE (306664) 1453 RON
38 1 2 BRUSH CAP (936551) 1229 RON
39 1 2 CARBON BRUSH (1 PAIR) (999021) 382 RON
40 1 2 BRUSH HOLDER (313777) 2012 RON
41 1 1 EARTH TERMINAL (314854) 1453 RON
42 1 1 TERMINAL (980063) 1117 RON
43 1 1 PILLAR TERMINAL (OLD 938307Z/512-31870-20)) (938307) 2571 RON
44 1 1 CONNECTOR 50091 (10 PCS) (OLD 939557) (959140) 2236 RON
45 1 1 NOISE SUPPRESSOR (994273) Indisponibil Indisponibil
*46 1 1 325141 - Indisponibil
*46 1 1 325142 - Indisponibil
47 1 1 TAPPING SCREW D4X25 (304035) 894 RON
48 1 2 MACHINE SCREW (W/WASHER) M3,5X6 (305499) 1229 RON
49 1 1 SWITCH (1P SOLDER TYPE) (955509) Indisponibil Indisponibil
50 1 1 TERMINAL (980063) 1117 RON
51 1 1 CORD ARMOR D8.8 (953327) Indisponibil Indisponibil
52 1 1 CORD CLIP (OLD 994566) (937631) 894 RON
53 1 2 TAPPING SCREW D4X16 (W/FLANGE) (984750) 1117 RON
*54 1 1 500231Z - Indisponibil
*54 1 1 500409Z - Indisponibil
*54 1 1 CORD 2,5M 2 X 1.0 H05VV-F (OLD 500395Z) (500447Z) 5480 RON
*54 1 1 500468Z - Indisponibil
*54 1 1 500470Z - Indisponibil
501 1 1 WRENCH (OLD 936522) (313933) 5032 RON
502 1 1 SIDE HANDLE (OLD 956633) (302142) 4249 RON
601 1 1 @ GUIDE BASE (302098) 5815 RON
602 1 1 331094 - Indisponibil
603 1 1 @ WHEELNUT FOR 11MM CUT-OFF WHEEL (984646) 4361 RON
604 1 1 DUST COLLECTION ADAPTER DISC GRINDER (OLD 986381) (323918) 20691 RON
605 1 1 314053 - Indisponibil
606 1 1 314054 - Indisponibil
607 1 1 314057 - Indisponibil
608 1 1 @SANDING DISCS 100MM CP80 (10 PCS) (OLD 939008) (314059) 9059 RON
609 1 1 314061 - Indisponibil
610 1 1 314051 - Indisponibil
611 1 1 314052 - Indisponibil
612 1 1 @SANDING DISCS 100MM CP36 (10 PCS) (OLD 939004) (314055) 10289 RON
613 1 1 314056 - Indisponibil
614 1 1 314058 - Indisponibil
615 1 1 314060 - Indisponibil
616 1 1 @ SIDE HANDLE (954021) 297 RON
617 1 1 WASHER NUT (935513) 3578 RON
618 1 1 @ WASHER (936548) 3578 RON
619 1 1 RUBBER PAD 100MM (936558Z) 5815 RON
