Top » Piese de schimb » PIESE HITACHI » P20SE

P20SE
[P20SE]
P20SE
Click pentru a mari
Imagini suplimentare
P20SE
Click pentru a mari

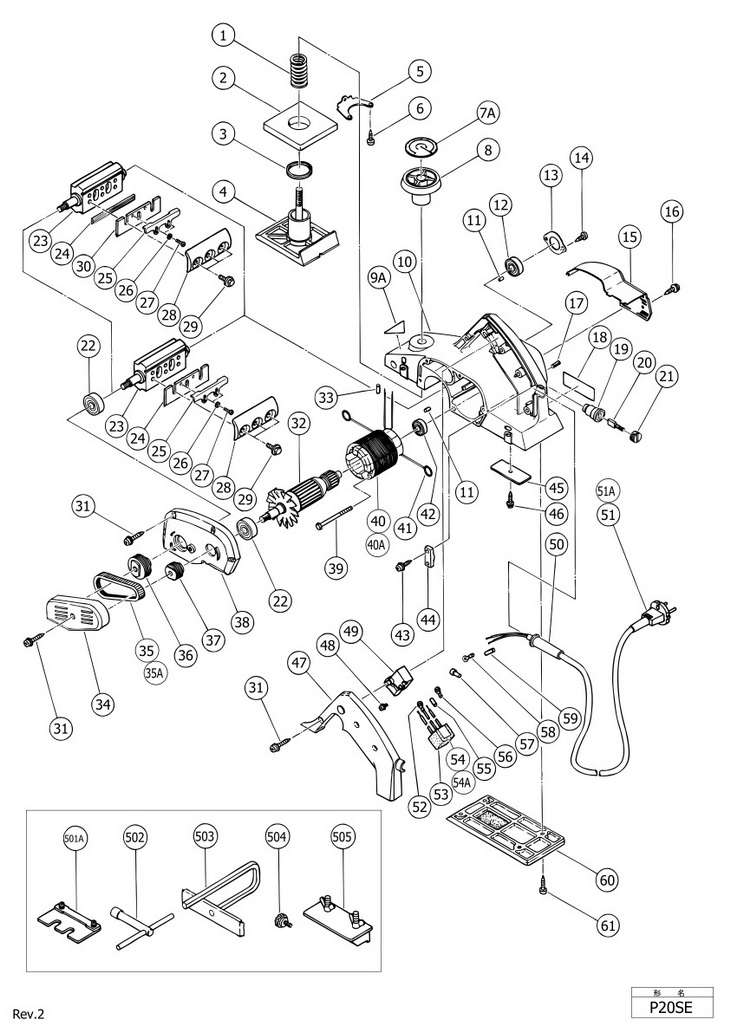

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 SPRING (958709) 2683 RON
2 1 1 RUBBER PACKING (958708) 2236 RON
3 1 1 RING (958691Z) 2683 RON
4 1 1 FRONT BASE (958707) 9282 RON
5 1 1 @ SCREW PLATE (958945) 2683 RON
6 1 1 TAPPING SCREW D4X16 (954004) 894 RON
7A 1 1 SCALE (316400) 2012 RON
8 1 1 316399 (316399) 6374 RON
9A 1 1 - Indisponibil
10 1 1 962640Z (962640Z) 49323 RON
11 1 2 BEARING LOCK (931701) 1453 RON
12 1 1 BALL BEARING 6000VVCMPS2S (6000VV) 4025 RON
13 1 1 @BEARING COVER (314301) 1453 RON
14 1 2 TAPPING SCREW D4X12 (W/FLANGE) (309470) 894 RON
15 1 1 TAIL COVER (958714) 4361 RON
16 1 2 TAPPING SCREW D4X16 (W/FLANGE) (BLACK) (307811) 894 RON
17 1 2 HEX.SOCKET SET SCREW M5X8 (938477) 1453 RON
18 1 1 - Indisponibil
19 1 2 BRUSH HOLDER (957571) 2124 RON
20 1 2 CARBON BRUSH (1 PAIR) (999021) 382 RON
21 1 2 BRUSH CAP (931266) 894 RON
22 1 2 BALL BEARING 6200VVCMPS2S (6200VV) 3466 RON
23 1 1 316397 (316397) 35790 RON
*24 1 2 879418 - Indisponibil
*24 1 2 314746 - Indisponibil
25 1 2 SET PLATE (A) (314754) 3242 RON
26 1 4 WASHER M4 (10 PCS) (949423) 894 RON
27 1 4 MACHINE SCREW M4X5 (10 PCS) (949213) 1453 RON
28 1 2 BLADE HOLDER (316398) 8388 RON
29 1 6 BOLT (W/WASHER) M6X18 (990669) 1453 RON
30 1 2 SET PLATE (B) (1 PAIR) (314740) 12190 RON
31 1 9 TAPPING SCREW D4X25 (W/FLANGE) (307028) 1453 RON
*32 1 1 @ ARMATURE 110-115 VOLT (OLD 958697U) (958697U) 44290 RON
*32 1 1 ARMATURE 220V-230V (OLD 958697G) (958697E) 34112 RON
*32 1 1 ARMATURE 240 VOLT (958697F) 34112 RON
33 1 2 TUBE (D) (981373) 1341 RON
34 1 1 BELT COVER (316402) 3242 RON
35 1 1 BELT (958718) 488 RON
35A 1 1 319324 - Indisponibil
36 1 1 PULLEY (B) (958717) 573 RON
37 1 1 PULLEY (A) (958716) 5368 RON
38 1 1 END BRACKET (958704) 5815 RON
39 1 2 HEX.HD. TAPPING SCREW D4X60 (960108) 1453 RON
*40 1 1 958693N (958693N) 13644 RON
*40 1 1 958693L (958693L) 15098 RON
*40 1 1 958693M (958693M) 15098 RON
*40 1 1 954215E (954215E) 10513 RON
*40 1 1 958693K - Indisponibil
*40 1 1 958693H - Indisponibil
40A 1 1 958693C (958693C) 13644 RON
41 1 2 BRUSH TERMINAL (930630) 1788 RON
42 1 1 BALL BEARING 608VVMC2EPS2L (608VVM) 4025 RON
43 1 2 TAPPING SCREW D4X16 (W/FLANGE) (984750) 1117 RON
44 1 1 CORD CLIP (OLD 994566) (937631) 894 RON
45 1 1 PLATE (A) (306819) 1453 RON
46 1 1 TAPPING SCREW D4X12 (OLD 301771) (982034) 894 RON
47 1 1 @ HANDLE COVER (GREEN) (958944) 5032 RON
48 1 4 MACHINE SCREW (W/WASHER) M3,5X6 (305499) 1229 RON
*49 1 1 SWITCH (2P PILLAR TYPE) W/SAFETY LOCK (963756Z) 8388 RON
*49 1 1 SWITCH (A) (1P SCREW TYPE) W/LOCK (957747) 10065 RON
*49 1 1 SWITCH (C) (1P SCREW TYPE) (302477) 7269 RON
*50 1 1 CORD ARMOR D10.2 (980193) 2236 RON
*50 1 1 CORD ARMOR D8.8 (303662) 894 RON
*51 1 1 500234Z - Indisponibil
*51 1 1 500245Z - Indisponibil
*51 1 1 @ CORD 2,5M 2 X 1.0 H05VV-F W/PLUG 13A/250V (OLD 500223Z) (500423Z) 12862 RON
*51 1 1 @ CORD (500212Z) 9282 RON
*51 1 1 500439Z - Indisponibil
*51A 1 1 CORD 3M 2 X 1,0 H05VV-F W/PLUG 16A CEE FORM 2P+E FOR GBR (500461Z) 13085 RON
*51A 1 1 CORD FOR GBR 230 VOLT (958378Z) 7381 RON
52 1 1 TERMINAL 50051 (10 PCS) (959144) 297 RON
53 1 1 SUPPORT (B) (930153) 894 RON
54 1 1 NOISE SUPPRESSOR (994273) Indisponibil Indisponibil
54A 1 1 320669 - Indisponibil
55 1 1 TUBE (D) (981373) 1341 RON
56 1 1 TERMINAL (980063) 1117 RON
57 1 1 CONNECTOR 50091 (10 PCS) (OLD 939557) (959140) 2236 RON
58 1 1 TERMINAL (980063) 1117 RON
59 1 2 TUBE (D) (981373) 1341 RON
60 1 1 REAR BASE (940633) 6262 RON
61 1 4 TAPPING SCREW D4X16 (954004) 894 RON
501A 1 1 SET GAUGE (316419) Indisponibil Indisponibil
502 1 1 BOX WRENCH 10MM (OLD 968658) (940543) 4361 RON
503 1 1 GUIDE (958842Z) 3578 RON
504 1 1 STOPPER SCREW M5X14 (940650) 1453 RON
505 1 1 BLADE SHARPENING (OLD 940653) (314767) 3242 RON
