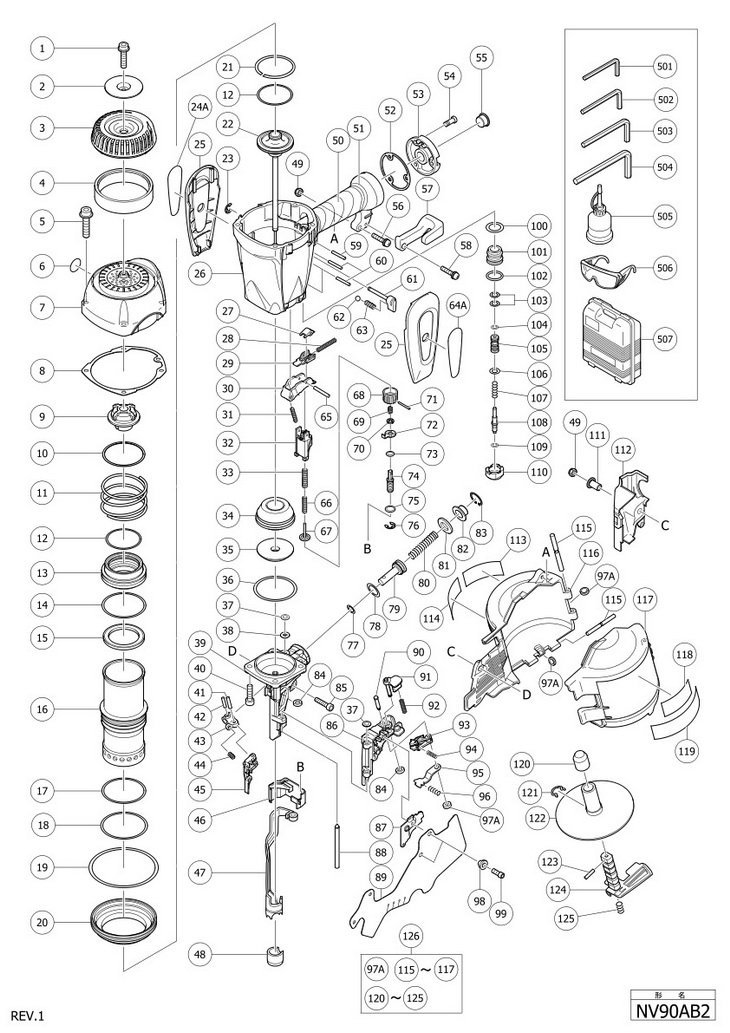

Top » Piese de schimb » PIESE HITACHI » NV90AB2 NV90AB2 [NV90AB2] Click pentru a mari Imagini suplimentare Click pentru a mari LISTA DE COMPONENTE: Numar Versiune Buc. in schema Denumire Pret/buc (Tva inclus) Cumpara 1 1 1 NYLOCK BOLT M6X20 W/FLANGE (881969) 2236 RON 2 1 1 PLATE (883321) 5591 RON 3 1 1 TOP COVER (883319) 8276 RON 4 1 1 MUFFLER (A) (883320) 22592 RON 5 1 4 NYLOCK BOLT M6X35 W/FLANGE (318451) 2236 RON 6 1 1 WARNING LABEL (A) (883513) 2236 RON 7 1 1 EXHAUST COVER (884397) 83214 RON 8 1 1 PACKING (883317) 11184 RON 9 1 1 EXHAUST VALVE RUBBER (881945) 8835 RON 10 1 1 WASHER (883328) 2236 RON 11 1 1 HEAD VALVE SPRING (881944) 5368 RON 12 1 2 CYLINDER O-RING (B) (877124) 2683 RON 13 1 1 HEAD VALVE (881942) 22592 RON 14 1 1 CYLINDER O-RING BORE SIZE 63.1MM (877312) 2683 RON 15 1 1 HEAD VALVE RUBBER (881943) 4025 RON 16 1 1 CYLINDER (883310) 95181 RON 17 1 1 PLATE O-RING (B) (883312) 2236 RON 18 1 1 CYLINDER O-RING (883311) 4025 RON 19 1 1 PLATE O-RING (A) (883314) 3242 RON 20 1 1 CYLINDER PLATE (883327) 54469 RON 21 1 1 PISTON RING (881930) 20691 RON 22 1 1 PISTON (H) (883290) 118893 RON 23 1 1 RETAINING RING (E-TYPE) FOR D4 SHAFT (968643) 2683 RON 24A 1 1 HITACHI LABEL (R) NEW (333149) 4025 RON 25 1 2 PROTECTOR (884394) 5368 RON 26 1 1 884396 (884396) 190141 RON 27 1 1 TRIGGER PIECE (882896) 2236 RON 28 1 1 SPRING (882897) 2236 RON 29 1 1 TRIGGER ARM (B) (882895) 18118 RON 30 1 1 TRIGGER (882894) 3242 RON 31 1 1 TRIGGER SPRING (883759) 3242 RON 32 1 1 PUSHING LEVER GUIDE (882885) 5368 RON 33 1 1 PUSHING LEVER SPRING (C) (884398) 6374 RON 34 1 1 PISTON BUMPER (A) (883291) 18789 RON 35 1 1 PISTON BUMPER (B) (881967) 6374 RON 36 1 1 O-RING (1AS-60) (956996) 297 RON 37 1 2 O-RING (P-4) (874436) 1453 RON 38 1 1 WASHER (878964) 2236 RON 39 1 1 NOSE (883293) 291923 RON 40 1 4 NYLOCK HEX. SOCKET HD.BOLT M8X30 (306437) 1788 RON 41 1 1 PLUNGER (B) (883093) 3242 RON 42 1 1 ROLL PIN D4X16 (10 PCS) (OLD949497Z) (949497) 2683 RON 43 1 1 FEEDER ARM (B) (883144) 27289 RON 44 1 1 FEEDER SPRING (883143) 2236 RON 45 1 1 FEEDER (A) (883299) 30645 RON 46 1 1 PUSHING LEVER COVER (B) (883307) 6598 RON 47 1 1 PUSHING LEVER (A) (883303) 52679 RON 48 1 1 NOSE CAP (A) (883106) 5368 RON 49 1 2 NYLON NUT M5 (877371) 1453 RON 50 1 1 GRIP TAPE (OLD 880349) (881768) 4361 RON 51 1 2 TAPE (880407) 2236 RON 52 1 1 GASKET (B) (883309) 4025 RON 53 1 1 CAP (881949) 4025 RON 54 1 3 HEX.SOCKET HD.BOLT M5X16 (10 PCS) (949821) 2683 RON 55 1 1 DUST CAP (872035) 1453 RON 56 1 1 MACHINE SCREW M5X30 BLACK (880881) 1453 RON 57 1 1 HOOK (881827) 382 RON 58 1 1 MACHINE SCREW M5X25 BLACK (880734) 894 RON 59 1 1 ROLL PIN D3X28 (10 PCS) (949865) 2683 RON 60 1 3 ROLL PIN D3X30 (10 PCS) (949866) 3578 RON 61 1 1 LOCK KNOB (OLD 884393) (884400) 13197 RON 62 1 1 STEEL BALL D3.175 (10 PCS) (959148) 1453 RON 63 1 1 LOCK SPRING (882923) 2236 RON 64A 1 1 HITACHI LABEL (L) (333148) 4025 RON 65 1 1 ROLL PIN D2.5X16 (881951) 2236 RON 66 1 1 PUSHING LEVER SPRING (D) (884399) 5591 RON 67 1 1 PUSHING LEVER (C) (882891) 12973 RON 68 1 1 ADJUSTER (882889) 3242 RON 69 1 1 ADJUSTER SPRING (882890) 2236 RON 70 1 1 ADJUSTER PLATE (B) (882887) 3242 RON 71 1 1 ROLL PIN D2X16 (880093) 1453 RON 72 1 1 ADJUSTER PLATE (A) (882886) 3242 RON 73 1 1 O-RING (S-4) (981317) 1453 RON 74 1 1 PUSHING LEVER (B) (882888) 12414 RON 75 1 1 PUSHING LEVER O-RING (883304) 2236 RON 76 1 1 RETAINING RING (E-TYPE) FOR D3 SHAFT (872971) 1453 RON 77 1 1 O-RING (P-9) (872645) 2236 RON 78 1 1 O-RING (1AP-20) (944486) 1453 RON 79 1 1 FEED PISTON (883300) 13980 RON 80 1 1 FEED SPRING (883301) 2236 RON 81 1 1 DAMPER (877711) 2683 RON 82 1 1 FEED PISTON COVER (880331) 382 RON 83 1 1 RETAINING RING FOR D28 HOLE (10 PCS) (939555) 5368 RON 84 1 2 SHAFT RING (880319) 2236 RON 85 1 1 HEX.SOCKET HD BOLT M5X20 (10 PCS) (949757) 297 RON 86 1 1 NAIL GUIDE (883294) 66324 RON 87 1 1 NAIL GUIDE COVER (883295) 6598 RON 88 1 1 NAIL GUIDE SHAFT (883298) 7381 RON 89 1 1 COVER (883296) 5927 RON 90 1 1 SHAFT (883297) 6598 RON 91 1 1 GUIDE LOCK (OLD 880318) (886107) 4025 RON 92 1 1 SPRING (OLD 878308) (880446) 1788 RON 93 1 1 NAIL STOPPER (A) (883329) 22592 RON 94 1 1 STOPPER SPRING (A) (883088) 2236 RON 95 1 1 NAIL STOPPER (B) (883086) 3242 RON 96 1 1 STOPPER SPRING (B) (883087) 2236 RON 97A 1 3 FEEDER SHAFT RING (877826) 2236 RON 98 1 2 SLEEVE (B) (878337) 297 RON 99 1 2 NYLOCK HEX. SOCKET HD.BOLT M4X10 (880413) 1453 RON 100 1 1 HEAD VALVE O-RING (I.D. 16.8) (877699) 1453 RON 101 1 1 VALVE BUSHING (B) (878881) 22144 RON 102 1 1 O-RING (S-18) (878885) 1453 RON 103 1 2 O-RING (I.D 8.8) (878925) 1453 RON 104 1 1 O-RING (S-4) (981317) 1453 RON 105 1 1 VALVE PISTON (B) (880672) 20691 RON 106 1 1 O-RING (I.D.11) (878887) 2236 RON 107 1 1 PLUNGER SPRING (878884) 2236 RON 108 1 1 PLUNGER (A) (882921) 11184 RON 109 1 1 O-RING (I.D.1.8) (878888) 1453 RON 110 1 1 VALVE BUSHING (A) (882920) 18118 RON 111 1 1 SLEEVE (882907) 3242 RON 112 1 1 PUSHING LEVER COVER (A) (883306) 5591 RON 113 1 1 WARNING LABEL (878183) 2348 RON 114 1 1 WARNING LABEL (884070) 2236 RON 115 1 2 PIN (883111) 5032 RON 116 1 1 MAGAZINE (883108) 13197 RON 117 1 1 MAGAZINE COVER (883109) 1147 RON 118 1 1 - Indisponibil 119 1 1 - Indisponibil 120 1 1 HOLDER CAP (A) (881003) 2348 RON 121 1 1 RATCHET SPRING (880398) 4025 RON 122 1 1 NAIL HOLDER (880503) 6151 RON 123 1 1 ROLL PIN D2.5X12 (878791) 1453 RON 124 1 1 HOLDER SHAFT (883324) 5927 RON 125 1 1 SPRING (881826) 1453 RON 126 1 1 883325 (883325) 47646 RON 501 1 1 HEX.BAR WRENCH 3MM (OLD 993822) (943277) 1229 RON 502 1 1 HEX.BAR WRENCH 4MM (944458) 1229 RON 503 1 1 HEX.BAR WRENCH 5MM (944459) 1788 RON 504 1 1 HEX.BAR WRENCH 6MM (872422) 1117 RON 505 1 1 877153 - Indisponibil 506 1 1 875769 - Indisponibil 507 1 1 PLASTIC CARRYING CASE (883323) 30645 RON 601 1 1 FULL SEQUENTIAL ACTUATION MECHANISM KIT NEW (883330) 71358 RON
