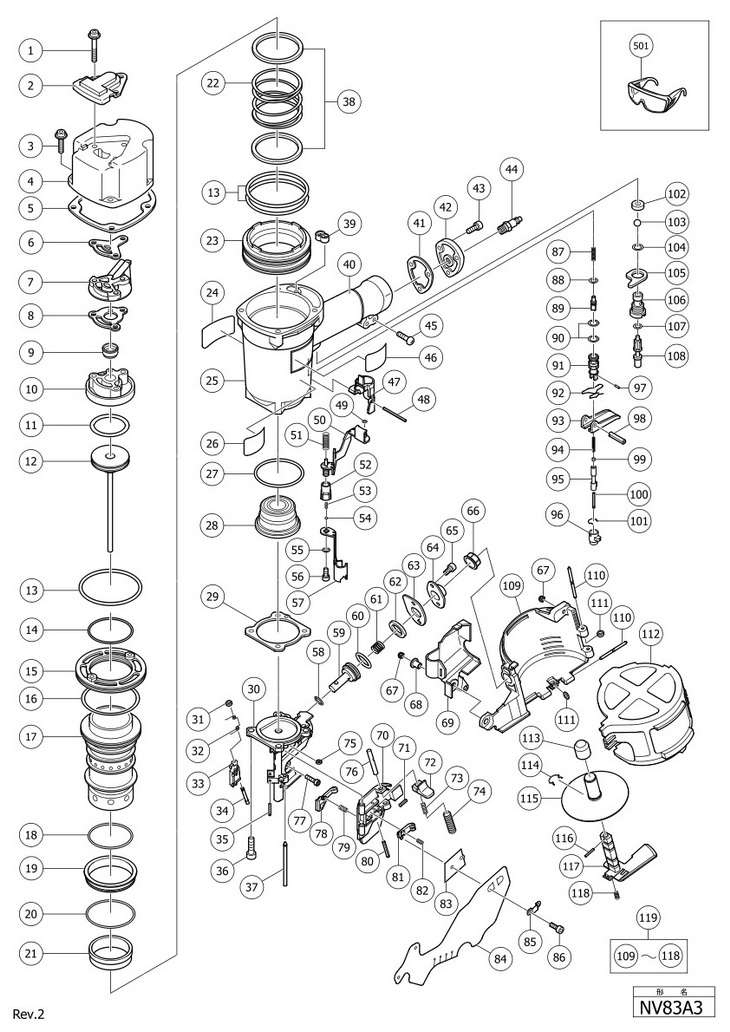

Top » Piese de schimb » PIESE HITACHI » NV83A3 NV83A3 [NV83A3] Click pentru a mari Imagini suplimentare Click pentru a mari LISTA DE COMPONENTE: Numar Versiune Buc. in schema Denumire Pret/buc (Tva inclus) Cumpara 1 1 3 HEX.SOCKET HD.BOLT M6X45 (W/FLANGE) (883509) 3242 RON 2 1 1 TOP COVER (877330) 3242 RON 3 1 4 @HEX.SOCKET HD.BOLT M6X25 (W/WASHER) (883507) 3242 RON 4 1 1 EXHAUST COVER (OLD 877384) (877324) 15098 RON 5 1 1 PACKING (B) (877325) 382 RON 6 1 1 PACKING (F) (877329) 2236 RON 7 1 1 877328 - Indisponibil 8 1 1 GASKET (C) (877854) 2348 RON 9 1 1 887774 - Indisponibil 10 1 1 887859 - Indisponibil 11 1 1 O-RING (1AP-48) (877368) 2683 RON 12 1 1 PISTON (H) (OLD 878407) BRACKET (878428) 57824 RON 13 1 3 O-RING (S-90) (877316) 2683 RON 14 1 1 CYLINDER O-RING BORE SIZE 63.1MM (877312) 2683 RON 15 1 1 CYLINDER PLATE (877318) 6933 RON 16 1 1 CYLINDER O-RING BORE SIZE 79.3MM (877313) 2683 RON 17 1 1 887762 - Indisponibil 18 1 1 878376 - Indisponibil 19 1 1 887767 - Indisponibil 20 1 1 O-RING (S-70) (878863) 2348 RON 21 1 1 CYLINDER RING (877317) 2236 RON 22 1 1 877321 - Indisponibil 23A 1 1 887763 - Indisponibil 24 1 1 WARNING LABEL (884070) 2236 RON 25 1 1 887858 - Indisponibil 26 1 1 887864 - Indisponibil 27 1 1 CYLINDER O-RING BORE SIZE 63.9MM (877315) 2683 RON 28 1 1 PISTON BUMPER (B) (883511) 10065 RON 29 1 1 PACKING (A) (877334) 2348 RON 30 1 1 887843 - Indisponibil 31 1 1 FEEDER SHAFT RING (877826) 2236 RON 32 1 1 FEEDER SPRING (877851) 297 RON 33 1 1 887848 - Indisponibil 34 1 1 FEEDER SHAFT (877825) 5032 RON 35 1 1 887461 - Indisponibil 36 1 4 @NYLOCK HEX. SOCKET HD.BOLT M8X22 (883492) 3242 RON 37 1 1 887847 - Indisponibil 38 1 2 BASE WASHER (877322) 2348 RON 39 1 1 PACKING (G) (877327) 1453 RON 40 1 1 - Indisponibil 41 1 1 PACKING (D) (877331) 1453 RON 42 1 1 CAP (OLD 877367Z) (878311) 4025 RON 43 1 3 HEX.SOCKET HD.BOLT M5X18 (10 PCS) (949658) 2683 RON 44 1 1 - Indisponibil 45 1 1 MACHINE SCREW M5X25 (10 PCS) (949243) 1788 RON 46 1 1 887866 - Indisponibil 47 1 1 887862 - Indisponibil 48 1 1 887852 - Indisponibil 49 1 1 O-RING (S-3) (881715) 1453 RON 50 1 1 887851 - Indisponibil 51 1 1 884067 - Indisponibil 52 1 1 ADJUSTER NEW (326799) 5591 RON 53 1 2 ADJUSTER SPRING (880175) 2236 RON 54 1 2 STEEL BALL D3.175 (10 PCS) (959148) 1453 RON 55 1 1 WASHER (880081) 1453 RON 56 1 1 HEX.SOCKET HD.BOLT M6X12 (10 PCS) (OLD 949657Z) (949657) 297 RON 57 1 1 887850 - Indisponibil 58 1 1 O-RING (P-9) (872645) 2236 RON 59 1 1 887849 - Indisponibil 60 1 1 O-RING (P-22) (876796) 1453 RON 61 1 1 FEED SPRING (877144) 2236 RON 62 1 1 DAMPER (877711) 2683 RON 63 1 1 FEED PISTON COVER (A) (877827) 2236 RON 64 1 1 FEED PISTON COVER (877713) 2683 RON 65 1 2 887474 - Indisponibil 66 1 1 MAGAZINE BUSHING (878305) 1453 RON 67 1 2 NYLON NUT M5 (877371) 1453 RON 68 1 1 SLEEVE (882907) 3242 RON 69 1 1 887857 - Indisponibil 70 1 1 887844 - Indisponibil 71 1 1 ROLL PIN D3X10 (10 PCS) NEW (887458) 1453 RON 72 1 1 GUIDE LOCK (A) (326774) 4025 RON 73 1 1 SPRING (877372) 2012 RON 74 1 1 SPRING (878425) 2348 RON 75 1 1 SHAFT RING (880319) 2236 RON 76 1 1 LOCK SHAFT (877820) 2795 RON 77 1 1 HEX.SOCKET HD BOLT M5X20 (10 PCS) (949757) 297 RON 78 1 1 SUB NAIL STOPPER (878401) 14763 RON 79 1 1 SUB STOPPER SPRING (877468) 894 RON 80 1 1 887846 - Indisponibil 81 1 1 887845 - Indisponibil 82 1 1 MAIN STOPPER SPRING (876681) 1453 RON 83 1 1 NAIL GUIDE COVER (877469) 1453 RON 84 1 1 COVER (884023) 2236 RON 85 1 1 PLATE (884022) 2236 RON 86 1 2 SEAL LOCK HEX. SOCKET HD. BOLT M4X8 (886307) 1453 RON 87 1 1 887724 - Indisponibil 88 1 1 O-RING (P-4) (874436) 1453 RON 89 1 1 887725 - Indisponibil 90 1 2 O-RING (I.D.10.7) (884112) 2236 RON 91 1 1 887903 - Indisponibil 92 1 1 887727 - Indisponibil 93 1 1 TRIGGER (876203) 2683 RON 94 1 1 887728 - Indisponibil 95 1 1 887904 - Indisponibil 95 1 1 887905 - Indisponibil 96 1 1 887766 - Indisponibil 97 1 1 887768 - Indisponibil 98 1 1 887865 - Indisponibil 99 1 1 887729 - Indisponibil 100 1 1 887732 - Indisponibil 101 1 1 RATCHET SPRING (886331) 1453 RON 102 1 1 VALVE PACKING (OLD 875637) (878734) 1453 RON 103 1 1 URETHANE BALL (B) D7.14 (875645) 382 RON 104 1 1 O-RING (S-12) (875638) 2236 RON 105 1 1 887771 - Indisponibil 106 1 1 887839 - Indisponibil 107 1 1 887840 - Indisponibil 108 1 1 887905 - Indisponibil 109 1 1 887855 - Indisponibil 110 1 2 PIN (883111) 5032 RON 111 1 2 FEEDER SHAFT RING (877826) 2236 RON 112 1 1 MAGAZINE COVER (884034) 6262 RON 113 1 1 HOLDER CAP (884038) 2236 RON 114 1 1 RATCHET SPRING (884037) 3242 RON 115A 1 1 888107 - Indisponibil 116 1 1 887856 - Indisponibil 117 1 1 HOLDER SHAFT (OLD 884035) (884079) 3019 RON 118 1 1 SPRING (881826) 1453 RON 119 1 1 887853 - Indisponibil 501 1 1 875769 - Indisponibil 601 1 1 GRIP TAPE (OLD 880349) (881768) 4361 RON 602 1 2 TAPE (880407) 2236 RON
