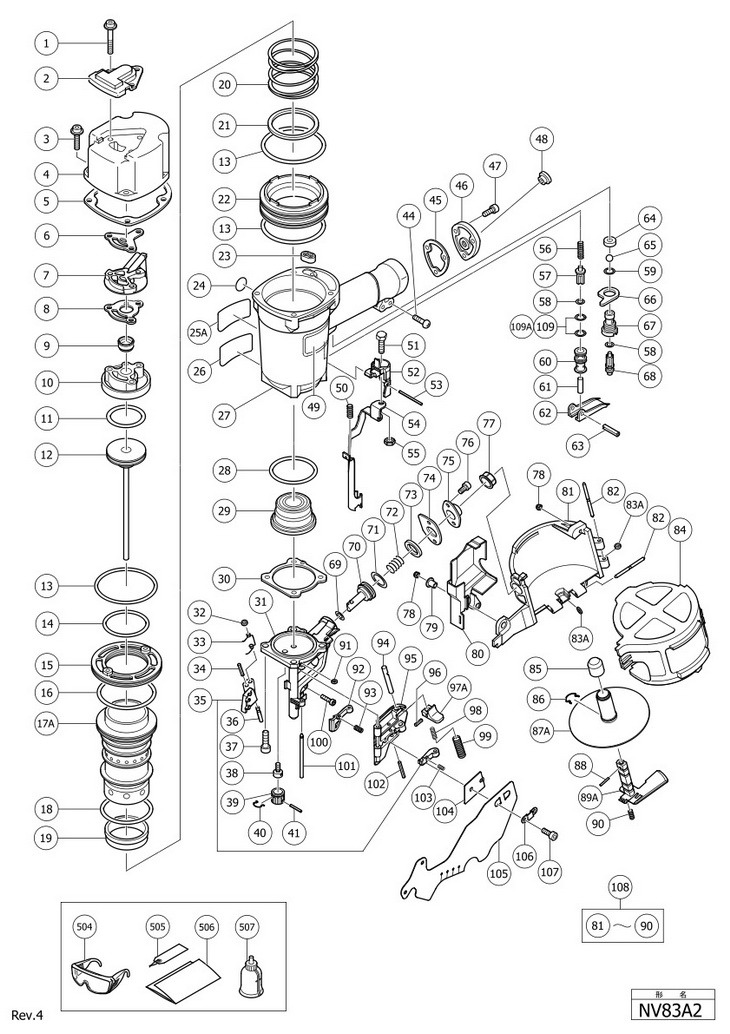

Top » Piese de schimb » PIESE HITACHI » NV83A2 NV83A2 [NV83A2] Click pentru a mari Imagini suplimentare Click pentru a mari LISTA DE COMPONENTE: Numar Versiune Buc. in schema Denumire Pret/buc (Tva inclus) Cumpara 1 1 3 HEX.SOCKET HD.BOLT M6X45 (W/FLANGE) (883509) 3242 RON 2 1 1 TOP COVER (877330) 3242 RON 3 1 4 @HEX.SOCKET HD.BOLT M6X25 (W/WASHER) (883507) 3242 RON 4 1 1 EXHAUST COVER (OLD 877384) (877324) 15098 RON 5 1 1 PACKING (B) (877325) 382 RON 6 1 1 PACKING (F) (877329) 2236 RON 7 1 1 877328 - Indisponibil 8 1 1 GASKET (C) (877854) 2348 RON 9 1 1 EXHAUST VALVE (OLD 877370) (878417) 488 RON 10 1 1 HEAD CAP AND PACKING SET (OLD 877364) (877852) 22592 RON 11 1 1 O-RING (1AP-48) (877368) 2683 RON 12 1 1 PISTON (H) (OLD 878407) BRACKET (878428) 57824 RON 13 1 3 O-RING (S-90) (877316) 2683 RON 14 1 1 CYLINDER O-RING BORE SIZE 63.1MM (877312) 2683 RON 15 1 1 CYLINDER PLATE (877318) 6933 RON 16 1 1 CYLINDER O-RING BORE SIZE 79.3MM (877313) 2683 RON 17A 1 1 CYLINDER (OLD 877810) (884068) 28967 RON 18 1 1 CYLINDER O-RING BORE SIZE 69.3MM (877314) 2683 RON 19 1 1 CYLINDER RING (877317) 2236 RON 20 1 1 877321 - Indisponibil 21 1 1 BASE WASHER (877322) 2348 RON 22 1 1 CYLINDER GUIDE (877310) 15098 RON 23 1 1 PACKING (G) (877327) 1453 RON 24 1 1 WARNING LABEL (A) (883513) 2236 RON 25A 1 1 WARNING LABEL (884070) 2236 RON 26 1 1 WARNING LABEL (878183) 2348 RON 27 1 1 BODY (B) (884040) 54469 RON 28 1 1 CYLINDER O-RING BORE SIZE 63.9MM (877315) 2683 RON 29 1 1 PISTON BUMPER (B) (883511) 10065 RON 30 1 1 PACKING (A) (877334) 2348 RON 31 1 1 NOSE (884020) 125716 RON 32 1 1 FEEDER SHAFT RING (877826) 2236 RON 33 1 1 FEEDER SPRING (877851) 297 RON 34 1 1 ROLL PIN D3X16 (10 PCS) (OLD 949496Z) (949496) 2348 RON 35 1 1 FEEDER SET (OLD 877466) (877856) 25612 RON 36 1 1 FEEDER SHAFT (877825) 5032 RON 37 1 4 @NYLOCK HEX. SOCKET HD.BOLT M8X22 (883492) 3242 RON 38 1 1 ADJUSTER BOLT NEW (884030) 4025 RON 39 1 1 ADJUSTER (884029) 1453 RON 40 1 1 RACHET SPRING (A) (884031) 2236 RON 41 1 1 ROLL PIN D2.5X18 (10 PCS) (949863) 2236 RON 44 1 1 MACHINE SCREW M5X25 (10 PCS) (949243) 1788 RON 45 1 1 PACKING (D) (877331) 1453 RON 46 1 1 CAP (OLD 877367Z) (878311) 4025 RON 47 1 3 HEX.SOCKET HD.BOLT M5X18 (10 PCS) (949658) 2683 RON 48 1 1 DUST CAP (872035) 1453 RON 49 1 1 - Indisponibil *50 1 1 SPRING (877365) 2683 RON *50 1 1 SPRING (878423) 1453 RON 51 1 1 SAFETY BOLT (875650) 1453 RON 52 1 1 VALVE BUMPER (884027) 3242 RON 53 1 1 ROLL PIN D3X45 (10 PCS) (884025) 2236 RON 54 1 1 PUSHING LEVER (884026) 20691 RON 55 1 1 NUT M5 (10 PCS) (949555) 1453 RON 56 1 1 PLUNGER SPRING (875643) 1453 RON 57 1 1 PLUNGER (A) (884039) 15658 RON 58 1 2 PLUNGER O-RING (874820) 2236 RON 59 1 1 O-RING (S-12) (875638) 2236 RON 60 1 1 VALVE BUSHING (OLD 876735) (878266) 11184 RON 61 1 1 SAFETY PLUNGER (B) (875642) 573 RON 62 1 1 TRIGGER (876203) 2683 RON 63 1 1 ROLL PIN D3X30 (10 PCS) (949866) 3578 RON 64 1 1 VALVE PACKING (OLD 875637) (878734) 1453 RON 65 1 1 URETHANE BALL (B) D7.14 (875645) 382 RON 66 1 1 VALVE PLATE (875644) 1453 RON 67 1 1 TRIGGER VALVE BUSHING (OLD 876738) (877335) 6151 RON 68 1 1 TRIGGER PLUNGER (878121) 2236 RON 69 1 1 O-RING (P-9) (872645) 2236 RON 70 1 1 FEED PISTON (877709) 12414 RON 71 1 1 O-RING (P-22) (876796) 1453 RON 72 1 1 FEED SPRING (877144) 2236 RON 73 1 1 DAMPER (877711) 2683 RON 74 1 1 FEED PISTON COVER (A) (877827) 2236 RON 75 1 1 FEED PISTON COVER (877713) 2683 RON 76 1 2 SEAL LOCK HEX. SOCKET HD. BOLT M5X10 (877839) 1453 RON 77 1 1 MAGAZINE BUSHING (878305) 1453 RON 78 1 2 NYLON NUT M5 (877371) 1453 RON 79 1 1 SLEEVE (882907) 3242 RON 80 1 1 GUARD (884028) 3019 RON 81 1 1 MAGAZINE (884033) 10960 RON 82 1 2 PIN (883111) 5032 RON 83A 1 2 FEEDER SHAFT RING (877826) 2236 RON 84 1 1 MAGAZINE COVER (884034) 6262 RON 85 1 1 HOLDER CAP (884038) 2236 RON 86 1 1 RATCHET SPRING (884037) 3242 RON 87A 1 1 NAIL HOLDER SET (OLD 884036) (884078) 6598 RON 88 1 1 ROLL PIN D2.5X18 (10 PCS) (949863) 2236 RON 89A 1 1 HOLDER SHAFT (OLD 884035) (884079) 3019 RON 90 1 1 SPRING (881826) 1453 RON 91 1 1 SHAFT RING (880319) 2236 RON 92 1 1 SUB NAIL STOPPER (878401) 14763 RON 93 1 1 SUB STOPPER SPRING (877468) 894 RON 94 1 1 LOCK SHAFT (877820) 2795 RON 95 1 1 NAIL GUIDE (884021) 47646 RON 96 1 1 ROLL PIN D3X10 (10 PCS) (OLD 949776Z) (949776) 2348 RON 97A 1 1 GUIDE LOCK (A) (326774) 4025 RON 98 1 1 SPRING (877372) 2012 RON 99 1 1 SPRING (878425) 2348 RON 100 1 1 HEX.SOCKET HD BOLT M5X20 (10 PCS) (949757) 297 RON 101 1 1 NAIL GUIDE SHAFT (884024) 5368 RON 102 1 1 ROLL PIN D3X28 (10 PCS) (949865) 2683 RON 103 1 1 MAIN STOPPER SPRING (876681) 1453 RON 104 1 1 NAIL GUIDE COVER (877469) 1453 RON 105 1 1 COVER (884023) 2236 RON 106 1 1 PLATE (884022) 2236 RON 107 1 2 SEAL LOCK HEX. SOCKET HD. BOLT M4X8 (877838) 1453 RON 108 1 1 884032 (884032) 27289 RON 109 1 2 O-RING (S-12) (875638) 2236 RON 109A 1 2 O-RING (I.D.10.7) (884112) 2236 RON 504 1 1 875769 - Indisponibil 505 1 1 CAUTION TAG (882413) 2236 RON 506 1 1 LEAFLET (882414) 1453 RON 507 1 1 877153 - Indisponibil 601 1 1 @SINGLE SHORT PARTS (876762) 5101 RON 603 1 1 GRIP TAPE (OLD 880349) (881768) 4361 RON 604 1 2 TAPE (880407) 2236 RON
