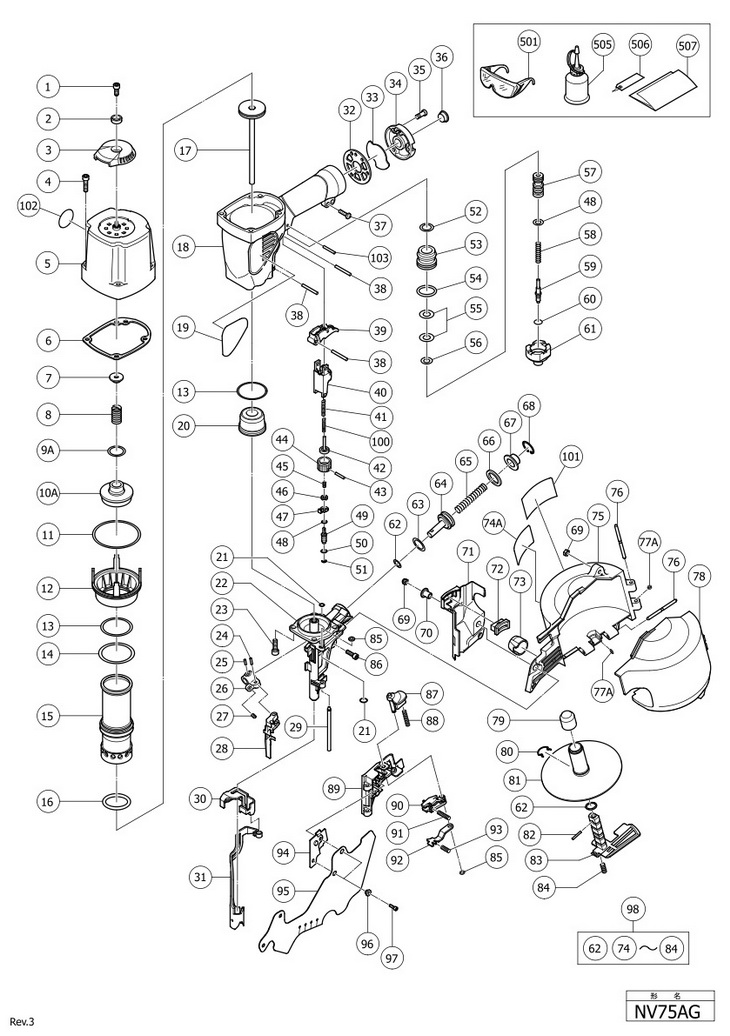

Top » Piese de schimb » PIESE HITACHI » NV75AG NV75AG [NV75AG] Click pentru a mari Imagini suplimentare Click pentru a mari LISTA DE COMPONENTE: Numar Versiune Buc. in schema Denumire Pret/buc (Tva inclus) Cumpara 1 1 1 HEX.SOCKET HD.BOLT M6X12 (10 PCS) (OLD 949657Z) (949657) 297 RON 2 1 1 PLATE (880515) 5368 RON 3 1 1 TOP COVER (OLD 880514) (884332) 4025 RON 4 1 4 HEX.SOCKET HD.BOLT M5X35 (10 PCS) (949822) 3578 RON 5 1 1 EXHAUST COVER (883451) 30645 RON 6 1 1 GASKET (B) (883452) 2236 RON 7 1 1 HEAD BUMPER (882914) 5368 RON 8 1 1 HEAD VALVE SPRING (882913) 5368 RON 9A 1 1 O-RING (I.D.20.8) (883992) 2236 RON 10A 1 1 HEAD VALVE (A) (OLD 882912) (882927) 9282 RON 11 1 1 O-RING (S-70) (878863) 2348 RON 12 1 1 CYLINDER PLATE (882910) 5368 RON 13 1 2 O-RING (S-46) (882874) 2236 RON 14 1 1 O-RING (1AP-48) (877368) 2683 RON 15 1 1 CYLINDER (OLD 883450) (883989) 32323 RON 16 1 1 O-RING I.D. 37 (883431) 2236 RON 17 1 1 PISTON (H) (883980) 5101 RON 18 1 1 BODY (883988) 44290 RON 19 1 1 - Indisponibil 20 1 1 PISTON BUMPER (883432) 10065 RON 21 1 2 O-RING (P-4) (874436) 1453 RON 22 1 1 NOSE (883981) 203786 RON 23 1 4 NYLOCK HIGH TENSION BOLT M6X20 (880675) 382 RON 24 1 1 PLUNGER (B) (883093) 3242 RON 25 1 1 ROLL PIN D4X16 (10 PCS) (OLD949497Z) (949497) 2683 RON 26 1 1 FEEDER ARM (B) (883144) 27289 RON 27 1 1 FEEDER SPRING (883143) 2236 RON 28 1 1 FEEDER (883092) 28967 RON 29 1 1 NAIL GUIDE SHAFT (883091) 573 RON 30 1 1 PUSHING LEVER COVER (B) (882900) 3242 RON 31 1 1 PUSHING LEVER (A) (883852) 47646 RON 32 1 1 GASKET (B) (883678) 3242 RON 33 1 1 DUST FILTER (883679) 6374 RON 34 1 1 CAP (881949) 4025 RON 35 1 3 HEX.SOCKET HD.BOLT M5X16 (10 PCS) (949821) 2683 RON 36 1 1 DUST CAP (872035) 1453 RON 37 1 1 MACHINE SCREW M5X30 BLACK (880881) 1453 RON 38 1 3 ROLL PIN D3X28 (10 PCS) (949865) 2683 RON 39 1 1 TRIGGER (883990) 5927 RON 40 1 1 PUSHING LEVER GUIDE (882885) 5368 RON 41 1 1 PUSHING LEVER SPRING (882892) 4025 RON 41 1 1 PUSHING LEVER SPRING (A) (883305) 2236 RON 42 1 1 PUSHING LEVER (C) (882891) 12973 RON 43 1 1 ROLL PIN D2X16 (880093) 1453 RON 44 1 1 ADJUSTER (883982) 2236 RON 45 1 1 ADJUSTER SPRING (882890) 2236 RON 46 1 1 ADJUSTER PLATE (B) (882887) 3242 RON 47 1 1 ADJUSTER PLATE (A) (882886) 3242 RON 48 1 2 O-RING (S-4) (981317) 1453 RON 49 1 1 PUSHING LEVER (B) (882888) 12414 RON 50 1 1 O-RING (S-5) (872822) 297 RON 51 1 1 RETAINING RING (E-TYPE) FOR D3 SHAFT (872971) 1453 RON 52 1 1 HEAD VALVE O-RING (I.D. 16.8) (877699) 1453 RON 53 1 1 VALVE BUSHING (B) (878881) 22144 RON 54 1 1 O-RING (S-18) (878885) 1453 RON 55 1 2 O-RING (I.D 8.8) (878925) 1453 RON 56 1 1 O-RING (I.D.11) (878887) 2236 RON 57 1 1 VALVE PISTON (B) (880672) 20691 RON 58 1 1 PLUNGER SPRING (878884) 2236 RON 59 1 1 PLUNGER (A) (880673) 10513 RON 60 1 1 O-RING (I.D.1.8) (878888) 1453 RON 61 1 1 VALVE BUSHING (A) (880671) 15322 RON 61 1 1 VALVE BUSHING (A) (882920) 18118 RON 62 1 2 O-RING (P-9) (872645) 2236 RON 63 1 1 O-RING (P-21) (880330) 1453 RON 64 1 1 FEED PISTON (883300) 13980 RON 65 1 1 FEED SPRING (882883) 2236 RON 66 1 1 DAMPER (877711) 2683 RON 67 1 1 FEED PISTON COVER (880331) 382 RON 68 1 1 RETAINING RING FOR D28 HOLE (10 PCS) (939555) 5368 RON 69 1 2 NYLON NUT M5 (877371) 1453 RON 70 1 1 SLEEVE (882907) 3242 RON 71 1 1 PUSHING LEVER COVER (A) (883853) 6374 RON 72 1 1 PROTECTOR (882901) 3242 RON 73 1 1 NOSE CAP (A) (883106) 5368 RON 74A 1 1 WARNING LABEL (884070) 2236 RON 75 1 1 MAGAZINE (883984) 1147 RON 76 1 2 PIN (883111) 5032 RON 77A 1 2 FEEDER SHAFT RING (877826) 2236 RON 78 1 1 MAGAZINE COVER (A) (883985) 10065 RON 79 1 1 HOLDER CAP (A) (883987) 2236 RON 80 1 1 RATCHET SPRING (880398) 4025 RON 81 1 1 NAIL HOLDER (880503) 6151 RON 82 1 1 ROLL PIN D2.5X12 (878791) 1453 RON 83 1 1 HOLDER SHAFT (A) (883986) 4025 RON 84 1 1 SPRING (881826) 1453 RON 85 1 2 SHAFT RING (880319) 2236 RON 86 1 1 HEX.SOCKET HD BOLT M5X20 (10 PCS) (949757) 297 RON 87 1 1 GUIDE LOCK (OLD 880318) (886107) 4025 RON 88 1 1 SPRING (OLD 878308) (880446) 1788 RON 89 1 1 NAIL GUIDE (883392) 56146 RON 90 1 1 NAIL STOPPER (A) (883085) 22592 RON 91 1 1 STOPPER SPRING (A) (883088) 2236 RON 92 1 1 NAIL STOPPER (B) (883086) 3242 RON 93 1 1 STOPPER SPRING (B) (883087) 2236 RON 94 1 1 NAIL GUIDE COVER (883089) 4025 RON 95 1 1 COVER (883393) 573 RON 96 1 2 SLEEVE (B) (882881) 3242 RON 97 1 2 NYLOCK HEX. SOCKET HD.BOLT M4X12 (880630) 1453 RON 98 1 1 883983 (883983) 30645 RON 100 1 1 PUSHING LEVER SPRING (B) (883302) 2236 RON 101 1 1 WARNING LABEL (878183) 2348 RON 102 1 1 WARNING LABEL (A) (883513) 2236 RON 103 1 1 ROLL PIN D3X22 (10 PCS) (949864) 2683 RON 501 1 1 875769 - Indisponibil 505 1 1 877153 - Indisponibil 506 1 1 CAUTION TAG NEW (887288) 2236 RON 507 1 1 LEAFLET (882414) 1453 RON 601 1 1 SEQUENTIAL TRIP MECHANISM SET (883991) 49323 RON
