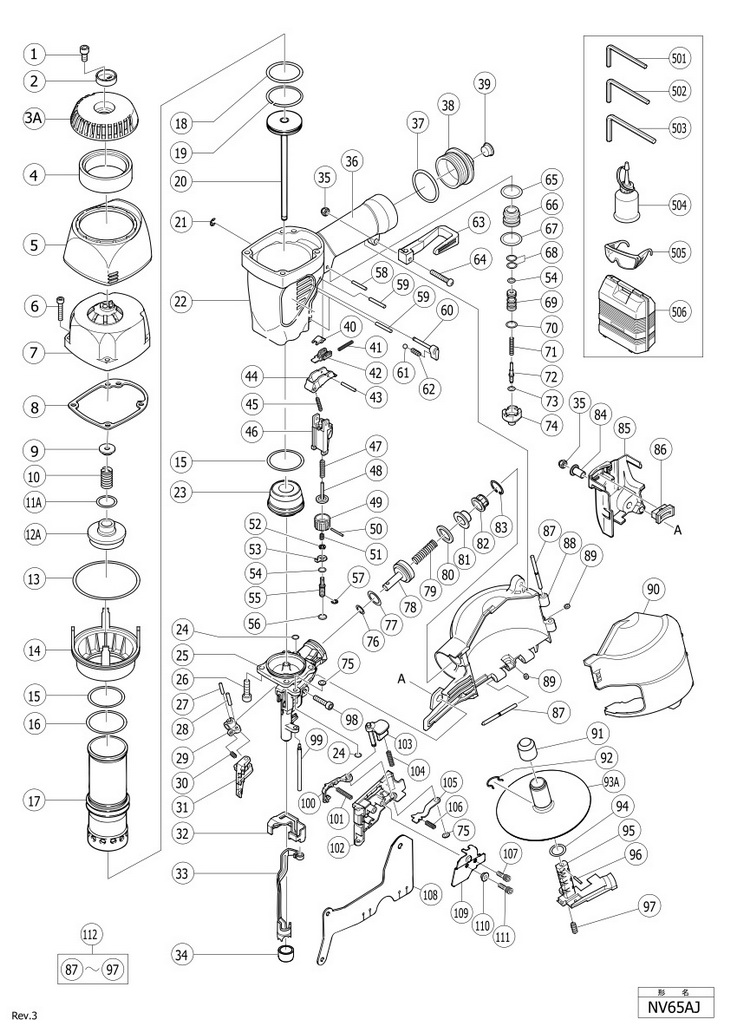

Top » Piese de schimb » PIESE HITACHI » NV65AJ NV65AJ [NV65AJ] Click pentru a mari Imagini suplimentare Click pentru a mari LISTA DE COMPONENTE: Numar Versiune Buc. in schema Denumire Pret/buc (Tva inclus) Cumpara 1 1 1 HEX.SOCKET HD.BOLT M6X12 (10 PCS) (OLD 949657Z) (949657) 297 RON 2 1 1 PLATE (882919) 3242 RON 3A 1 1 TOP COVER (882917) 6598 RON 4 1 1 MUFFLER (882918) 9842 RON 5 1 1 @PROTECTOR (A) (883632) 6374 RON 6 1 4 HEX.SOCKET HD BOLT M5X25 (10 PCS) (949662) 297 RON 7 1 1 EXHAUST COVER (884300) 40823 RON 8 1 1 GASKET (A) (882915) 4025 RON 9 1 1 HEAD BUMPER (882914) 5368 RON 10 1 1 HEAD VALVE SPRING (882913) 5368 RON 11A 1 1 O-RING (I.D.20.8) (883992) 2236 RON 12A 1 1 HEAD VALVE (A) (OLD 882912) (882927) 9282 RON 13 1 1 O-RING (S-70) (878863) 2348 RON 14 1 1 CYLINDER PLATE (882910) 5368 RON 15 1 2 O-RING (S-46) (882874) 2236 RON 16 1 1 O-RING (1AP-48) (877368) 2683 RON 17 1 1 CYLINDER (882909) 47646 RON 18 1 1 PISTON O-RING (882871) 2236 RON 19 1 1 PISTON RING (882872) 1700 RON 20 1 1 @PISTON (H) (883920) 8503 RON 21 1 1 RETAINING RING (E-TYPE) FOR D4 SHAFT (968643) 2683 RON 22 1 1 BODY (884301) 135894 RON 23 1 1 PISTON BUMPER (882873) 14092 RON 24 1 2 O-RING (P-4) (874436) 1453 RON 25 1 1 NOSE (883921) 220675 RON 26 1 4 NYLOCK HIGH TENSION BOLT M6X20 (880675) 382 RON 27 1 1 ROLL PIN D4X16 (10 PCS) (OLD949497Z) (949497) 2683 RON 28 1 1 NEEDLE ROLLER (880659) 1453 RON 29 1 1 FEEDER ARM (878132) 23934 RON 30 1 1 FEEDER SPRING (882924) 2236 RON 31 1 1 @FEEDER (883923) 23934 RON 32 1 1 PUSHING LEVER COVER (B) (882900) 3242 RON 33 1 1 PUSHING LEVER (883924) 34112 RON 34 1 1 NOSE CAP (A) (880678) 382 RON 35 1 2 NYLON NUT M5 (877371) 1453 RON 36 1 1 - Indisponibil 37 1 1 O-RING (I.D. 37.2) (880183) 1453 RON 38 1 1 CAP (882162) 20691 RON 39 1 1 @DUST CAP (877914) 2683 RON 40 1 1 TRIGGER PIECE (882896) 2236 RON 41 1 1 SPRING (882897) 2236 RON 42 1 1 TRIGGER ARM (B) (882895) 18118 RON 43 1 1 ROLL PIN D2.5X16 (881951) 2236 RON 44 1 1 TRIGGER (882894) 3242 RON 45 1 1 TRIGGER SPRING (883759) 3242 RON 46 1 1 PUSHING LEVER GUIDE (882885) 5368 RON 47 1 1 PUSHING LEVER SPRING (882892) 4025 RON 48 1 1 PUSHING LEVER (C) (882891) 12973 RON 49 1 1 ADJUSTER (882889) 3242 RON 50 1 1 ROLL PIN D2X16 (880093) 1453 RON 51 1 1 ADJUSTER SPRING (882890) 2236 RON 52 1 1 ADJUSTER PLATE (B) (882887) 3242 RON 53 1 1 ADJUSTER PLATE (A) (882886) 3242 RON 54 1 2 O-RING (S-4) (981317) 1453 RON 55 1 1 PUSHING LEVER (B) (882888) 12414 RON 56 1 1 O-RING (S-5) (872822) 297 RON 57 1 1 RETAINING RING (E-TYPE) FOR D3 SHAFT (872971) 1453 RON 58 1 1 ROLL PIN D3X22 (10 PCS) (949864) 2683 RON 59 1 3 ROLL PIN D3X28 (10 PCS) (949865) 2683 RON 60 1 1 @LOCK KNOB (884302) 9282 RON 61 1 1 STEEL BALL D3.175 (10 PCS) (959148) 1453 RON 62 1 1 LOCK SPRING (882923) 2236 RON 63 1 1 HOOK (883763) 4025 RON 64 1 1 MACHINE SCREW M5X35 BLACK (302197) 1453 RON 65 1 1 HEAD VALVE O-RING (I.D. 16.8) (877699) 1453 RON 66 1 1 @VALVE BUSHING (B) (882925) 12414 RON 67 1 1 O-RING (S-18) (878885) 1453 RON 68 1 2 O-RING (I.D 8.8) (878925) 1453 RON 69 1 1 VALVE PISTON (B) (880672) 20691 RON 70 1 1 O-RING (I.D.11) (878887) 2236 RON 71 1 1 PLUNGER SPRING (878884) 2236 RON 72 1 1 PLUNGER (A) (882921) 11184 RON 73 1 1 O-RING (I.D.1.8) (878888) 1453 RON 74 1 1 VALVE BUSHING (A) (882920) 18118 RON 75 1 2 SHAFT RING (880319) 2236 RON 76 1 1 O-RING (P-9) (872645) 2236 RON 77 1 1 O-RING (P-21) (880330) 1453 RON 78 1 1 FEED PISTON (882673) 12973 RON 79 1 1 FEED SPRING (882883) 2236 RON 80 1 1 DAMPER (877711) 2683 RON 81 1 1 FEED PISTON COVER (880331) 382 RON 82 1 1 MAGAZINE BUSHING (878305) 1453 RON 83 1 1 RETAINING RING FOR D28 HOLE (10 PCS) (939555) 5368 RON 84 1 1 SLEEVE (882907) 3242 RON 85 1 1 @PUSHING LEVER COVER (A) (882899) 4025 RON 86 1 1 PROTECTOR (882901) 3242 RON 87 1 2 PIN (881825) 297 RON 88 1 1 MAGAZINE (882903) 14092 RON 89 1 2 FEEDER SHAFT RING (877826) 2236 RON 90 1 1 MAGAZINE COVER (883926) 11743 RON 91 1 1 HOLDER CAP (A) (881003) 2348 RON 92 1 1 RATCHET SPRING (880398) 4025 RON 93A 1 1 885683 - Indisponibil 94 1 1 O-RING (P-9) (872645) 2236 RON 95 1 1 ROLL PIN D2.5X12 (878791) 1453 RON 96 1 1 HOLDER SHAFT (882905) 5368 RON 97 1 1 SPRING (881826) 1453 RON 98 1 1 HEX.SOCKET HD BOLT M5X20 (10 PCS) (949757) 297 RON 99 1 1 NAIL GUIDE SHAFT (880658) 5591 RON 100 1 1 NAIL STOPPER (A) (883783) 37468 RON 101 1 1 NAIL STOPPER RING (882878) 12414 RON 102 1 1 @NAIL GUIDE (883922) 62969 RON 103 1 1 GUIDE LOCK (OLD 880318) (886107) 4025 RON 104 1 1 SPRING (OLD 878308) (880446) 1788 RON 105 1 1 NAIL STOPPER (B) (882680) 3242 RON 106 1 1 STOPPER SPRING (880494) 2348 RON 107 1 1 NYLOCK HEX. SOCKET HD.BOLT M4X10 (880413) 1453 RON 108 1 1 COVER (882880) 4025 RON 109 1 1 NAIL GUIDE COVER (883784) 4025 RON 110 1 1 SLEEVE (B) (882881) 3242 RON 111 1 1 NYLOCK HEX. SOCKET HD.BOLT M4X12 (880630) 1453 RON 112 1 1 884303 (884303) 40823 RON 501 1 1 HEX.BAR WRENCH 3MM (OLD 993822) (943277) 1229 RON 502 1 1 HEX.BAR WRENCH 4MM (944458) 1229 RON 503 1 1 HEX.BAR WRENCH 5MM (944459) 1788 RON 504 1 1 877153 - Indisponibil 505 1 1 875769 - Indisponibil 506 1 1 880790 - Indisponibil 601 1 1 GRIP TAPE (OLD 880349) (881768) 4361 RON 602 1 2 TAPE (880407) 2236 RON 603 1 1 @ OIL FOR NAILER (1 LITER) (876212) 1232 RON 604 1 1 SEQUENTIAL TRIP MECHANISM SET (883991) 49323 RON
