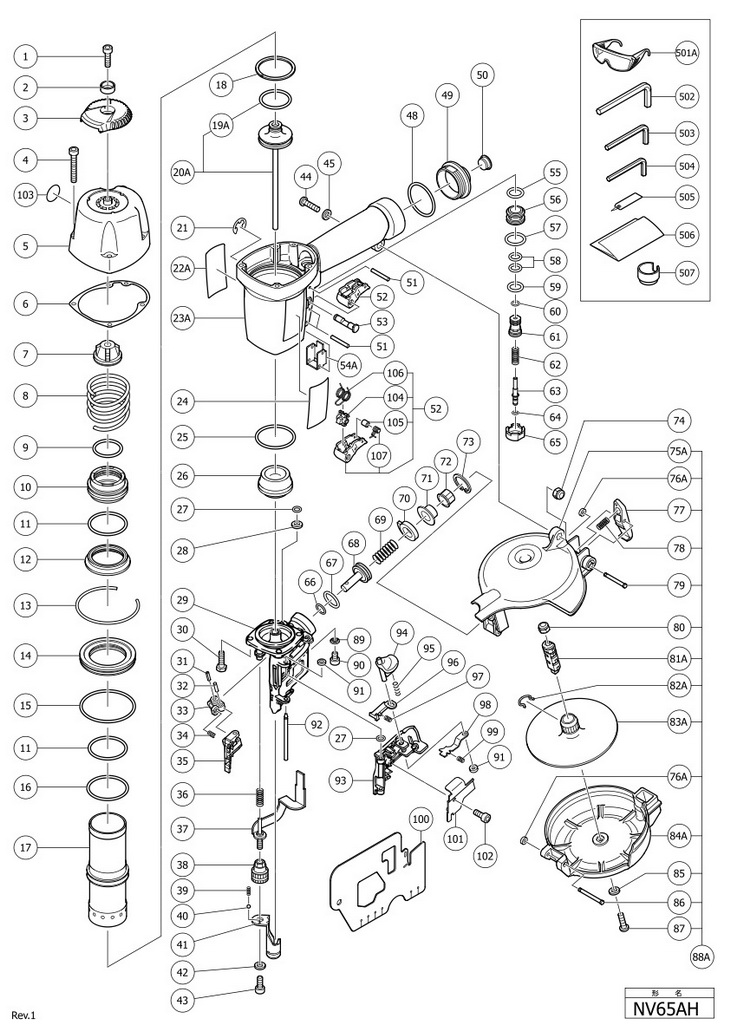

Top » Piese de schimb » PIESE HITACHI » NV65AH NV65AH [NV65AH] Click pentru a mari Imagini suplimentare Click pentru a mari LISTA DE COMPONENTE: Numar Versiune Buc. in schema Denumire Pret/buc (Tva inclus) Cumpara 1 1 1 HEX SOCKET HD. BOLT M6X16 (10 PCS) (949755) 297 RON 2 1 1 PLATE (880515) 5368 RON 3 1 1 TOP COVER (OLD 880514) (884332) 4025 RON 4 1 4 HEX.SOCKET HD.BOLT M5X35 (10 PCS) (949822) 3578 RON 5 1 1 EXHAUST COVER NEW (880670) 74825 RON 6 1 1 GASKET (880358) 2236 RON 7 1 1 EXHAUST VALVE RUBBER(A) (OLD880357) (881761) 5927 RON 8 1 1 HEAD VALVE SPRING (880356) 4361 RON 9 1 1 O-RING (S-34) (980879) 1453 RON 10 1 1 HEAD VALVE (880354) 22144 RON 11 1 2 CYLINDER O-RING (878714) 2683 RON 12 1 1 HEAD VALVE RUBBER (A) (OLD 880355) (881760) 382 RON 13 1 1 RETAINING RING (880669) 2683 RON 14 1 1 CYLINDER PLATE NV65AH (880667) 14315 RON 15 1 1 CYLINDER O-RING BORE SIZE 63.1MM (877312) 2683 RON 16 1 1 O-RING (P-46) (878716) 2236 RON 17 1 1 CYLINDER FOR NV65AH (880668) 40823 RON 18 1 1 PISTON RING (878691) 13756 RON 19 1 1 O-RING (I.D.34,2) (880311) 2236 RON 19A 1 1 O-RING (I.D.34.7) (882685) 2236 RON 20A 1 1 882684 (882684) 56146 RON 21 1 1 RETAINING RING FOR D6SH (955479) 1453 RON 22A 1 1 WARNING LABEL (884070) 2236 RON 23A 1 1 882672 (882672) 64647 RON 24 1 1 - Indisponibil 25 1 1 O-RING (S-44) (880362) 1453 RON 26 1 1 PISTON BUMPER (OLD 880651) (882676) 8052 RON 27 1 2 O-RING (P-4) (874436) 1453 RON 28 1 1 WASHER (878279) 1453 RON 29 1 1 NOSE (882677) 183430 RON 30 1 4 NYLOCK HIGH TENSION BOLT M6X20 (880675) 382 RON 31 1 1 ROLL PIN D4X14 (10 PCS) (949770) 2683 RON 32 1 1 NEEDLE ROLLER (880659) 1453 RON 33 1 1 FEEDER ARM (878132) 23934 RON 34 1 1 FEEDER SPRING (878340) 1453 RON 35 1 1 FEEDER (882671) 15434 RON 36 1 1 SAFETY SPRING (880080) 1453 RON 36 1 1 PUSHING LEVER SPRING (880380) 4361 RON 37 1 1 PUSHING LEVER (B) (880661) 44290 RON 38 1 1 ADJUSTER (B) (OLD 880174) (880383) 6822 RON 39 1 2 ADJUSTER SPRING (880175) 2236 RON 40 1 2 STEEL BALL D3.175 (10 PCS) (959148) 1453 RON 41 1 1 PUSHING LEVER (A) (880333) 18678 RON 42 1 1 WASHER (880081) 1453 RON 43 1 1 HEX.SOCKET HD.BOLT M6X12 (10 PCS) (OLD 949657Z) (949657) 297 RON 44 1 1 MACHINE SCREW M5X20 BLACK (302196) 1453 RON 45 1 1 WASHER (876205) 1453 RON 48 1 1 O-RING (I.D. 37.2) (880183) 1453 RON 49 1 1 CAP (OLD 880199) (880379) 18118 RON 50 1 1 DUST CAP (872035) 1453 RON 51 1 3 ROLL PIN D3X28 (10 PCS) (949865) 2683 RON 52 1 1 TRIGGER (A) (880674) 7828 RON 52 1 1 TRIGGER (A) (881779) 37468 RON 53 1 1 881952 - Indisponibil 54A 1 1 PUSHING LEVER GUIDE (OLD 880361) (884336) 3242 RON 55 1 1 HEAD VALVE O-RING (I.D. 16.8) (877699) 1453 RON 56 1 1 VALVE BUSHING (B) (878881) 22144 RON 57 1 1 O-RING (S-18) (878885) 1453 RON 58 1 2 O-RING (I.D 8.8) (878925) 1453 RON 59 1 1 O-RING (I.D.11) (878887) 2236 RON 60 1 1 O-RING (S-4) (981317) 1453 RON 61 1 1 VALVE PISTON (B) (880672) 20691 RON 62 1 1 PLUNGER SPRING (878884) 2236 RON 63 1 1 PLUNGER (A) (880673) 10513 RON 64 1 1 O-RING (I.D.1.8) (878888) 1453 RON 65 1 1 VALVE BUSHING (A) (880671) 15322 RON 66 1 1 O-RING (P-9) (872645) 2236 RON 67 1 1 O-RING (P-21) (880330) 1453 RON 68 1 1 FEED PISTON (882673) 12973 RON 69 1 1 FEED SPRING (878603) 2236 RON 70 1 1 BUMPER (880367) 4361 RON 71 1 1 FEED PISTON COVER (880331) 382 RON 72 1 1 MAGAZINE BUSHING (878305) 1453 RON 73 1 1 RETAINING RING FOR D28 HOLE (10 PCS) (939555) 5368 RON 74 1 1 NYLON NUT M5 (877371) 1453 RON 75A 1 1 MAGAZINE (880335) 10736 RON 76A 1 2 FEEDER SHAFT RING (877826) 2236 RON 77 1 1 MAGAZINE STOPPER (880336) 2348 RON 78 1 1 STOPPER SPRING (880337) 1453 RON 79 1 1 PIN D4X35.5 (880338) 8276 RON 80 1 1 NYLON NUT M4 (876465) 1453 RON 81A 1 1 HOLDER SHAFT (882675) 5368 RON 82A 1 1 885543 - Indisponibil 83A 1 1 NAIL HOLDER (880665) 6374 RON 84A 1 1 MAGAZINE COVER (882682) 765 RON 85 1 1 WASHER M4 (10 PCS) (949423) 894 RON 86 1 1 @ PIN D4X40 (880341) 9730 RON 87 1 1 SCREW M4X50 (10 PCS) (949230) 2236 RON 88A 1 1 882674 (882674) 30645 RON 89 1 1 SLEEVE (B) (878337) 297 RON 90 1 1 HEX.SOCKET HD.BOLT M4X6 (10 PCS) (949766) 2348 RON 91 1 2 SHAFT RING (880319) 2236 RON 92 1 1 NAIL GUIDE SHAFT (880658) 5591 RON 93 1 1 NAIL GUIDE (882678) 28967 RON 94 1 1 GUIDE LOCK (OLD 880318) (886107) 4025 RON 95 1 1 SPRING (OLD 878308) (880446) 1788 RON 96 1 1 NAIL STOPPER (A) (882679) 10960 RON 97 1 1 SPRING (F) (301631) 1117 RON 98 1 1 NAIL STOPPER (B) (882680) 3242 RON 99 1 1 STOPPER SPRING (880494) 2348 RON 100 1 1 COVER (882683) 4025 RON 101 1 1 NAIL GUIDE COVER (882681) 4025 RON 102 1 1 NYLOCK HEX. SOCKET HD.BOLT M4X10 (880413) 1453 RON 103 1 1 WARNING LABEL (A) (883513) 2236 RON 104 1 1 882983 - Indisponibil 105 1 1 882984 - Indisponibil 106 1 1 882985 - Indisponibil 107 1 1 882986 - Indisponibil 501A 1 1 875769 - Indisponibil 502 1 1 HEX.BAR WRENCH 5MM (944459) 1788 RON 503 1 1 HEX.BAR WRENCH 4MM (944458) 1229 RON 504 1 1 HEX.BAR WRENCH 3MM (OLD 993822) (943277) 1229 RON 505 1 1 881976 - Indisponibil 506 1 1 LEAFLET (882414) 1453 RON 507 1 1 NOSE CAP (878344) 382 RON 601 1 1 NOSE CAP (878344) 382 RON 602 1 1 CASE (880517) 40823 RON 603 1 1 SEQUENTIAL TRIP MECHANISM SET (881973) 4251 RON 604 1 1 GREASE (ATTOLUB NO.2) 500G (317918) 20691 RON 605 1 1 GRIP TAPE (OLD 880349) (881768) 4361 RON 606 1 2 TAPE (880407) 2236 RON
