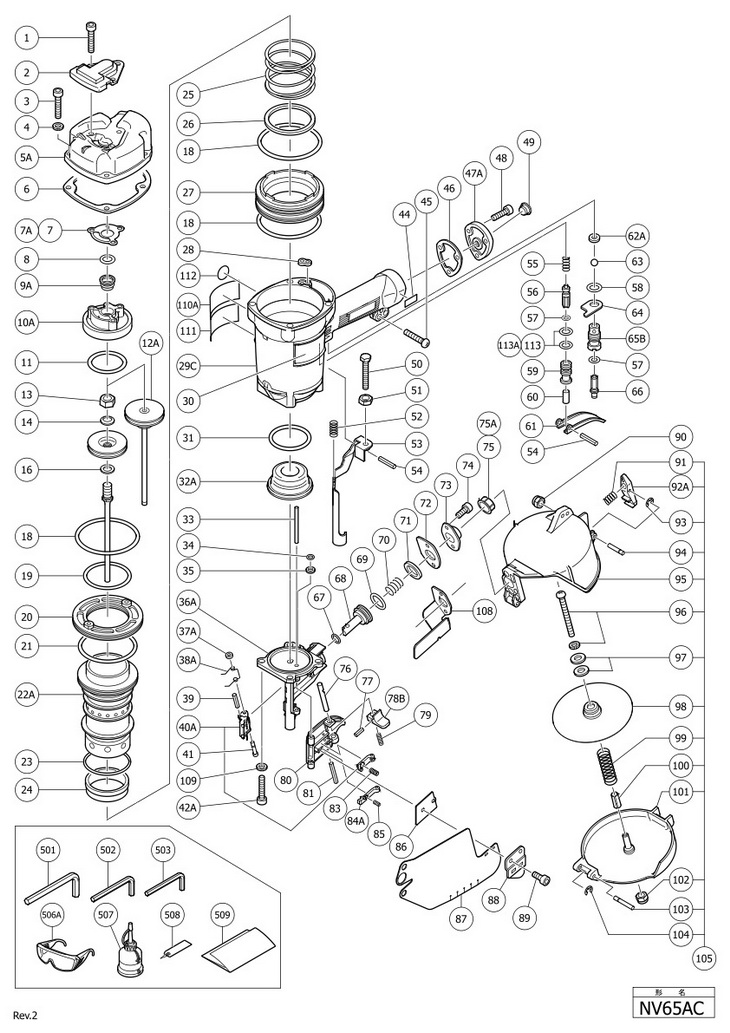

Top » Piese de schimb » PIESE HITACHI » NV65AC NV65AC [NV65AC] Click pentru a mari Imagini suplimentare Click pentru a mari LISTA DE COMPONENTE: Numar Versiune Buc. in schema Denumire Pret/buc (Tva inclus) Cumpara 1 1 3 HEX.SOKET HD.BOLT M6X20 (10 PCS) (949660) 3242 RON 2 1 1 TOP COVER (877330) 3242 RON 3 1 4 HEX.SOCKET HD.BOLT M6X25 (10 PCS) (949652) 3242 RON 4 1 4 SPRING WASHER M6 (10 PCS) (949455) 1453 RON 5A 1 1 EXHAUST COVER (OLD 877848) (877812) 8503 RON 6 1 1 PACKING (B) (877325) 382 RON 7 1 1 PACKING (C) (877326) 2348 RON 7A 1 1 GASKET (C) (877854) 2348 RON 8 1 1 VALVE O-RING (872821) 297 RON 9A 1 1 EXHAUST VALVE (OLD 877370) (878417) 488 RON 10A 1 1 HEAD CAP AND PACKING SET (OLD 877364) (877852) 22592 RON 11 1 1 O-RING (1AP-48) (877368) 2683 RON 12A 1 1 PISTON (H) (878309) 10204 RON 13 1 1 @ SMALL HEX. NUT M12 (878280) 573 RON 14 1 1 @BELLEVILLE SPRING WASHER (878271) 1453 RON 16 1 1 @ WASHER (878272) 1453 RON 18 1 3 O-RING (S-90) (877316) 2683 RON 19 1 1 CYLINDER O-RING BORE SIZE 63.1MM (877312) 2683 RON 20 1 1 CYLINDER PLATE (877318) 6933 RON 21 1 1 CYLINDER O-RING BORE SIZE 79.3MM (877313) 2683 RON 22A 1 1 CYLINDER (OLD 877810) (884068) 28967 RON 23 1 1 CYLINDER O-RING BORE SIZE 69.3MM (877314) 2683 RON 24 1 1 CYLINDER RING (877317) 2236 RON 25 1 1 877321 - Indisponibil 26 1 1 BASE WASHER (877322) 2348 RON 27 1 1 CYLINDER GUIDE (877310) 15098 RON 28 1 1 PACKING (G) (877813) 2683 RON 29C 1 1 - Indisponibil 29C 1 1 - Indisponibil 30 1 1 - Indisponibil 31 1 1 CYLINDER O-RING BORE SIZE 63.9MM (877315) 2683 RON 32A 1 1 PISTON DAMPER (OLD 877320) (878303) 22592 RON 33 1 1 NAIL GUIDE SHAFT (877823) 573 RON 34 1 1 O-RING (P-4) (874436) 1453 RON 35 1 1 WASHER (878279) 1453 RON 36A 1 1 NOSE (878304) 220675 RON 37A 1 1 FEEDER SHAFT RING (877826) 2236 RON 38A 1 1 FEEDER SPRING (877851) 297 RON 39 1 1 ROLL PIN D3X16 (10 PCS) (OLD 949496Z) (949496) 2348 RON 40A 1 1 FEEDER SET (OLD 877466) (877856) 25612 RON 41 1 1 FEEDER SHAFT (877825) 5032 RON 42A 1 4 NYLOCK HEX. SOCKET HD.BOLT M8X25 (880810) 1453 RON 44 1 1 - Indisponibil 45 1 1 MACHINE SCREW M5X25 (10 PCS) (949243) 1788 RON 46 1 1 PACKING (D) (877331) 1453 RON 47A 1 1 CAP (OLD 877367Z) (878311) 4025 RON 48 1 3 HEX.SOCKET HD.BOLT M5X18 (10 PCS) (949658) 2683 RON 49 1 1 DUST CAP (872035) 1453 RON 50 1 1 SAFETY BOLT (875650) 1453 RON 51 1 1 NUT M5 (10 PCS) (949555) 1453 RON *52 1 1 SPRING (877365) 2683 RON *52 1 1 SPRING (878423) 1453 RON 53 1 1 PUSHING LEVER (877817) 32323 RON 54 1 2 ROLL PIN D3X30 (10 PCS) (949866) 3578 RON 55 1 1 PLUNGER SPRING (875643) 1453 RON 56 1 1 PLUNGER (A) (878122) 2348 RON 57 1 2 PLUNGER O-RING (874820) 2236 RON 58 1 1 O-RING (S-12) (875638) 2236 RON 59 1 1 VALVE BUSHING (OLD 876735) (878266) 11184 RON 60 1 1 SAFETY PLUNGER (B) (875642) 573 RON 61 1 1 TRIGGER (876203) 2683 RON 62A 1 1 VALVE PACKING (OLD 875637) (878734) 1453 RON 63 1 1 URETHANE BALL (B) D7.14 (875645) 382 RON 64 1 1 VALVE PLATE (875644) 1453 RON 65B 1 1 TRIGGER VALVE BUSHING (OLD 876738) (877335) 6151 RON 66 1 1 TRIGGER PLUNGER (878121) 2236 RON 67 1 1 O-RING (P-9) (872645) 2236 RON 68 1 1 FEED PISTON (877709) 12414 RON 69 1 1 O-RING (P-22) (876796) 1453 RON 70 1 1 FEED SPRING (877144) 2236 RON 71 1 1 DAMPER (877711) 2683 RON 72 1 1 FEED PISTON COVER (A) (877827) 2236 RON 73 1 1 FEED PISTON COVER (877713) 2683 RON 74 1 2 SEAL LOCK HEX. SOCKET HD. BOLT M5X10 (877839) 1453 RON 75 1 1 MAGAZINE BUSHING (878305) 1453 RON 75A 1 1 MAGAZINE BUSHING (877479) 1453 RON 76 1 1 LOCK SHAFT (877820) 2795 RON 77 1 1 ROLL PIN D3X10 (10 PCS) (OLD 949776Z) (949776) 2348 RON 78B 1 1 GUIDE LOCK (A) (326774) 4025 RON 79 1 1 SPRING (877372) 2012 RON 80 1 1 NAIL GUIDE (877834) 54469 RON 81 1 1 ROLL PIN D3X28 (10 PCS) (949865) 2683 RON 83 1 1 MAIN STOPPER SPRING (876681) 1453 RON 84A 1 1 SUB NAIL STOPPER (877819) 15434 RON 85 1 1 SUB STOPPER SPRING (877468) 894 RON 86 1 1 NAIL GUIDE COVER (877469) 1453 RON 87 1 1 COVER (877822) 6598 RON 88 1 1 COVER PLATE (877471) 2683 RON 89 1 2 SEAL LOCK HEX. SOCKET HD. BOLT M4X8 (877838) 1453 RON 90 1 1 NYLON NUT M5 (877371) 1453 RON 91 1 1 STOPPER SPRING (877149) 894 RON 92A 1 1 MAGAZINE STOPPER (OLD 877151) (880146) 1677 RON 93 1 1 RETAINING RING (E-TYPE) FOR D3 SHAFT (872971) 1453 RON 94 1 1 STOPPER PIN (OLD 878951) (877150) 2236 RON 95 1 1 MAGAZINE (878274) 12526 RON 96 1 1 MACHINE SCREW (W/SP.WASHER) M4X40 (986120) 1453 RON 97 1 2 THRUST WASHER (875249) 1788 RON 98 1 1 NAIL HOLDER (878275) 14763 RON 99 1 1 @ HOLDER SPRING (878276) 1453 RON 100 1 1 SLEEVE (878278) 573 RON 101 1 1 MAGAZINE COVER LEAD. BLACK. SHORT (878277) 6598 RON 102 1 1 NYLON NUT M4 (876465) 1453 RON 103 1 1 HINGE PIN (877832) 382 RON 104 1 1 RETAINING RING (E-TYPE) FOR D4 SHAFT (968643) 2683 RON 105 1 1 878273 (878273) 4251 RON 108 1 1 NAIL GUARD (880060) 7381 RON 109 1 4 SPRING WASHER M8 (10 PCS) (949457) 1453 RON 110A 1 1 WARNING LABEL (884070) 2236 RON 111 1 1 WARNING LABEL (878183) 2348 RON 112 1 1 WARNING LABEL (A) (883513) 2236 RON 113 1 2 O-RING (S-12) (875638) 2236 RON 113A 1 2 O-RING (I.D.10.7) (884112) 2236 RON 501 1 1 HEX.BAR WRENCH 6MM (872422) 1117 RON 502 1 1 HEX.BAR WRENCH 5MM (944459) 1788 RON 503 1 1 HEX.BAR WRENCH 4MM (944458) 1229 RON 506A 1 1 875769 - Indisponibil 507 1 1 877153 - Indisponibil 508 1 1 CAUTION TAG (882413) 2236 RON 509 1 1 LEAFLET (882414) 1453 RON 601 1 1 @SINGLE SHORT PARTS (876762) 5101 RON 602 1 1 BODY (B) (OLD 877362) (877835) 14265 RON 603 1 1 GRIP TAPE (OLD 880349) (881768) 4361 RON 604 1 2 TAPE (880407) 2236 RON 605 1 1 GREASE (ATTOLUB NO.2) 500G (317918) 20691 RON
