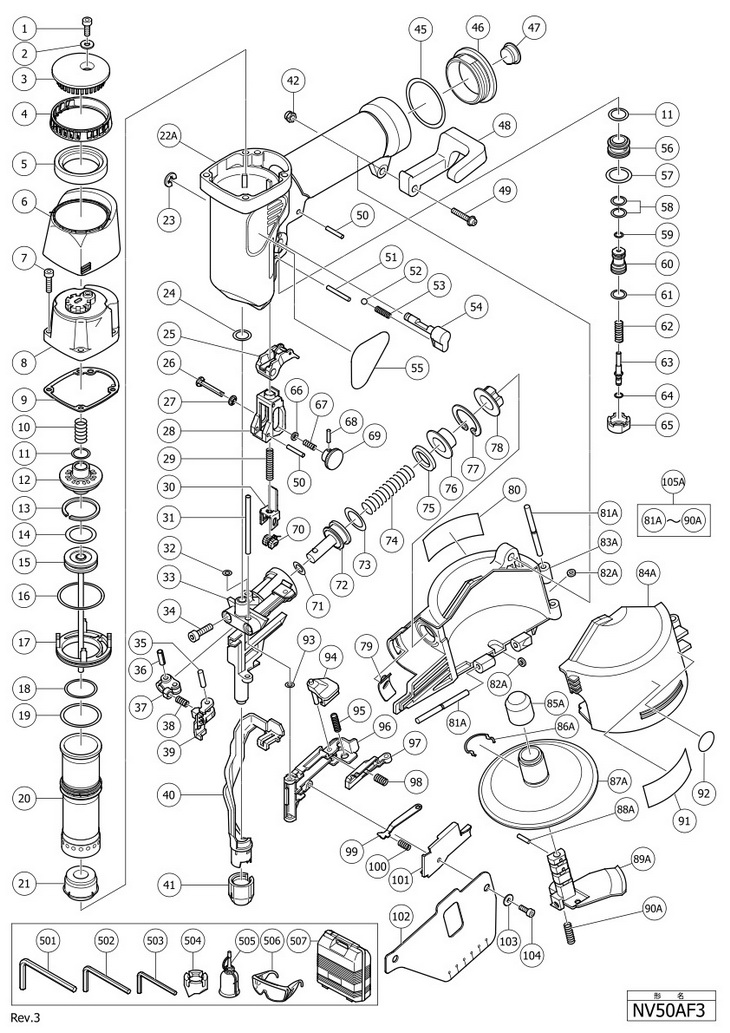

Top » Piese de schimb » PIESE HITACHI » NV50AF3 NV50AF3 [NV50AF3] Click pentru a mari Imagini suplimentare Click pentru a mari LISTA DE COMPONENTE: Numar Versiune Buc. in schema Denumire Pret/buc (Tva inclus) Cumpara 1 1 1 HEX.SOCKET HD.BOLT M5X10 (10 PCS) (949819) 2683 RON 2 1 1 WASHER (944260) 1453 RON 3 1 1 TOP COVER (881841) 382 RON 4 1 1 HEAD RING (881840) 382 RON 5 1 1 MUFFLER (881835) 10065 RON *6 1 1 PROTECTOR (A) (881838) 2683 RON *6 1 1 PROTECTOR (A) (881883) 3242 RON 7 1 4 HEX.SOCKET HD BOLT M5X20 (10 PCS) (949757) 297 RON *8 1 1 881879 (881879) 37468 RON *8 1 1 881865 (881865) 37468 RON 9 1 1 GASKET (A) (881839) 1453 RON 10 1 1 HEAD VALVE SPRING (881851) 297 RON 11 1 2 HEAD VALVE O-RING (I.D. 16.8) (877699) 1453 RON 12 1 1 HEAD VALVE (A) (881837) 8276 RON 13 1 1 PISTON RING (881834) 13197 RON 14 1 1 PISTON O-RING (881833) 1453 RON 15 1 1 PISTON (881832) 66324 RON 16 1 1 O-RING (1AS-50) (990067) 2236 RON 17 1 1 CYLINDER PLATE (881831) 382 RON 18 1 1 O-RING (S-36) (984483) 2236 RON 19 1 1 CYLINDER O-RING (881864) 2236 RON 20 1 1 CYLINDER (881829) 23934 RON 21 1 1 PISTON BUMPER (881830) 1147 RON *22A 1 1 881877 (881877) 8503 RON *22A 1 1 881878 (881878) 8503 RON 23 1 1 RETAINING RING FOR D6SH (955479) 1453 RON 24 1 1 O-RING (S-12) (875638) 2236 RON 25 1 1 TRIGGER (A) (880674) 7828 RON 26 1 1 ADJUSTER SHAFT (881846) 6374 RON 28 1 1 PUSHING LEVER GUIDE (316389) 3242 RON 29 1 1 SPRING (881882) 2236 RON 30 1 1 886099 - Indisponibil 31 1 1 NAIL GUIDE SHAFT (881811) 5591 RON 32 1 1 O-RING (1AP-3) (873093) 1453 RON 33 1 1 NOSE (881810) 183430 RON 34 1 2 HEX.SOKET HD.BOLT M6X20 (10 PCS) (949660) 3242 RON 35 1 1 NEEDLE ROLLER (983545) 1453 RON 36 1 1 ROLL PIN D4X14 (10 PCS) (949770) 2683 RON 37 1 1 FEEDER ARM (878132) 23934 RON 38 1 1 FEEDER SPRING (878340) 1453 RON 39 1 1 FEEDER (881818) 22592 RON 40 1 1 PUSH LEVER FOR NV50AF3 (881819) 91714 RON 41 1 1 NOSE CAP (A) (881092) 5368 RON 42 1 1 NYLON NUT M5 (877371) 1453 RON 45 1 1 O-RING (I.D. 37.2) (880183) 1453 RON *46 1 1 CAP (OLD 880199) (880379) 18118 RON *46 1 1 CAP (882162) 20691 RON 47 1 1 DUST CAP (872035) 1453 RON 48 1 1 HOOK (881827) 382 RON 49 1 1 MACHINE SCREW M5X30 BLACK (880881) 1453 RON 50 1 2 ROLL PIN D3X18 (10 PCS) (949518) 2348 RON 51 1 1 ROLL PIN D3X25 (10 PCS) (949539) 2683 RON 52 1 1 STEEL BALL D3.97 (10 PCS) (OLD 939363Z) (959155) 894 RON 53 1 1 SPRING (C) (982454) 894 RON 54 1 1 CHANGE KNOB (B) (880086) 14875 RON 55 1 1 - Indisponibil 56 1 1 VALVE BUSHING (B) (878881) 22144 RON 57 1 1 O-RING (S-18) (878885) 1453 RON 58 1 2 O-RING (I.D 8.8) (878925) 1453 RON 59 1 1 O-RING (S-4) (981317) 1453 RON 60 1 1 VALVE PISTON (B) (880672) 20691 RON 61 1 1 O-RING (I.D.11) (878887) 2236 RON 62 1 1 PLUNGER SPRING (878884) 2236 RON 63 1 1 PLUNGER (A) (880673) 10513 RON 64 1 1 O-RING (I.D.1.8) (878888) 1453 RON 65 1 1 VALVE BUSHING (A) (880671) 15322 RON 66 1 1 BOLT WASHER M4 (10 PCS) (OLD 949429Z) (949429) 1453 RON 67 1 1 ADJUSTER SPRING (881853) 2236 RON 68 1 1 ROLL PIN D1.6X12 (878222) 1453 RON 69 1 1 ADJUSTER KNOP (881848) 3578 RON 70 1 1 886100 - Indisponibil 71 1 1 O-RING (P-9) (872645) 2236 RON 72 1 1 FEED PISTON (880168) 15658 RON 73 1 1 O-RING (P-18) (873570) 1788 RON 74 1 1 SPRING (880409) 2348 RON 75 1 1 DAMPER (877476) 2348 RON 76 1 1 FEED PISTON COVER (880170) 2683 RON 77 1 1 RETAINING RING FOR D24 HOLE (983748) 1453 RON 78 1 1 MAGAZINE BUSHING (880177) 2236 RON 79 1 1 PROTECTOR (B) (881850) 2236 RON 80 1 1 WARNING LABEL (878183) 2348 RON 81A 1 2 885541 - Indisponibil 82A 1 2 FEEDER SHAFT RING (877826) 2236 RON 83A 1 1 MAGAZINE (OLD 884090) (886831) 6822 RON 84A 1 1 MAGAZINE COVER (OLD 881822) (885409) 5815 RON 85A 1 1 885412 - Indisponibil 86A 1 1 885543 - Indisponibil 87A 1 1 NAIL HOLDER (OLD 881824) NEW JAN (885411) 3242 RON 88A 1 1 885544 - Indisponibil 89A 1 1 885410 - Indisponibil 90A 1 1 885542 - Indisponibil 91 1 1 WARNING LABEL (884070) 2236 RON 92 1 1 WARNING LABEL (A) (883513) 2236 RON 93 1 1 O-RING (P-4) (874436) 1453 RON 94 1 1 GUIDE LOCK (878103) 7828 RON 95 1 1 SPRING (OLD 878308) (880446) 1788 RON 96 1 1 NAIL GUIDE (881812) 61179 RON 97 1 1 NAIL STOPPER (A) (881813) 28967 RON 98 1 1 SPRING (881817) 1453 RON 99 1 1 NAIL STOPPER (B) (881814) 297 RON 100 1 1 SPRING (880393) 1453 RON 101 1 1 NAIL GUIDE COVER (881815) 382 RON 102 1 1 COVER (881816) 382 RON 103 1 1 SLEEVE (B) (878337) 297 RON 104 1 1 NYLOCK HEX. SOCKET HD.BOLT M4X10 (880413) 1453 RON 105A 1 1 881820 (881820) 35790 RON 501 1 1 HEX.BAR WRENCH 5MM (944459) 1788 RON 502 1 1 HEX.BAR WRENCH 4MM (944458) 1229 RON 503 1 1 HEX.BAR WRENCH 3MM (OLD 993822) (943277) 1229 RON 504 1 1 NOSE CAP (B) (881093) 488 RON 505 1 1 877153 - Indisponibil 506 1 1 875769 - Indisponibil *507 1 1 CASE (881849) 30645 RON *507 1 1 @ CASE (881881) 30645 RON 601 1 1 SINGLE SHOT PART SET (881012) 39145 RON 602 1 1 GRIP TAPE (880408) 8835 RON 603 1 2 TAPE (880407) 2236 RON
