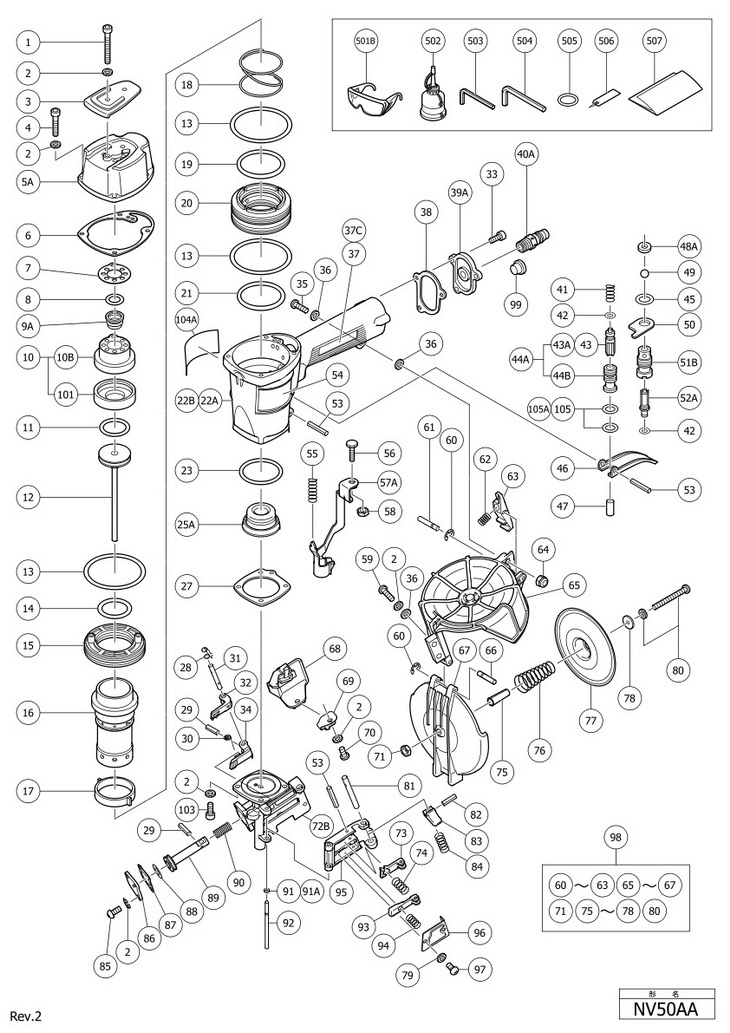

Top » Piese de schimb » PIESE HITACHI » NV50AA NV50AA [NV50AA] Click pentru a mari Imagini suplimentare Click pentru a mari LISTA DE COMPONENTE: Numar Versiune Buc. in schema Denumire Pret/buc (Tva inclus) Cumpara 1 1 2 HEX.SOCKET HD BOLT M5X25 (10 PCS) (949662) 297 RON 2 1 15 SPRING WASHER M5 (10 PCS) (949454) 1117 RON 3 1 1 TOP COVER (876179) 1453 RON 4 1 4 HEX.SOCKET HD BOLT M5X20 (10 PCS) (949757) 297 RON *5A 1 1 EXHAUST COVER (OLD 877128) (877917) 18678 RON *5A 1 1 EXHAUST COVER (OLD 876710P) (880275) 1998 RON 6 1 1 PACKING (B) (876176) 1453 RON *6 1 1 GASKET (F) (OLD 876712P) (876712) 3242 RON 7 1 1 GASKET (C) (876178) 1453 RON *7 1 1 GASKET (G) (OLD 876713P) (876713) 1453 RON 8 1 1 VALVE O-RING (872821) 297 RON 9A 1 1 EXHAUST VALVE (OLD 877370) (878417) 488 RON 10 1 1 HEAD CAP (877129) 13421 RON 10B 1 1 HEAD CAP (OLD 876711P) (876711) 25612 RON 11 1 1 PISTON O-RING (876174) 3578 RON 12 1 1 PISTON (877127) 4251 RON 13 1 3 O-RING (S-65) (876161) 297 RON 14 1 1 CYLINDER O-RING (D) (877126) 2236 RON 15 1 1 CYLINDER PLATE (876168) 7269 RON 16 1 1 @ CYLINDER (876632) 35790 RON 17 1 1 CYLINDER RING (876167) 1453 RON 18 1 1 CYLINDER SPRING (876172) 6374 RON 19 1 1 CYLINDER O-RING (A) (877123) 2348 RON 20 1 1 CYLINDER GUIDE (OLD 876631) (877122) 16441 RON 21 1 1 CYLINDER O-RING (B) (877124) 2683 RON *22A 1 1 877944 - Indisponibil 22B 1 1 - Indisponibil 23 1 1 CYLINDER O-RING (C) (877125) 2683 RON 25A 1 1 PISTON DAMPER (878359) 14763 RON 27 1 1 PACKING (A) (876673) 1453 RON 28 1 1 MAIN FEEDER SPRING (A) (876717) 5368 RON 29 1 2 ROLL PIN D2.5X10 (10 PCS) (949551) 2236 RON 30 1 1 SUB FEEDER SPRING (876691) 382 RON 31 1 1 FEEDER SHAFT (876689) 3578 RON 32 1 1 MAIN FEEDER (876688) 15658 RON 33 1 3 HEX.SOCKET HD.BOLT M5X16 (10 PCS) (949821) 2683 RON 34 1 1 SUB FEEDER (876707) 16553 RON 35 1 1 MACHINE SCREW M5X22 (10 PCS) (949242) 1788 RON 36 1 4 WASHER (876205) 1453 RON 37 1 1 950565 - Indisponibil 37C 1 1 878182 - Indisponibil 38 1 1 PACKING (D) (877131) 1453 RON *39A 1 1 878730 - Indisponibil *39A 1 1 CAP (OLD 876714P) (880036) 5591 RON 40A 1 1 @ AIR PLUG PT 1/4 (874782) 5815 RON 41 1 1 PLUNGER SPRING (875643) 1453 RON 42 1 2 PLUNGER O-RING (874820) 2236 RON 43 1 1 SAFETY PLUNGER (A) (876739) 7269 RON 43A 1 1 PLUNGER (A) (878122) 2348 RON 44A 1 1 876764 (876764) 17112 RON 44B 1 1 VALVE BUSHING (OLD 876735) (878266) 11184 RON 45 1 1 O-RING (S-12) (875638) 2236 RON 46 1 1 TRIGGER (876203) 2683 RON 47 1 1 SAFETY PLUNGER (B) (875642) 573 RON 48A 1 1 VALVE PACKING (OLD 875637) (878734) 1453 RON 49 1 1 URETHANE BALL (B) D7.14 (875645) 382 RON 50 1 1 VALVE PLATE (875644) 1453 RON 51B 1 1 TRIGGER VALVE BUSHING (OLD 876738) (877335) 6151 RON 52A 1 1 TRIGGER PLUNGER (878121) 2236 RON 53 1 3 ROLL PIN D3X30 (10 PCS) (949866) 3578 RON 54 1 1 - Indisponibil 55 1 1 SAFETY BOLT (875650) 1453 RON 56 1 1 SAFETY SPRING (876676) 1453 RON 56 1 1 SPRING (877943) 1453 RON 57A 1 1 PUSHING LEVER (G) (877941) 22144 RON 58 1 1 NUT M5 (10 PCS) (949555) 1453 RON 59 1 2 @ MACHINE SCREW M5X18 (10 PCS) (949240) 1453 RON 60 1 2 RETAINING RING (E-TYPE) FOR D3 SHAFT (872971) 1453 RON 61 1 1 STOPPER PIN (OLD 878951) (877150) 2236 RON 62 1 1 STOPPER SPRING (877149) 894 RON 63 1 1 877151 - Indisponibil 64 1 1 U-NUT M5 (945255) 1453 RON 65 1 1 MAGAZINE (877146) 11967 RON 66 1 1 HINGE PIN (OLD 878953) (877152) 2236 RON 67 1 1 @ MAGAZINE COVER (877147) 6151 RON 68 1 1 @ GUARD (877138) 297 RON 69 1 1 @ GUARD WASHER (877145) 2683 RON 70 1 1 MACHINE SCREW M5X12 (10 PCS) (949237) 1453 RON 71 1 1 NYLON NUT M4 (876465) 1453 RON 72B 1 1 877946 (877946) 15966 RON 73 1 1 MAIN NAIL STOPPER (877143) 12973 RON 74 1 1 MAIN STOPPER SPRING (876681) 1453 RON 75 1 1 @ SLEEVE (877148) 1453 RON 76 1 1 @ HOLDER SPRING (877141) 1453 RON 77 1 1 NAIL HOLDER (877140) 6151 RON 78 1 1 THRUST WASHER (875249) 1788 RON 79 1 2 SPRING WASHER M4 (10 PCS) (949453) 894 RON 80 1 1 MACHINE SCREW (W/SP.WASHER) M4X40 (986120) 1453 RON 81 1 1 LOCK SHAFT (876682) 382 RON 82 1 1 ROLL PIN D3X10 (10 PCS) (OLD 949776Z) (949776) 2348 RON 83 1 1 GUIDE LOCK (877374) 6822 RON 84 1 1 SPRING (877372) 2012 RON 85 1 2 HEX.SOCKET SET SCREW M5X10 (876705) 1453 RON 86 1 1 FEED PISTON COVER (877136) 2348 RON 87 1 1 PACKING (E) (877137) 1453 RON 88 1 1 O-RING (P-16) (873095) 894 RON 89 1 1 FEED PISTON (876692) 8835 RON 90 1 1 FEED SPRING (877144) 2236 RON 91 1 1 SPLIT PIN D2X15 (10 PCS) (OLD 949534Z) (949534) 1453 RON 91A 1 1 FEEDER SHAFT RING (877826) 2236 RON 92 1 1 @ NAIL GUIDE SHAFT (A) (876716) 6822 RON 93 1 1 SUB NAIL STOPPER (876679) 1700 RON 94 1 1 SUB STOPPER SPRING (876685) 2236 RON 95 1 1 @ NAIL GUIDE (877134) 4251 RON 96 1 1 @ NAIL GUIDE COVER (877135) 2683 RON 97 1 2 SCREW M4X6 (10 PCS) (949214) 1453 RON 98 1 1 877139 (877139) 27289 RON 99 1 1 DUST CAP (872035) 1453 RON 101 1 1 HEAD CAP RUBBER (877942) 6822 RON 103 1 4 NYLOCK HEX. SOCKET HD.BOLT M5X16 (878181) 1453 RON 104A 1 1 WARNING LABEL (884070) 2236 RON 105 1 2 O-RING (S-12) (875638) 2236 RON 105A 1 2 O-RING (I.D.10.7) (884112) 2236 RON 501B 1 1 875769 - Indisponibil 502 1 1 877153 - Indisponibil 503 1 1 HEX.BAR WRENCH 3MM (OLD 993822) (943277) 1229 RON 504 1 1 HEX.BAR WRENCH 4MM (944458) 1229 RON 505 1 1 VALVE O-RING (872821) 297 RON 506 1 1 CAUTION TAG (882413) 2236 RON 507 1 1 LEAFLET (882414) 1453 RON 602 1 1 @ AIR SOCKET 6MM (874116) 12526 RON 604 1 1 @ OIL FOR NAILER (1 LITER) (876212) 1232 RON 605 1 1 @ DRIVE CONTROLLER (876720) 47646 RON 606 1 1 HEX.BAR WRENCH 4MM (944458) 1229 RON 607 1 1 HEX.BAR WRENCH 3MM (OLD 993822) (943277) 1229 RON 608A 1 1 @ POWER SET (877908) 105360 RON 609 1 2 HEX.SOCKET HD.BOLT M5X65 (10 PCS) (949827) 6151 RON 610 1 4 @ HEX.SOCKET HD.BOLT M5X60 (10 PCS) (949826) 6151 RON 611 1 1 @ UPPER COVER (877909) 5101 RON 612 1 1 PACKING (H) (877911) 2683 RON 613 1 2 PACKING (J) W/4MM HOLE (877912) 1453 RON 614 1 1 EXHAUST PIECE (877910) 45968 RON 615 1 1 @SINGLE SHORT PARTS (876762) 5101 RON 616 1 2 @ GASKET (J) W/O 4MM HOLE (877915) 1453 RON 617 1 1 882950 (882950) 9354 RON 618 1 1 GRIP TAPE (OLD 880349) (881768) 4361 RON 619 1 2 TAPE (880407) 2236 RON 620 1 1 GREASE (ATTOLUB NO.2) 500G (317918) 20691 RON
