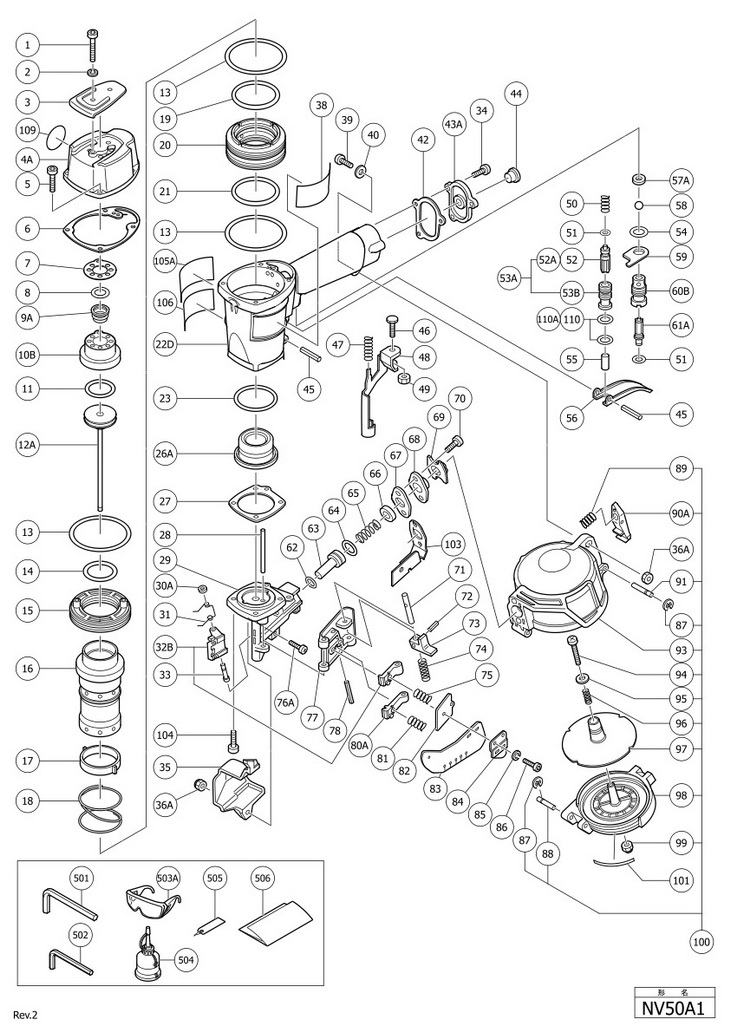

Top » Piese de schimb » PIESE HITACHI » NV50A1 NV50A1 [NV50A1] Click pentru a mari Imagini suplimentare Click pentru a mari LISTA DE COMPONENTE: Numar Versiune Buc. in schema Denumire Pret/buc (Tva inclus) Cumpara 1 1 2 HEX.SOCKET HD BOLT M5X25 (10 PCS) (949662) 297 RON 2 1 12 SPRING WASHER M5 (10 PCS) (949454) 1117 RON 3 1 1 TOP COVER (876179) 1453 RON 4A 1 1 EXHAUST COVER (OLD 876710P) (880275) 1998 RON 5 1 4 HEX.SOCKET HD BOLT M5X20 (10 PCS) (949757) 297 RON 6 1 1 GASKET (F) (OLD 876712P) (876712) 3242 RON 7 1 1 GASKET (G) (OLD 876713P) (876713) 1453 RON 8 1 2 VALVE O-RING (872821) 297 RON 9A 1 1 EXHAUST VALVE (OLD 877370) (878417) 488 RON 10B 1 1 HEAD CAP (OLD 876711P) (876711) 25612 RON 11 1 2 PISTON O-RING (876174) 3578 RON 12A 1 1 PISTON (877898) 78180 RON 13 1 3 O-RING (S-65) (876161) 297 RON 14 1 1 CYLINDER O-RING (D) (877126) 2236 RON 15 1 1 CYLINDER PLATE (876168) 7269 RON 16 1 1 CYLINDER (877486) 37468 RON 17 1 1 CYLINDER RING (876167) 1453 RON 18 1 1 CYLINDER SPRING (876172) 6374 RON 19 1 1 CYLINDER O-RING (A) (877123) 2348 RON 20 1 1 CYLINDER GUIDE (OLD 876631) (877122) 16441 RON 21 1 1 CYLINDER O-RING (B) (877124) 2683 RON *22D 1 1 882950 (882950) 9354 RON 23 1 1 CYLINDER O-RING (C) (877125) 2683 RON 26A 1 1 PISTON BUMPER (OLD 877461) (878179) 12079 RON 27 1 1 PACKING (A) (876673) 1453 RON 28 1 1 NAIL GUIDE SHAFT (877823) 573 RON 29 1 1 NOSE NV50A1 (877899) 169784 RON 30A 1 1 FEEDER SHAFT RING (877826) 2236 RON 31 1 1 FEEDER SPRING (877474) 2348 RON 32B 1 1 O-RING 17,17x1,78 FEEDER SET (OLD 877492) (880270) 446 RON 33 1 1 FEEDER SHAFT (877904) 6598 RON 34 1 3 HEX.SOCKET HD.BOLT M5X16 (10 PCS) (949821) 2683 RON 35 1 1 GUARD (877480) 3242 RON 36A 1 2 NYLON NUT M5 (877371) 1453 RON 38 1 1 - Indisponibil 39 1 1 MACHINE SCREW M5X20 (10 PCS) (949241) 1788 RON 40 1 1 WASHER (876205) 1453 RON 42 1 1 PACKING (D) (877131) 1453 RON 43A 1 1 CAP (OLD 876714P) (880036) 5591 RON 44 1 1 DUST CAP (872035) 1453 RON 45 1 2 ROLL PIN D3X30 (10 PCS) (949866) 3578 RON 46 1 1 SAFETY BOLT (875650) 1453 RON *47 1 1 SAFETY SPRING (876676) 1453 RON *47 1 1 SPRING (877943) 1453 RON 48 1 1 PUSHING LEVER (877890) 17783 RON 49 1 1 NUT M5 (10 PCS) (949555) 1453 RON 50 1 1 PLUNGER SPRING (875643) 1453 RON 51 1 2 PLUNGER O-RING (874820) 2236 RON 52 1 1 SAFETY PLUNGER (A) (876739) 7269 RON 52A 1 1 PLUNGER (A) (878122) 2348 RON 53A 1 1 876764 (876764) 17112 RON 53B 1 1 VALVE BUSHING (OLD 876735) (878266) 11184 RON 54 1 1 O-RING (S-12) (875638) 2236 RON 55 1 1 SAFETY PLUNGER (B) (875642) 573 RON 56 1 1 TRIGGER (876203) 2683 RON 57A 1 1 VALVE PACKING (OLD 875637) (878734) 1453 RON 58 1 1 URETHANE BALL (B) D7.14 (875645) 382 RON 59 1 1 VALVE PLATE (875644) 1453 RON 60B 1 1 TRIGGER VALVE BUSHING (OLD 876738) (877335) 6151 RON 61A 1 1 TRIGGER PLUNGER (878121) 2236 RON 62 1 1 O-RING (P-9) (872645) 2236 RON 63 1 1 FEED PISTON (877475) 10513 RON 64 1 1 O-RING (P-18) (873570) 1788 RON 65 1 1 FEED SPRING (876693) 2683 RON 66 1 1 DAMPER (877476) 2348 RON 67 1 1 FEED PISTON COVER (A) (877477) 1453 RON 68 1 1 FEED PISTON COVER (B) (877478) 297 RON 69 1 1 MAGAZINE BUSHING (877479) 1453 RON 70 1 2 HEX.SOCKET HD.BOLT M5X10 (10 PCS) (949819) 2683 RON 71 1 1 LOCK SHAFT (876682) 382 RON 72 1 1 ROLL PIN D3X10 (10 PCS) (OLD 949776Z) (949776) 2348 RON 73 1 1 GUIDE LOCK (877374) 6822 RON 74 1 1 SPRING (877372) 2012 RON 75 1 1 MAIN STOPPER SPRING (876681) 1453 RON 76A 1 1 MACHINE SCREW M5X16 (10 PCS) (949239) 1453 RON 77 1 1 NAIL GUIDE (877465) 4251 RON 78 1 1 ROLL PIN D3X28 (10 PCS) (949865) 2683 RON 80A 1 1 SUB NAIL STOPPER (877493) 12526 RON 81 1 1 SUB STOPPER SPRING (877468) 894 RON 82 1 1 NAIL GUIDE COVER (877469) 1453 RON 83 1 1 COVER (877470) 2236 RON 84 1 1 COVER PLATE (877471) 2683 RON 85 1 2 SPRING WASHER M4 (10 PCS) (949453) 894 RON 86 1 2 HEX.SOCKET HD.BOLT M4X8 (10 PCS) (949811) 2012 RON 87 1 2 RETAINING RING (E-TYPE) FOR D3 SHAFT (872971) 1453 RON 88 1 1 HINGE PIN (OLD 878953) (877152) 2236 RON 89 1 1 STOPPER SPRING (877149) 894 RON 90A 1 1 MAGAZINE STOPPER (OLD 877151) (880146) 1677 RON 91 1 1 STOPPER PIN (OLD 878951) (877150) 2236 RON 93 1 1 MAGAZINE (877906) 10513 RON 94 1 1 MACHINE SCREW M4X40 (10 PCS) (949228) 1788 RON 95 1 1 WASHER (875246) 894 RON 96 1 1 HOLDER SPRING (877894) 894 RON 97 1 1 NAIL HOLDER (877893) 6822 RON 98 1 1 MAGAZINE COVER (877895) 6151 RON 99 1 1 NYLON NUT M4 (876465) 1453 RON *100 1 1 877902 (877902) 27289 RON *100 1 1 877892 (877892) 27289 RON 101 1 1 @ LABEL NV50A1 (877903) 1453 RON 103 1 1 NAIL GUARD (877916) 5815 RON 104 1 4 NYLOCK HEX. SOCKET HD.BOLT M5X16 (878181) 1453 RON 105A 1 1 WARNING LABEL (884070) 2236 RON 106 1 1 WARNING LABEL (878183) 2348 RON 109 1 1 WARNING LABEL (A) (883513) 2236 RON 110 1 2 O-RING (S-12) (875638) 2236 RON 110A 1 2 O-RING (I.D.10.7) (884112) 2236 RON 501 1 1 HEX.BAR WRENCH 4MM (944458) 1229 RON 502 1 1 HEX.BAR WRENCH 3MM (OLD 993822) (943277) 1229 RON 503A 1 1 875769 - Indisponibil 504 1 1 877153 - Indisponibil 505 1 1 CAUTION TAG (882413) 2236 RON 506 1 1 LEAFLET (882414) 1453 RON 601 1 1 @ OIL FOR NAILER (1 LITER) (876212) 1232 RON 602 1 1 @ DRIVE CONTROLLER (876720) 47646 RON 606A 1 1 @ POWER SET (877908) 105360 RON 607 1 2 HEX.SOCKET HD.BOLT M5X65 (10 PCS) (949827) 6151 RON 608 1 4 @ HEX.SOCKET HD.BOLT M5X60 (10 PCS) (949826) 6151 RON 609 1 1 @ UPPER COVER (877909) 5101 RON 610 1 1 PACKING (H) (877911) 2683 RON 611 1 2 PACKING (J) W/4MM HOLE (877912) 1453 RON 612 1 1 EXHAUST PIECE (877910) 45968 RON 613 1 1 @SINGLE SHORT PARTS (876762) 5101 RON 614 1 2 @ GASKET (J) W/O 4MM HOLE (877915) 1453 RON 615 1 1 GREASE (ATTOLUB NO.2) 500G (317918) 20691 RON 616 1 1 GRIP TAPE (OLD 880349) (881768) 4361 RON 617 1 2 TAPE (880407) 2236 RON
