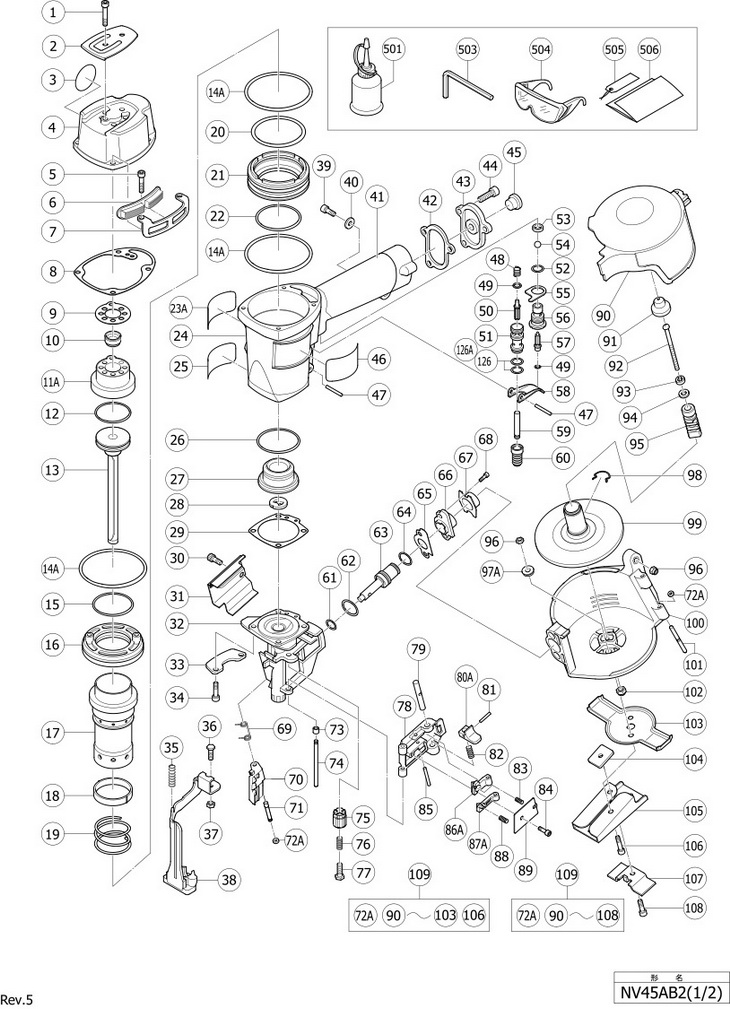

Top » Piese de schimb » PIESE HITACHI » NV45AB2 NV45AB2 [NV45AB2] Click pentru a mari Imagini suplimentare Click pentru a mari Click pentru a mari LISTA DE COMPONENTE: Numar Versiune Buc. in schema Denumire Pret/buc (Tva inclus) Cumpara 1 1 2 HEX.SOCKET HD BOLT M5X25 (10 PCS) (949662) 297 RON 2 1 1 TOP COVER (876179) 1453 RON 3 1 1 WARNING LABEL (A) (883513) 2236 RON 4A 1 1 888006 - Indisponibil 5 1 4 HEX.SOCKET HD BOLT M5X20 (10 PCS) (949757) 297 RON 6 1 2 PROTECTOR (883891) 2236 RON 7 1 2 BODY GUARD (883890) 6374 RON 8 1 1 GASKET (F) (883892) 2236 RON 9 1 1 GASKET (G) (OLD 876713P) (876713) 1453 RON 10 1 1 EXHAUST VALVE (OLD 877370) (878417) 488 RON 11A 1 1 HEAD CAP (OLD 876711P) (876711) 25612 RON 12 1 1 PISTON O-RING (876174) 3578 RON 13 1 1 PISTON BUMPER (878156) 14265 RON 14A 1 3 O-RING (I.D.64.5) (885793) 2795 RON 15 1 1 CYLINDER O-RING (D) (877126) 2236 RON 16 1 1 CYLINDER PLATE (876168) 7269 RON 17 1 1 CYLINDER (877486) 37468 RON 18 1 1 CYLINDER RING (876167) 1453 RON 19 1 1 CYLINDER SPRING (876172) 6374 RON 20 1 1 CYLINDER O-RING (A) (877123) 2348 RON 21 1 1 CYLINDER GUIDE (OLD 876631) (877122) 16441 RON 22 1 1 CYLINDER O-RING (B) (877124) 2683 RON 23A 1 1 WARNING LABEL (884070) 2236 RON 24 1 1 883889 (883889) 31875 RON 25 1 1 WARNING LABEL (878183) 2348 RON 26 1 1 CYLINDER O-RING (C) (877125) 2683 RON 27 1 1 PISTON BUMPER (OLD 877461) (878179) 12079 RON 28 1 1 DAMPER SHEET (877993) 297 RON 29 1 1 PACKING (A) (883881) 1453 RON 30 1 2 HEX.SOCKET HD.BOLT M5X8 (10 PCS) (949818) 2348 RON 31 1 1 GUARD (878151) 3242 RON 32 1 1 TAIL COVER (883880) 80529 RON 33 1 2 @ NOSE GUARD NV45AB (878173) 3578 RON 34 1 4 NYLOCK HEX. SOCKET HD.BOLT M5X16 (878181) 1453 RON 35 1 1 SPRING (878178) 2012 RON 36 1 1 SAFETY BOLT (875650) 1453 RON 37 1 1 NUT M5 (10 PCS) (949555) 1453 RON 38 1 1 883888 (883888) 17671 RON 39 1 1 MACHINE SCREW M5X22 (10 PCS) (949242) 1788 RON 40 1 1 WASHER (876205) 1453 RON 41 1 1 - Indisponibil 42 1 1 PACKING (D) (877131) 1453 RON 43 1 1 CAP (OLD 876714P) (880036) 5591 RON 44 1 3 HEX.SOCKET HD.BOLT M5X16 (10 PCS) (949821) 2683 RON 45 1 1 DUST CAP (872035) 1453 RON 46 1 1 - Indisponibil 47 1 2 ROLL PIN D3X30 (10 PCS) (949866) 3578 RON 48 1 1 PLUNGER SPRING (875643) 1453 RON 49 1 2 PLUNGER O-RING (874820) 2236 RON 50 1 1 PLUNGER (A) (878155) 14092 RON 51 1 1 VALVE BUSHING (878166) 26618 RON 52 1 1 O-RING (S-12) (875638) 2236 RON 53 1 1 VALVE PACKING (OLD 875637) (878734) 1453 RON 54 1 1 URETHANE BALL (B) D7.14 (875645) 382 RON 55 1 1 VALVE PLATE (875644) 1453 RON 56 1 1 TRIGGER VALVE BUSHING (OLD 876738) (877335) 6151 RON 57 1 1 TRIGGER PLUNGER (878121) 2236 RON 58 1 1 TRIGGER (876203) 2683 RON 59 1 1 PLUNGER (B) (878171) 5368 RON 60 1 1 VALVE RUBBER COVER (878170) 2236 RON 61 1 1 O-RING (P-9) (872645) 2236 RON 62 1 1 FEED PISTON O-RING (I.D.14) (877763) 1453 RON 63 1 1 FEED PISTON (878152) 13085 RON 64 1 1 FEED PISTON (877764) 1453 RON 65 1 1 PACKING (877767) 894 RON 66 1 1 @ FEED PISTON COVER (877766) 23934 RON 67 1 1 MAGAZINE BUSHING (877479) 1453 RON 68 1 2 HEX.SOCKET HD.BOLT M5X10 (10 PCS) (949819) 2683 RON 69 1 1 FEEDER SPRING (877761) 2683 RON 70 1 1 FEEDER (A) (883901) 16441 RON 71 1 1 FEEDER SHAFT (877825) 5032 RON 72A 1 2 FEEDER SHAFT RING (877826) 2236 RON 73 1 1 SHAFT RING (883885) 1453 RON 74 1 1 NAIL GUIDE SHAFT (883884) 3019 RON 75 1 1 ADJUSTER STOPPER (883882) 1453 RON 76 1 1 ADJUSTER SPRING (883883) 1453 RON 77 1 1 BOLT (OLD 958805Z) (958805) 1453 RON 78 1 1 NAIL GUIDE (883887) 23487 RON 79 1 1 LOCK SHAFT (877820) 2795 RON 80A 1 1 GUIDE LOCK (A) (326774) 4025 RON 81 1 1 ROLL PIN D3X10 (10 PCS) (OLD 949776Z) (949776) 2348 RON 82 1 1 SPRING (877372) 2012 RON 83 1 1 MAIN STOPPER SPRING (876681) 1453 RON 84 1 2 HEX.SOCKET HD.BOLT M4X6 (10 PCS) (949766) 2348 RON 85 1 1 ROLL PIN D3X28 (10 PCS) (949865) 2683 RON 86A 1 1 MAIN NAIL STOPPER (A) (886060) 3019 RON 87A 1 1 NAIL STOPPER (A) (886061) 3019 RON 88 1 1 SUB STOPPER SPRING (877468) 894 RON 89 1 1 NAIL GUIDE COVER (877469) 1453 RON 90 1 1 MAGAZINE COVER (883899) 4025 RON 91 1 1 HOLDER CAP (883900) 1453 RON 92 1 1 SCREW M4X50 (10 PCS) (949230) 2236 RON 93 1 1 SPRING WASHER M4 (10 PCS) (949453) 894 RON 94 1 1 WASHER M4 (10 PCS) (949423) 894 RON 95 1 1 HOLDER SHAFT (883897) 1453 RON 96 1 3 U-NUT M5 (945255) 1453 RON 97A 1 2 SLEEVE (878164) 6039 RON 98 1 1 RATCHET SPRING (880398) 4025 RON 99 1 1 NAIL HOLDER (883896) 3019 RON 100 1 1 MAGAZINE (883895) 4025 RON 101 1 1 PIN (883111) 5032 RON 102 1 1 NYLON NUT M4 (876465) 1453 RON 103 1 1 MAGAZINE GUARD (883898) 3690 RON 104 1 1 @ PLATE NUT (878213) 4249 RON 105 1 1 @GUIDE BASE (878176) 5368 RON 106 1 2 HEX.SOCKET HD.BOLT M5X14 (10 PCS) (949665) 2124 RON 107 1 1 @SINGLE GUIDE (878175) 4249 RON 108 1 1 HEX.SOCKET HD.BOLT M5X10 (10 PCS) (949819) 2683 RON *109 1 1 883893 (883893) 29750 RON *109 1 1 883894 (883894) 39257 RON *109 1 1 878174 (878174) 42389 RON 110 1 1 MACHINE SCREW M5X20 (10 PCS) (949241) 1788 RON 111 1 1 NAIL GUIDE (878153) 45968 RON 112 1 1 STOPPER SPRING (877149) 894 RON 113 1 1 MAGAZINE STOPPER (OLD 877151) (880146) 1677 RON 114 1 1 STOPPER PIN (OLD 878951) (877150) 2236 RON 115 1 2 RETAINING RING (E-TYPE) FOR D3 SHAFT (872971) 1453 RON 116 1 1 MAGAZINE (878158) 7493 RON 117 1 1 MACHINE SCREW M4X40 (10 PCS) (949228) 1788 RON 118 1 1 WASHER (875246) 894 RON 119 1 1 HOLDER SPRING (877894) 894 RON 120 1 1 NAIL COVER (878159) 5480 RON 121 1 1 MAGAZINE COVER (878161) 573 RON 122 1 1 MAGAZINE GUARD (878163) 5368 RON 123 1 1 HINGE PIN (OLD 878953) (877152) 2236 RON 124 1 4 WASHER M5 (10 PCS) (949424) 1453 RON 125 1 2 HEX.SOCKET HD.BOLT M5X16 (10 PCS) (949821) 2683 RON 126 1 2 O-RING (S-12) (875638) 2236 RON 126A 1 2 O-RING (I.D.10.7) (884112) 2236 RON 501 1 1 877153 - Indisponibil 503 1 1 HEX.BAR WRENCH 4MM (944458) 1229 RON 504 1 1 875769 - Indisponibil 505 1 1 878188 - Indisponibil 506 1 1 LEAFLET (882414) 1453 RON 601 1 1 SINGLE SHOT PARTS (878226) 5101 RON 602 1 1 GRIP TAPE (OLD 880349) (881768) 4361 RON 603 1 2 TAPE (880407) 2236 RON 604 1 1 GREASE (ATTOLUB NO.2) 500G (317918) 20691 RON
