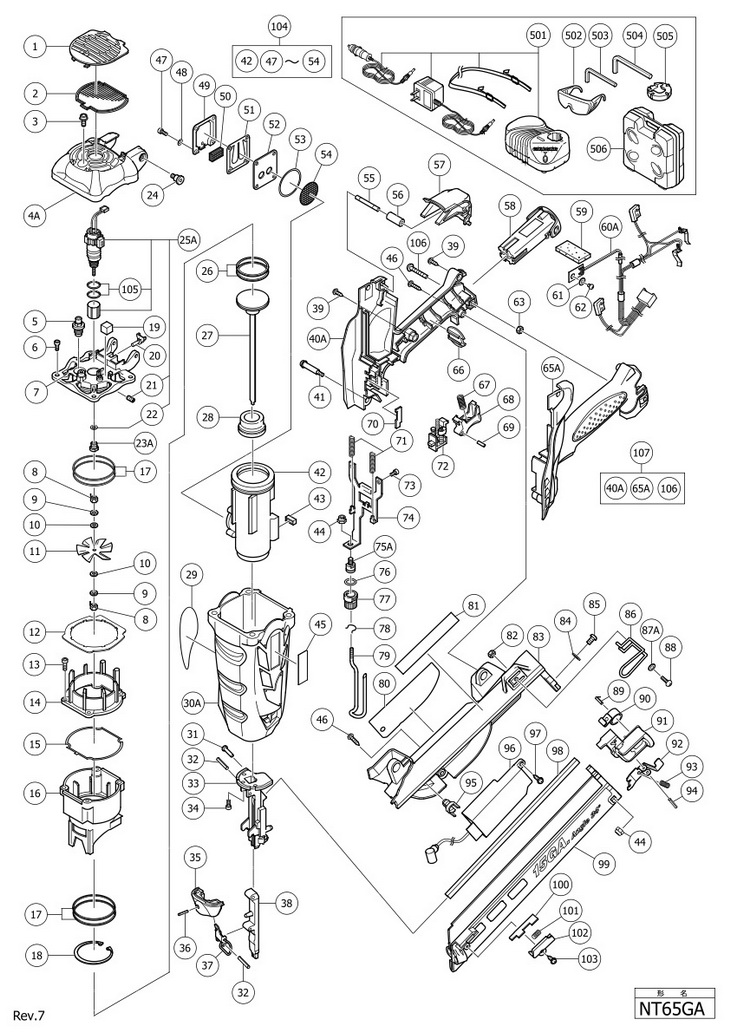

Top » Piese de schimb » PIESE HITACHI » NT65GA NT65GA [NT65GA] Click pentru a mari Imagini suplimentare Click pentru a mari LISTA DE COMPONENTE: Numar Versiune Buc. in schema Denumire Pret/buc (Tva inclus) Cumpara 1 1 1 FILTER COVER (OLD 886343) (886664) 1453 RON 2 1 1 FILTER MESH (886344) 6486 RON 3 1 1 HEX. SOCKET HD. BOLT M5X10 (886347) 1453 RON 4 1 1 TOP COVER (886335) 3019 RON 5 1 1 SPARK PLUG (A) (885333) 3242 RON 6 1 4 NYLOCK HEX. SOCKET HD.BOLT M4X12 (880630) 1453 RON 7 1 1 CYLINDER HEAD (886661) 12973 RON 8 1 2 NUT M3 (10 PCS) (949553) 1453 RON 9 1 2 SPRING WASHER M3 (10 PCS) (949451) 1453 RON 10 1 2 WASHER M3 (10 PCS) (OLD 949422Z) (949422) 1453 RON 11 1 1 FAN (886309) 2795 RON 12 1 1 RUBBER PLATE (886568) 1453 RON 13 1 4 HEX.SOCKET HD.BOLT M4X16 (10 PCS) (949754) 2348 RON 14 1 1 886609 - Indisponibil 15 1 1 GASKET (886296) 1453 RON 16 1 1 CHAMBER (886297) 6710 RON 17 1 4 PISTON RING (886312) 2795 RON 18 1 1 RETAINING RING FOR D40 HOLE (886298) 1453 RON 19 1 1 PACKING (886315) 1453 RON 20 1 1 ADAPTER (886313) 1453 RON 21 1 2 HEX. SOCKET SET SCREW M4X5 (886314) 1453 RON 22 1 1 SHAFT RUBBER WASHER (886567) 1453 RON 23A 1 1 887890 - Indisponibil 24 1 2 HEX. SHOULDER BOLT M5 (886566) 1453 RON 25A 1 1 887446 (887446) 58271 RON 26 1 2 PISTON RING (A) (886286) 4025 RON 27 1 1 886585 - Indisponibil 28 1 1 PISTON BUMPER (886289) 2795 RON 29 1 1 - Indisponibil 30A 1 1 HOUSING (OLD 886549) (331425) 6486 RON 31 1 1 886610 - Indisponibil 32 1 2 ROLL PIN D3X16 (10 PCS) (OLD 949496Z) (949496) 2348 RON 33 1 1 886611 - Indisponibil 34 1 3 SEAL LOCK HEX. SOCKET HD. BOLT M4X12 (886311) 1453 RON 35 1 1 886587 - Indisponibil 36 1 1 ROLL PIN D3X10 (10 PCS) (OLD 949776Z) (949776) 2348 RON 37 1 1 886586 - Indisponibil 38 1 1 886612 - Indisponibil 39 1 2 TAPPING SCREW D4X16 (W/FLANGE) BLACK (305812) 894 RON 40A 1 1 HANDLE (B) (NEW 331424) (886317) 488 RON 41 1 1 HEX. SHOULDER BOLT M4X32 (886565) 1453 RON 42 1 1 886584 - Indisponibil 43 1 1 CHAMBER STOP RUBBER (886285) 1453 RON 44 1 3 NYLON NUT M5 (877371) 1453 RON 45 1 1 HITACHI PLATE (886342) 2236 RON 46 1 2 TAPPING SCREW D4X20 (W/FLANGE) BLACK (302086) 1453 RON 47 1 4 SEAL LOCK HEX. SOCKET HD. BOLT M4X8 (886307) 1453 RON 48 1 4 BELLEVILLE SPRING H8 (886319) 1453 RON 49 1 1 BUFFER COVER (886287) 4025 RON 50 1 1 MUFFLER (886288) 2795 RON 51 1 1 REED VALVE (886290) 3019 RON 52 1 1 BUFFER PLATE (886293) 2795 RON 53 1 1 O-RING (886294) 1453 RON 54 1 1 MESH (886292) 3019 RON 55 1 1 CELL PIN (886332) 1453 RON 56 1 1 PIPE RUBBER (886333) 1453 RON 57 1 1 ACTUATER (886326) 2795 RON 58 1 2 326263 - Indisponibil 59 1 1 SUPPORT (886316) 1453 RON 60A 1 1 INTERNAL WIRE (A) (OLD 886321) NEW OCT (887635) 40264 RON 61 1 1 WASHER M4 (10 PCS) (949423) 894 RON 62 1 1 MACHINE SCREW M4X10 (10 PCS) (OLD 949216Z) (949216) 894 RON 63 1 1 LOCK NUT M4 (BLACK) (886330) 1453 RON 65A 1 1 886323 - Indisponibil 66 1 1 TERMINAL SUPPORT (326316) 1453 RON 67 1 1 TRIGGER SPRING (886328) 1453 RON 68 1 1 TRIGGER (886327) 1453 RON 69 1 1 PIN D3X20 (10 PCS) (949890) 2348 RON 70 1 1 CORD COVER PLATE (886324) 1453 RON 71 1 2 CHAMBER SPRING (886301) 1453 RON 72 1 1 TRIGGER STOPPER (886552) 3019 RON 73 1 2 SEAL LOCK HEX. SOCKET HD. BOLT M4X10 (886308) 1453 RON 74 1 1 886613 - Indisponibil 75A 1 1 PUSHING LEVER PIECE (OLD 886300) (887035) 3019 RON 76 1 1 O-RING (S-8) (992912) 1453 RON 77 1 1 ADJUSTER (886338) 2795 RON 78 1 1 RATCHET SPRING (886331) 1453 RON 79 1 1 886589 - Indisponibil 80 1 1 - Indisponibil 81 1 1 - Indisponibil 82 1 1 886614 - Indisponibil 83 1 1 886592 - Indisponibil 84 1 2 BOLT WASHER M5 (10 PCS) (OLD 949431Z) (949431) 1453 RON 85 1 2 MACHINE SCREW M5X15 BLACK (885997) 1453 RON 86 1 1 HOOK (886345) 3019 RON 87A 1 1 WASHER NEW (887036) 1453 RON 88 1 1 TRUSS HD. SCREW M4 (BLACK) (886346) 1453 RON 89 1 1 ROLL PIN D3X16 (10 PCS) (OLD 949496Z) (949496) 2348 RON 90 1 1 RIBBON SPRING (881755) 3242 RON 91 1 1 NAIL FEEDER (B) (886340) 2795 RON 92 1 1 886590 - Indisponibil 93 1 1 STOPPER SPRING (C) (886604) 1453 RON 94 1 1 ROLL PIN D2.5X26 (OLD 886334) (886605) 1453 RON 95 1 1 PRISM (886322) 1453 RON 96 1 1 CONTROLLER (886320) 40264 RON 97 1 1 TAPPING SCREW D4X12 (W/FLANGE) BLACK (325083) 2236 RON 98 1 1 886591 - Indisponibil 99 1 1 886588 - Indisponibil 100 1 1 886615 - Indisponibil 101 1 1 PUSHING STOPPER SPRING (886619) 1453 RON 102 1 1 886616 - Indisponibil 103 1 1 TAPPING SCREW 3X10 (W/FLANGE) (306371) 1453 RON 104 1 1 886618 - Indisponibil 105 1 2 O-RING (S-12) (875638) 2236 RON 106 1 1 TRUSS HD. SCREW M4X25 (BLACK) NEW (887034) 1453 RON 107 1 1 331424 (331424) 12414 RON 501 1 1 - Indisponibil 502 1 1 875769 - Indisponibil 503 1 1 HEX.BAR WRENCH 3MM (OLD 993822) (943277) 1229 RON 504 1 1 HEX.BAR WRENCH 4MM (944458) 1229 RON 505 1 1 NOSE CAP (A) (886349) 1453 RON 506 1 1 886617 - Indisponibil
