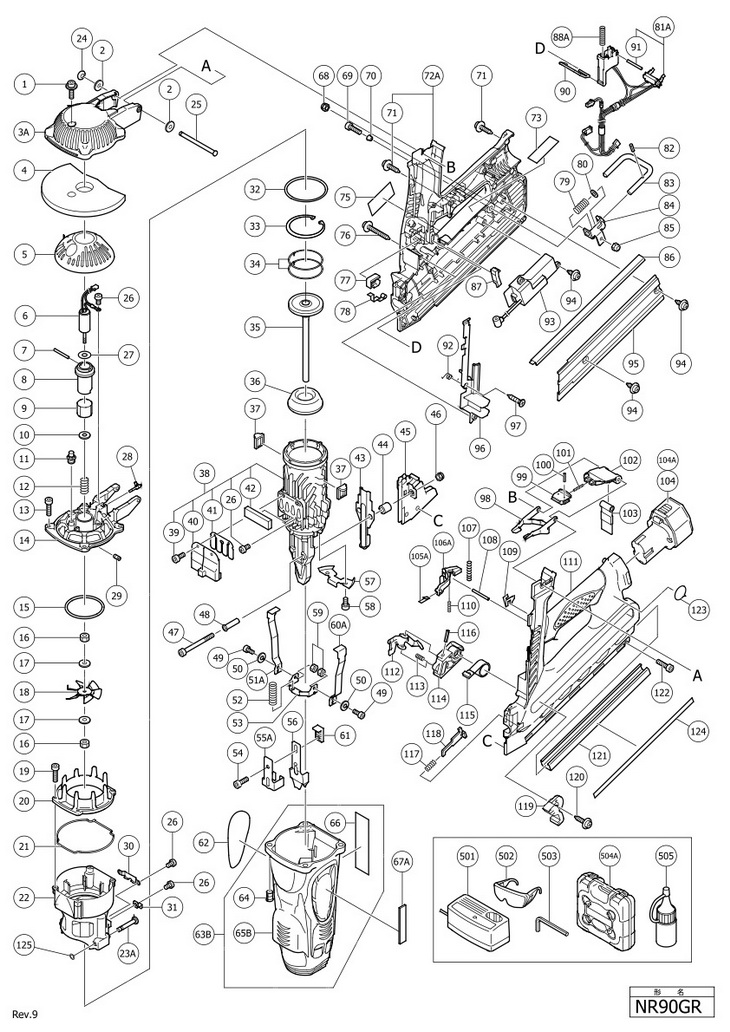

Top » Piese de schimb » PIESE HITACHI » NR90GR NR90GR [NR90GR] Click pentru a mari Imagini suplimentare Click pentru a mari LISTA DE COMPONENTE: Numar Versiune Buc. in schema Denumire Pret/buc (Tva inclus) Cumpara 1 1 1 HEX.SOCKET HD.BOLT M5X12 (W/FLANGE) (996399) 894 RON 2 1 2 WASHER M5 (10 PCS) (949424) 1453 RON 3A 1 1 TOP COVER (OLD 885353) (886142) 5927 RON 4 1 1 FILTER (885274) 3242 RON 5 1 1 FILTER COVER (885275) 2012 RON 6 1 1 MOTOR NR90GC/NR90GR (885309) 50889 RON 7 1 1 ROLL PIN D2.5X25 (885318) 2236 RON 8 1 1 MOTOR MOUNT (885310) 6374 RON 9 1 1 MOUNT SLEEVE (885314) 2236 RON 10 1 1 SHAFT WASHER (885320) 2236 RON 11 1 1 SPARK PLUG (A) (885333) 3242 RON 12 1 1 MOTOR SPRING (885319) 2236 RON 13 1 4 HEX.SOCKET HD BOLT M5X20 (10 PCS) (949757) 297 RON 14 1 1 CYLINDER HEAD (885308) 12973 RON 15 1 1 O-RING (I.D 59.92) (885316) 4025 RON 16 1 2 NUT M4 (10 PCS) (949554) 894 RON 17 1 2 WASHER M4 (10 PCS) (949423) 894 RON 18 1 1 FAN (885311) 4025 RON 19 1 4 HEX.SOCKET HD.BOLT M4X16 (10 PCS) (949754) 2348 RON 20 1 1 CHAMBER HEAD (885294) 6822 RON 21 1 1 GASKET (A) (885295) 3242 RON 22 1 1 CHAMBER (885296) 14315 RON 23A 1 2 PIN (A) (OLD 885921) (886484) 2236 RON 24 1 1 SHAFT RING (880319) 2236 RON 25 1 1 SHAFT (885277) 3242 RON 26 1 6 SCREW M4X6 (10 PCS) (949214) 1453 RON 27 1 1 RUBBER WASHER (885313) 2236 RON 28 1 1 ADAPTER (885317) Indisponibil Indisponibil 29 1 2 HEX.SOCKET SET SCREW M4X5 (961681) 894 RON 30 1 1 CHAMBER LOCK PLATE (885297) 3242 RON 31 1 1 SWITCH PLATE (885306) 2236 RON 32 1 1 O-RING (I.D 66.27) (885283) 5368 RON 33 1 1 RETAINING RING (885285) 2236 RON 34 1 2 PISTON RING (885286) 6822 RON 35 1 1 PISTON (885619) 34112 RON 36 1 1 PISTON BUMPER (885289) 5591 RON *37 1 2 CHAMBER STOP RUBBER (OLD 885790) (885284) 2236 RON 38 1 1 885618 (885618) 64647 RON 39 1 3 HEX.SOCKET HD.BOLT M4X10 (10 PCS) (949812) 2348 RON 40 1 1 BUFFER COVER (885287) 4025 RON 41 1 1 LEAD VALVE (885290) 2236 RON 42 1 1 MUFFLER (885288) 8835 RON 43 1 1 BLADE GUIDE (885632) 5591 RON 44 1 2 PLATE SLEEVE (885270) 2236 RON 45 1 1 SIDE PLATE (885622) 16217 RON 46 1 2 U-NUT M5 (945255) 1453 RON 47 1 2 HEX.SOCKET HD.BOLT M5X50 (10 PCS) (949897) 5368 RON 48 1 2 NOSE SLEEVE (885269) 2236 RON 49 1 2 SEAL LOCK HEX. SOCKET HD. BOLT M4X10 (878356) 1453 RON 50 1 2 SPRING WASHER M4 (10 PCS) (949453) 894 RON 51A 1 1 PUSHING LEVER ARM (D) (886547) 4025 RON 52 1 2 PUSHING LEVER SPRING (885305) 2236 RON 53 1 1 PUSHING LEVER CONNECTOR (885301) 4025 RON 54 1 1 HEX.SOCKET HD.BOLT M5X10 (10 PCS) (949819) 2683 RON 55A 1 1 PUSHING STOPPER (OLD 885273) (886128) 5368 RON 56 1 1 PUSHING LEVER (885271) 765 RON 57 1 1 CYLINDER PLATE (885625) 6374 RON 58 1 2 SEAL LOCK HEX. SOCKET HD. BOLT M5X10 (980046) 2236 RON 59 1 2 U-NUT M4 (956329) 1453 RON 60A 1 1 PUSHING LEVER ARM (C) (OLD 885787 ) (886546) 4025 RON 61 1 1 ADJUSTER BUSH (S) (885272) 5368 RON 62 1 1 - Indisponibil 63B 1 1 886244 (886244) Indisponibil Indisponibil 64 1 4 SCREW M5 (885304) 2236 RON 65B 1 1 HOUSING (OLD 885822) (886134) 15434 RON 66 1 1 INSULATOR SHEET (885307) 2236 RON 67A 1 1 - Indisponibil 68 1 1 NYLON NUT M4 (876465) 1453 RON 69 1 1 HEX.SOCKET HD.BOLT M5X15 (10 PCS) (949820) 2683 RON 70 1 1 SLEEVE (878164) 6039 RON 71 1 5 TAPPING SCREW D4X20 (W/FLANGE) BLACK (302086) 1453 RON 72A 1 1 886035 (886035) 22144 RON 73 1 1 - Indisponibil 75 1 1 - Indisponibil 76 1 1 TAPPING SCREW D4X45 (W/FLANGE) (301815) 1453 RON 77 1 1 SWITCH MOUNT (885334) 2236 RON 78 1 1 SWITCH ARM (885347) 2236 RON 79 1 1 SPRING D12 (885345) 2236 RON 80 1 1 WASHER (B) (956161) 2236 RON 81A 1 1 TRIGGER INTERNAL WIRE SET (885799) 23711 RON 82 1 1 ROLL PIN D3X14 (10 PCS) (949900) 2348 RON 83 1 1 HOOK (885343) 6374 RON 84 1 1 BRACKET (885344) 3242 RON 85 1 1 NYLON NUT M5 (877371) 1453 RON 86 1 1 NAIL RAIL (885629) 765 RON 87 1 1 PRISM (A) (885628) 3242 RON 88A 1 1 TRIGGER SPRING (OLD 885336) (885828) 2236 RON 90 1 1 CHAMBER LOCK BAR (885340) 3242 RON 91 1 1 ROLL PIN D2.5X10 (10 PCS) (949551) 2236 RON 92 1 1 LOCK BAR SPRING (885337) 2236 RON *93 1 1 CONTROLLER (885331) 5101 RON *93 1 1 CONTROLLER NEW (885595) 5101 RON 94 1 3 TAPPING SCREW D4X14 (W/FLANGE) BLACK (309933) 1453 RON 95 1 1 MAGAZINE PLATE (A) (885630) 5368 RON 96 1 1 WIRING COVER (885339) 3242 RON 97 1 1 FLAT HD TAPPING SCREW D4 (885346) 2236 RON 98 1 1 CELL LEVER (885276) 4025 RON 99 1 1 LATCH (885280) 2236 RON 100 1 2 ROLL PIN D2X8 (10 PCS) (949859) 1788 RON 101 1 1 SPRING D3.6 (885281) 2236 RON 102 1 1 CELL COVER (885352) 3242 RON 103 1 1 CELL RUBBER (885279) 3242 RON *104 1 2 324148 - Indisponibil 104A 1 1 325292 - Indisponibil 105A 1 1 TENSION PLATE (OLD 885351) (NEW 886683) (885824) 2236 RON 106A 1 1 SWITCH LEVER (OLD 885631) (885826) 3242 RON 107 1 2 SPRING (885518) 2236 RON 108 1 1 PIN D2.5 (885349) 2236 RON 109 1 1 LEVER STOPPER (885329) 2236 RON 110 1 1 SPRING D2.95 (885350) 2236 RON 111 1 1 885620 - Indisponibil 112 1 1 NAIL FEEDER (885621) 5368 RON 113 1 1 SPRING (883687) 2236 RON 114 1 1 NAIL FEEDER (B) (885324) 3242 RON 115 1 1 RIBBON SPRING (885325) 6374 RON 116 1 1 ROLL PIN D4X28 (10 PCS) (949506) 297 RON 117 1 1 SPRING D8 (885328) 2236 RON 118 1 1 PUSHING LEVER STOPPER (A) (885623) 4025 RON 119 1 1 FEEDER KNOB (885322) 3242 RON 120 1 1 TAPPING SCREW D5X20 (W/FLANGE) BLACK (302089) 1453 RON 121 1 1 MAGAZINE GUARD (885354) 5591 RON 122 1 1 HEX.SOCKET HD BOLT M4X18 (880003) 1453 RON 123 1 1 - Indisponibil 124 1 1 - Indisponibil 125 1 2 PLUNGER O-RING (878607) 1453 RON 501 1 1 - Indisponibil 502 1 1 875769 - Indisponibil 503 1 1 HEX.BAR WRENCH 4MM (944458) 1229 RON 504A 1 1 PLASTIC CARRYING CASE (OLD 885633) (886146) 39145 RON 505 1 1 886036 - Indisponibil *601 1 1 885246 - Indisponibil *601 1 1 885546 - Indisponibil 602 1 1 GREASE (ATTOLUB NO.2) 500G (317918) 20691 RON 603 1 1 885788 (885788) 1424 RON 604 1 1 RUBBER NOSE (885791) 382 RON
