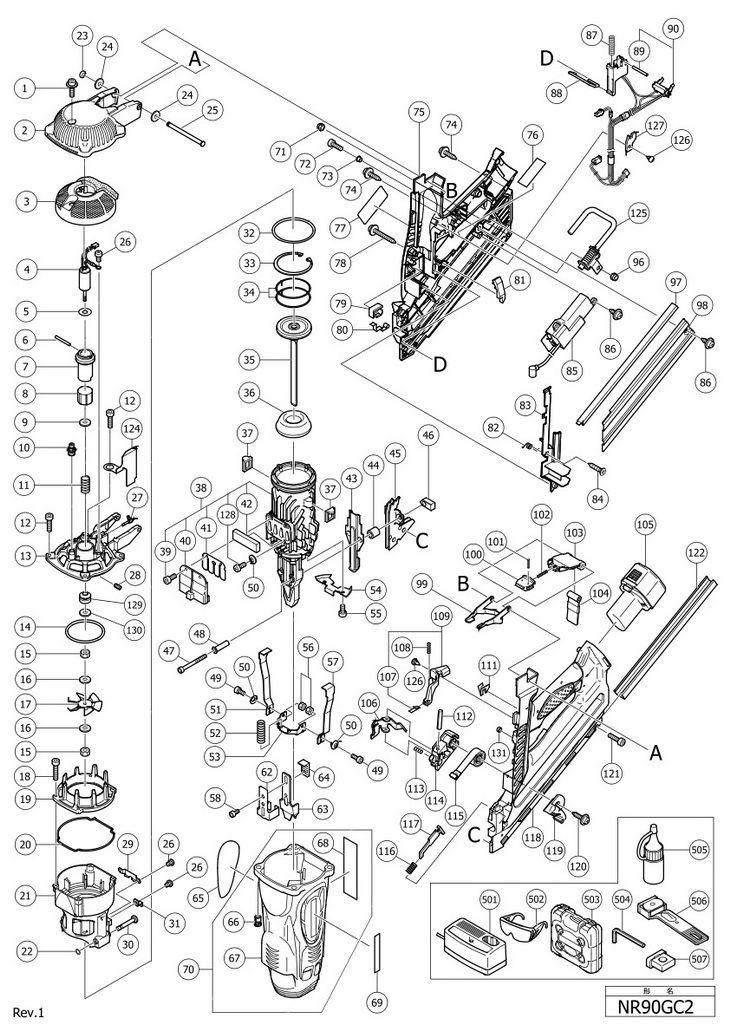

Top » Piese de schimb » PIESE HITACHI » NR90GC2 NR90GC2 [NR90GC2] Click pentru a mari Imagini suplimentare Click pentru a mari LISTA DE COMPONENTE: Numar Versiune Buc. in schema Denumire Pret/buc (Tva inclus) Cumpara 1 1 1 HEX.SOCKET HD.BOLT M5X12 (W/FLANGE) (996399) 894 RON 2A 1 1 TOP COVER CARAT GFN3490 (886598) 5927 RON 3 1 1 886129 (886129) 12973 RON 4 1 1 MOTOR NR90GC/NR90GR (885309) 50889 RON 5 1 1 RUBBER WASHER (885313) 2236 RON 6 1 1 ROLL PIN D2.5X25 (885318) 2236 RON 7 1 1 MOTOR MOUNT (885310) 6374 RON 8 1 1 MOUNT SLEEVE (885314) 2236 RON 9 1 1 SHAFT WASHER (885320) 2236 RON 10 1 1 SPARK PLUG (A) (885333) 3242 RON 11 1 1 MOTOR SPRING (885319) 2236 RON 12 1 4 HEX.SOCKET HD BOLT M5X20 (10 PCS) (949757) 297 RON 13 1 1 CYLINDER HEAD (885308) 12973 RON 14 1 1 O-RING (I.D 59.92) (885316) 4025 RON 15 1 2 NUT M4 (10 PCS) (949554) 894 RON 16 1 2 WASHER M4 (10 PCS) (949423) 894 RON 17 1 1 FAN (885311) 4025 RON 18 1 4 HEX.SOCKET HD.BOLT M4X16 (10 PCS) (949754) 2348 RON 19 1 1 CHAMBER HEAD (885294) 6822 RON 20 1 1 GASKET (B) (886133) 2236 RON 21 1 1 CHAMBER (885296) 14315 RON 22 1 2 PLUNGER O-RING (878607) 1453 RON 23 1 1 SHAFT RING (880319) 2236 RON 24 1 2 BOLT WASHER M5 (10 PCS) (OLD 949431Z) (949431) 1453 RON 25 1 1 SHAFT (885277) 3242 RON 26 1 4 SCREW M4X6 (10 PCS) (949214) 1453 RON 27 1 1 ADAPTER (885317) Indisponibil Indisponibil 28 1 2 HEX.SOCKET SET SCREW M4X5 (961681) 894 RON 29 1 1 CHAMBER LOCK PLATE (885297) 3242 RON 30 1 2 PIN (A) (OLD 885921) (886484) 2236 RON 31 1 1 SWITCH PLATE (885306) 2236 RON 32 1 1 O-RING (I.D 66.27) (885283) 5368 RON 33 1 1 RETAINING RING (885285) 2236 RON 34 1 2 PISTON RING (885286) 6822 RON 35 1 1 PISTON (885291) 47646 RON 36 1 1 PISTON BUMPER (885289) 5591 RON *37 1 2 CHAMBER STOP RUBBER (OLD 885790) (885284) 2236 RON 38 1 1 885361 (885361) 64647 RON 39 1 2 HEX.SOCKET HD.BOLT M4X10 (10 PCS) (949812) 2348 RON 40 1 1 BUFFER COVER (886467) 2236 RON 41 1 1 LEAD VALVE (885290) 2236 RON 42 1 1 MUFFLER (885288) 8835 RON 43 1 1 BLADE GUIDE (885355) 4025 RON 44 1 2 PLATE SLEEVE (885270) 2236 RON 45 1 1 SIDE PLATE (885326) 1147 RON 46 1 2 SPECIAL NUT M5 (886544) 5815 RON 47 1 2 NYLOCK HEX. SOCKET HD.BOLT M5X50 (886545) 2236 RON 48 1 2 NOSE SLEEVE (885269) 2236 RON 49 1 2 SEAL LOCK HEX. SOCKET HD. BOLT M4X10 (886241) 2236 RON 50 1 4 BELLEVILLE SPRING M4 (886242) 2236 RON 51 1 1 PUSHING LEVER ARM (C) (OLD 885787 ) (886546) 4025 RON 52 1 2 PUSHING LEVER SPRING (886245) 2236 RON 53 1 1 PUSHING LEVER CONNECTOR (885301) 4025 RON 54 1 1 CYLINDER PLATE (885299) 4025 RON 55 1 2 SEAL LOCK HEX. SOCKET HD. BOLT M5X10 (980046) 2236 RON 56 1 2 U-NUT M4 (956329) 1453 RON 57 1 1 PUSHING LEVER ARM (D) (886547) 4025 RON 58 1 1 HEX.SOCKET HD.BOLT M5X10 (10 PCS) (949819) 2683 RON 62 1 1 PUSHING STOPPER (OLD 885273) (886128) 5368 RON 63 1 1 PUSHING LEVER (A) (886144) 5368 RON 64 1 1 ADJUSTER BUSH (S) (885272) 5368 RON 65 1 1 - Indisponibil 66 1 4 SCREW M5 (885304) 2236 RON 67 1 1 HOUSING (OLD 885822) (886134) 15434 RON 68 1 1 INSULATOR SHEET (885307) 2236 RON 69 1 1 - Indisponibil 70 1 1 886244 (886244) Indisponibil Indisponibil 71 1 1 NYLON NUT M4 (876465) 1453 RON 72 1 1 HEX.SOCKET HD.BOLT M5X15 (10 PCS) (949820) 2683 RON 73 1 1 SLEEVE (878164) 6039 RON 74 1 5 TAPPING SCREW D4X20 (W/FLANGE) BLACK (302086) 1453 RON 75 1 1 HANDLE (B) NR90GC2 (886256) 22144 RON 76 1 1 - Indisponibil 77 1 1 - Indisponibil 78 1 1 TAPPING SCREW D4X45 (W/FLANGE) (301815) 1453 RON 79 1 1 SWITCH MOUNT (885334) 2236 RON 80 1 1 SWITCH ARM (885347) 2236 RON 81 1 1 PRISM (885338) 3242 RON 82 1 1 LOCK BAR SPRING (885337) 2236 RON 83 1 1 WIRING COVER (885339) 3242 RON 84 1 1 FLAT HD TAPPING SCREW D4 (885346) 2236 RON *85 1 1 CONTROLLER (885331) 5101 RON *85 1 1 CONTROLLER NEW (885595) 5101 RON 86 1 3 TAPPING SCREW D4X14 (W/FLANGE) BLACK (309933) 1453 RON 87 1 1 TRIGGER SPRING (OLD 885336) (885828) 2236 RON 88 1 1 CHAMBER LOCK BAR (885340) 3242 RON 89 1 1 PIN D2.5 (885349) 2236 RON 90 1 1 TRIGGER INTERNAL WIRE SET (OLD 885332) (885798) 23711 RON 96 1 1 NYLON NUT M5 (877371) 1453 RON 97 1 1 NAIL RAIL (885341) 5815 RON 98 1 1 MAGAZINE PLATE (885342) 4025 RON 99 1 1 CELL LEVER (A) (886141) 5368 RON 100 1 1 LATCH (885280) 2236 RON 101 1 2 ROLL PIN D2X8 (10 PCS) (949859) 1788 RON 102 1 1 SPRING D3.6 (885281) 2236 RON 103 1 1 CELL COVER (885352) 3242 RON 104 1 1 CELL RUBBER (A) (886131) 2236 RON *105 1 2 324148 - Indisponibil *105 1 2 325292 - Indisponibil 106 1 1 NAIL FEEDER (885323) 5368 RON 107 1 1 TENSION PLATE (886257) 3242 RON 108 1 1 SPRING (885518) 2236 RON 109 1 1 886147 (886147) 5368 RON 110 1 1 PIN D2.5 (885349) 2236 RON 111 1 1 LEVER STOPPER (886138) 3242 RON 112 1 1 ROLL PIN D4X28 (10 PCS) (949506) 297 RON 113 1 1 SPRING (883687) 2236 RON 114 1 1 NAIL FEEDER (B) (885324) 3242 RON 115 1 1 RIBBON SPRING (885325) 6374 RON 116 1 1 SPRING D8 (885328) 2236 RON 117 1 1 PUSHING LEVER STOPPER (885327) 2236 RON 118 1 1 HANDLE (A) NR90GC2 GREY (886728) 22592 RON 119 1 1 FEEDER KNOB (886246) 3242 RON 120 1 1 TAPPING SCREW D5X20 (W/FLANGE) BLACK (302089) 1453 RON 121 1 1 HEX.SOCKET HD BOLT M4X18 (880003) 1453 RON 122 1 1 MAGAZINE GUARD (885354) 5591 RON 124 1 1 WIRING PLATE (886253) 2236 RON 125 1 1 886255 (886255) 5927 RON 126 1 2 TAPPING SCREW D3 (885714) 2236 RON 127 1 1 WIRING PLATE (886548) 2236 RON 128 1 2 MACHINE SCREW M4X6 (SEAL LOCK) (303631) 1453 RON 129 1 1 SHAFT COVER (886470) 1453 RON 130 1 1 WASHER (886471) 1453 RON 131 1 1 SLEEVE (886543) 3242 RON 501 1 1 - Indisponibil 502 1 1 875769 - Indisponibil 503 1 1 PLASTIC CARRYING CASE (886254) 44290 RON 504 1 1 HEX.BAR WRENCH 4MM (944458) 1229 RON 505 1 1 886036 - Indisponibil 506 1 1 885788 (885788) 1424 RON 507 1 1 RUBBER NOSE (885791) 382 RON *601 1 1 885246 - Indisponibil *601 1 1 885546 - Indisponibil 602 1 1 885788 (885788) 1424 RON 603 1 1 RUBBER NOSE (885791) 382 RON Puteti cumpara NR90GC2 in urmatoarele variante: Masina de batut cuie cu tub de gaz Hitachi NR90GC2
