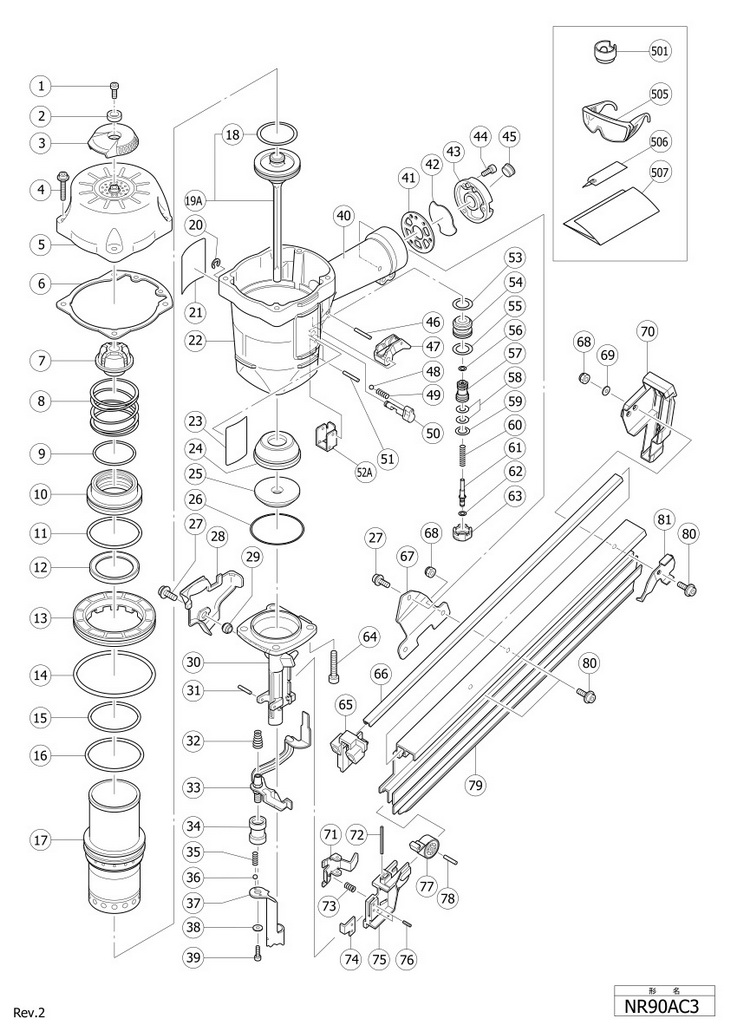

Top » Piese de schimb » PIESE HITACHI » NR90AC3 NR90AC3 [NR90AC3] Click pentru a mari Imagini suplimentare Click pentru a mari LISTA DE COMPONENTE: Numar Versiune Buc. in schema Denumire Pret/buc (Tva inclus) Cumpara 1 1 1 HEX SOCKET HD. BOLT M6X16 (10 PCS) (949755) 297 RON 2 1 1 PLATE (880515) 5368 RON 3 1 1 TOP COVER (OLD 880514) (884332) 4025 RON 4 1 4 882793 - Indisponibil 5 1 1 EXHAUST COVER (881946) 47646 RON 6 1 1 GASKET (A) (881940) 6822 RON 7 1 1 EXHAUST VALVE RUBBER (881945) 8835 RON 8 1 1 HEAD VALVE SPRING (881944) 5368 RON 9 1 1 883676 - Indisponibil 10 1 1 HEAD VALVE (881942) 22592 RON 11 1 1 883677 - Indisponibil 12 1 1 HEAD VALVE RUBBER (881943) 4025 RON 13 1 1 881941 - Indisponibil 14 1 1 O-RING (S-95) (878907) 4025 RON 15 1 1 878376 - Indisponibil 16 1 1 881972 - Indisponibil 17 1 1 CYLINDER (881939) 61179 RON 18 1 1 O-RING (1AP-48) (877368) 2683 RON 19A 1 1 885916 (885916) 7653 RON 20 1 1 RETAINING RING FOR D6SH (955479) 1453 RON 21 1 1 WARNING LABEL (884070) 2236 RON 22 1 1 884140 - Indisponibil 23 1 1 - Indisponibil 24 1 1 883670 - Indisponibil 25 1 1 883671 - Indisponibil 26 1 1 O-RING (1AS-60) (956996) 297 RON 27 1 2 NYLOCK BOLT M6X20 W/FLANGE (881969) 2236 RON 28 1 1 GUARD (881935) 2683 RON 29 1 1 COLLAR (883674) 2012 RON 30 1 1 883672 - Indisponibil 31 1 1 ROLL PIN D3X22 (10 PCS) (949864) 2683 RON 32 1 1 SPRING (883691) 2236 RON 33 1 1 PUSHING LEVER (B) (883673) 22144 RON 34 1 1 ADJUSTER (A) (881974) 15098 RON 35 1 2 SPRING (C) (982454) 894 RON 36 1 2 STEEL BALL D3.97 (10 PCS) (OLD 939363Z) (959155) 894 RON 37 1 1 PUSHING LEVER (A) (881933) 14315 RON 38 1 1 WASHER (880081) 1453 RON 39 1 1 HEX.SOCKET HD.BOLT M6X12 (10 PCS) (OLD 949657Z) (949657) 297 RON 40 1 1 - Indisponibil 41 1 1 GASKET (B) (883678) 3242 RON 42 1 1 DUST FILTER (883679) 6374 RON 43 1 1 CAP (881949) 4025 RON 44 1 3 HEX.SOCKET HD.BOLT M5X16 (10 PCS) (949821) 2683 RON 45 1 1 DUST CAP (872035) 1453 RON 46 1 1 ROLL PIN D3X22 (10 PCS) (949864) 2683 RON 47 1 1 TRIGGER (A) NEW (884145) 5368 RON 48 1 1 STEEL BALL D3.97 (10 PCS) (OLD 939363Z) (959155) 894 RON 49 1 1 SPRING (C) (982454) 894 RON 50 1 1 884141 - Indisponibil 51 1 2 ROLL PIN D3X28 (10 PCS) (949865) 2683 RON 52A 1 1 PUSHING LEVER GUIDE (OLD 880361) (884336) 3242 RON 53 1 1 HEAD VALVE O-RING (I.D. 16.8) (877699) 1453 RON 54 1 1 VALVE BUSHING (B) (878881) 22144 RON 55 1 1 O-RING (S-18) (878885) 1453 RON 56 1 1 O-RING (S-4) (981317) 1453 RON 57 1 1 VALVE PISTON (B) (884143) 6374 RON 58 1 2 O-RING (I.D 8.8) (878925) 1453 RON 59 1 1 O-RING (I.D.11) (878887) 2236 RON 60 1 1 PLUNGER SPRING (878884) 2236 RON 61 1 1 PLUNGER (A) (884144) 3242 RON 62 1 1 O-RING (I.D.1.8) (878888) 1453 RON 63 1 1 VALVE BUSHING (A) (880671) 15322 RON 64 1 4 HEX.SOCKET HD.BOLT M8X30 (10 PCS) (949759) 5815 RON 65 1 1 CONNECTOR (883690) 3242 RON 66 1 1 NAIL RAIL (883682) 10960 RON 67 1 1 HANDLE ARM (883689) 381 RON 68 1 3 NYLON NUT M6 (963837) 1453 RON 69 1 1 SLEEVE (883499) 2236 RON 70 1 1 MAGAZINE COVER (883683) 4025 RON 71 1 1 NAIL FEEDER (A) (883685) 7269 RON 72 1 1 @ROLL PIN D4X40 (10 PCS) (OLD 949688Z) (949688) 3578 RON 73 1 1 SPRING (883687) 2236 RON 74 1 1 PUSHING LEVER STOPPER (883688) 2012 RON 75 1 1 NAIL FEEDER (B) (883686) 3242 RON 76 1 2 ROLL PIN D3X10 (10 PCS) (OLD 949776Z) (949776) 2348 RON 77 1 1 RIBBON SPRING (883503) 5927 RON 78 1 1 NEEDLE ROLLER D4X20 (943364) 1453 RON 79 1 1 883681 - Indisponibil 80 1 3 HEX.SOCKET HD.BOLT M6X12 (W/FLANGE) (984443) 894 RON 81 1 1 NAIL STOPPER (883684) 2683 RON 501 1 1 881968 - Indisponibil 505 1 1 875769 - Indisponibil 506 1 1 884146 - Indisponibil 507 1 1 884120 - Indisponibil 601 1 1 877153 - Indisponibil 602 1 1 @ LUBRICANT OILER (120CC) (874042) 2683 RON 603 1 1 @ OIL FOR NAILER (1 LITER) (876212) 1232 RON 604 1 1 GREASE (ATTOLUB NO.2) 500G (317918) 20691 RON 605 1 1 878898 - Indisponibil 606 1 1 GRIP TAPE (OLD 880349) (881768) 4361 RON 607 1 2 TAPE (880407) 2236 RON 608 1 1 884147 - Indisponibil
