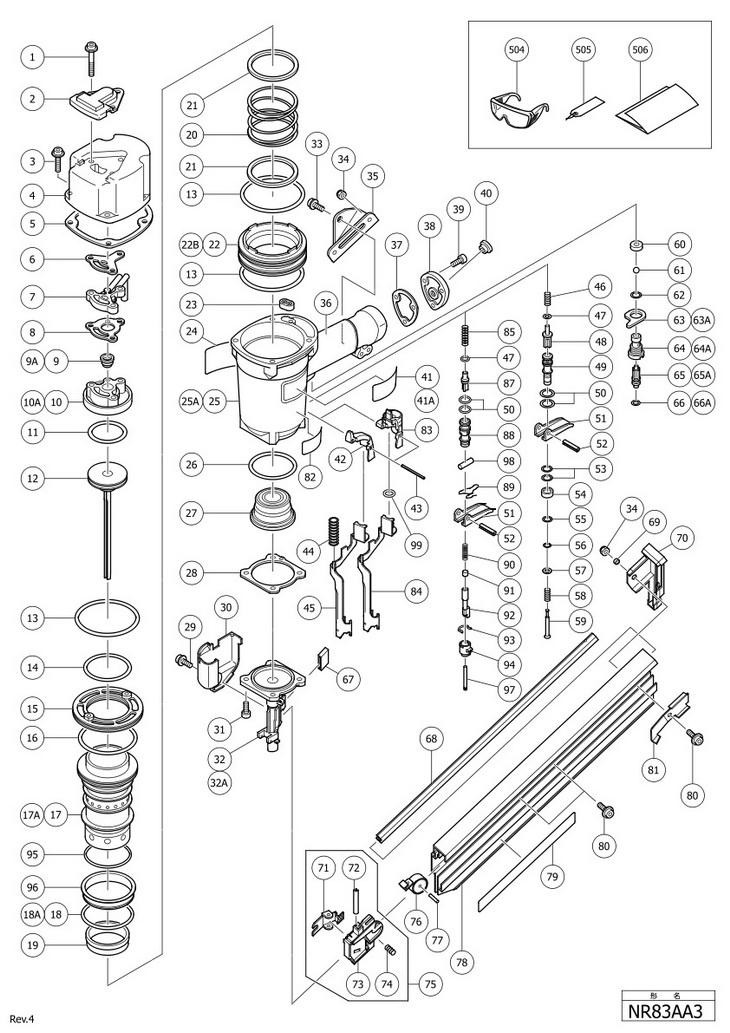

Top » Piese de schimb » PIESE HITACHI » NR83AA3 NR83AA3 [NR83AA3] Click pentru a mari Imagini suplimentare Click pentru a mari LISTA DE COMPONENTE: Numar Versiune Buc. in schema Denumire Pret/buc (Tva inclus) Cumpara 1 1 3 HEX.SOCKET HD.BOLT M6X45 (W/FLANGE) (883509) 3242 RON 2 1 1 TOP COVER (877330) 3242 RON 3 1 4 @HEX.SOCKET HD.BOLT M6X25 (W/WASHER) (883507) 3242 RON 4 1 1 EXHAUST COVER (OLD 877384) (877324) 15098 RON 5 1 1 PACKING (B) (877325) 382 RON 6 1 1 PACKING (F) (877329) 2236 RON 7 1 1 877328 - Indisponibil 8 1 1 GASKET (C) (877854) 2348 RON 9 1 1 884110 - Indisponibil 9A 1 1 887774 - Indisponibil 10 1 1 HEAD CAP AND PACKING SET (OLD 877363) (877307) 15993 RON 10A 1 1 887769 - Indisponibil 11 1 1 O-RING (1AP-48) (877368) 2683 RON 12 1 1 PISTON (883510) 47646 RON 13 1 3 O-RING (S-90) (877316) 2683 RON 14 1 1 CYLINDER O-RING BORE SIZE 63.1MM (877312) 2683 RON 15 1 1 CYLINDER PLATE (877318) 6933 RON 16 1 1 CYLINDER O-RING BORE SIZE 79.3MM (877313) 2683 RON 17 1 1 CYLINDER (OLD 877810) (884068) 28967 RON 17A 1 1 887762 - Indisponibil 18 1 1 CYLINDER O-RING BORE SIZE 69.3MM (877314) 2683 RON 18A 1 1 O-RING (S-70) (878863) 2348 RON 19 1 1 CYLINDER RING (877317) 2236 RON 20 1 1 877321 - Indisponibil 21 1 1 BASE WASHER (877322) 2348 RON 22 1 1 CYLINDER GUIDE (877310) 15098 RON 22B 1 1 887763 - Indisponibil 23 1 1 PACKING (G) (877327) 1453 RON 24 1 1 WARNING LABEL (884070) 2236 RON 25 1 1 883506 (883506) 54469 RON 25A 1 1 887773 - Indisponibil 26 1 1 CYLINDER O-RING BORE SIZE 63.9MM (877315) 2683 RON 27 1 1 PISTON BUMPER (B) (883511) 10065 RON 28 1 1 PACKING (A) (877334) 2348 RON 29 1 1 NYLOCK BOLT M6X12 W/FLANGE (882974) 2236 RON 30 1 1 @GUARD (883493) 3242 RON 31 1 4 @NYLOCK HEX. SOCKET HD.BOLT M8X22 (883492) 3242 RON 32 1 1 NOSE (883490) 95181 RON 32A 1 1 887775 - Indisponibil 33 1 1 NYLOCK BOLT M8X16 W/FLANGE (883505) 3242 RON 34 1 3 NYLON NUT M6 (963837) 1453 RON 35 1 1 @ HANDLE ARM (883504) 5927 RON 36 1 1 - Indisponibil 37 1 1 PACKING (D) (877331) 1453 RON 38 1 1 CAP (OLD 877367Z) (878311) 4025 RON 39 1 3 HEX.SOCKET HD.BOLT M5X18 (10 PCS) (949658) 2683 RON 40 1 1 DUST CAP (872035) 1453 RON 41 1 1 - Indisponibil 41A 1 1 - Indisponibil 42 1 1 884119 - Indisponibil 43 1 1 ROLL PIN D3X45 (10 PCS) (884025) 2236 RON 44 1 1 SPRING (884117) 2236 RON 45 1 1 884118 - Indisponibil 46 1 1 PLUNGER SPRING (875643) 1453 RON 47 1 1 O-RING (P-4) (874436) 1453 RON 48 1 1 PLUNGER (A) (884113) 3242 RON 49 1 1 VALVE BUSHING (884111) 10960 RON 50 1 2 O-RING (I.D.10.7) (884112) 2236 RON 51 1 1 TRIGGER (876203) 2683 RON 52 1 1 ROLL PIN D3X30 (10 PCS) (949866) 3578 RON 53 1 2 O-RING (P-9) (872645) 2236 RON 54 1 1 VALVE SLEEVE (A) (884116) 3242 RON 55 1 1 @ O-RING (S-7) (876316) 2236 RON 56 1 1 878723 - Indisponibil 57 1 1 WASHER M5 (10 PCS) (949424) 1453 RON 58 1 1 PLUNGER SPRING (B) (884115) 2236 RON 59 1 1 PLUNGER (B) (884114) 4025 RON 60 1 1 VALVE PACKING (OLD 875637) (878734) 1453 RON 61 1 1 URETHANE BALL (B) D7.14 (875645) 382 RON 62 1 1 O-RING (S-12) (875638) 2236 RON 63 1 1 VALVE PLATE (875644) 1453 RON 63A 1 1 887771 - Indisponibil 64 1 1 TRIGGER VALVE BUSHING (OLD 876738) (877335) 6151 RON 64A 1 1 887839 - Indisponibil 65 1 1 TRIGGER PLUNGER (878121) 2236 RON 65A 1 1 - Indisponibil 66 1 1 PLUNGER O-RING (874820) 2236 RON 66A 1 1 887840 - Indisponibil 67 1 1 @ NOSE RUBBER (883491) 2236 RON 68 1 1 NAIL RAIL (883496) 7269 RON 69 1 1 SLEEVE (883499) 2236 RON 70 1 1 MAGAZINE COVER (883497) 4025 RON 71 1 1 @ NAIL FEEDER (A) (883502) 16553 RON 72 1 1 @ROLL PIN D4X40 (10 PCS) (OLD 949688Z) (949688) 3578 RON 73 1 1 NAIL FEEDER (B) (883501) 3242 RON 74 1 1 FEEDER SPRING (883441) 2236 RON 75 1 1 883500 (883500) 20691 RON 76 1 1 RIBBON SPRING (883503) 5927 RON 77 1 1 NEEDLE ROLLER D4X20 (943364) 1453 RON 78 1 1 MAGAZINE (883495) 32323 RON 79 1 1 - Indisponibil 80 1 3 HEX.SOCKET HD.BOLT M6X12 (W/FLANGE) (984443) 894 RON 81 1 1 @ NAIL STOPPER (883498) 3242 RON 82 1 1 - Indisponibil 83 1 1 887697 - Indisponibil 84 1 1 - Indisponibil 85 1 1 887724 - Indisponibil 87 1 1 887725 - Indisponibil 88 1 1 - Indisponibil 89 1 1 887727 - Indisponibil 90 1 1 887728 - Indisponibil 91 1 1 887729 - Indisponibil 92 1 1 - Indisponibil 93 1 1 RATCHET SPRING (886331) 1453 RON 94 1 1 887766 - Indisponibil 95 1 1 878376 - Indisponibil 96 1 1 887767 - Indisponibil 97 1 1 887732 - Indisponibil 98 1 1 887768 - Indisponibil 99 1 1 O-RING (S-3) (881715) 1453 RON 504 1 1 875769 - Indisponibil 505 1 1 884072 - Indisponibil 506 1 1 884120 - Indisponibil 601 1 1 877153 - Indisponibil 602 1 1 @ LUBRICANT OILER (120CC) (874042) 2683 RON 603 1 1 @ OIL FOR NAILER (1 LITER) (876212) 1232 RON 604 1 1 GREASE (ATTOLUB NO.2) 500G (317918) 20691 RON 605 1 1 GRIP TAPE (OLD 880349) (881768) 4361 RON 606 1 1 TAPE (880407) 2236 RON 607 1 1 884069 - Indisponibil
