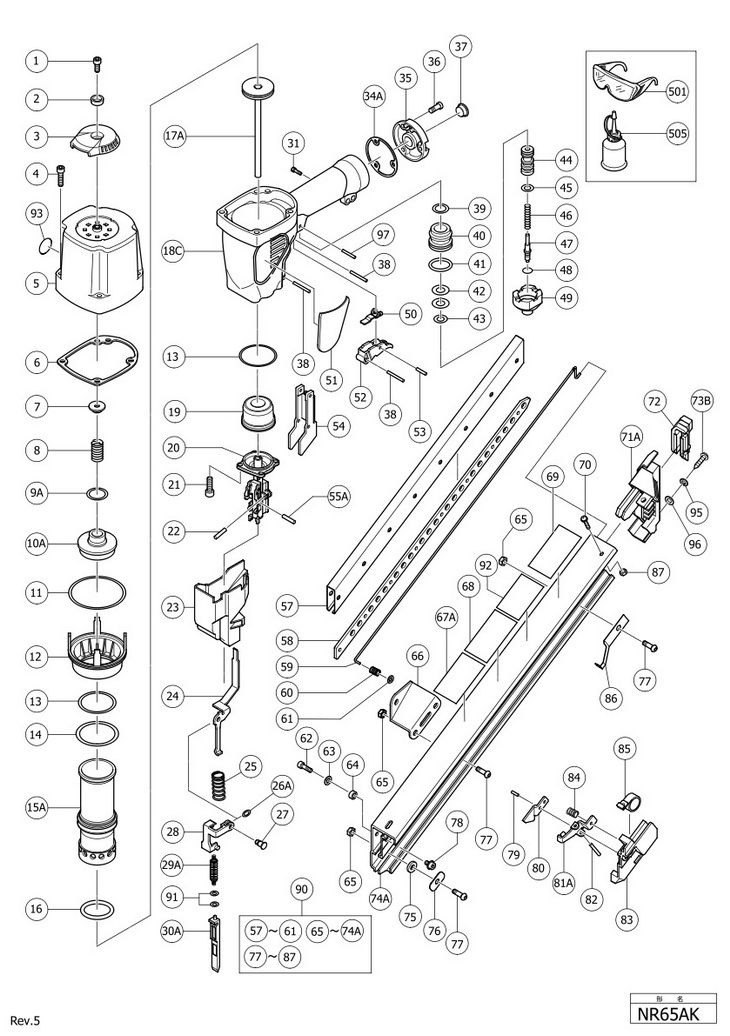

Top » Piese de schimb » PIESE HITACHI » NR65AK NR65AK [NR65AK] Click pentru a mari Imagini suplimentare Click pentru a mari LISTA DE COMPONENTE: Numar Versiune Buc. in schema Denumire Pret/buc (Tva inclus) Cumpara 1 1 1 HEX.SOCKET HD.BOLT M6X12 (10 PCS) (OLD 949657Z) (949657) 297 RON 2 1 1 PLATE (880515) 5368 RON 3 1 1 TOP COVER (OLD 880514) (884332) 4025 RON 4 1 4 HEX.SOCKET HD.BOLT M5X35 (10 PCS) (949822) 3578 RON 5 1 1 EXHAUST COVER (883451) 30645 RON 6 1 1 GASKET (B) (883452) 2236 RON 7 1 1 HEAD BUMPER (882914) 5368 RON 8 1 1 HEAD VALVE SPRING (882913) 5368 RON 9A 1 1 O-RING (I.D.20.8) (883992) 2236 RON 10A 1 1 HEAD VALVE (A) (OLD 882912) (882927) 9282 RON 11 1 1 O-RING (S-70) (878863) 2348 RON 12 1 1 CYLINDER PLATE (882910) 5368 RON 13 1 2 O-RING (S-46) (882874) 2236 RON 14 1 1 O-RING (1AP-48) (877368) 2683 RON 15A 1 1 CYLINDER (OLD 883450) (883989) 32323 RON 16 1 1 O-RING I.D. 37 (883431) 2236 RON 17A 1 1 PISTON (H) (883471) 74825 RON 18C 1 1 885516 (885516) 44290 RON 19 1 1 PISTON BUMPER (883432) 10065 RON 20 1 1 NOSE (883433) 10204 RON 21 1 4 NYLOCK HIGH TENSION BOLT M6X20 (880675) 382 RON 22 1 1 ROLL PIN D3X12 (10 PCS) (949535) 2348 RON 23 1 1 GUARD (883447) 3242 RON 24 1 1 PUSHING LEVER (C) (883445) 8388 RON 25 1 1 PUSHING LEVER SPRING (883446) 2236 RON 26A 1 1 O-RING (1AP-3) (873093) 1453 RON 27 1 1 PIN (A) (883448) 3242 RON 28 1 1 PUSHING LEVER (B) (883444) 13644 RON 29A 1 1 SPRING (883470) 2236 RON 30A 1 1 PUSHING LEVER (A) (OLD 883443) (883635) 12526 RON 31 1 1 NYLOCK FLANGE BOLT M6X16 (880474) 1453 RON 34A 1 1 GASKET (B) (883309) 4025 RON 35 1 1 CAP (881949) 4025 RON 36 1 3 HEX.SOCKET HD.BOLT M5X16 (10 PCS) (949821) 2683 RON 37 1 1 DUST CAP (872035) 1453 RON 38 1 3 ROLL PIN D3X28 (10 PCS) (949865) 2683 RON 39 1 1 HEAD VALVE O-RING (I.D. 16.8) (877699) 1453 RON 40 1 1 VALVE BUSHING (B) (878881) 22144 RON 41 1 1 O-RING (S-18) (878885) 1453 RON 42 1 2 O-RING (I.D 8.8) (878925) 1453 RON 43 1 1 O-RING (I.D.11) (878887) 2236 RON 44 1 1 VALVE PISTON (B) (880672) 20691 RON 45 1 1 O-RING (S-4) (981317) 1453 RON 46 1 1 PLUNGER SPRING (B) (883453) 2236 RON 47 1 1 PLUNGER (A) (880673) 10513 RON 48 1 1 O-RING (I.D.1.8) (878888) 1453 RON 49 1 1 VALVE BUSHING (A) (880671) 15322 RON *49 1 1 VALVE BUSHING (A) (882920) 18118 RON 50 1 1 TRIGGER ARM (883454) 3242 RON 51 1 1 - Indisponibil 52 1 1 TRIGGER (882894) 3242 RON 53 1 1 ROLL PIN D2.5X16 (881951) 2236 RON 54 1 1 PUSHING LEVER GUIDE (883455) 3242 RON 55A 1 1 PIN (883438) 2236 RON 57 1 1 883458 - Indisponibil 57 1 1 883639 - Indisponibil 58 1 2 GUIDE PLATE (883459) 1700 RON 58 1 1 883472 - Indisponibil 59 1 1 SHAFT (883460) 4025 RON 59 1 1 883641 - Indisponibil 60 1 1 SPRING (883467) 2236 RON 61 1 1 WASHER (883465) 2236 RON 62 1 1 NYLOCK HEX. SOCKET HD.BOLT M4X12 (880630) 1453 RON 63 1 1 WASHER (B) (OLD 976448) (962569) 1453 RON 64 1 1 SLEEVE (883442) 2236 RON 65 1 4 NYLON NUT M6 (963837) 1453 RON 66 1 1 HANDLE ARM (883464) 6374 RON 67A 1 1 WARNING LABEL (OLD 880450) (881128) 2236 RON 68 1 1 WARNING LABEL (883466) 3242 RON 69 1 1 - Indisponibil 70 1 1 MACHINE SCREW M5X16 BLACK (W/WASHER) (881772) 1453 RON 71A 1 1 MAGAZINE COVER (883461) 3242 RON 72 1 1 NAIL GATE (883462) 2236 RON 73B 1 1 TAPPING SCREW D4X20 (W/FLANGE) BLACK (302086) 1453 RON 74A 1 1 MAGAZINE (883457) 54469 RON 74A 1 1 883638 - Indisponibil 75 1 1 MAGAZINE RING (883434) 2236 RON 76 1 1 MAGAZINE PLATE (883435) 2236 RON 77 1 4 @ HEX.SOCKET HD.BOLT M6X12 (878647) 2348 RON 78 1 7 HEX.SOCKET HD.BOLT (W/FLANGE) M4X6 (305735) 894 RON 79 1 2 ROLL PIN D3X10 (10 PCS) (OLD 949776Z) (949776) 2348 RON 80 1 1 PUSHING LEVER STOPPER (883439) 2236 RON 81A 1 1 FEEDER PLATE (883437) 3242 RON 82 1 1 PIN (883438) 2236 RON 83 1 1 NAIL FEEDER (883436) 5368 RON 84 1 1 FEEDER SPRING (883441) 2236 RON 85 1 1 RIBBON SPRING (883440) 5591 RON 86 1 1 NAIL STOPPER (883463) 3242 RON 87 1 1 NYLON NUT M5 (877371) 1453 RON 90 1 1 883456 (883456) 161284 RON 91 1 2 O-RING (P-4) (874436) 1453 RON 92 1 1 WARNING LABEL (878183) 2348 RON 93 1 1 WARNING LABEL (A) (883513) 2236 RON 95 1 1 SPRING WASHER M5 (10 PCS) (949454) 1117 RON 96 1 1 WASHER M5 (10 PCS) (949424) 1453 RON 97 1 1 ROLL PIN D3X22 (10 PCS) (949864) 2683 RON 501 1 1 875769 - Indisponibil 505 1 1 877153 - Indisponibil 601 1 1 883469 (883469) 135894 RON 602 1 1 GRIP TAPE (OLD 880349) (881768) 4361 RON 603 1 2 TAPE (880407) 2236 RON Puteti cumpara NR65AK in urmatoarele variante: Masina pneumatica de batut cuie Hitachi NR65AK
