Top » Piese de schimb » PIESE HITACHI » NC65AC

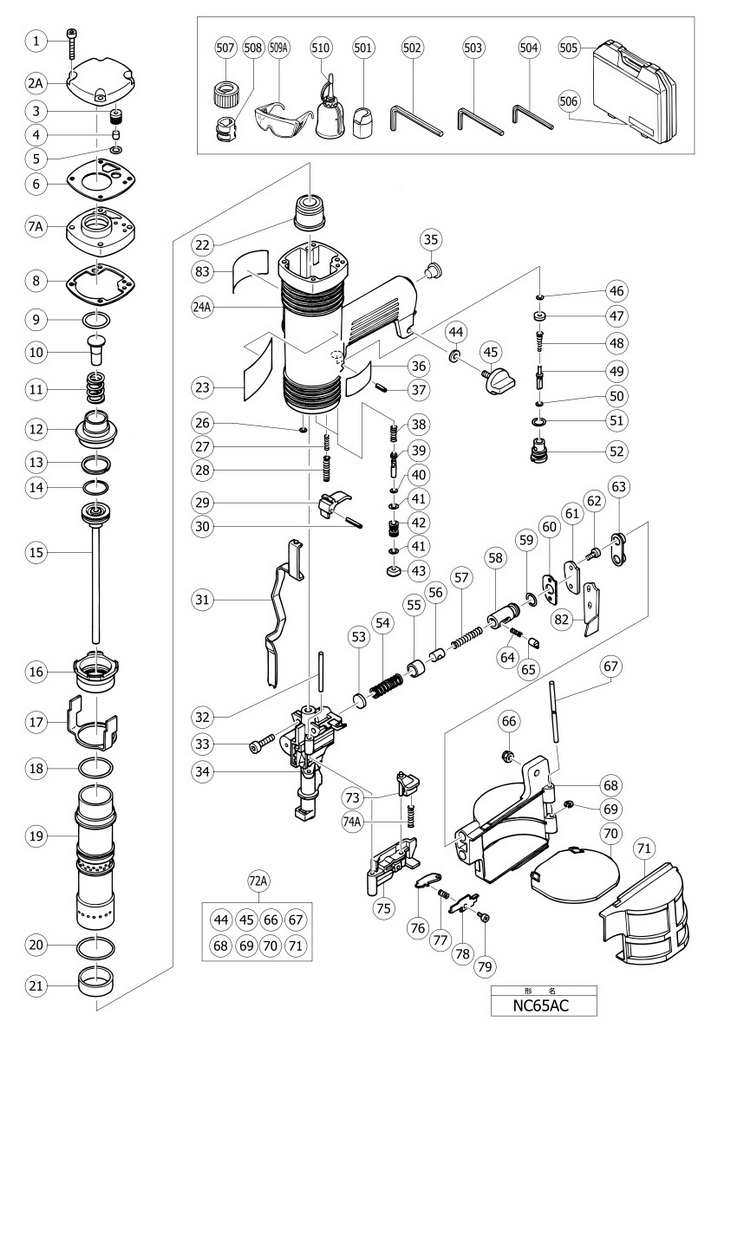

NC65AC
[NC65AC]
NC65AC
Click pentru a mari
Imagini suplimentare
NC65AC
Click pentru a mari
LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 4 @HEX.SOCKET HD.BOLT M5X30 (10 PCS) (949664) 3578 RON
2A 1 1 TOP COVER (878805) 32323 RON
3 1 1 VALVE (AUTOMATIC FEED) (878780) 7269 RON
4 1 1 VALVE BUMPER (878781) 2683 RON
5 1 1 O-RING (S-10) (987105) 1453 RON
6 1 1 GASKET (B) (878778) 2236 RON
7A 1 1 HEAD COVER (878804) 35790 RON
8 1 1 GASKET (B) (878779) 2236 RON
9 1 1 @HEAD VALVE O-RING (878783) 2683 RON
10 1 1 HEAD DAMPER (878796) 6151 RON
11 1 1 @ HEAD VALVE SPRING (878784) 3242 RON
12 1 1 @ HEAD VALVE (878782) 9059 RON
13 1 1 PISTON RING (878777) 22592 RON
14 1 1 O-RING (S-28) (873731) 1453 RON
15 1 1 PISTON (878776) 108715 RON
16 1 1 @ CYLINDER SLEEVE (878785) 27289 RON
17 1 1 @ CYLINDER GUIDE (878797) 3242 RON
18 1 1 O-RING (S-38) (980717) 1788 RON
19 1 1 @ HEAD GUIDE (878773) 8503 RON
20 1 1 O-RING (S-40) (996363) 2236 RON
21 1 1 @ CYLINDER RING (878775) 297 RON
22 1 1 PISTON DAMPER (878774) 9059 RON
23 1 1 - Indisponibil
24A 1 1 @ BODY (878803) 154573 RON
26 1 1 O-RING (P-4) (874436) 1453 RON
27 1 1 @ SPRING (B) (878795) 1453 RON
28 1 1 @ SPRING (878792) 1453 RON
29 1 1 @ TRIGGER (878769) 20691 RON
30 1 1 ROLL PIN D3X22 (10 PCS) (949864) 2683 RON
31 1 1 @ PUSHING LEVER (878801) 25612 RON
32 1 1 @ PIN (878751) 5255 RON
33 1 2 SEAL LOCK HEX. SOCKET HD. BOLT M8X25 (985479) 2683 RON
34 1 1 @ NOSE BRUSH-HOLDER S/A (878750) 220675 RON
35 1 1 DUST CAP (872035) 1453 RON
36 1 1 - Indisponibil
37 1 2 ROLL PIN D2.5X12 (878791) 1453 RON
38 1 2 @ PLUNGER SPRING (B) (878790) 2683 RON
39 1 2 @ PLUNGER (A) (878789) 20691 RON
40 1 2 PLUNGER O-RING (878607) 1453 RON
41 1 4 O-RING (S-6) (997218) 2236 RON
42 1 2 @ VALVE BUSHING (C) (878788) 14092 RON
43 1 2 @ KNOB (878787) 382 RON
44 1 1 BOLT WASHER M6 (10 PCS) (OLD 949432Z) (949432) 1453 RON
45 1 1 @ KNOB BOLT M6X18 (878771) 2683 RON
46 1 1 O-RING (1AP-3) (873093) 1453 RON
47 1 1 VALVE BUSHING (B) (877703) 297 RON
48 1 1 @ PLUNGER SPRING (877704) 1453 RON
49 1 1 @ PLUNGER (878786) 13756 RON
50 1 1 PLUNGER O-RING (877705) 1453 RON
51 1 1 O-RING (S-12) (875638) 2236 RON
52 1 1 VALVE BUSHING (A) (878800) 20691 RON
53 1 1 DAMPER SWITCH LEAD BLACK (878756) 2348 RON
54 1 1 @FEED SPRING (A) (878760) 2683 RON
55 1 1 @ FEED PISTON (C) (878758) 8276 RON
56 1 1 @ FEED PISTON (B) (878759) 17112 RON
57 1 1 @ BACK SPRING (A) (878757) 2683 RON
58 1 1 @ FEED PISTON (A) (878761) 22592 RON
59 1 1 @ O-RING (1AP-11) (878764) 1453 RON
60 1 1 @ GASKET (C) (878762) 1453 RON
61 1 1 @ FEED PISTON COVER (878763) 4361 RON
62 1 2 HEX.SOCKET HD.BOLT M5X10 (10 PCS) (949819) 2683 RON
63 1 1 MAGAZINE BUSHING (878770) 297 RON
64 1 1 FEEDER SPRING (878765) 2348 RON
65 1 1 FEEDER (878755) 22144 RON
66 1 1 NYLON NUT M6 (963837) 1453 RON
67 1 1 @ HINGE PIN (878824) 488 RON
68 1 1 @ MAGAZINE (878821) 18454 RON
69 1 1 RETAINING RING (E-TYPE) FOR D3 SHAFT (872971) 1453 RON
70 1 1 @ NAIL HOLDER (878823) 488 RON
71 1 1 @ MAGAZINE COVER (878822) 17112 RON
72A 1 1 878827 (878827) 4251 RON
73 1 1 GUIDE LOCK (878103) 7828 RON
74A 1 1 SPRING (OLD 878308) (880446) 1788 RON
75 1 1 @ NAIL GUIDE (878752) 5101 RON
76 1 1 NAIL STOPPER (878753) 2683 RON
77 1 1 @ NAIL STOPPER SPRING (878825) 1453 RON
78 1 1 @ NAIL GUIDE COVER (878754) 3578 RON
79 1 1 SEAL LOCK HEX. SOCKET HD. BOLT M4X8 (877838) 1453 RON
82 1 1 @ FEED PISTON COVER (878826) 12973 RON
83 1 1 @ WARNING LABEL (878184) 2348 RON
501 1 1 @ NOSE CAP (A) (878767) 6374 RON
502 1 1 HEX.BAR WRENCH 6MM (872422) 1117 RON
503 1 1 HEX.BAR WRENCH 4MM (944458) 1229 RON
504 1 1 HEX.BAR WRENCH 3MM (OLD 993822) (943277) 1229 RON
505 1 1 CASE (878802) 45968 RON
506 1 1 - Indisponibil
507 1 1 @ ADJUSTER (878768) 18454 RON
508 1 1 @ NOSE CAP (B) (878766) 6598 RON
509A 1 1 875769 - Indisponibil
510 1 1 877153 - Indisponibil
601 1 1 GREASE (ATTOLUB NO.2) 500G (317918) 20691 RON
