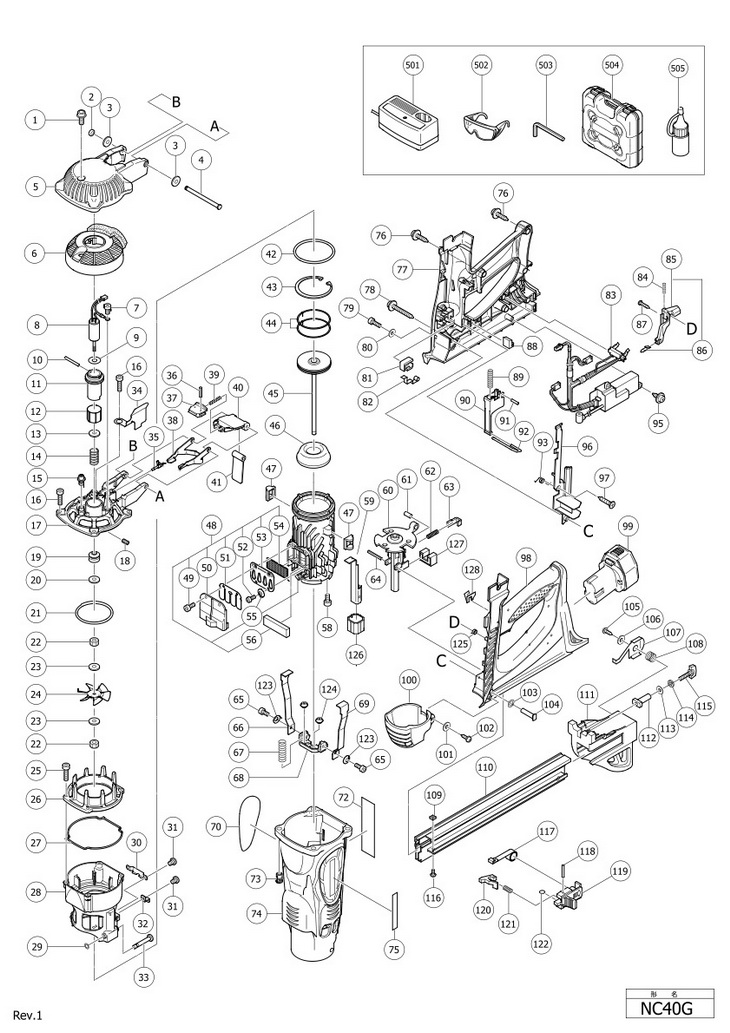

Top » Piese de schimb » PIESE HITACHI » NC40G NC40G [NC40G] Click pentru a mari Imagini suplimentare Click pentru a mari LISTA DE COMPONENTE: Numar Versiune Buc. in schema Denumire Pret/buc (Tva inclus) Cumpara 1 1 1 HEX.SOCKET HD.BOLT M5X12 (W/FLANGE) (996399) 894 RON 2 1 1 SHAFT RING (880319) 2236 RON 3 1 2 WASHER M5 (10 PCS) (949424) 1453 RON 4 1 1 SHAFT (885277) 3242 RON 5A 1 1 TOP COVER CARAT GFN3490 (886598) 5927 RON 6 1 1 886129 (886129) 12973 RON 7 1 1 SCREW M4X6 (10 PCS) (949214) 1453 RON 8 1 1 MOTOR NR90GC/NR90GR (885309) 50889 RON 9 1 1 RUBBER WASHER (885313) 2236 RON 10 1 1 ROLL PIN D2.5X25 (885318) 2236 RON 11 1 1 MOTOR MOUNT (885310) 6374 RON 12 1 1 MOUNT SLEEVE (885314) 2236 RON 13 1 1 SHAFT WASHER (885320) 2236 RON 14 1 1 MOTOR SPRING (885319) 2236 RON 15 1 1 SPARK PLUG (A) (885333) 3242 RON 16 1 4 HEX.SOCKET HD BOLT M5X20 (10 PCS) (949757) 297 RON 17 1 1 CYLINDER HEAD (885308) 12973 RON 18 1 2 HEX.SOCKET SET SCREW M4X5 (961681) 894 RON 19 1 1 SHAFT COVER (886470) 1453 RON 20 1 1 WASHER (886471) 1453 RON 21 1 1 O-RING (I.D 59.92) (885316) 4025 RON 22 1 2 NUT M4 (10 PCS) (949554) 894 RON 23 1 2 WASHER M4 (10 PCS) (949423) 894 RON 24 1 1 FAN (885311) 4025 RON 25 1 1 HEX.SOCKET HD.BOLT M4X16 (10 PCS) (949754) 2348 RON 26 1 1 CHAMBER HEAD (885294) 6822 RON 27 1 1 GASKET (B) (886133) 2236 RON 28 1 1 CHAMBER (885296) 14315 RON 29 1 2 PLUNGER O-RING (878607) 1453 RON 30 1 1 CHAMBER LOCK PLATE (885297) 3242 RON 31 1 3 SCREW M4X6 (10 PCS) (949214) 1453 RON 32 1 1 SWITCH PLATE (885306) 2236 RON 33 1 2 PIN (A) (OLD 885921) (886484) 2236 RON 34 1 1 WIRING PLATE (886253) 2236 RON 35 1 1 ADAPTER (885317) Indisponibil Indisponibil 36 1 2 ROLL PIN D2X8 (10 PCS) (949859) 1788 RON 37 1 1 LATCH (885280) 2236 RON 38 1 1 CELL LEVER (A) (886141) 5368 RON 39 1 1 SPRING D3.6 (885281) 2236 RON 40 1 1 CELL COVER (885352) 3242 RON 41 1 1 CELL RUBBER (A) (886131) 2236 RON 42 1 1 O-RING (I.D 66.27) (885283) 5368 RON 43 1 1 RETAINING RING (885285) 2236 RON 44 1 2 PISTON RING (A) (886132) 6151 RON 45 1 1 PISTON (H) (885700) 64647 RON 46 1 1 PISTON BUMPER (885289) 5591 RON 47 1 2 CHAMBER STOP RUBBER (OLD 885790) (885284) 2236 RON 48 1 1 886465 (886465) 58271 RON 49 1 2 SEAL LOCK HEX. SOCKET HD. BOLT M4X10 (886241) 2236 RON 50 1 1 BUFFER COVER (886467) 2236 RON 51 1 1 LEAD VALVE (885290) 2236 RON 52 1 2 MACHINE SCREW M4X6 (SEAL LOCK) (303631) 1453 RON 53 1 1 BUFFER PLATE (A) (886468) 3242 RON 54 1 1 MESH (885292) 3242 RON 55 1 2 BELLEVILLE SPRING M4 (886242) 2236 RON 56 1 1 MUFFLER (885288) 8835 RON 58 1 3 SEAL LOCK HEX. SOCKET HD. BOLT M5X12 (991690) 1453 RON 59 1 1 PUSHING LEVER (885691) 8388 RON 60 1 1 NOSE (885704) 74825 RON 61 1 1 ROLL PIN D3X8 (10 PCS) (949749) 2683 RON 62 1 1 SPRING (A) (885706) 1453 RON 63 1 1 PUSHING LEVER STOPPER (885705) 5815 RON 64 1 1 ROLL PIN D3X25 (10 PCS) (949539) 2683 RON 65 1 2 SEAL LOCK HEX. SOCKET HD. BOLT M5X8 (321527) 2236 RON 66 1 1 PUSHING LEVER ARM (L) (885703) 9730 RON 67 1 2 PUSHING LEVER SPRING (886245) 2236 RON 68 1 1 PUSHING LEVER CONNECTOR (885699) 25612 RON 69 1 1 PUSHING LEVER ARM (R) (885710) 9730 RON 70 1 1 - Indisponibil 72 1 1 INSULATOR SHEET (885307) 2236 RON 73 1 4 SCREW M5 (885304) 2236 RON 74 1 1 HOUSING (886469) 1700 RON 75 1 1 HITACHI PLATE (328922) 2460 RON 76 1 6 TAPPING SCREW D4X20 (W/FLANGE) BLACK (302086) 1453 RON 77 1 1 HANDLE (B) (885709) 11296 RON 78 1 1 TAPPING SCREW D4X45 (W/FLANGE) (301815) 1453 RON 79 1 1 SEAL LOCK HEX. SOCKET HD. BOLT M5X16 (990079) 1453 RON 80 1 1 WASHER (876205) 1453 RON 81 1 1 SWITCH MOUNT (B) (886473) 2236 RON 82 1 1 SWITCH ARM (885347) 2236 RON *83 1 1 WIRING (B) (886461) 51896 RON *83 1 1 886462 - Indisponibil 84 1 1 SPRING (885518) 2236 RON 85 1 1 886147 (886147) 5368 RON 86 1 1 TENSION PLATE (886257) 3242 RON 87 1 1 TAPPING SCREW D3 (885714) 2236 RON 88 1 1 PRISM (886474) 2795 RON 89 1 1 TRIGGER SPRING (OLD 885336) (885828) 2236 RON 90 1 1 TRIGGER (885335) 2795 RON 91 1 1 ROLL PIN D2.5X10 (10 PCS) (949551) 2236 RON 92 1 1 CHAMBER LOCK BAR (885340) 3242 RON 93 1 1 LOCK BAR SPRING (885337) 2236 RON 95 1 2 TAPPING SCREW D4X14 (W/FLANGE) BLACK (309933) 1453 RON 96 1 1 WIRING COVER (885339) 3242 RON 97 1 1 FLAT HD TAPPING SCREW D4 (885346) 2236 RON 98 1 1 HANDLE (A) (OLD 885708) (886472) 9394 RON *99 1 1 324148 - Indisponibil *99 1 1 325292 - Indisponibil 100 1 1 DUST COVER (885695) 9394 RON 101 1 2 WASHER (875246) 894 RON 102 1 2 TAPPING SCREW D4X12 (W/FLANGE) BLACK (325083) 2236 RON 103 1 1 WASHER (B) (885712) 1453 RON 104 1 1 SHAFT (B) (885711) 5815 RON 105 1 1 TAPPING SCREW D4X10 (BLACK) (311945) 1453 RON 106 1 1 WASHER (875246) 894 RON 107 1 1 NAIL STOPPER (885696) 4025 RON 108 1 1 SPRING (C) (885697) 2236 RON 109 1 1 SQUARE NUT M6 (319166) 2236 RON 110 1 1 MAGAZINE (886475) 17671 RON 111 1 1 MAGAZINE COVER (886479) 6710 RON 112 1 1 SHAFT (C) (885713) 6262 RON 113 1 1 WASHER (876205) 1453 RON 114 1 1 SPRING WASHER M5 (10 PCS) (949454) 1117 RON 115 1 1 KNOB (885694) 3242 RON 116 1 1 HEX. SOCKET HD. BOLT M6X7 (W/BUTTON) (884215) 4025 RON 117 1 1 RIBBON SPRING (881755) 3242 RON 118 1 1 PIN D3X20 (10 PCS) (949890) 2348 RON 119 1 1 NAIL FEEDER (B) (886476) 2795 RON 120 1 1 NAIL FEEDER (A) (886477) 5815 RON 121 1 1 SPRING (B) (886478) 1453 RON 122 1 1 O-RING (1AP-3) (873093) 1453 RON 123 1 2 BELLEVILLE SPRING M5 (886243) 1453 RON 124 1 2 SPRING GUIDE (885707) 3019 RON 125 1 1 SLEEVE (886463) 2795 RON 126 1 1 NOSE CAP NC40G (885692) 2795 RON 127 1 1 NOSE RUBBER (885693) 2236 RON 128 1 1 LEVER STOPPER (886138) 3242 RON 501 1 1 - Indisponibil 502 1 1 875769 - Indisponibil 503 1 1 HEX.BAR WRENCH 4MM (944458) 1229 RON 504 1 1 PLASTIC CARRYING CASE (886485) 49323 RON 505 1 1 886036 - Indisponibil *601 1 1 885246 - Indisponibil *601 1 1 885546 - Indisponibil Puteti cumpara NC40G in urmatoarele variante: Masina de batut cuie in beton Hitachi NC40G
