N5024A2
[N5024A2]
N5024A2
Click pentru a mari
Imagini suplimentare
N5024A2
Click pentru a mari

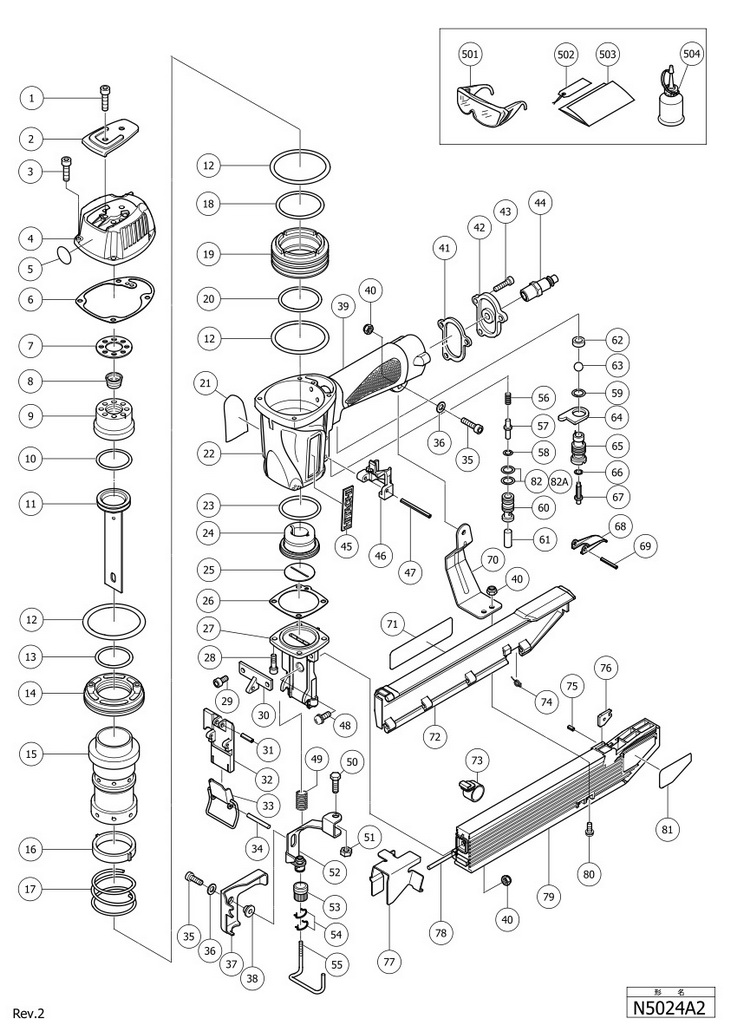

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 2 HEX.SOCKET HD BOLT M5X25 (10 PCS) (949662) 297 RON
2 1 1 TOP COVER (876179) 1453 RON
3 1 4 HEX.SOCKET HD BOLT M5X20 (10 PCS) (949757) 297 RON
4 1 1 EXHAUST COVER (886444) 10065 RON
5 1 1 WARNING LABEL (A) (883513) 2236 RON
6 1 1 GASKET (F) (883892) 2236 RON
7 1 1 GASKET (C) (886466) 1453 RON
8 1 1 EXHAUST VALVE (OLD 877370) (878417) 488 RON
9 1 1 HEAD CAP (877129) 13421 RON
10 1 1 PISTON O-RING (876174) 3578 RON
11 1 1 PISTON NEW (884357) 23487 RON
12 1 3 O-RING (I.D.64.5) (885793) 2795 RON
13 1 1 CYLINDER O-RING (D) (877126) 2236 RON
14 1 1 CYLINDER PLATE (876168) 7269 RON
15 1 1 CYLINDER (877486) 37468 RON
16 1 1 CYLINDER RING (876167) 1453 RON
17 1 1 CYLINDER SPRING (876172) 6374 RON
18 1 1 CYLINDER O-RING (A) (877123) 2348 RON
19 1 1 CYLINDER GUIDE (OLD 876631) (877122) 16441 RON
20 1 1 CYLINDER O-RING (B) (877124) 2683 RON
21 1 1 - Indisponibil
22 1 1 886443 (886443) 32882 RON
23 1 1 CYLINDER O-RING (C) (877125) 2683 RON
24 1 1 PISTON BUMPER NEW (884350) 6822 RON
25 1 1 BUMPER SHEET NEW (884351) 1453 RON
26A 1 1 PACKING (A) (883881) 1453 RON
27 1 1 886726 (886726) 63640 RON
28 1 4 NYLOCK HEX. SOCKET HD.BOLT M5X16 (878181) 1453 RON
29 1 2 HEX.SOCKET HD.BOLT M5X10 (10 PCS) (949819) 2683 RON
30 1 1 GUIDE PLATE NEW (884360) 8947 RON
31 1 1 ROLL PIN D4X16 (10 PCS) (OLD949497Z) (949497) 2683 RON
32 1 1 BLADE GUIDE NEW (884361) 11743 RON
33 1 1 LOCK LEVER NEW (884362) 6598 RON
34 1 1 ROLL PIN D3X30 (10 PCS) (949866) 3578 RON
35 1 2 HEX.SOCKET HD.BOLT M5X18 (10 PCS) (949658) 2683 RON
36 1 2 WASHER (876205) 1453 RON
37 1 1 GUARD NEW (884364) 2795 RON
38 1 1 SLEEVE NEW (884366) 4025 RON
39 1 1 - Indisponibil
40 1 4 NYLON NUT M5 (877371) 1453 RON
41 1 1 GASKET (D) NEW JAN (886719) 1453 RON
42 1 1 CAP (885795) 3578 RON
43 1 3 HEX.SOCKET HD.BOLT M5X16 (10 PCS) (949821) 2683 RON
44 1 1 - Indisponibil
45 1 1 HITACHI PLATE (886342) 2236 RON
46 1 1 VALVE GUARD (884356) 2795 RON
47 1 1 ROLL PIN D3X45 (10 PCS) (884025) 2236 RON
48 1 1 MACHINE SCREW M5X16 (308386) 1453 RON
49 1 1 HOLDER SPRING (877894) 894 RON
50 1 1 SAFETY BOLT (875650) 1453 RON
51 1 1 NUT M5 (10 PCS) (949555) 1453 RON
52 1 1 PUSHING LEVER NEW (884353) 14092 RON
53 1 1 ADJUSTER NEW (885796) 4025 RON
54 1 2 RATCHET SPRING (881765) 2683 RON
55 1 1 PUSHING LEVER (A) NEW (886447) 4025 RON
56 1 1 PLUNGER SPRING (886725) 1453 RON
57 1 1 PLUNGER (A) (OLD 877881) (878542) 2683 RON
58 1 1 PLUNGER O-RING (877705) 1453 RON
59 1 1 O-RING (S-12) (875638) 2236 RON
60 1 1 VALVE BUSHING (877880) 12973 RON
61 1 1 PLUNGER (B) (877882) 4473 RON
62 1 1 VALVE PACKING (OLD 875637) (878734) 1453 RON
63 1 1 URETHANE BALL (B) D7.14 (875645) 382 RON
64 1 1 VALVE PLATE (875644) 1453 RON
65 1 1 TRIGGER VALVE BUSHING (OLD 876738) (877335) 6151 RON
66 1 1 PLUNGER O-RING (874820) 2236 RON
67 1 1 TRIGGER PLUNGER (878121) 2236 RON
68 1 1 TRIGGER (876203) 2683 RON
69 1 1 ROLL PIN D3X30 (10 PCS) (949866) 3578 RON
70 1 1 HANDLE ARM NEW (884363) 5368 RON
71 1 1 WARNING LABEL NEW (886720) 1453 RON
72 1 1 MAGAZINE COVER (883718) 4025 RON
73 1 1 RIBBON SPRING (881047) 9730 RON
74 1 1 COVER SPRING (881043) 1788 RON
75 1 1 ROLL PIN D3X8 (10 PCS) (949749) 2683 RON
76 1 1 MAGAZINE PIECE (881039) 2683 RON
77 1 1 STAPLE FEEDER NEW (884359) 6598 RON
78 1 1 HINGE PIN (883719) 2795 RON
79 1 1 884358 (884358) 11296 RON
80 1 2 MACHINE SCREW M5X14 (W/WASHER) BLACK (678653) 1453 RON
81 1 1 - Indisponibil
82 1 2 O-RING (S-12) (875638) 2236 RON
82A 1 2 O-RING (I.D.10.7) (884112) 2236 RON
501 1 1 875769 - Indisponibil
502 1 1 CAUTION TAG (882413) 2236 RON
503 1 1 886721 - Indisponibil
504 1 1 877153 - Indisponibil
601 1 1 GRIP TAPE (OLD 880349) (881768) 4361 RON
602 1 1 TAPE (880407) 2236 RON
603 1 1 @SINGLE SHORT PARTS (876762) 5101 RON
604 1 1 877153 - Indisponibil
605 1 1 @ LUBRICANT OILER (120CC) (874042) 2683 RON
606 1 1 @ OIL FOR NAILER (1 LITER) (876212) 1232 RON
607 1 1 GREASE (ATTOLUB NO.2) 500G (317918) 20691 RON
