H90SE
[H90SE]
H90SE
Click pentru a mari
Imagini suplimentare
H90SE
Click pentru a mari

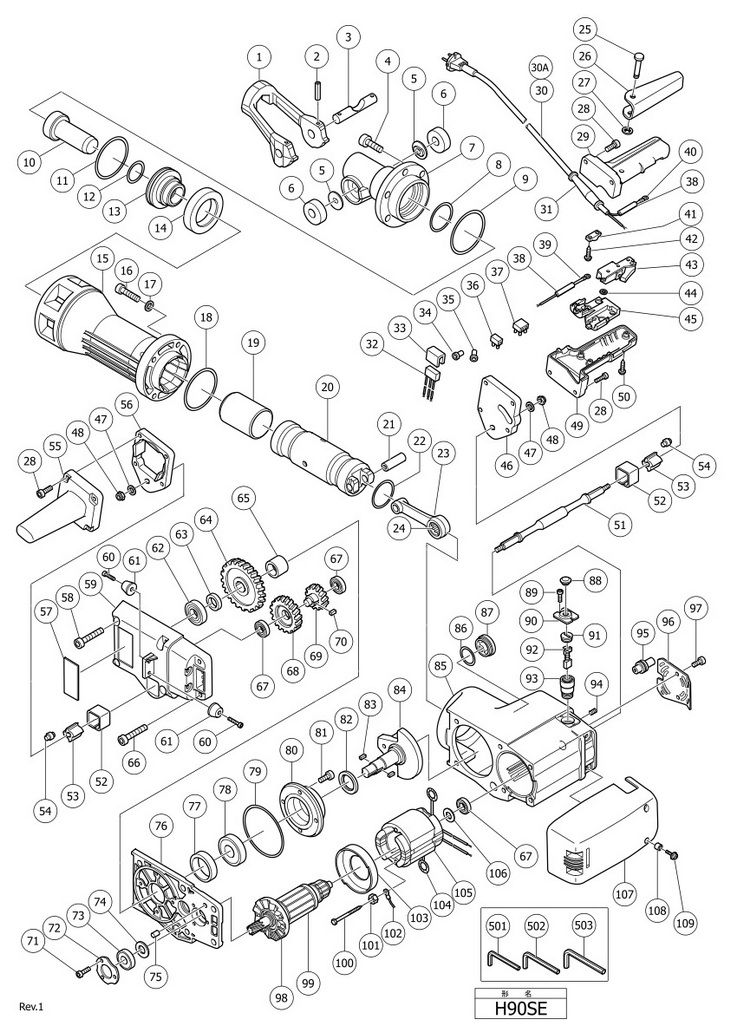

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 RETAINER (318650) 288567 RON
2 1 2 ROLL PIN D6X55 (994416) 1453 RON
3 1 1 LEVER PIN (318651) 20691 RON
4 1 6 NYLOCK HGH TENSION BOLT (M12X40) (306373) 382 RON
5 1 2 DAMPER (B) (318655) 5591 RON
6 1 2 RETAINER DAMPER (305621) 12973 RON
7 1 1 FRONT COVER (318652) 268211 RON
8 1 1 O-RING (993188) Indisponibil Indisponibil
9 1 1 O-RING (S-90) (877316) 2683 RON
10 1 1 SECOND HAMMER (318653) 47646 RON
11 1 1 O-RING (D) (992865) 573 RON
12 1 1 O-RING (A) (956503) 488 RON
13 1 1 HAMMER HOLDER (318654) 57824 RON
14 1 1 DAMPER (992859) 16776 RON
15 1 1 CYLINDER CASE (305615) 246177 RON
16 1 4 NYLOCK BOLT M10X45 (OLD 993198) (306372) 382 RON
17 1 4 WASHER M10 (10 PCS) (OLD 949445Z) (949445) 1788 RON
18 1 1 O-RING (993195) 2348 RON
19 1 1 STRIKER (305612) 37468 RON
20 1 1 PISTON (305611) 251210 RON
21 1 1 PISTON PIN (305614) 13756 RON
22 1 1 O-RING (P-46) (878716) 2236 RON
23 1 1 305613 (305613) 5952 RON
24 1 1 NEEDLE BEARING NSK TORR RLM2220 (956485) 11743 RON
25 1 1 PIN (992870) 4361 RON
26 1 1 SWITCH LEVER (992869) 573 RON
27 1 1 RETAINING RING (E-TYPE) FOR D4 SHAFT (968643) 2683 RON
28 1 8 SEAL LOCK HEX. SOCKET HD. BOLT M6X30 (993496) 1453 RON
29 1 1 HANDLE (A) (305636) 12526 RON
*30 1 1 500390Z - Indisponibil
*30 1 1 500408Z - Indisponibil
*30 1 1 CORD 230 VOLT GBR (500450Z) 22592 RON
*30 1 1 CORD FOR SWISS (500391Z) 27513 RON
*30 1 1 500453Z - Indisponibil
*30 1 1 500487Z - Indisponibil
30A 1 1 CORD 3M 2 X 1,5 H07RN-F W/PLUG 16A CEE FORM 2P+E FOR GBR (500466Z) 22144 RON
*31 1 1 CORD ARMOR D10.7 (940778) 2124 RON
*31 1 1 CORD ARMOR D8.2 (OLD 958049Z) (958049) 894 RON
32 1 1 NOISE SUPPRESSOR (994273) Indisponibil Indisponibil
*33 1 1 SUPPORT (B) (930153) 894 RON
*33 1 1 SUPPORT (OLD 931575Z) (963243) 1453 RON
34 1 1 CONNECTOR 50091 (10 PCS) (OLD 939557) (959140) 2236 RON
35 1 1 CONNECTOR 50092 (10 PCS) (OLD 939558) (959141) 382 RON
36 1 1 PILLAR TERMINAL (OLD 938307Z/512-31870-20)) (938307) 2571 RON
37 1 1 PILLAR TERMINAL (A) (958308Z) 5368 RON
38 1 2 VINYL TUBE (A) I.D.7XTO.5X50 (996438) 1453 RON
*39 1 1 INTERNAL WIRE (981974) 2236 RON
*39 1 1 INTERNAL WIRE FOR GBR (306681) 1453 RON
*40 1 1 TERMINAL (992810) 1453 RON
*40 1 1 TERMINAL M4.0 (10 PCS) (930804) 297 RON
*40 1 2 TUBE (D) (981373) 1341 RON
*41 1 1 CORD CLIP (960266) 894 RON
*41 1 1 CORD CLIP (981987Z) 1453 RON
42 1 2 TAPPING SCREW D4X20 (W/WASHER) (OLD 996255) (982095) 894 RON
*43 1 1 SWITCH (A) (1P SCREW TYPE) W/O LOCK (992891) 14763 RON
*43 1 1 SWITCH (2P PILLAR TYPE) W/O LOCK (981533Z) 13085 RON
44 1 1 WASHER M4 (10 PCS) (949423) 894 RON
*45 1 1 990082 - Indisponibil
*45 1 1 SUPPORT (A) (981986Z) 15434 RON
46 1 1 HANDLE HOLDER (B) (305634) 71358 RON
47 1 2 WASHER M8 (10 PCS) (949426) 1453 RON
48 1 2 LOCK NUT M8 (NYLON INSERT) (OLD 975348) (305632) 1453 RON
49 1 1 HANDLE (B) (305631) 12973 RON
50 1 2 TAPPING SCREW D4X20 (W/FLANGE) BLACK (OLD 305095) (301653) 894 RON
51 1 1 HANDLE SHAFT (305624) 86681 RON
52 1 2 HOLDER (B) (305598) 9730 RON
53 1 2 HOLDER (A) (305623) 49323 RON
54 1 8 HANDLE DAMPER (305622) 2236 RON
55 1 1 SIDE HANDLE (305633) 16217 RON
56 1 1 HANDLE HOLDER (A) (305625) 6802 RON
57 1 1 - Indisponibil
58 1 4 SEAL LOCK HEX. SOCKET HD. BOLT M10X60 (992851) 2348 RON
59 1 1 305637 (305637) 71358 RON
60 1 2 HEX.SOCKET HD.BOLT M4X20 (10 PCS) (949699) 2683 RON
61 1 2 STOPPER (305629) 6374 RON
62 1 1 BALL BEARING 6204VVCMPS2S (6204VV) 6262 RON
63 1 1 DISTANCE RING (A) (305609) 6374 RON
64 1 1 FINAL GEAR (305608) 64647 RON
65 1 1 DISTANCE RING (B) (305607) 6151 RON
66 1 2 SEAL LOCK HEX. SOCKET M10X55 (996433) 2348 RON
67 1 3 BALL BEARING 6201VVCMPS2S (6201VV) 4249 RON
68 1 1 FIRST GEAR (305605) 25612 RON
69 1 1 SECOND GEAR (305604) 32323 RON
70 1 1 FEATHER KEY 4X4X10 (930511) 2348 RON
71 1 3 SEAL LOCK HEX. SOCKET HD. BOLT M5X12 (991690) 1453 RON
72 1 1 BEARING COVER (A) (305600) 297 RON
73 1 1 BALL BEARING 6203DDUCMAV2S (6203DD) 5368 RON
74 1 1 BEARING WASHER (992841) 1453 RON
75 1 1 PIN D8X14 (10 PCS) (OLD 949480Z) (949480) 3242 RON
76 1 1 INNER COVER (305599) 56146 RON
77 1 1 DISTANCE RING (C) (305602) 13421 RON
78 1 1 BALL BEARING 6305VVCMPS2S (OLD 939456) (6305VV) 8052 RON
79 1 1 O-RING (A) (992847) 3578 RON
80 1 1 BEARING BOSS (305601) 40823 RON
81 1 4 SEAL LOCK HEX. SOCKET HD. BOLT M8X18 (305603) 1453 RON
82 1 1 OIL SEAL (992846) 2348 RON
83 1 2 FEATHER KEY 4X4X12 (931008) 1453 RON
84 1 1 CRANK SHAFT (305606) 120571 RON
85 1 1 305596 (305596) 302213 RON
86 1 1 O-RING (S-38) (980717) 1788 RON
87 1 1 990945 (990945) 382 RON
88 1 2 CAP RUBBER (992894) 3578 RON
89 1 4 SEAL LOCK HEX. SOCKET HD. BOLT M4X10 (878356) 1453 RON
90 1 2 CAP COVER (305635) 488 RON
91 1 2 BRUSH CAP (937949) 1788 RON
92 1 2 CARBON BRUSH A.S. TYPE (1 PAIR) (999086) 5815 RON
93 1 2 BRUSH HOLDER (305597) 5815 RON
94 1 2 HEX.SOCKET SET SCREW M5X8 (938477) 1453 RON
95 1 1 INTERNAL WIRE HOLDER (305627) 3578 RON
96 1 1 TAIL COVER (305630) 6933 RON
97 1 2 SEAL LOCK HEX. SOCKET HD. BOLT M6X16 (990935) 1453 RON
98 1 1 FAN (996370) 10065 RON
*99 1 1 360262U - Indisponibil
*99 1 1 ARMATURE 220-230 VOLT (360262E) 146072 RON
*99 1 1 ARMATURE 240 VOLT (360262F) 146072 RON
100 1 2 HEX.HD. TAPPING SCREW D5X85 (993185) 2683 RON
101 1 2 SPECIAL WASHER (956764) 894 RON
102 1 1 INTERNAL WIRE (305798) 1453 RON
103 1 1 FAN GUIDE (305610) 8388 RON
104 1 2 BRUSH TERMINAL (945932) Indisponibil Indisponibil
*105 1 1 340238C (340238C) 49323 RON
*105 1 1 340238E (340238E) 49323 RON
*105 1 1 340238G - Indisponibil
*105 1 1 340238H - Indisponibil
106 1 1 BEARING WASHER (944954) 1453 RON
107 1 1 HOUSING COVER (305628) 20691 RON
108 1 4 COLLAR (996437) 1453 RON
109 1 4 HEX.SOCKET HD.BOLT M6X16 (W/FLANGE) (301582) 1453 RON
501 1 1 HEX.BAR WRENCH 3MM (OLD 993822) (943277) 1229 RON
502 1 1 HEX.BAR WRENCH 5MM (944459) 1788 RON
503 1 1 HEX.BAR WRENCH 10MM (993740) 382 RON
601 1 1 996372 - Indisponibil
602 1 1 985230 - Indisponibil
603 1 1 985231 - Indisponibil
604 1 1 985232 - Indisponibil
605 1 1 RAMMER 200MM (305880) 118893 RON
606 1 1 SHANK FOR H85 (308092) 8503 RON
607 1 1 SCOOP 546MM FOR H85 (985233) 127394 RON
609 1 1 WRENCH (936728) 573 RON
610 1 1 GREASE FOR IMPACT DRILL (FG-6A) (500G) (980927) 4251 RON
