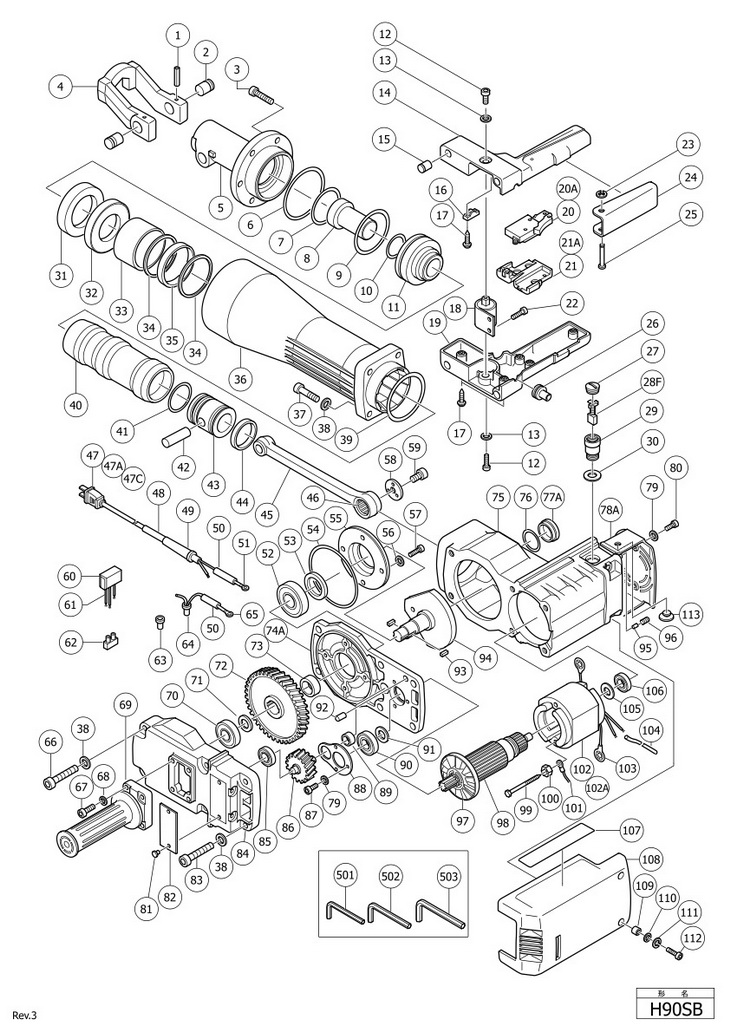

Top » Piese de schimb » PIESE HITACHI » H90SB H90SB [H90SB] Click pentru a mari Imagini suplimentare Click pentru a mari LISTA DE COMPONENTE: Numar Versiune Buc. in schema Denumire Pret/buc (Tva inclus) Cumpara 1 1 2 ROLL PIN D6X36 (10 PCS) (OLD 967029) (949874) 488 RON 2 1 2 LEVER PIN (985224) 9730 RON 3 1 6 992889 - Indisponibil 4 1 1 RETAINER (985225) 96859 RON 5 1 1 FRONT COVER (996434) 220675 RON 6 1 1 O-RING (S-90) (877316) 2683 RON 7 1 1 O-RING (993188) Indisponibil Indisponibil 8 1 1 SECOND HAMMER (992878) 32323 RON 9 1 1 O-RING (D) (992865) 573 RON 10 1 1 O-RING (A) (956503) 488 RON 11 1 1 HAMMER HOLDER (992860) 54469 RON 12 1 2 SEAL LOCK HEX. SOCKET HD. BOLT M6X16 (990935) 1453 RON 13 1 2 STOPPER WASHER (982001Z) 1453 RON 14 1 1 HANDLE (A) (993190) 18454 RON 15 1 4 RUBBER LEG (993191) 1453 RON 16 1 1 CORD CLIP (960266) 894 RON 17 1 6 TAPPING SCREW D4X20 (W/WASHER) (OLD 996255) (982095) 894 RON 18 1 1 HANDLE RUBBER (993192) 20691 RON 19 1 1 HANDLE (B) (993194) 18118 RON 20 1 1 SWITCH (2P PILLAR TYPE) W/O LOCK (981533Z) 13085 RON 20A 1 1 SWITCH (A) (1P SCREW TYPE) W/O LOCK (992891) 14763 RON 21 1 1 SUPPORT (981869) 6151 RON *21 1 1 SUPPORT (A) (981986Z) 15434 RON 21A 1 1 990082 - Indisponibil 22 1 2 @ SEAL LOCK HEX. SOCKET HD. BOLT M6X16 (993199) 2348 RON 23 1 1 RETAINING RING (E-TYPE) FOR D4 SHAFT (968643) 2683 RON 24 1 1 SWITCH LEVER (992869) 573 RON 25 1 1 PIN (992870) 4361 RON 26 1 1 INTERNAL WIRE HOLDER (993193) 1453 RON 27 1 2 BRUSH CAP (937949) 1788 RON 28F 1 2 CARBON BRUSH A.S. TYPE (1 PAIR) (999086) 5815 RON 29 1 2 @BRUSH HOLDER (993742) 6374 RON 30 1 2 STOP PLATE (956683) 1453 RON 31 1 1 DAMPER (992859) 16776 RON 32 1 1 DAMPER PLATE (992858) 22592 RON 33 1 1 MOUTH (992857) 35790 RON 34 1 2 MOUTH WASHER (992855) 2348 RON 35 1 1 URETHANE RING (992856) 6822 RON 36 1 1 @ CYLINDER CASE (OLD 992874) (992890) 254677 RON 37 1 4 993198 - Indisponibil 38 1 10 WASHER M10 (10 PCS) (OLD 949445Z) (949445) 1788 RON 39 1 1 O-RING (993195) 2348 RON 40 1 1 STRIKER (993187) 156250 RON 41 1 1 O-RING (B) (992853) 6374 RON 42 1 1 @PISTON PIN (956491) 7381 RON 43 1 1 PISTON (992852) 32323 RON 44 1 1 OIL SEAL (A) (992877) 6374 RON 45 1 1 956484 (956484) 61179 RON 46 1 1 NEEDLE BEARING NSK TORR RLM2220 (956485) 11743 RON 47 1 1 500214Z - Indisponibil *47 1 1 500235Z - Indisponibil *47 1 1 500237Z - Indisponibil *47 1 1 500408Z - Indisponibil *47 1 1 500439Z - Indisponibil *47 1 1 500394Z - Indisponibil 47A 1 1 500437Z - Indisponibil *47A 1 1 @ CORD 2,5M 2 X 1.0 H05VV-F W/PLUG 13A/250V (OLD 500223Z) (500423Z) 12862 RON 47C 1 1 500434Z - Indisponibil 48 1 1 992866 - Indisponibil 49 1 1 CORD ARMOR D12.3 (930217) 297 RON 50 1 2 VINYL TUBE (A) I.D.7XTO.5X50 (996438) 1453 RON 51 1 1 TERMINAL M4.0 (10 PCS) (930804) 297 RON 52 1 1 BALL BEARING 6305VVCMPS2S (OLD 939456) (6305VV) 8052 RON 53 1 1 OIL SEAL (992846) 2348 RON 54 1 1 O-RING (A) (992847) 3578 RON 55 1 1 @ BEARING BOSS (992845) 34112 RON 56 1 4 SPRING WASHER M6 (10 PCS) (949455) 1453 RON 57 1 4 SEAL LOCK HEX. SOCKET HD. BOLT M6X20 (OLD 986086) (992803) 1453 RON 58 1 1 @CRANK WASHER (956486) 3578 RON 59 1 1 @ SEAL LOCK HEX. SOCKET HD. BOLT M10X16 (992850) 2236 RON 60 1 1 SUPPORT (B) (930153) 894 RON 61 1 1 NOISE SUPPRESSOR (OLD 971828Z) (971828) 5815 RON *61 1 1 NOISE SUPPRESSOR (994273) Indisponibil Indisponibil 62 1 1 PILLAR TERMINAL (OLD 938307Z/512-31870-20)) (938307) 2571 RON 63 1 1 CONNECTOR 50091 (10 PCS) (OLD 939557) (959140) 2236 RON 64 1 2 CONNECTOR 50092 (10 PCS) (OLD 939558) (959141) 382 RON 65 1 1 INTERNAL WIRE (981974) 2236 RON *65 1 2 318275 - Indisponibil 66 1 4 SEAL LOCK HEX. SOCKET HD. BOLT M10X60 (992851) 2348 RON 67 1 4 SEAL LOCK HEX. SOCKET HD. BOLT M8X30 (986894) 1453 RON 68 1 4 SPRING WASHER M8 (10 PCS) (949457) 1453 RON 69 1 1 SIDE HANDLE (956527) 5101 RON 70 1 1 BALL BEARING 6204VVCMPS2S (6204VV) 6262 RON 71 1 1 @ DISTANCE WASHER (956482) 1453 RON 72 1 1 @ FINAL GEAR (992848) 57824 RON 73 1 1 @ DISTANCE RING (B) (956480) 297 RON 74A 1 1 INNER COVER (992872) 73035 RON 75 1 1 996430 - Indisponibil 76 1 1 O-RING (S-38) (980717) 1788 RON 77A 1 1 990945 (990945) 382 RON 78A 1 1 TAIL COVER (OLD 992871) (992893) 1232 RON 79 1 5 SPRING WASHER M5 (10 PCS) (949454) 1117 RON 80 1 2 SEAL LOCK HEX. SOCKET HD. BOLT M5X10 (877839) 1453 RON 81 1 2 RIVET D2.5X4.8 (10 PCS) (OLD 949510Z) (949510) 1453 RON 82 1 1 - Indisponibil 83 1 2 SEAL LOCK HEX. SOCKET M10X55 (996433) 2348 RON 84 1 1 996432 - Indisponibil 85 1 1 BALL BEARING 6201VVCMPS2S (6201VV) 4249 RON 86 1 1 COUNTER GEAR (992843) 4251 RON 87 1 3 SEAL LOCK HEX. SOCKET HD. BOLT M5X14 (OLD 315636) (984509) 1453 RON 88 1 1 @ BEARING COVER (A) (992842) 382 RON 89 1 1 @ NEEDLE BEARING (BK1312V1) (992844) 7828 RON 90 1 1 BALL BEARING 6203VVCMPS2S (6203VV) 5368 RON 91 1 1 BEARING WASHER (992841) 1453 RON 92 1 1 PIN D8X14 (10 PCS) (OLD 949480Z) (949480) 3242 RON 93 1 2 FEATHER KEY 4X4X15 (948919) 1453 RON 94 1 1 @ CRANK SHAFT (992849) 57824 RON 95 1 2 @FRICTION PIECE (931857) 1453 RON 96 1 2 HEX.SOCKET SET SCREW M5X8 (938477) 1453 RON 97 1 1 FAN (996370) 10065 RON *98 1 1 ARMATURE 115 VOLT (360073U) 137572 RON *98 1 1 ARMATURE 220-230 VOLT (360073E) 127394 RON *98 1 1 360073F - Indisponibil *98 1 1 360812F - Indisponibil 99 1 2 HEX.HD. TAPPING SCREW D5X85 (993185) 2683 RON 100 1 2 SPECIAL WASHER (956764) 894 RON 101 1 1 INTERNAL WIRE (990861) 1453 RON *102 1 1 340110C (340110C) 57824 RON *102 1 1 340110E - Indisponibil *102 1 1 340014E (340014E) 5101 RON *102 1 1 340110D - Indisponibil 102A 1 1 340014F (340014F) 5101 RON 103 1 2 BRUSH TERMINAL (945932) Indisponibil Indisponibil 104 1 1 996439 - Indisponibil 105 1 1 BEARING WASHER (944954) 1453 RON 106 1 1 BALL BEARING 6201VVCMPS2S (6201VV) 4249 RON 107 1 1 996435 - Indisponibil 108 1 1 996436 - Indisponibil 109 1 4 COLLAR (996437) 1453 RON 110 1 4 BOLT WASHER M6 (10 PCS) (OLD 949432Z) (949432) 1453 RON 111 1 4 SPRING WASHER M6 (10 PCS) (949455) 1453 RON 112 1 4 SEAL LOCK HEX. SOCKET HD. BOLT M6X20 (OLD 986086) (992803) 1453 RON 113 1 2 CAP RUBBER (992894) 3578 RON 501 1 1 HEX.BAR WRENCH 4MM (944458) 1229 RON 502 1 1 HEX.BAR WRENCH 6MM (872422) 1117 RON 503 1 1 HEX.BAR WRENCH 10MM (993740) 382 RON 601 1 1 985230 - Indisponibil 602 1 1 985231 - Indisponibil 603 1 1 985232 - Indisponibil 604 1 1 SCOOP 546MM FOR H85 (985233) 127394 RON 605 1 1 WRENCH (936728) 573 RON 606 1 1 GREASE FOR IMPACT DRILL (FG-6A) (500G) (980927) 4251 RON 608 1 1 996440 - Indisponibil 609 1 1 RAMMER 200MM (305880) 118893 RON 610 1 1 SHANK FOR H85 (308092) 8503 RON
