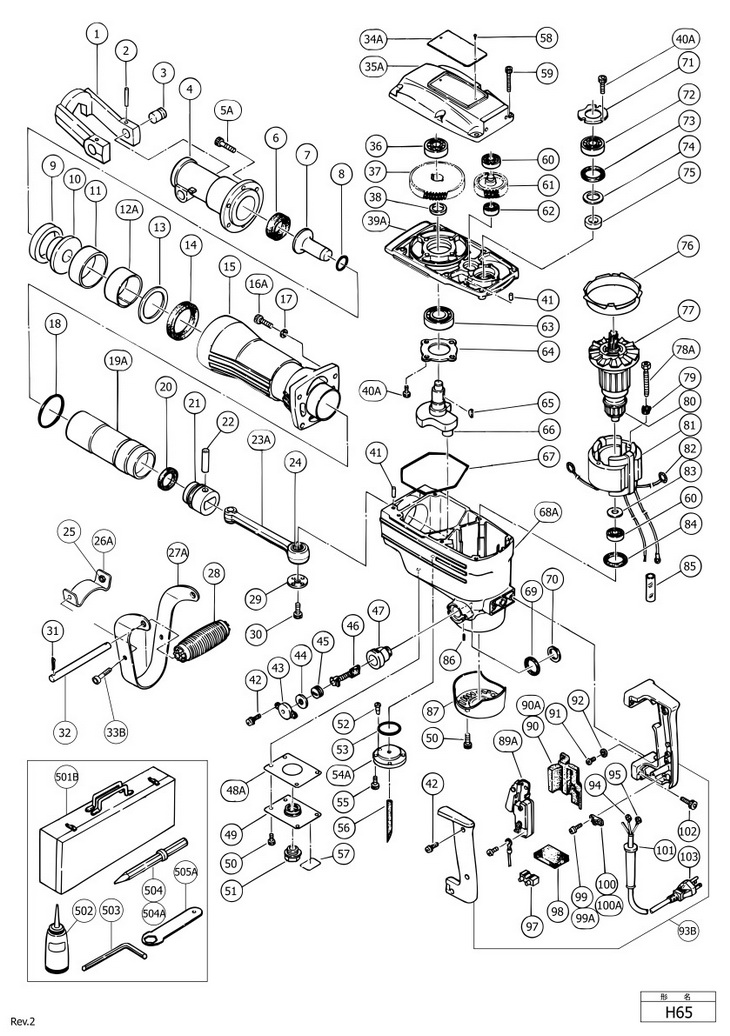

Top » Piese de schimb » PIESE HITACHI » H65 H65 [H65] Click pentru a mari Imagini suplimentare Click pentru a mari LISTA DE COMPONENTE: Numar Versiune Buc. in schema Denumire Pret/buc (Tva inclus) Cumpara 1 1 1 RETAINER (985225) 96859 RON 2 1 2 ROLL PIN D6X36 (10 PCS) (OLD 967029) (949874) 488 RON 3 1 2 LEVER PIN (985224) 9730 RON 4 1 1 996368 - Indisponibil 5A 1 6 NYLOCK HEX. SOCKET HD.BOLT M8X30 (306437) 1788 RON 6 1 1 DAMPER (B) (996369) 9730 RON 7 1 1 SECOND HAMMER (996367) 32323 RON 8 1 1 O-RING (944936) 7269 RON 9 1 1 DAMPER (956965) 9730 RON 10 1 1 SHANK SLEEVE (956964) 7381 RON 11 1 1 MOUTH COVER (956962) 2348 RON 12A 1 1 MOUTH (956963) 20691 RON 13 1 1 MOUTH WASHER (956961) 2348 RON 14 1 1 URETHANE RING (956960) 6151 RON 15 1 1 CYLINDER CASE (SILVER GREEN) (956959) 118893 RON 16A 1 4 NYLOCK BOLT M8X35 (OLD 993125) (306163) 1788 RON 17 1 4 BOLT WASHER M8 (10 PCS) (949433) 1453 RON 18 1 1 O-RING (1AS-60) (956996) 297 RON 19A 1 1 STRIKER (956958) 54469 RON 20 1 1 L-RING (944927) Indisponibil Indisponibil 21 1 1 PISTON (956957) 15210 RON 22 1 1 PISTON PIN (944928) 9059 RON 23A 1 1 998434 (998434) 25388 RON 24 1 1 NEEDLE BEARING NTN 8E-NK18/20 RDO (944921) 12526 RON 25 1 2 U-NUT (B) M8 (944950) 1788 RON 26A 1 1 HANDLE STAY (W/NUT) (OLD 944948) (320374) 488 RON 27A 1 1 956852 (956852) 10289 RON 28 1 1 GRIP (944951) 5591 RON 29 1 1 CRANK WASHER (956955) 3242 RON 30 1 1 SEAL LOCK HEX. SOCKET HD. BOLT M8X16 (996364) 1453 RON 31 1 2 SPLIT PIN D4X25 (10PCS) (949895) 2236 RON 32 1 1 HANDLE SHAFT (944952) 2012 RON 33B 1 2 NYLOCK HEX. SOCKET HD.BOLT M8X16 (320375) 2236 RON 34A 1 1 - Indisponibil 35A 1 1 GEAR COVER (SILVER GREEN) (956952) 1339 RON 36 1 1 BALL BEARING 6302VVCMPS2S (6302VV) 6262 RON 37 1 1 FINAL GEAR (944916) 28967 RON 38 1 1 DISTANCE RING (B) (944915) 3578 RON 39A 1 1 INNER COVER (998412) 18789 RON 40A 1 7 SEAL LOCK HEX. SOCKET HD. BOLT M5X16 (990079) 1453 RON 41 1 2 PIN D5X15.8 (944918) 1453 RON 42 1 7 MACHINE SCREW (W/SP.WASHER) M4X12 (951039) 1453 RON 43 1 2 CAP COVER (956972) 1453 RON 44 1 2 CAP RUBBER (944960) 1453 RON 45 1 2 BRUSH CAP (940540) 1229 RON 46 1 2 CARBON BRUSH (1 PAIR) (999044) 382 RON 47 1 2 BRUSH HOLDER (956984) 6374 RON 48A 1 1 COVER SEAL (956971) 1453 RON 49 1 1 COVER PLATE (956970) 2236 RON 50 1 6 SEAL LOCK HEX. SOCKET HD. BOLT M5X12 (991690) 1453 RON 51 1 1 OIL GAUGE (OLD 955287) (955011) 7269 RON 52 1 1 VALVE (995396) 2683 RON 53 1 1 O-RING (S-40) (996363) 2236 RON 54A 1 1 996362 - Indisponibil 55 1 4 SEAL LOCK HEX. SOCKET HD. BOLT M4X12 (983162) Indisponibil Indisponibil 56 1 1 OIL FELT (956967) Indisponibil Indisponibil 57 1 1 955006C - Indisponibil 58 1 2 RIVET D2.5X4.8 (10 PCS) (OLD 949510Z) (949510) 1453 RON 59 1 6 SEAL LOCK HEX. SOCKET HD. BOLT M6X45 (986940) 1453 RON 60 1 2 BALL BEARING 6201VVCMPS2S (6201VV) 4249 RON 61 1 1 COUNTER GEAR (956948) 18678 RON 62 1 1 BALL BEARING 6001VVCMPS2L (6001VV) 4361 RON 63 1 1 BALL BEARING 6205DDUCMPS2S (6205DD) 5815 RON 64 1 1 BEARING COVER (956949) 2236 RON 65 1 2 WOODRUFF KEY 4X16 (956850) 1453 RON 66 1 1 CRANK SHAFT (957142) 30645 RON 67 1 1 SEAL RING (A) (957143) 3242 RON 68A 1 1 996376 (996376) 33329 RON 69 1 2 RUBBER WASHER (956943) 1453 RON 70 1 2 STOP PLATE (956683) 1453 RON 71 1 1 BEARING COVER (A) (944911) 1453 RON 72 1 1 BALL BEARING 6203VVCMPS2S (6203VV) 5368 RON 73 1 1 URETHANE WASHER (A) M40 (944910) 2348 RON 74 1 1 FELT PACKING (944908) 1453 RON 75 1 1 DISTANCE RING (A) (944907) 2348 RON 76 1 1 FAN GUIDE (956944) 2460 RON 77 1 1 FAN (996370) 10065 RON 78A 1 2 SEALLOCK SCREW M5X60 (W/SP.WASHER) (998411) 1453 RON 79 1 2 SPECIAL WASHER (956764) 894 RON 80 1 1 360068U - Indisponibil 81 1 1 340011C (340011C) 32323 RON 82 1 2 BRUSH TERMINAL (945932) Indisponibil Indisponibil 83 1 1 BEARING WASHER (944954) 1453 RON 84 1 1 URETHANE WASHER (A) (944904) 2348 RON 85 1 1 - Indisponibil 86 1 2 HEX.SOCKET SET SCREW M5X8 (938477) 1453 RON 87 1 1 TAIL COVER (956977) 3466 RON 89A 1 1 SWITCH (A) (1P SCREW TYPE) W/O LOCK (992891) 14763 RON 90A 1 1 971163 - Indisponibil 91 1 1 949292 - Indisponibil 92 1 1 SPRING WASHER M4 (10 PCS) (949453) 894 RON 93B 1 1 334510 - Indisponibil 94 1 1 TERMINAL M4.0 (10 PCS) (930804) 297 RON 95 1 1 TERMINAL 50051 (10 PCS) (959144) 297 RON 97 1 1 PILLAR TERMINAL (OLD 938307Z/512-31870-20)) (938307) 2571 RON 98 1 1 SUPPORT (OLD 931575Z) (963243) 1453 RON 99 1 2 SEAL LOCK SCREW M4X12 (W/SP WASHER) (987203) 1453 RON 99A 1 2 957147 - Indisponibil 100 1 1 @ CORD CLIP (930108) 1788 RON 100A 1 1 CORD CLIP (960266) 894 RON 101 1 1 CORD ARMOR D10.7 (940778) 2124 RON 102 1 4 SEAL LOCK HEX. SOCKET HD. BOLT M6X25 (987707) 1453 RON 103 1 1 500404Z - Indisponibil 502 1 1 LUBRICANT OILER (120CC) HAMMERS (931848) Indisponibil Indisponibil 503 1 1 HEX.BAR WRENCH 6MM (872422) 1117 RON 504 1 1 985230 - Indisponibil 504A 1 1 996372 - Indisponibil 505A 1 1 WRENCH 23MM (971109) 3578 RON 601 1 1 985231 - Indisponibil 602 1 1 985232 - Indisponibil 603 1 1 SCOOP 546MM FOR H85 (985233) 127394 RON 604 1 1 996372 - Indisponibil 605 1 1 @COLD CHISEL 25X410MM (996373) 32323 RON 606 1 1 996374 - Indisponibil 607A 1 1 996375 - Indisponibil
