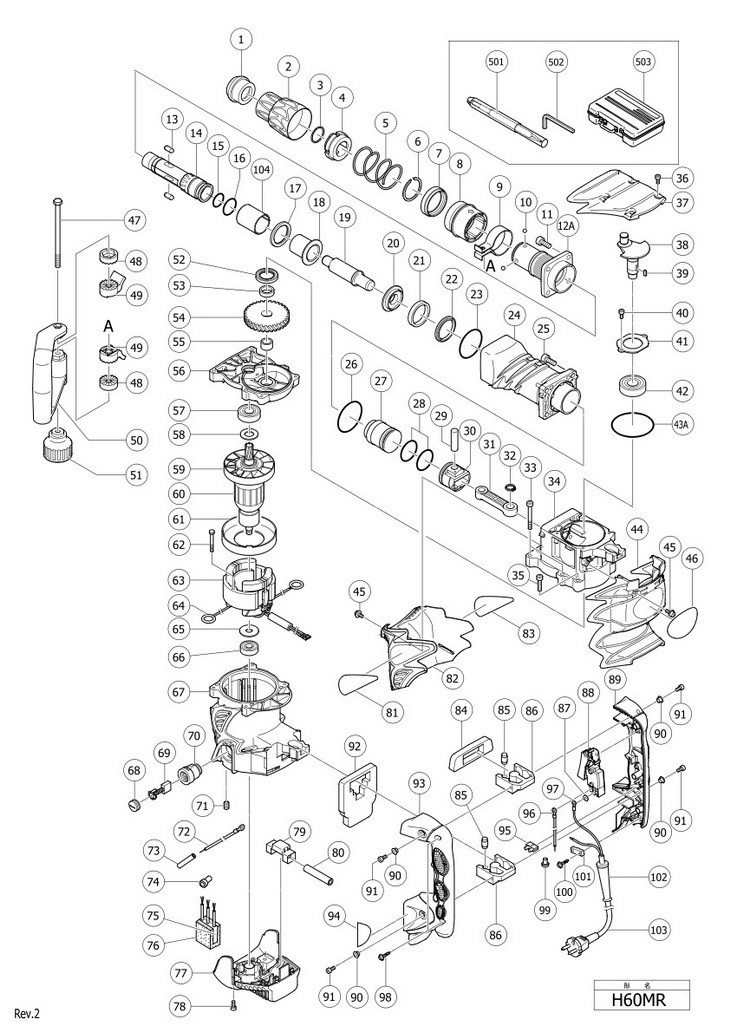

Top » Piese de schimb » PIESE HITACHI » H60MR H60MR [H60MR] Click pentru a mari Imagini suplimentare Click pentru a mari LISTA DE COMPONENTE: Numar Versiune Buc. in schema Denumire Pret/buc (Tva inclus) Cumpara 1 1 1 FRONT CAP (315529) 3242 RON 2 1 1 GRIP (A) (324025) 5591 RON 3 1 1 RING (320803) 2236 RON 4 1 1 NEEDLE HOLDER (320804) 17895 RON 5 1 1 SPRING (A) (324027) 5368 RON 6 1 1 RETAINING RING D42 (317088) 3242 RON 7 1 1 BALL HOLDER (320810) 8052 RON 8 1 1 GRIP (B) (324028) 5368 RON 9 1 1 BAND (OLD 317104) (320635) 5591 RON 10 1 4 STEEL BALL D6.35 (10 PCS) (959150) 1788 RON 11 1 4 SEAL LOCK HEX. SOCKET HD. BOLT M8X25 (985479) 2683 RON 12A 1 1 FRONT COVER (324029) 75832 RON 13 1 2 NEEDLE ROLLER D8X20 (313421) 4361 RON 14 1 1 RETAINER SLEEVE (324026) 68785 RON 15 1 1 O-RING (S-26) (872470) 2236 RON 16 1 1 O-RING (S-32) (872767) 2236 RON 17 1 1 DAMPER (B) (317094) 5368 RON 18 1 1 HAMMER HOLDER (B) (324030) 28967 RON 19 1 1 SECOND HAMMER (324031) 1615 RON 20 1 1 HAMMER HOLDER (A) (317091) 13197 RON 21 1 1 DAMPER (A) (324032) 4025 RON 22 1 1 DAMPER WASHER (317095) 8835 RON 23 1 1 O-RING (S-56) (317119) 2236 RON 24 1 1 CYLINDER CASE (324034) 107037 RON 25 1 4 HEX.SOCKET HD.BOLT M8X30 (W/FLANGE) (995400) 1453 RON 26 1 1 O-RING (1AS-60) (956996) 297 RON 27 1 1 STRIKER (324033) 13197 RON 28 1 2 O-RING (A) FPM810 (985454) 3019 RON 29 1 1 PISTON PIN (301509) Indisponibil Indisponibil 30 1 1 PISTON (317084) Indisponibil Indisponibil 31 1 1 CONNECTING ROD (317082) 3690 RON 32 1 1 RETAINING RING FOR D14 (10 PCS) (939543) 2683 RON 33 1 4 SEAL LOCK HEX. SOCKET BOLT M6X55 (301567) 2683 RON 34 1 1 CRANK CASE (324035) 39145 RON 35 1 2 SEAL LOCK HEX. SOCKET HD. BOLT M6X35 (324056) 2236 RON 36 1 4 SEAL LOCK HEX. SOCKET HD. BOLT M5X16 (990079) 1453 RON 37 1 1 CRANK COVER (324037) 10289 RON 38 1 1 CRANK SHAFT (317078) 34112 RON 39 1 1 FEATHER KEY 3X3X10 (940533) 1453 RON 40 1 2 SEAL LOCK HEX. SOCKET HD. BOLT M5X14 (OLD 315636) (984509) 1453 RON 41 1 1 BEARING COVER (985443) 382 RON 42 1 1 BALL BEARING 6204DDUCMPS2S (6204DD) 5927 RON 43A 1 1 O-RING (I.D. 74.5) (326257) 3242 RON 44 1 1 BACK COVER (324038) 14763 RON 45 1 3 HEX.SOCKET HD.BOLT M5X12 (998471) 1453 RON 46 1 1 - Indisponibil 47 1 1 BOLT M8 (317107) 3242 RON 48 1 2 HANDLE HOLDER (B) (317106) 3242 RON 49 1 2 HANDLE HOLDER (A) (317105) 4025 RON 50 1 1 317103 (317103) Indisponibil Indisponibil 51 1 1 GRIP (317108) 6598 RON 52 1 1 OIL SEAL (995403) 2348 RON 53 1 1 DISTANCE RING (C) (995402) 6822 RON 54 1 1 FIRST GEAR (317080) 25612 RON 55 1 1 NEEDLE BEARING NTN BK1512 (985442) 6374 RON 56 1 1 324048 (324048) 37468 RON 57 1 1 BALL BEARING 6203DDUCMAV2S (6203DD) 5368 RON 58 1 1 BEARING WASHER (992841) 1453 RON 59 1 1 FAN (996370) 10065 RON *60 1 1 360691U - Indisponibil *60 1 1 360691E (360691E) 74266 RON 61 1 1 FAN GUIDE (305610) 8388 RON 62 1 2 HEX.HD. TAPPING SCREW D5X50 (953121) 894 RON *63 1 1 340608G - Indisponibil *63 1 1 340608E (340608E) 25723 RON 64 1 2 BRUSH TERMINAL (945932) Indisponibil Indisponibil 65 1 1 BEARING WASHER (944954) 1453 RON 66 1 1 BALL BEARING 6201DDUCMAV2S (6201DD) 4361 RON 67 1 1 324055 (324055) 78180 RON 68 1 2 BRUSH CAP (940540) 1229 RON 69 1 2 CARBON BRUSH A.S. TYPE (OLD 937943Z) (999074) 6710 RON 70 1 2 BRUSH HOLDER (956984) 6374 RON 71 1 2 HEX.SOCKET SET SCREW M5X8 (938477) 1453 RON 72 1 1 INTERNAL WIRE 235L (324122) 2236 RON 73 1 2 - Indisponibil 74 1 1 CONNECTOR 50091 (10 PCS) (OLD 939557) (959140) 2236 RON 75 1 1 NOISE SUPPRESSOR (994273) Indisponibil Indisponibil 76 1 1 SUPPORT (B) (317492) 2236 RON 77 1 1 TAIL COVER (324041) 10960 RON 78 1 2 SEALLOCK HEX.SOCKET HD.BOLT M5X22 (317245) 2236 RON 79 1 1 SLEEVE (B) (324045) 3242 RON 80 1 1 - Indisponibil 81 1 1 - Indisponibil 82 1 1 CRANK CASE COVER (324036) 14763 RON 83 1 1 - Indisponibil 84 1 1 HANDLE PACKING (A) (324046) 4025 RON 85 1 8 HANDLE DAMPER (310124) Indisponibil Indisponibil 86 1 2 TRANSATORY UNIT (310123) 7828 RON 87 1 1 WASHER M4 (10 PCS) (949423) 894 RON 88 1 1 SWITCH B (1P SCREW TYPE ) W/LOCK (306143) 8052 RON 89 1 1 HANDLE (A) (324042) 16217 RON 90 1 4 DISTANCE PIECE (B) (991711) 1453 RON 91 1 4 SEAL LOCK HEX. SOCKET HD. BOLT M5X12 (991690) 1453 RON 92 1 1 HANDLE PACKING (B) (324047) 7828 RON 93 1 1 HANDLE (B) (324043) 15658 RON 94 1 1 - Indisponibil 95 1 1 PILLAR TERMINAL (OLD 938307Z/512-31870-20)) (938307) 2571 RON 96 1 1 INTERNAL WIRE (981974) 2236 RON 97 1 1 TERMINAL (980063) 1117 RON 98 1 3 TAPPING SCREW D4X25 (W/FLANGE) (307028) 1453 RON 99 1 1 CONNECTOR 50092 (10 PCS) (OLD 939558) (959141) 382 RON 100 1 2 TAPPING SCREW D4X16 (W/FLANGE) (984750) 1117 RON *101 1 1 CORD CLIP (960266) 894 RON *101 1 1 CORD CLIP (981987Z) 1453 RON 102 1 1 CORD ARMOR D8.8 (953327) Indisponibil Indisponibil *103 1 1 500390Z - Indisponibil *103 1 1 CORD FOR SWISS (500391Z) 27513 RON *103 1 1 500434Z - Indisponibil *103 1 1 500487Z - Indisponibil 104 1 1 DAMPER (C) (324130) 5368 RON 501 1 1 313471 - Indisponibil 502 1 1 HEX.BAR WRENCH 6MM (872422) 1117 RON 503 1 1 PLASTIC CARRYING CASE (324049) 54469 RON 601 1 1 GREASE (FG-6A) (30G) (4966375124375) Indisponibil Indisponibil 602 1 1 GREASE FOR HAMMER DRILL (JF-375) (70G) (308471) 8388 RON 603 1 1 GREASE FOR IMPACT DRILL (FG-6A) (500G) (980927) 4251 RON 604 1 1 313471 - Indisponibil 605 1 1 313472 - Indisponibil 606 1 1 313473 - Indisponibil 607 1 1 313474 - Indisponibil 608 1 1 313475 - Indisponibil 609 1 1 313476 - Indisponibil 610 1 1 313477 - Indisponibil 611 1 1 313478 - Indisponibil 612 1 1 313479 - Indisponibil Puteti cumpara H60MR in urmatoarele variante: Hitachi H60MR Hitachi H60MR
