Top » Piese de schimb » PIESE HITACHI » H60MC

H60MC
[H60MC]
H60MC
Click pentru a mari
Imagini suplimentare
H60MC
Click pentru a mari

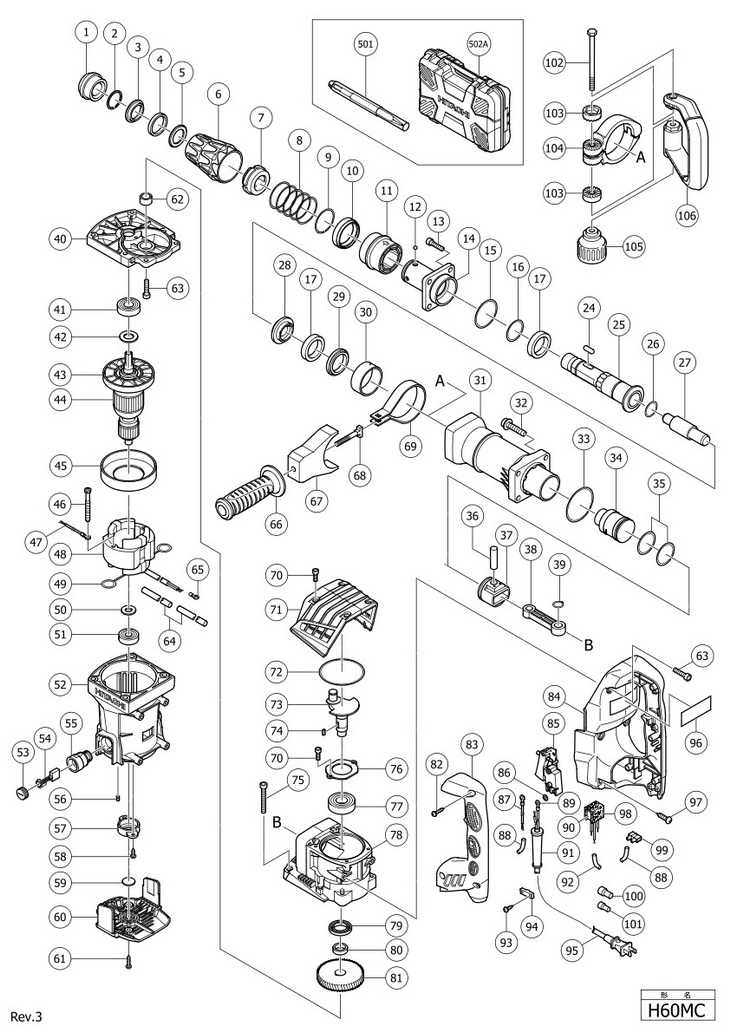

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 FRONT CAP (333211) 3690 RON
2 1 1 O-RING (I.D.26) (320846) 2236 RON
3 1 1 DAMPER HOLDER (A) (333685) 6262 RON
4 1 1 DAMPER (A) (330175) 3242 RON
5 1 1 DAMPER HOLDER (B) (333686) 5815 RON
6 1 1 GRIP (A) (333192) 3690 RON
7 1 1 NEEDLE HOLDER (320804) 17895 RON
8 1 1 SPRING (A) (333221) Indisponibil Indisponibil
9 1 1 STOPPER RING (333255) 1341 RON
10 1 1 BALL HOLDER (333687) 6039 RON
11 1 1 GRIP (B) (333197) 2460 RON
12 1 4 STEEL BALL D6.35 (10 PCS) (959150) 1788 RON
13 1 4 SEAL LOCK HEX. SOCKET HD. BOLT M8X25 (985479) 2683 RON
14 1 1 FRONT COVER (333195) 2848 RON
15 1 1 O-RING (S-56) (317119) 2236 RON
16 1 1 O-RING (S-32) (872767) 2236 RON
17 1 2 DAMPER (333217) 2795 RON
24 1 2 NEEDLE ROLLER D8X20 (331536) 1453 RON
25 1 1 RETAINER SLEEVE (333191) 32323 RON
26 1 1 O-RING (S-26) (872470) 2236 RON
27 1 1 SECOND HAMMER (333206) 9953 RON
28 1 1 HAMMER HOLDER (333216) 7269 RON
29 1 1 DAMPER WASHER (333218) 3690 RON
30 1 1 SLEEVE (333219) 6710 RON
31 1 1 CYLINDER CASE (333209) 43060 RON
32 1 4 HEX.SOCKET SCREW (990083) 1453 RON
33 1 1 O-RING (1AS-60) (956996) 297 RON
34 1 1 STRIKER (333205) 9170 RON
35 1 2 O-RING (A) FPM810 (985454) 3019 RON
36 1 1 PISTON PIN (301509) Indisponibil Indisponibil
37 1 1 PISTON (317084) Indisponibil Indisponibil
38 1 1 CONNECTING ROD (317082) 3690 RON
39 1 1 RETAINING RING FOR D14 (10 PCS) (939543) 2683 RON
40 1 1 333229 (333229) 22816 RON
41 1 1 BALL BEARING 6203DDUCMAV2S (6203DD) 5368 RON
42 1 1 BEARING WASHER (333222) 1341 RON
43 1 1 FAN (333196) 5368 RON
*44 1 1 360899C - Indisponibil
*44 1 1 360899G - Indisponibil
*44 1 1 360899D - Indisponibil
*44 1 1 ARMATURE 220-230 VOLT (360899E) 64535 RON
*44 1 1 360899F - Indisponibil
45 1 1 FAN GUIDE (333210) 2795 RON
46 1 2 HEX.HD. TAPPING SCREW D5X50 (953121) 894 RON
47 1 1 INTERNAL WIRE 235L (324122) 2236 RON
*48 1 1 340780C - Indisponibil
*48 1 1 340780G - Indisponibil
*48 1 1 340780D - Indisponibil
*48 1 1 340780E - Indisponibil
*48 1 1 340790E (340790E) 47981 RON
*48 1 1 340780F - Indisponibil
49 1 2 BRUSH TERMINAL (945932) Indisponibil Indisponibil
50 1 1 BEARING WASHER (944954) 1453 RON
51 1 1 BALL BEARING 6201DDUCMAV2S (6201DD) 4361 RON
52 1 1 333213 (333213) 19572 RON
53 1 2 BRUSH CAP (940540) 1229 RON
*54 1 1 CARBON BRUSH (1 PAIR) (999044) 382 RON
*54 1 1 CARBON BRUSH A.S. TYPE (OLD 937943Z) (999074) 6710 RON
55 1 2 BRUSH HOLDER (OLD 974567) (980487) 4137 RON
56 1 2 HEX.SOCKET SET SCREW M5X8 (938477) 1453 RON
57 1 1 BEARING HOLDER (328918) 6151 RON
58 1 2 TAPPING SCREW D4X16 (W/FLANGE) (984750) 1117 RON
59 1 1 DUST SEAL (333225) 1341 RON
60 1 1 TAIL COVER (333193) 3690 RON
61 1 2 TAPPING SCREW D5X20 (W/FLANGE) BLACK (302089) 1453 RON
62 1 1 NEEDLE BEARING NTN BK1512 (985442) 6374 RON
63 1 4 SEAL LOCK HEX. SOCKET HD. BOLT M6X25 (987707) 1453 RON
64 1 2 VINYL TUBE (I.D.9.5XTO.56X85) (326541) 2236 RON
65 1 1 TERMINAL M4.0 (10 PCS) (930804) 297 RON
66 1 1 SIDE HANDLE (330209) 8835 RON
67 1 1 MOUNT (333198) 4137 RON
68 1 1 HANDLE BOLT (333227) 8611 RON
69 1 1 BAND (333226) 488 RON
70 1 6 SEAL LOCK HEX. SOCKET HD. BOLT M5X16 (990079) 1453 RON
71 1 1 CRANK COVER (333194) 6151 RON
72 1 1 O-RING (I.D. 74.5) (326257) 3242 RON
73 1 1 CRANK SHAFT (333204) 18454 RON
74 1 1 FEATHER KEY 3X3X10 (940533) 1453 RON
75 1 4 SEAL LOCK HEX. SOCKET HD. BOLT M6X50 (986491) 1453 RON
76 1 1 BEARING COVER (333220) 2795 RON
77 1 1 BALL BEARING 6204DDUCMPS2S (6204DD) 5927 RON
78 1 1 CRANK CASE (333186) 2656 RON
79 1 1 OIL SEAL (995403) 2348 RON
80 1 1 DISTANCE RING (C) (995402) 6822 RON
81 1 1 FIRST GEAR (333207) 8835 RON
82 1 4 TAPPING SCREW D4X30 (W/FLANGE) BLACK (305490) 894 RON
83 1 1 HANDLE COVER (333189) 4137 RON
84 1 1 HANDLE (333187) 9953 RON
85 1 1 SWITCH B (1P SCREW TYPE ) W/LOCK (306143) 8052 RON
86 1 1 WASHER M4 (10 PCS) (949423) 894 RON
*87 1 1 INTERNAL WIRE (981974) 2236 RON
*87 1 1 INTERNAL WIRE FOR GBR (306681) 1453 RON
88 1 2 - Indisponibil
*89 1 1 TERMINAL (980063) 1117 RON
*89 1 1 TERMINAL M4.0 (10 PCS) (930804) 297 RON
90 1 1 NOISE SUPPRESSOR (325566) 5927 RON
*91 1 1 CORD ARMOR D8.8 (953327) Indisponibil Indisponibil
*91 1 1 CORD ARMOR D10.1 (OLD 994565) (938051) 894 RON
92 1 1 - Indisponibil
93 1 2 TAPPING SCREW D4X16 (W/FLANGE) (984750) 1117 RON
94 1 1 CORD CLIP (960266) 894 RON
*95 1 1 500390Z - Indisponibil
*95 1 1 500206Z - Indisponibil
*95 1 1 CORD (500406Z) 16553 RON
*95 1 1 500235Z - Indisponibil
*95 1 1 500434Z - Indisponibil
*95 1 1 CORD FOR GBR 110 VOLT (500467Z) 35790 RON
*95 1 1 CORD FOR GBR 230V (500446Z) 23934 RON
*95 1 1 500408Z - Indisponibil
*95 1 1 500457Z - Indisponibil
*95 1 1 CORD 5M 2 X 1,0 W/PLUG 13A/250V FOR GBR (500440Z) 13197 RON
*95 1 1 500475Z - Indisponibil
*95 1 1 500487Z - Indisponibil
96 1 1 - Indisponibil
97 1 4 TAPPING SCREW D6X30 (333364) 1341 RON
98 1 1 SUPPORT (B) (317492) 2236 RON
99 1 1 PILLAR TERMINAL (OLD 938307Z/512-31870-20)) (938307) 2571 RON
*100 1 2 CONNECTOR 50092 (10 PCS) (OLD 939558) (959141) 382 RON
*100 1 1 CONNECTOR 50092 (10 PCS) (OLD 939558) (959141) 382 RON
101 1 1 CONNECTOR 50091 (10 PCS) (OLD 939557) (959140) 2236 RON
102 1 1 BOLT M8 (333228) 3466 RON
103 1 2 HANDLE HOLDER (B) (333202) 1341 RON
104 1 1 334578 - Indisponibil
105 1 1 GRIP (333201) 2460 RON
106 1 1 SIDE HANDLE (333199) 6151 RON
501 1 1 313471 - Indisponibil
502A 1 1 PLASTIC CARRYING CASE (333190) 34336 RON
601 1 1 333214 (333214) 11854 RON
602 1 1 334579 - Indisponibil
603 1 1 GREASE (FG-6A) (30G) (4966375124375) Indisponibil Indisponibil
604 1 1 GREASE FOR HAMMER DRILL (JF-375) (70G) (308471) 8388 RON
605 1 1 GREASE FOR IMPACT DRILL (FG-6A) (500G) (980927) 4251 RON
606 1 1 313471 - Indisponibil
607 1 1 313472 - Indisponibil
608 1 1 313473 - Indisponibil
609 1 1 313474 - Indisponibil
610 1 1 313475 - Indisponibil
611 1 1 313476 - Indisponibil
612 1 1 313477 - Indisponibil
613 1 1 313478 - Indisponibil
614 1 1 313479 - Indisponibil
