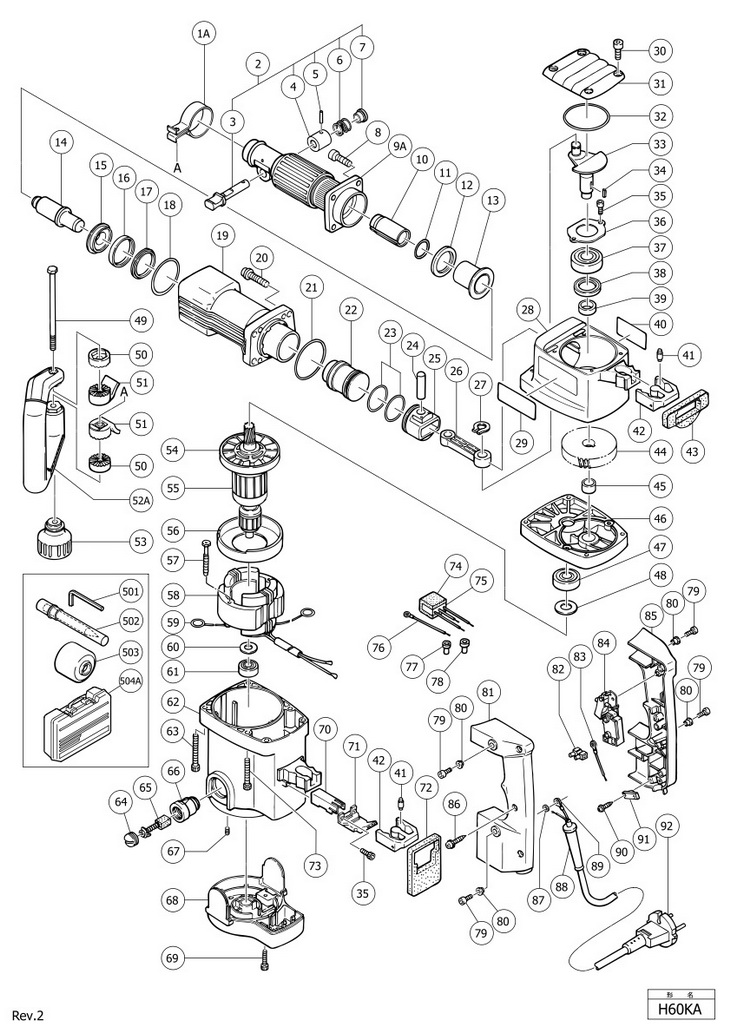

Top » Piese de schimb » PIESE HITACHI » H60KA H60KA [H60KA] Click pentru a mari Imagini suplimentare Click pentru a mari LISTA DE COMPONENTE: Numar Versiune Buc. in schema Denumire Pret/buc (Tva inclus) Cumpara 1A 1 1 BAND (OLD 317104) (320635) 5591 RON 2 1 1 310891 (310891) 4251 RON 3 1 1 STOP LEVER (302095) 23934 RON 4 1 1 SPRING CASE (993241) 12079 RON 5 1 1 NEEDLE ROLLER D4X20 (943364) 1453 RON 6 1 1 STOPPER SPRING (302096) 297 RON 7 1 1 STOPPER SLEEVE (993243) 6598 RON 8 1 4 SEAL LOCK HEX. SOCKET HD. BOLT M8X25 (985479) 2683 RON 9A 1 1 319109 (319109) 146072 RON 10 1 1 SLEEVE (319110) 18789 RON 11 1 1 O-RING (S-26) (872470) 2236 RON 12 1 1 DAMPER (B) (317094) 5368 RON 13 1 1 HAMMER HOLDER (B) (317092) 22592 RON 14 1 1 SECOND HAMMER (319111) 14092 RON 15 1 1 HAMMER HOLDER (A) (317091) 13197 RON 16 1 1 DAMPER (317093) 5368 RON 17 1 1 DAMPER WASHER (317095) 8835 RON 18 1 1 O-RING (S-56) (317119) 2236 RON 19 1 1 CYLINDER CASE (317085) 129071 RON 20 1 4 HEX.SOCKET SCREW (990083) 1453 RON 21 1 1 O-RING (1AS-60) (956996) 297 RON 22 1 1 STRIKER (301510) 18454 RON 23 1 2 O-RING (A) FPM810 (985454) 3019 RON 24 1 1 PISTON PIN (301509) Indisponibil Indisponibil 25 1 1 PISTON (317084) Indisponibil Indisponibil 26 1 1 CONNECTING ROD (317082) 3690 RON 27 1 1 RETAINING RING FOR D14 (10 PCS) (939543) 2683 RON 28 1 1 CRANK CASE (317083) 44290 RON 29 1 1 - Indisponibil 30 1 4 SEAL LOCK HEX. SOCKET HD. BOLT M5X16 (990079) 1453 RON 31 1 1 CRANK COVER (317079) 8276 RON 32 1 1 O-RING (993195) 2348 RON 33 1 1 CRANK SHAFT (317078) 34112 RON 34 1 1 FEATHER KEY 3X3X10 (940533) 1453 RON 35 1 4 SEAL LOCK HEX. SOCKET HD. BOLT M5X14 (OLD 315636) (984509) 1453 RON 36 1 1 BEARING COVER (985443) 382 RON 37 1 1 BALL BEARING 6204DDUCMPS2S (6204DD) 5927 RON 38 1 1 OIL SEAL (995403) 2348 RON 39 1 1 DISTANCE RING (C) (995402) 6822 RON 40 1 1 - Indisponibil 41 1 8 HANDLE DAMPER (310124) Indisponibil Indisponibil 42 1 2 TRANSATORY UNIT (310123) 7828 RON 43 1 1 HANDLE PACKING (A) (317101) 3242 RON 44 1 1 FIRST GEAR (317080) 25612 RON 45 1 1 NEEDLE BEARING NTN BK1512 (985442) 6374 RON 46 1 1 317081 (317081) 40823 RON 47 1 1 BALL BEARING 6203DDUCMAV2S (6203DD) 5368 RON 48 1 1 BEARING WASHER (992841) 1453 RON 49 1 1 BOLT M8 (317107) 3242 RON 50 1 2 HANDLE HOLDER (B) (317106) 3242 RON 51 1 2 HANDLE HOLDER (A) (317105) 4025 RON 52A 1 1 317103 (317103) Indisponibil Indisponibil 53 1 1 GRIP (317108) 6598 RON 54 1 1 FAN (996370) 10065 RON *55 1 1 360486C - Indisponibil *55 1 1 ARMATURE 230 VOLT (360486E) 162961 RON *55 1 1 ARMATURE 240 VOLT (360486F) 162961 RON 56 1 1 FAN GUIDE (305610) 8388 RON 57 1 2 HEX.HD. TAPPING SCREW D5X50 (953121) 894 RON *58 1 1 STATOR 110 VOLT (340430C) 44290 RON *58 1 1 STATOR 230 VOLT (340430E) 44290 RON *58 1 1 @ STATOR 240 VOLT (340430F) 44290 RON 59 1 2 BRUSH TERMINAL (945932) Indisponibil Indisponibil 60 1 1 BEARING WASHER (944954) 1453 RON 61 1 1 BALL BEARING 6201DDUCMAV2S (6201DD) 4361 RON 62 1 1 317128 (317128) 57824 RON 63 1 4 SEAL LOCK HEX. SOCKET BOLT M6X55 (301567) 2683 RON 64 1 2 BRUSH CAP (940540) 1229 RON 65 1 2 CARBON BRUSH A.S. TYPE (OLD 937943Z) (999074) 6710 RON 66 1 2 BRUSH HOLDER (956984) 6374 RON 67 1 2 HEX.SOCKET SET SCREW M5X8 (938477) 1453 RON 68 1 1 TAIL COVER (317086) 7828 RON 69 1 2 SEALLOCK HEX.SOCKET HD.BOLT M5X22 (317245) 2236 RON 70 1 1 SLEEVE (317099) 2236 RON 71 1 1 INTERNAL WIRE HOLDER (310424) 6151 RON 72 1 1 HANDLE PACKING (B) (317102) 5368 RON 73 1 2 SEAL LOCK HEX. SOCKET HD. BOLT M6X45 (986940) 1453 RON 74 1 1 SUPPORT (B) (317492) 2236 RON 75 1 1 NOISE SUPPRESSOR (994273) Indisponibil Indisponibil 76 1 1 INTERNAL WIRE (990861) 1453 RON 77 1 1 CONNECTOR 50091 (10 PCS) (OLD 939557) (959140) 2236 RON 78 1 1 CONNECTOR 50092 (10 PCS) (OLD 939558) (959141) 382 RON 79 1 4 SEAL LOCK HEX. SOCKET HD. BOLT M5X12 (991690) 1453 RON 80 1 4 DISTANCE PIECE (B) (991711) 1453 RON 81 1 1 HANDLE (B) (317097) 9282 RON 82 1 1 PILLAR TERMINAL (OLD 938307Z/512-31870-20)) (938307) 2571 RON 83 1 1 INTERNAL WIRE (981974) 2236 RON 84 1 1 SWITCH B (1P SCREW TYPE ) W/LOCK (306143) 8052 RON 85 1 1 HANDLE (A) (317096) 9842 RON 86 1 3 TAPPING SCREW D4X25 (W/FLANGE) (307028) 1453 RON 87 1 1 WASHER M4 (10 PCS) (949423) 894 RON *88 1 1 CORD ARMOR D10.1 (OLD 994565) (938051) 894 RON *88 1 1 CORD ARMOR D8.8 (953327) Indisponibil Indisponibil *89 1 1 TERMINAL (992810) 1453 RON *89 1 1 TERMINAL (980063) 1117 RON 90 1 2 TAPPING SCREW D4X16 (W/FLANGE) (984750) 1117 RON *91 1 1 CORD CLIP (960266) 894 RON *91 1 1 CORD CLIP (981987Z) 1453 RON *92 1 1 500390Z - Indisponibil *92 1 1 CORD FOR GBR 230V (500446Z) 23934 RON *92 1 1 500408Z - Indisponibil *92 1 1 CORD 4M 2 X 1.0 H07RN-F W/PLUG 16A CEE FORM 2P+E 110 VOLT (500465Z) 22144 RON *92 1 1 CORD FOR SWISS (500391Z) 27513 RON 501 1 1 HEX.BAR WRENCH 6MM (872422) 1117 RON 502 1 1 986947 - Indisponibil 503 1 1 DUST COVER (985468) 382 RON 504A 1 1 PLASTIC CARRYING CASE (327059) 57824 RON 601 1 1 GREASE (FG-6A) (30G) (4966375124375) Indisponibil Indisponibil 602 1 1 GREASE FOR HAMMER DRILL (JF-375) (70G) (308471) 8388 RON 603 1 1 GREASE FOR IMPACT DRILL (FG-6A) (500G) (980927) 4251 RON 604 1 1 986948 - Indisponibil 605 1 1 986949 - Indisponibil 606 1 1 986952 - Indisponibil 607 1 1 986953 - Indisponibil 608 1 1 986954 - Indisponibil 609 1 1 986950 - Indisponibil 610 1 1 986951 - Indisponibil
